Plan 29827RL
Comforting 3 Car Carriage House Plan - 699 Sq Ft
Heated S.F.
699
Beds
1
Baths
1
Stories
2
Cars
3
Plan Details

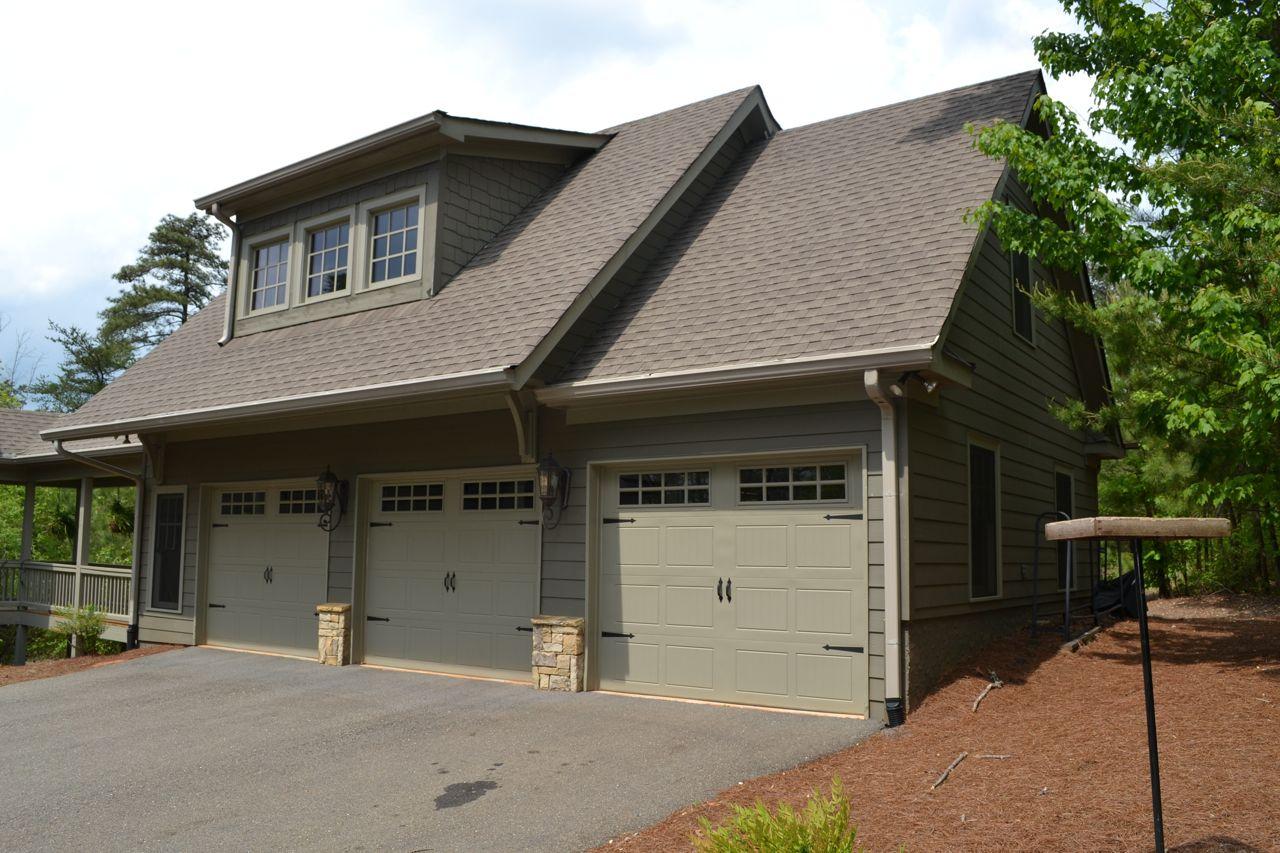

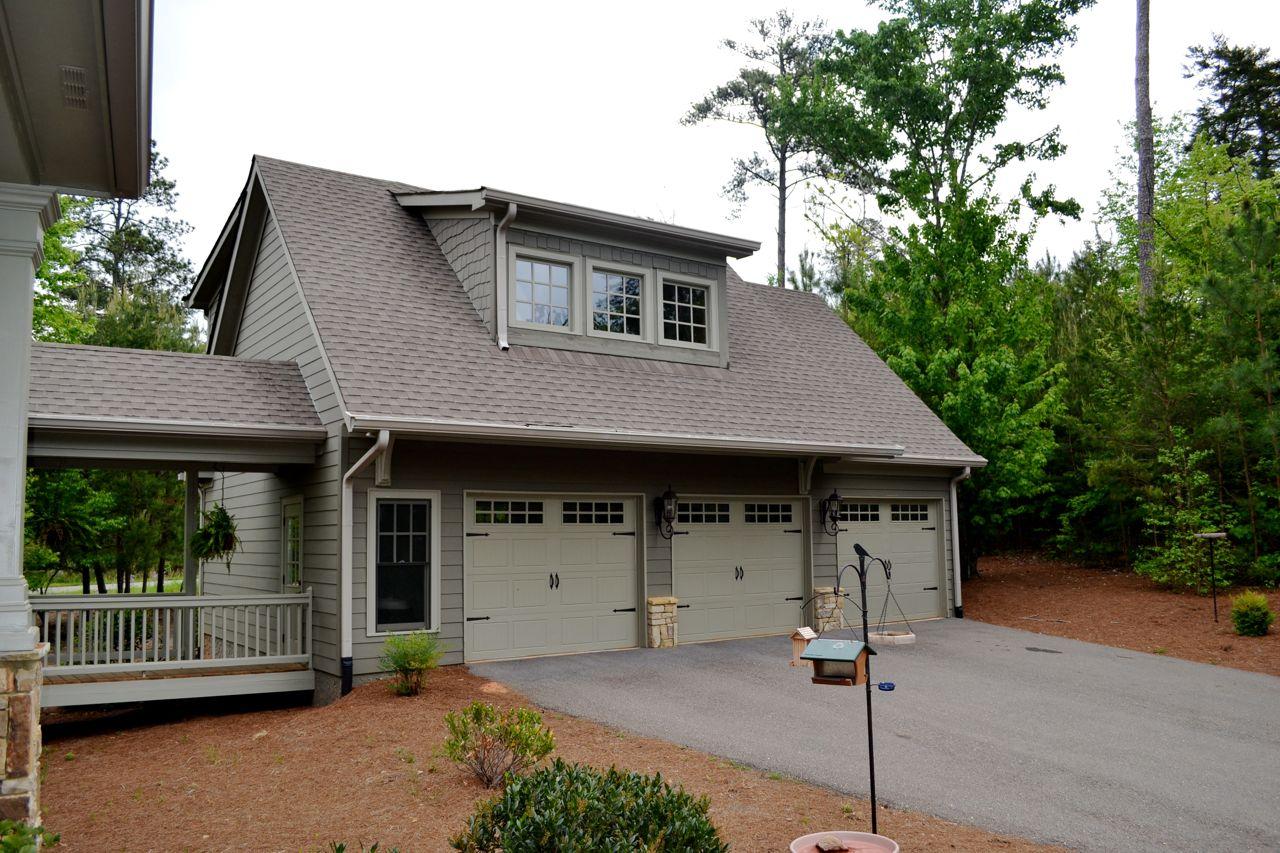

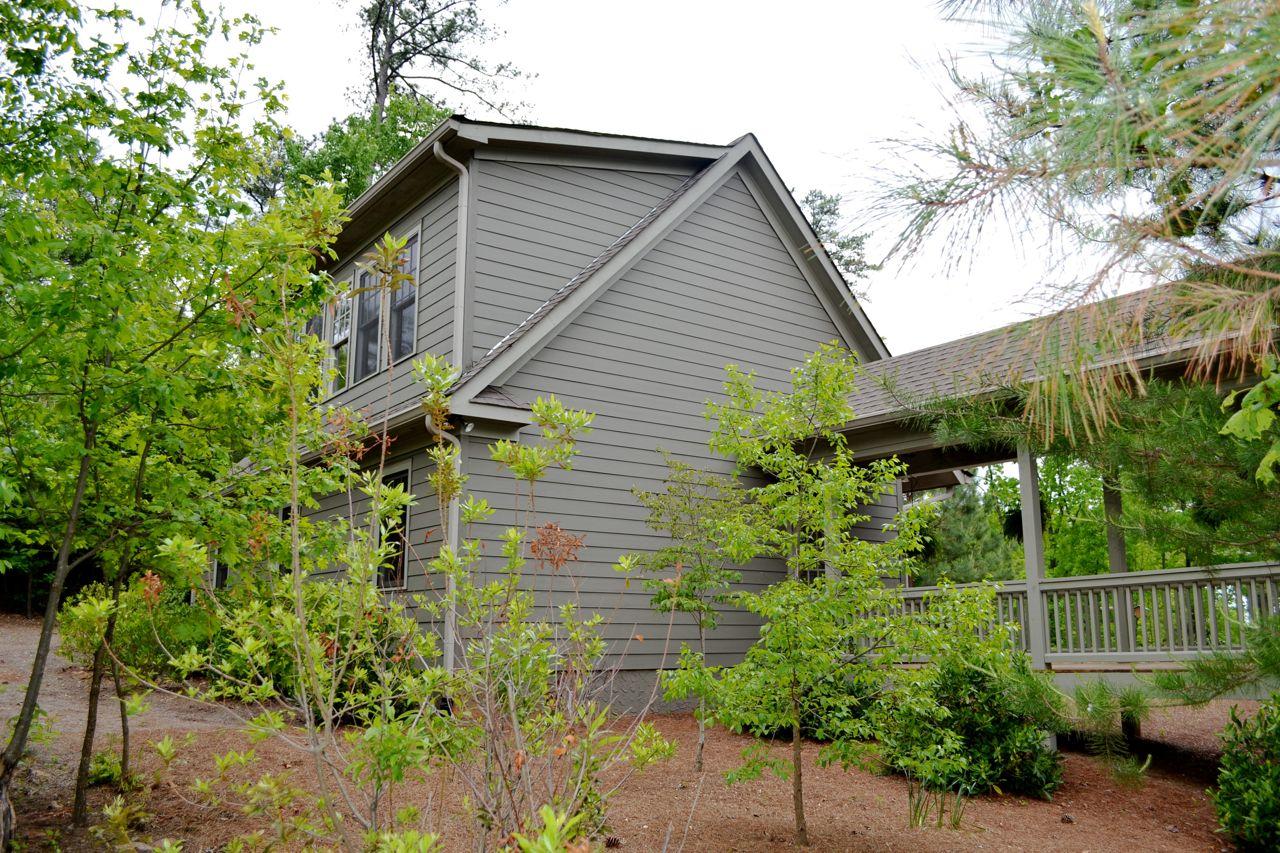

  • All the comforts of home can be found in this 699 square foot Craftsman garage carriage house plan.

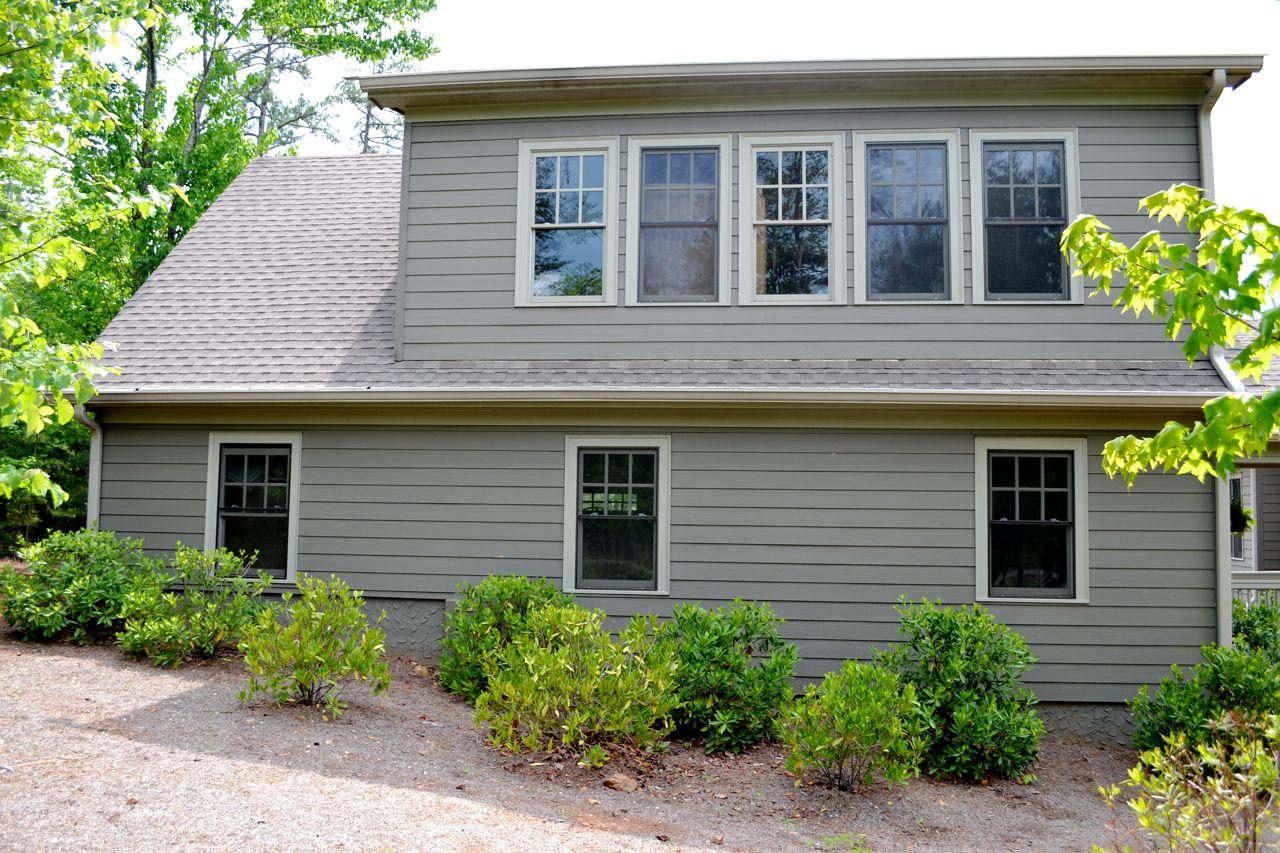

  • Whether you use it as a guest suite or an in-law apartment, occupants will appreciate the wide open space and views out the five evenly-spaced windows in back.
  • A walk-in closet, pantry and general storage areas should come in handy.

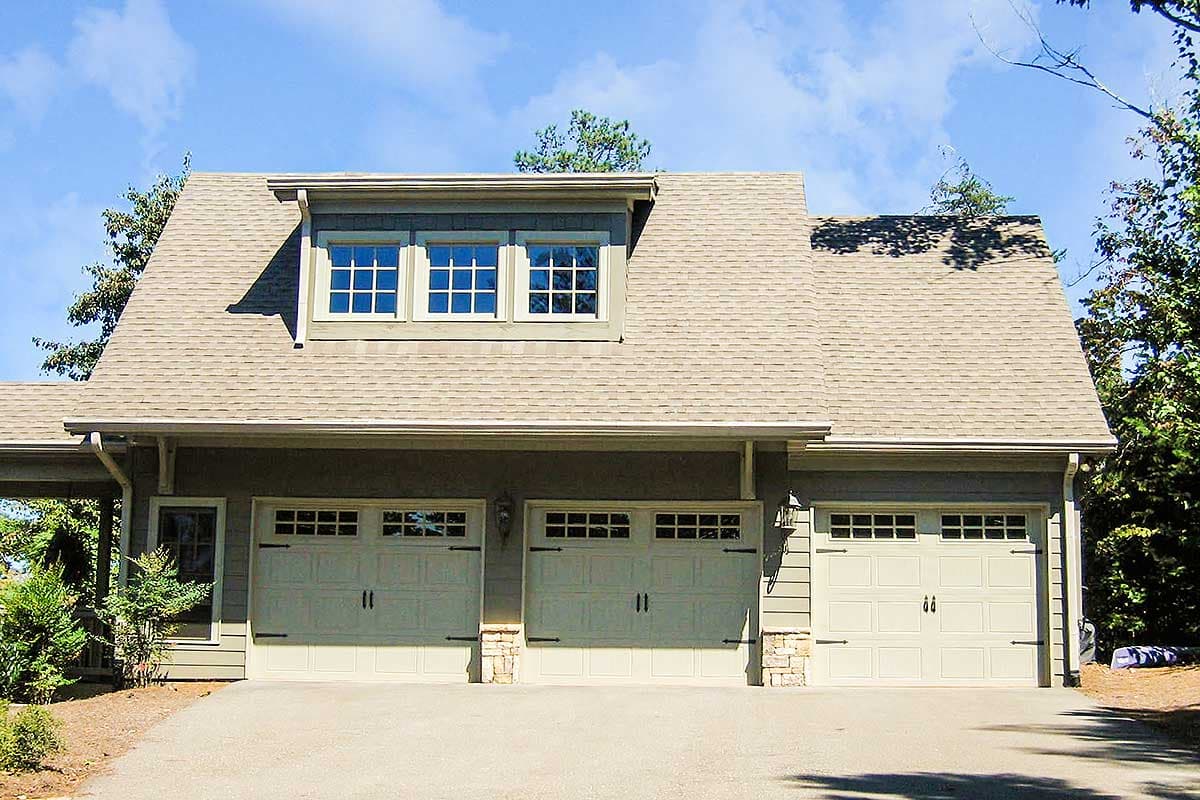

  • There is 878 square feet of parking space set behind three garage doors.
  • This carriage house plan comes with house plan 29826RL and is sold as a separate item here.
  • Related Plans: See these 3-car carriage house alternates - 29818RL and 29819RL.
What's Included

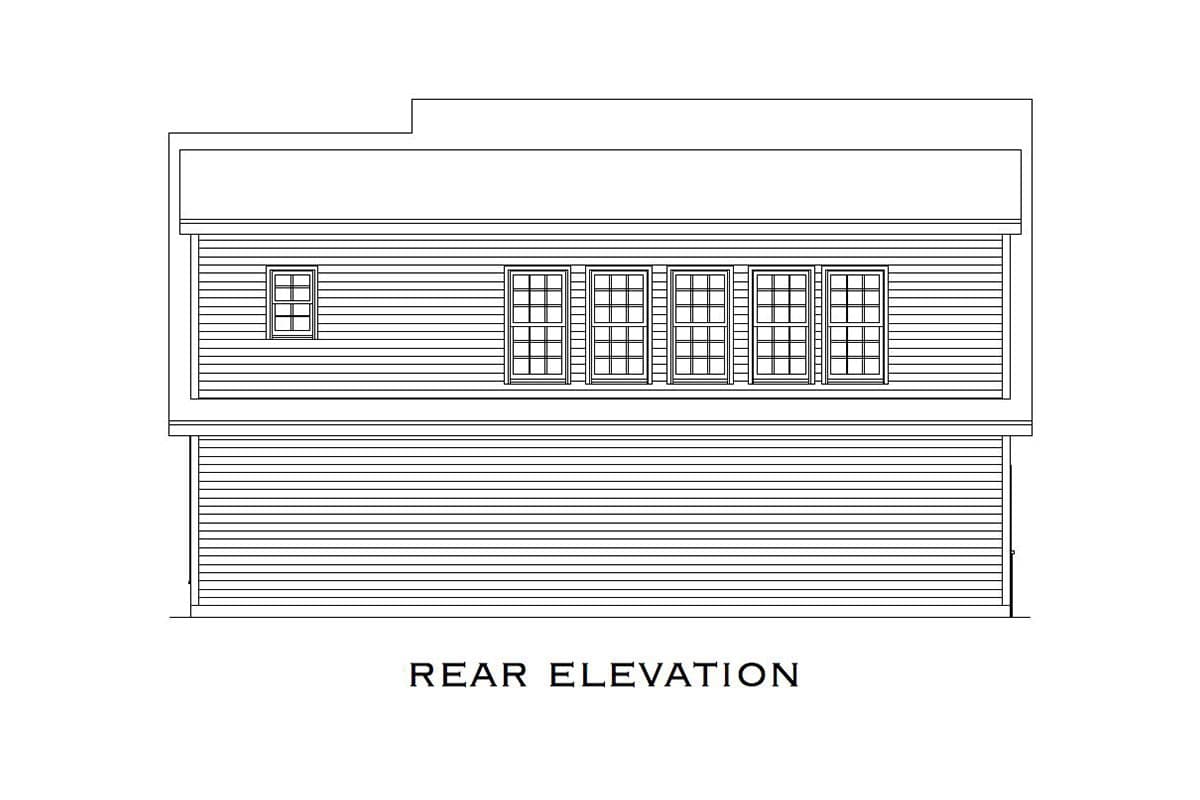

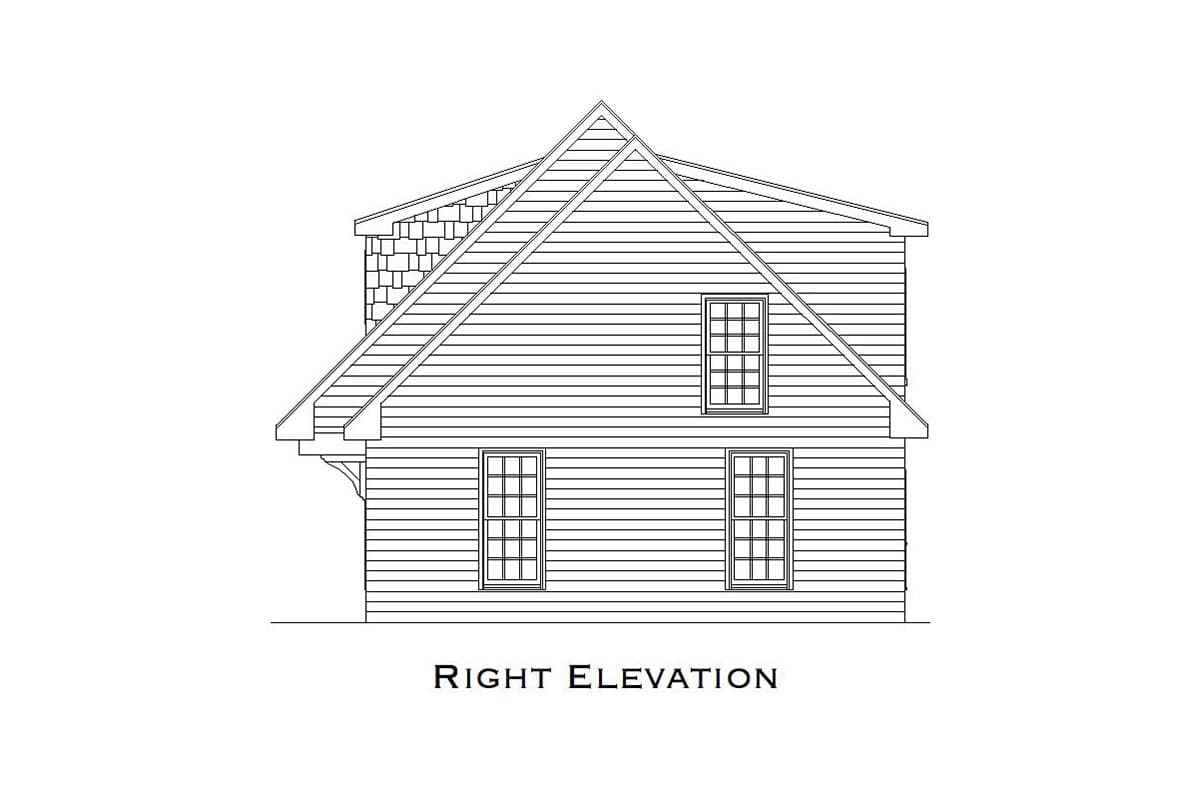

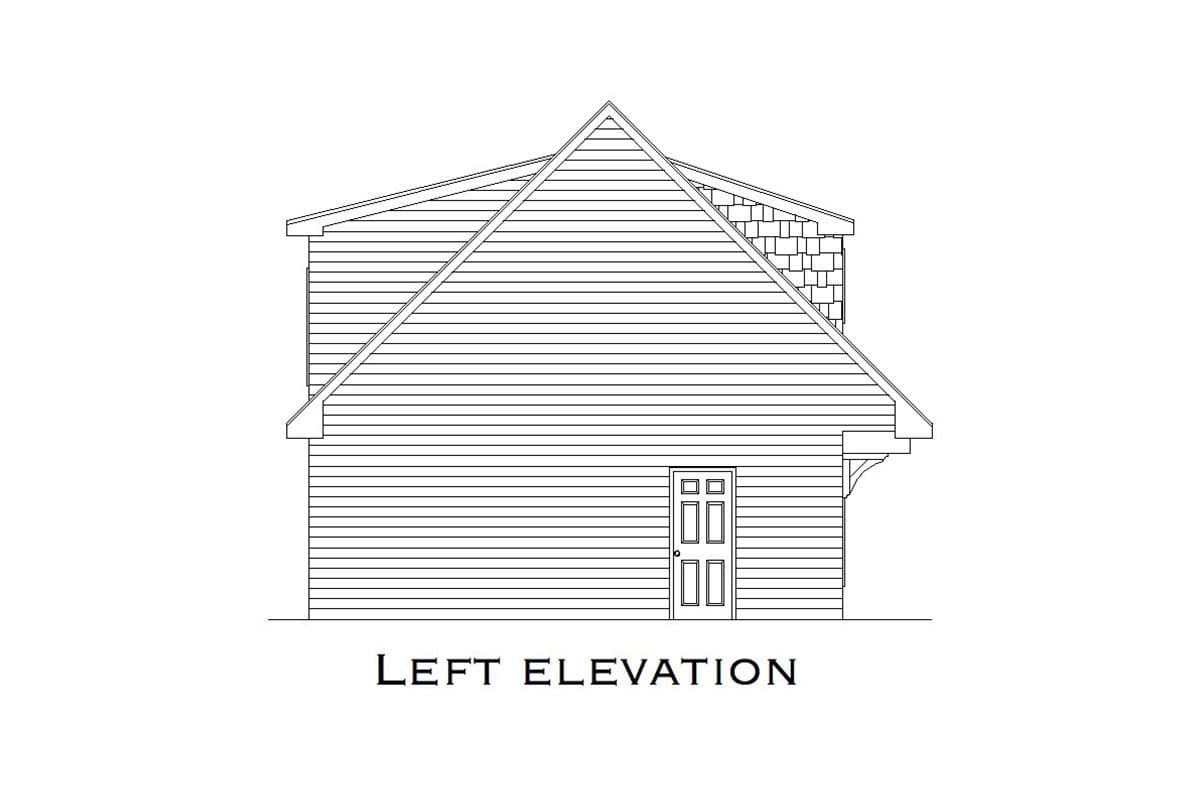

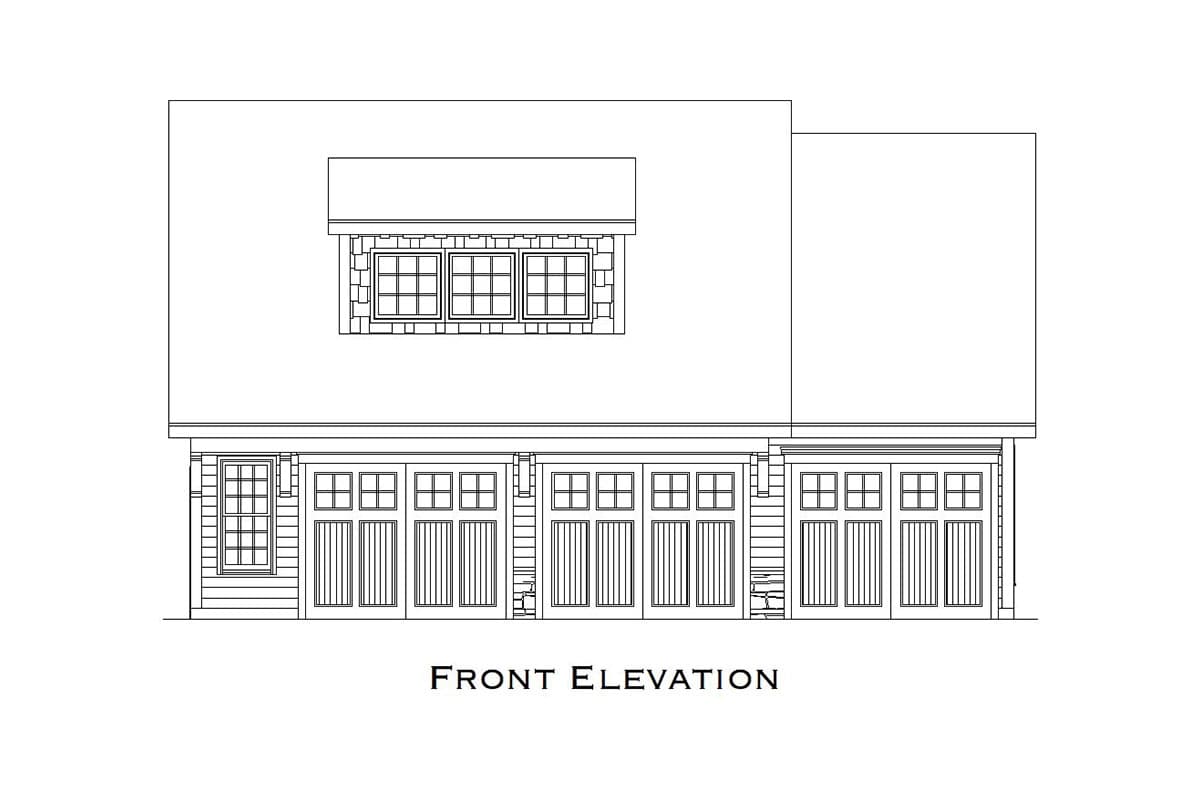

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section (Typical Wall, Stairs (if applicable))
  • Typical Details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Comforting 3 Car Carriage House Plan - 699 Sq Ft

  • 699

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

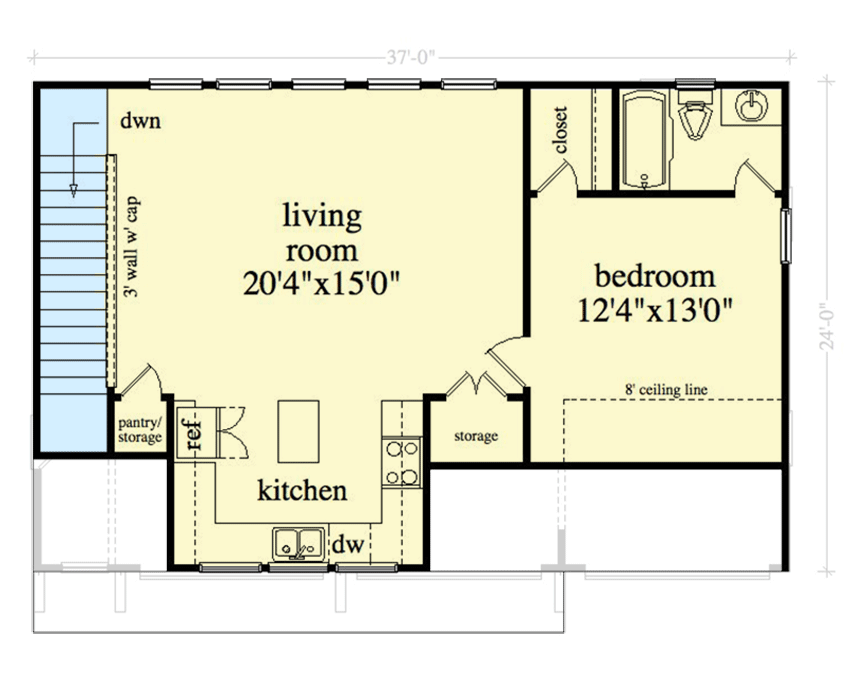

  • 2nd Floor

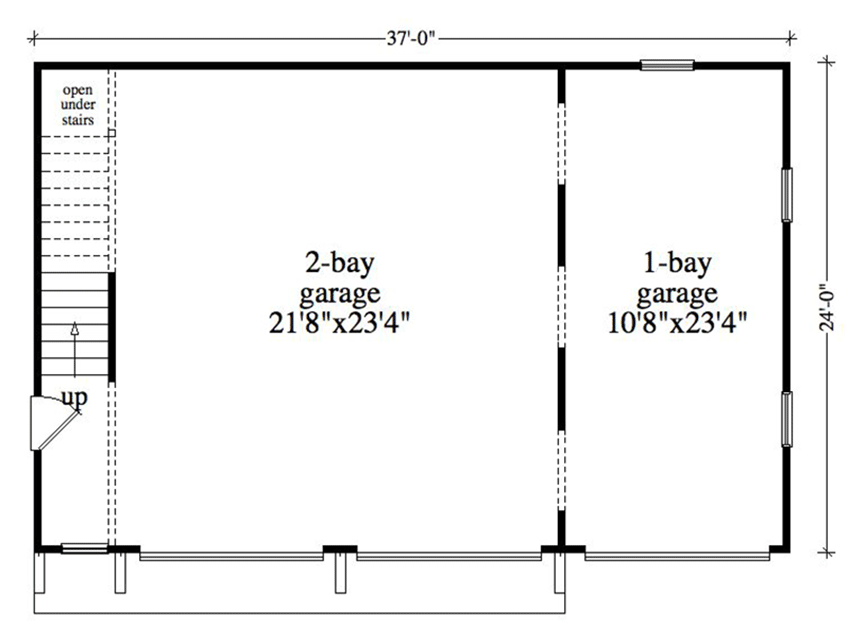

  • Garage Level

Plan Details

Square Footage Breakdown

  • Total: 699 sq. ft.
  • 1st Floor: 699 sq. ft.

Dimensions

  • Width: 37' 0"
  • Depth: 24' 0"
  • Max ridge height: 20' 5"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 878 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
