Plan 57279HA

Compact Cottage Home Plan

Heated S.F.

1,086

Beds

1

Baths

1.5

Stories

2

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

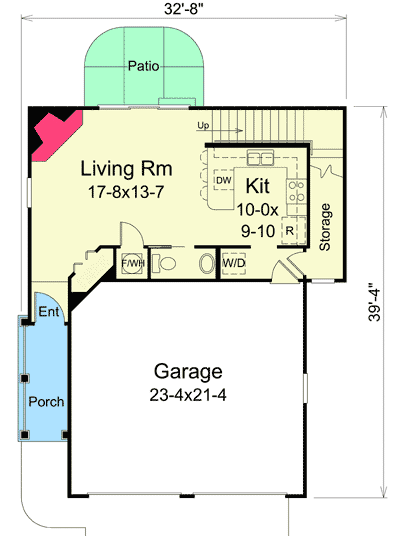

Compact Cottage Home Plan - 57279HA floor plan - Main Level

2nd Floor

Reverse Floor Plan

Compact Cottage Home Plan - 57279HA floor plan - 2nd Floor

Plan Details

This adorable Cottage home plan is compact yet comfortable.
The big living room has a corner fireplace that can be seen from the efficient U-shaped kitchen.
A washer/dryer closet and half bath plus extra storage add convenience.
The second floor is devoted to the master bedroom and a cozy loft area.

What's Included

Front Cover Sheet
Detailed Floor Plans
Foundation Plan
Roof Plan
Exterior Elevations
Interior Elevations
Cross Section
Mechanical – Shows location of furnace
Electrical – Shows location of outlets, switches and fixtures
Plumbing – Shows location of fixtures

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,086 sq. ft.

1st Floor:

591 sq. ft.

2nd Floor:

495 sq. ft.

Entry:

51 sq. ft.

Beds/Baths

Bedrooms:

1

Full bathrooms:

1

Half bathrooms:

1

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

32' 8"

Depth:

39' 4"

Max Ridge Height:

21' 6"

Garage

Type:

Attached

Area:

510 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch:

5 on 12

Secondary Pitch:

5 on 12

Framing Type:

Truss

Architectural Style

Special Features

Laundry - Main Level

Master Suite - 2nd Floor
