Compact Country House Plan

Plan sets include the following:

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Scroll

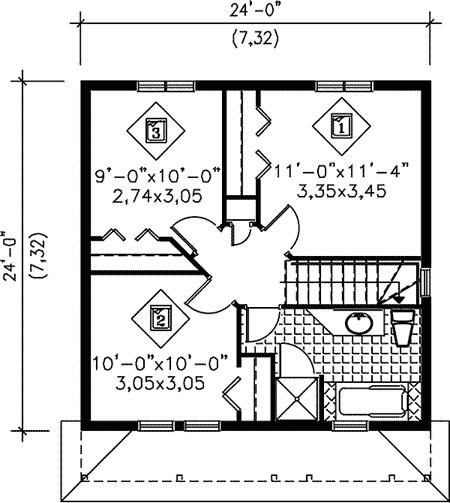

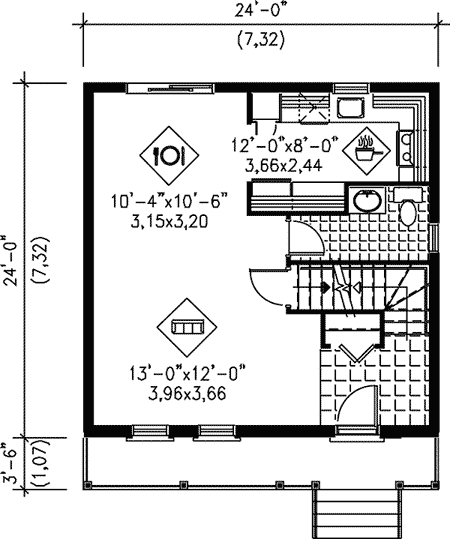

Compact Country House Plan 1,152 Heated s.f. 3 Beds 2 Baths 2 Floors Buy This Plan 5 Sets $769 8 Sets $816 PDF - Single-Build $1,007 CAD - Single-Build $1,564 View all purchase option online About This Plan For an alternate layout, see house plan 80031PM. Floor Plans Main Level 2nd Floor Plan Details Square Footage Breakdown Total Heated Area: 1,152 sq. ft. 1st Floor: 576 sq. ft. 2nd Floor: 576 sq. ft. Beds/Baths Bedrooms: 3 Full bathrooms: 1 Half bathrooms: 1 Foundation Type Standard Foundations: Basement Exterior Walls Standard Type(s): 2x6 Dimensions Width: 24' 0" Depth: 24' 0" Max ridge height: 34' 8" Ceiling Heights Floor / Height: First Floor / 8' 0" Second Floor / 8' 0" Roof Primary Pitch: 12 on 12 Framing Type: Truss
