Plan 680667VR

Compact Craftsman Shingle House Plan with Loft and Spacious Garage

Heated S.F.
1,200
Beds
1
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 680667VR

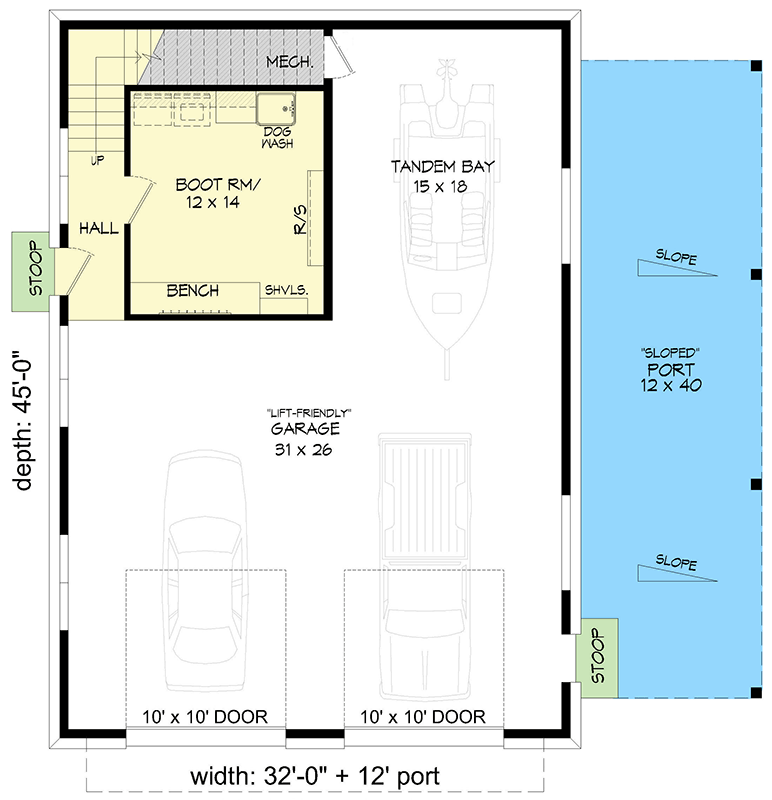

Floor Plan 1

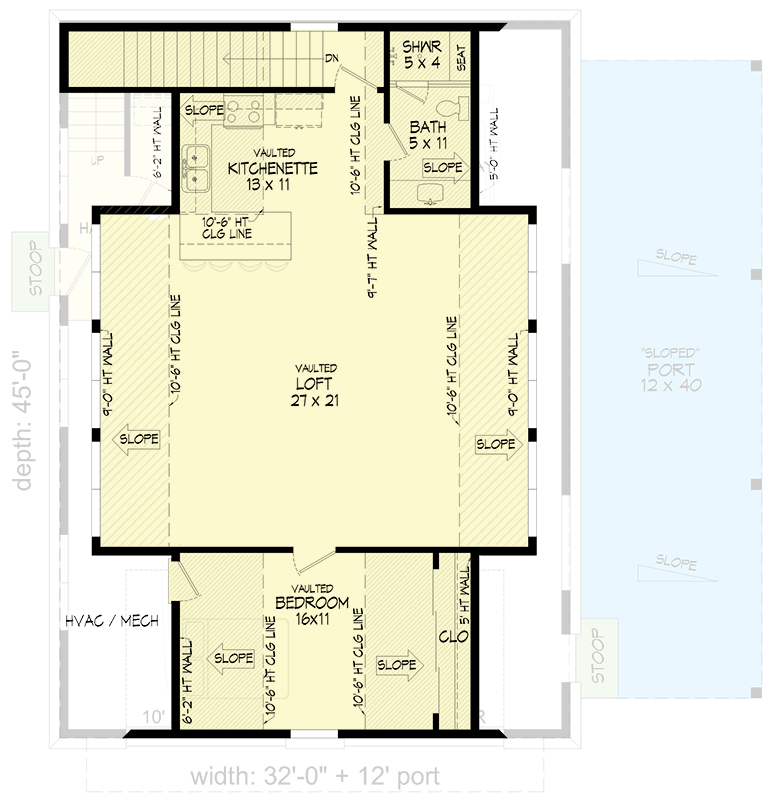

Floor Plan 2

Plan 680667VR

M-F 9am-5pm EST |

1-203-761-8500

Plan 680667VR: Compact Craftsman Shingle House Plan with Loft and Spacious Garage - Floor Plan - - Craftsman, Shingle

Plan 680667VR: Compact Craftsman Shingle House Plan with Loft and Spacious Garage - Floor Plan - - Craftsman, Shingle

Plan Details

  • This charming 1,200 sq ft Craftsman Shingle House Plan features 1 bedroom, 1 full bath, and an integrated 3-car garage offering 1,248 sq ft of space.
  • From the inviting covered patio, step into a functional first level complete with a mudroom and laundry, setting a practical tone for the home's efficient design.
  • The second floor hosts the primary living area, designed for comfort and privacy, distinct from the ground-level utility spaces.
  • The master suite is thoughtfully located upstairs, providing a private retreat, complemented by an open loft space for flexible use.
  • An expansive loft area upstairs provides versatile space perfect for a home office, creative studio, or additional relaxation zone.
  • Enjoy outdoor living on the generous 284 sq ft covered patio, ideal for morning coffee or evening unwinding.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

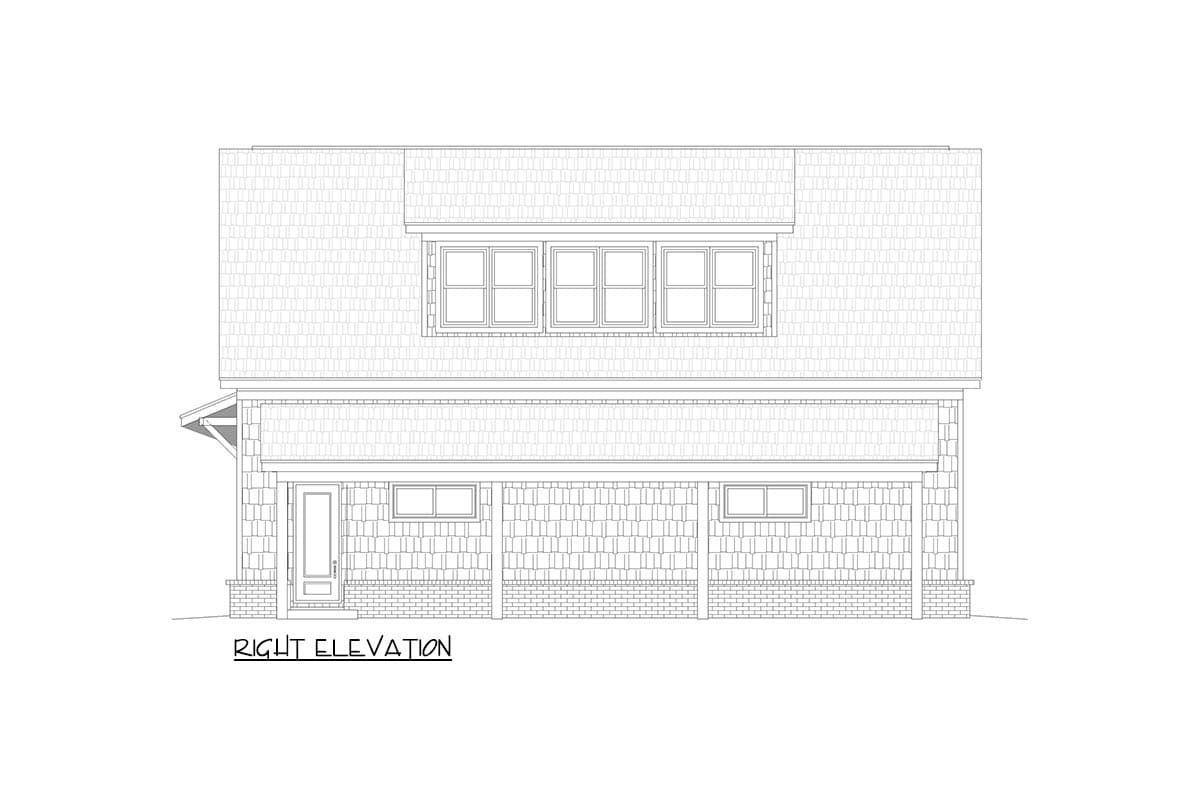

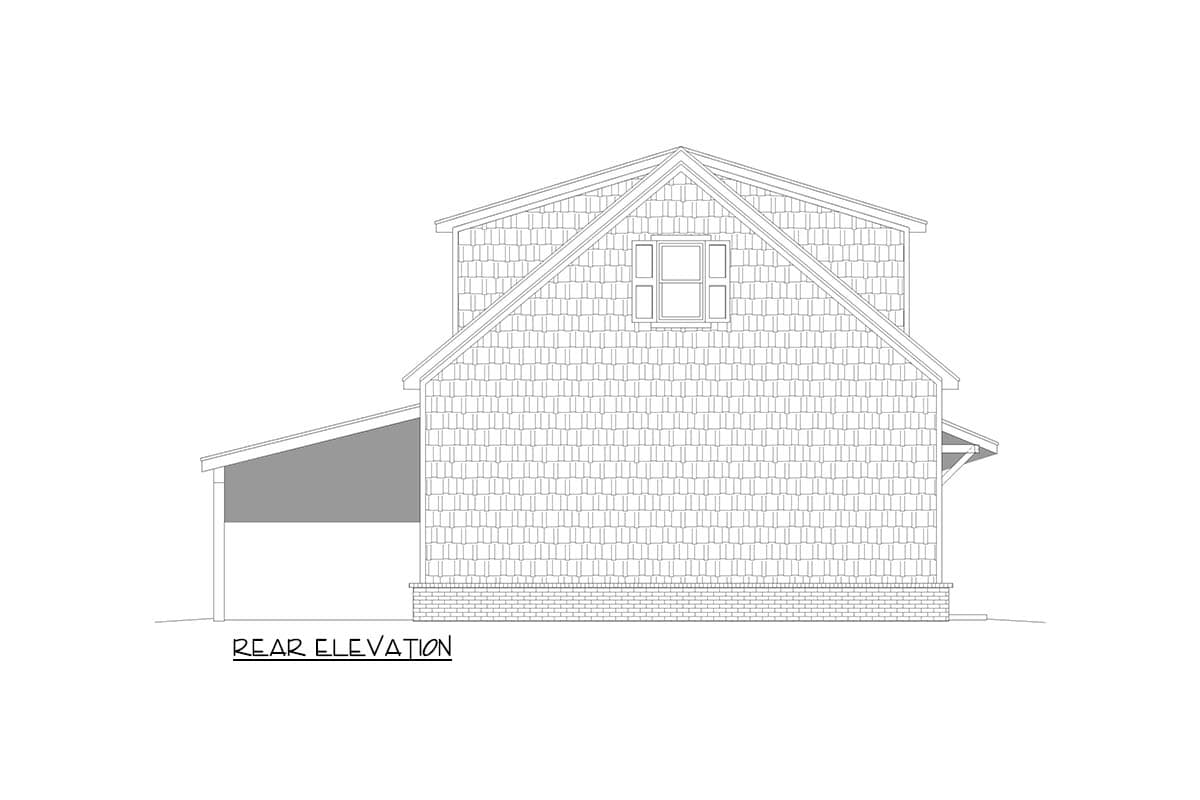

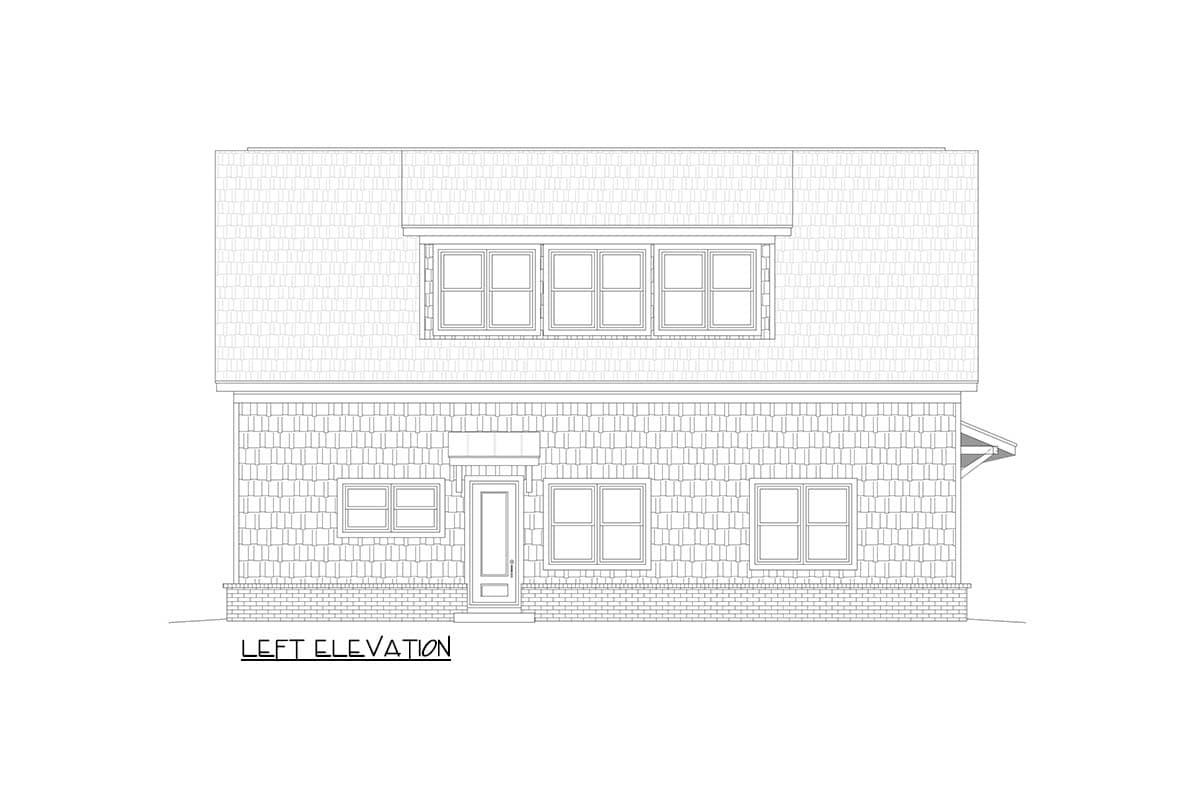

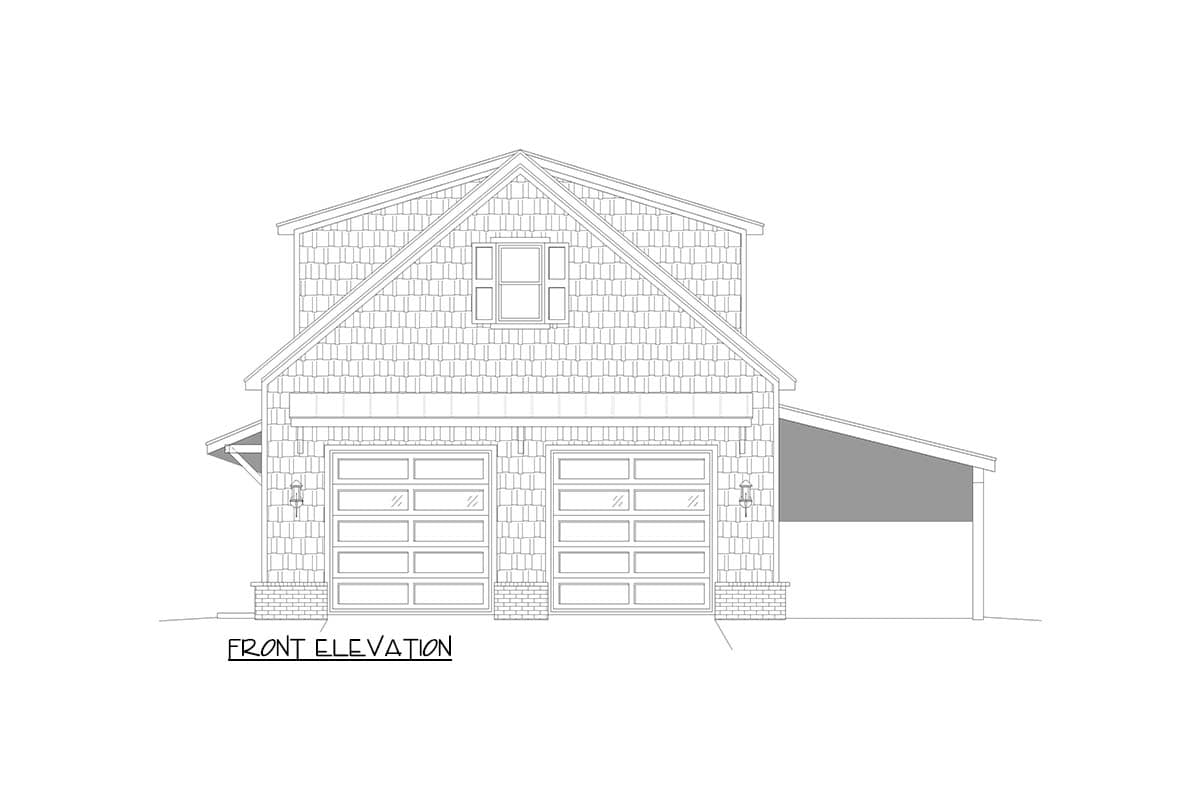

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,200 sq. ft.

1st Floor

192 sq. ft.

2nd Floor

1,008 sq. ft.

Covered Patio

284 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

45' 0"

Garage

Type

Detached

Area

1248 sq. ft.

Count

3 Cars

Entry Location

Front

Architectural Style

Craftsman

Shingle

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom

Square Footage Breakdown

Total Heated Area

1,200 sq. ft.

1st Floor

192 sq. ft.

2nd Floor

1,008 sq. ft.

Covered Patio

284 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

45' 0"

Garage

Type

Detached

Area

1248 sq. ft.

Count

3 Cars

Entry Location

Front

Architectural Style

Craftsman

Shingle

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom
