Plan 80785PM Compact Modern House Plan

1,088 2-3 1 1
Print
Compare
...

Compact Modern House Plan

Plan 80785PM

  • 1,088

    Heated s.f.

  • 2-3

    Beds

  • 1

    Baths

  • 1

    Stories

  • Horizontal siding and transom windows give this Modern house plan a nice boost in curb appeal.
  • The sunken foyer is just four steps away from the main living area that has a delightful open floor plan.
  • An island in the kitchen gives you extra counter space and storage, with three stools for family or guests to sit on.
  • The three bedrooms share a hall bathroom with both a tub abd shower.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

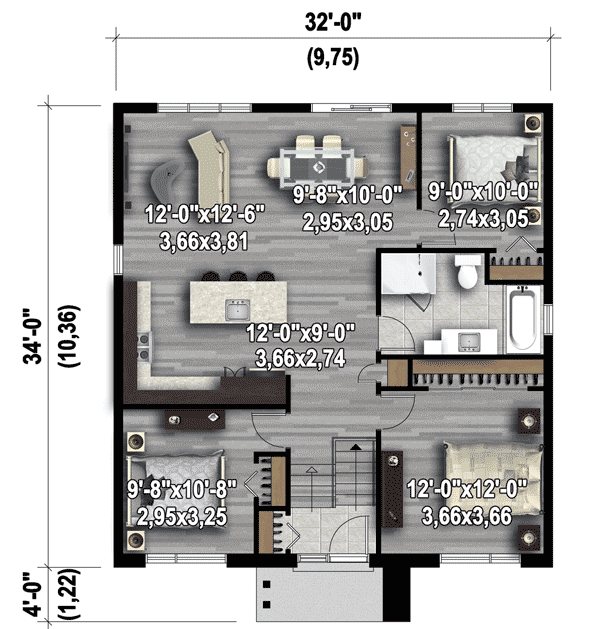

Compact Modern House Plan - 80785PM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,088 sq. ft.
  • 1st Floor: 1,088 sq. ft.
  • Entry: 46 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 34' 0"
  • Max ridge height: 21' 10"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Compact Modern House Plan

  • 1,088

    Heated s.f.

  • 2 - 3

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $716
  • 8 Sets $763
  • PDF - Single-Build $875
  • CAD - Single-Build $1,463
  • View all purchase option online

About This Plan

  • Horizontal siding and transom windows give this Modern house plan a nice boost in curb appeal.
  • The sunken foyer is just four steps away from the main living area that has a delightful open floor plan.
  • An island in the kitchen gives you extra counter space and storage, with three stools for family or guests to sit on.
  • The three bedrooms share a hall bathroom with both a tub abd shower.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,088 sq. ft.
  • 1st Floor: 1,088 sq. ft.
  • Entry: 46 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 34' 0"
  • Max ridge height: 21' 10"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Plan 80785PM
View this and more for this plan by visiting www.architechtecturaldesigns.com/80785PM
|
