Compact Modern House Plan

Plan 90262PD

  • 1,180

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • Great big glass windows fill the living room with light in this compact Modern house plan.
  • The sunken foyer leads up one step to the combination living, kitchen and dining room where you can see from one end of the house to the other.
  • All three bedrooms share a large hall bathroom that has both a shower and a tub.
  • An optional one car carport shelters your car.
  • It's good looks and compact size suit this home for a vacation getaway house.

Each plan set includes the following:

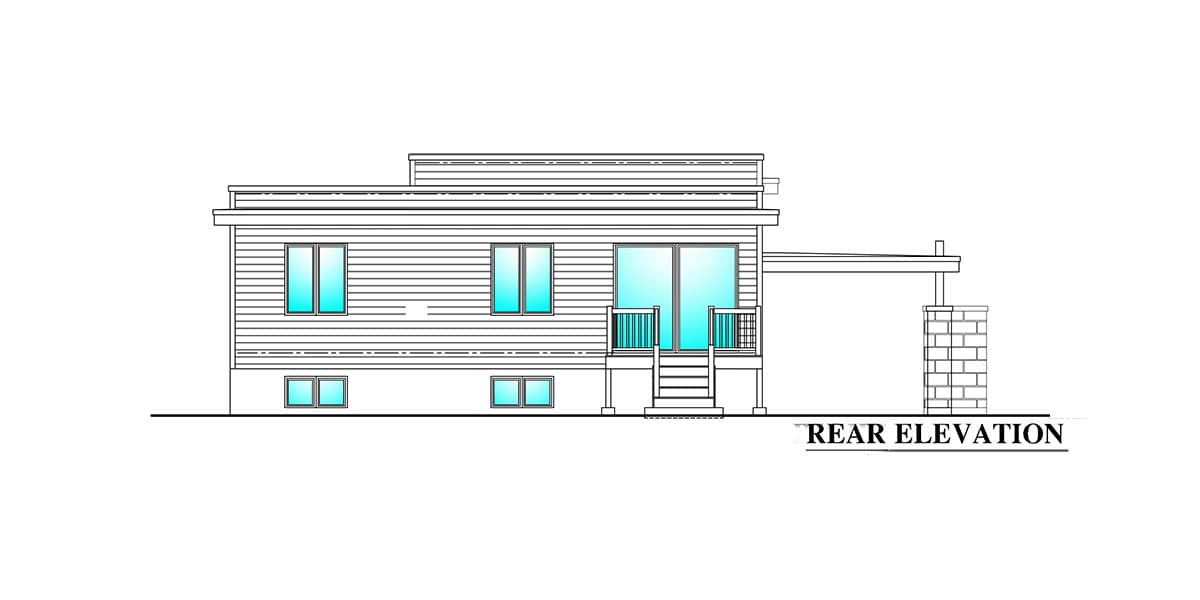

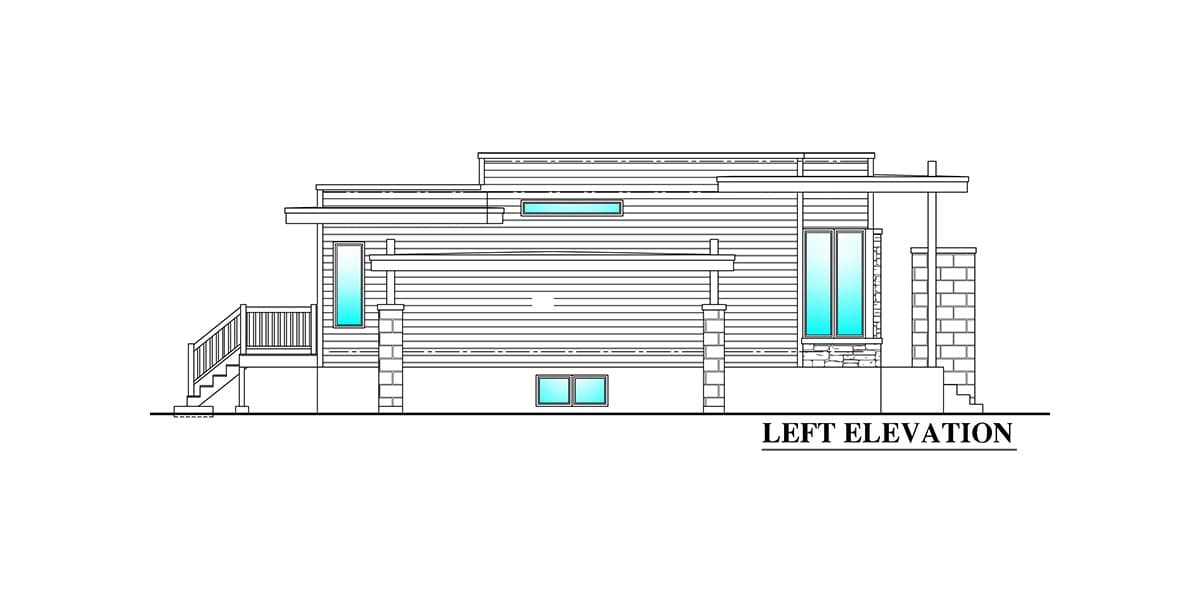

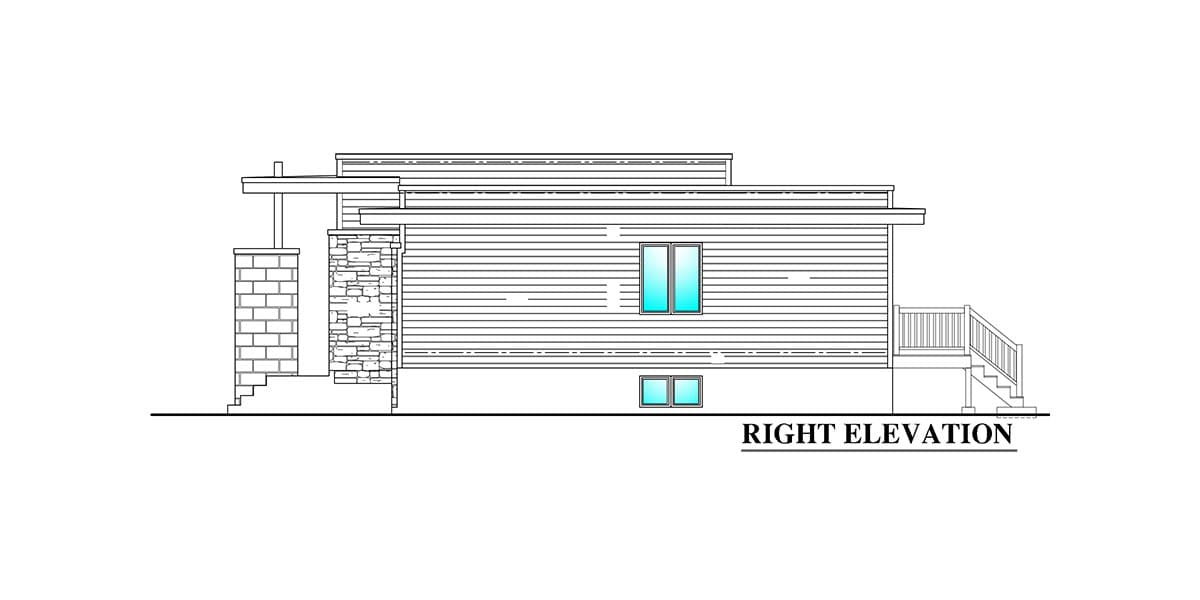

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

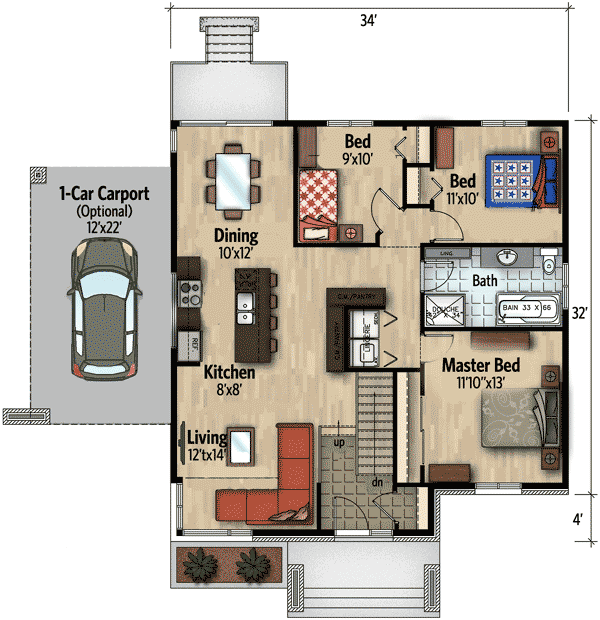

Compact Modern House Plan - 90262PD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,180 sq. ft.
  • 1st Floor: 1,180 sq. ft.
  • Porch, Rear: 50 sq. ft.
  • Porch, Front: 52 sq. ft.
  • Basement Unfinished: 1,180 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 36' 0"
  • Max ridge height: 16' 9"

Garage

  • Type: Carport
  • Area: 264 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Living Room Flat 10' 0"
Kitchen Flat 10' 0"

Roof Details

  • Primary Pitch: 0 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Compact Modern House Plan

  • 1,180

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $892
  • 8 Sets $935
  • PDF - Single-Build $1,273
  • CAD - Single-Build $1,897
  • View all purchase option online

About This Plan

  • Great big glass windows fill the living room with light in this compact Modern house plan.
  • The sunken foyer leads up one step to the combination living, kitchen and dining room where you can see from one end of the house to the other.
  • All three bedrooms share a large hall bathroom that has both a shower and a tub.
  • An optional one car carport shelters your car.
  • It's good looks and compact size suit this home for a vacation getaway house.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,180 sq. ft.
  • 1st Floor: 1,180 sq. ft.
  • Porch, Rear: 50 sq. ft.
  • Porch, Front: 52 sq. ft.
  • Basement Unfinished: 1,180 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 36' 0"
  • Max ridge height: 16' 9"

Garage

  • Type: Carport
  • Area: 264 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 0 on 12
  • Framing Type: Truss
