Compact Northwest Home Plan

Plan 90251PD

  • 1,315

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • A sunken foyer with air lock doors keeps the cold air out of the main home in the winter.
  • Climb two steps up to reach the main living area where the open layout makes the space seem huge.
  • An optional two way fireplace warms the living room and the master suite.
  • The hall bathroom is extra large and has two sinks plus both a tub and a shower.
  • This home can be built with either a single or double garage.
  • Related Plan: Get more room with house plan 90252PD (1,470 sq. ft.).

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

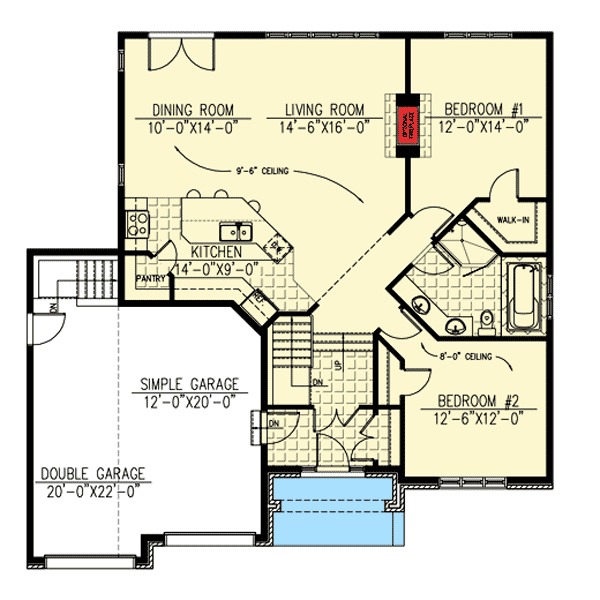

Compact Northwest Home Plan - 90251PD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,315 sq. ft.
  • 1st Floor: 1,315 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 47' 0"
  • Max ridge height: 23' 4"

Garage

  • Type: Attached
  • Area: 266 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Compact Northwest Home Plan

  • 1,315

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $892
  • 8 Sets $935
  • PDF - Single-Build $1,273
  • CAD - Single-Build $1,897
  • View all purchase option online

About This Plan

  • A sunken foyer with air lock doors keeps the cold air out of the main home in the winter.
  • Climb two steps up to reach the main living area where the open layout makes the space seem huge.
  • An optional two way fireplace warms the living room and the master suite.
  • The hall bathroom is extra large and has two sinks plus both a tub and a shower.
  • This home can be built with either a single or double garage.
  • Related Plan: Get more room with house plan 90252PD (1,470 sq. ft.).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,315 sq. ft.
  • 1st Floor: 1,315 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 47' 0"
  • Max ridge height: 23' 4"

Garage

  • Type: Attached
  • Area: 266 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 90251PD
View this and more for this plan by visiting www.architechtecturaldesigns.com/90251PD
|
Need Help? 800-854-7852
|
