Compact Starter House Plan

Plan 90039PD

  • 1,021

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • With its small square footage and compact footprint, this Traditional house plan makes a good starter home.
  • The whole first floor is all open concept to make the most of the square footage.
  • A bay window extends the living room and an air lock entry foyer keeps the cold air out in the winter.
  • Add the optional carport or garage on the right side if desired.
  • All three bedrooms are upstairs and they share a large hall bathroom.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

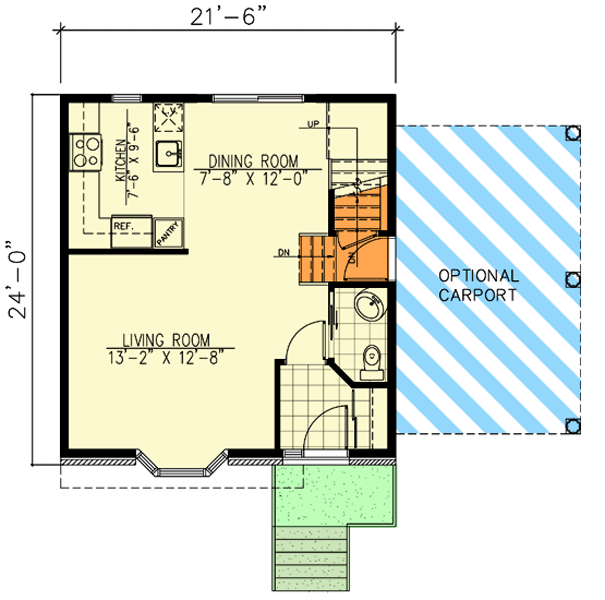

Compact Starter House Plan - 90039PD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Compact Starter House Plan - 90039PD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,021 sq. ft.
  • 1st Floor: 480 sq. ft.
  • 2nd Floor: 541 sq. ft.
  • Porch, Rear: 50 sq. ft.
  • Porch, Front: 32 sq. ft.
  • Basement Unfinished: 480 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 24' 0"
  • Max ridge height: 28' 8"

Garage

  • Type: Carport
  • Area: 240 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Compact Starter House Plan

  • 1,021

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,021 sq. ft.
  • 1st Floor: 480 sq. ft.
  • 2nd Floor: 541 sq. ft.

Dimensions

  • Width: 20' 0"
  • Depth: 24' 0"
  • Max ridge height: 28' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Carport
  • Area: 240 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
