Plan 52283WM

Compact Tiny Cottage House Plan - 395 Sq Ft

Heated S.F.
395
Beds
1
Baths
1
Stories
1

Floor Plan

Plan 52283WM

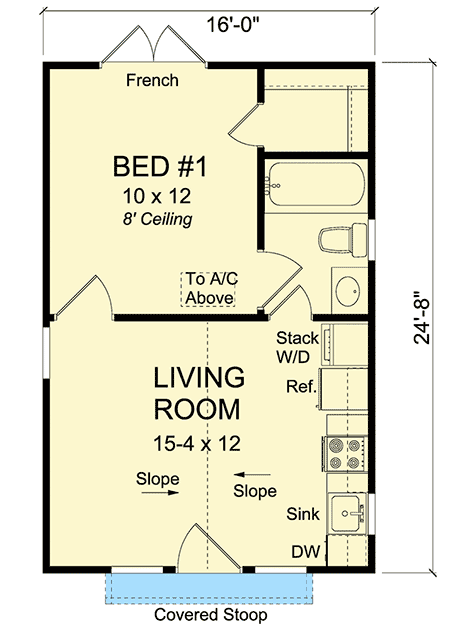

Main Level
Main Level

Plan 52283WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52283WM: Compact Tiny Cottage House Plan - 395 Sq Ft - Floor Plan - Main Level - Bungalow, Cottage

Plan Details

  • Only 16' wide, this compact Tiny Cottage house plan fits well on a narrow lot.
  • Designed for those who don't want a lot of space, the home still feels large thanks to the vaulted ceiling in the main living area.
  • There's no wasted space, and no formal dining room.
  • The efficient kitchen lies all along one wall and there's room for a stack washer/dryer too.
  • In the bedroom, a walk-in closet adds to your storage space.
  • Double French doors in the bedroom lead to the back yard.
  • NOTE: The basement foundation version features exterior access stairs.
  • Related Plans: Get more room with house plan 52291WM (412 sq. ft.) and 52282WM (550 sq. ft.).

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

395 sq. ft.

1st Floor

395 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

16' 0"

Depth

24' 8"

Max Ridge Height

14' 0"

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Bungalow

Cottage

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

395 sq. ft.

1st Floor

395 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

16' 0"

Depth

24' 8"

Max Ridge Height

14' 0"

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Bungalow

Cottage

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
