Tiny Cottage House Plan

Plan 52282WM

  • 550

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • Live all on one floor in this adorable Tiny Cottage house plan that comes in at under 22' wide.
  • The well-designed floor plan offers perks such as an open layout, vaulted ceilings in the master bedroom and living room.
  • The corner sink in the kitchen benefits from two windows so you can see what's going on outside and check the weather.
  • Trendy sliding barn doors close off the stack washer/dryer and the back porch door.
  • Homeowners don't have to sacrifice anything in the master suite that comes with a walk-in closet, two bathroom sinks and the high vaulted ceiling.
  • Related Plans: Get smaller homes with house plans 52291WM (412 sq. ft.) and 52283WM (395 sq. ft.).

  • Front elevation and construction notes

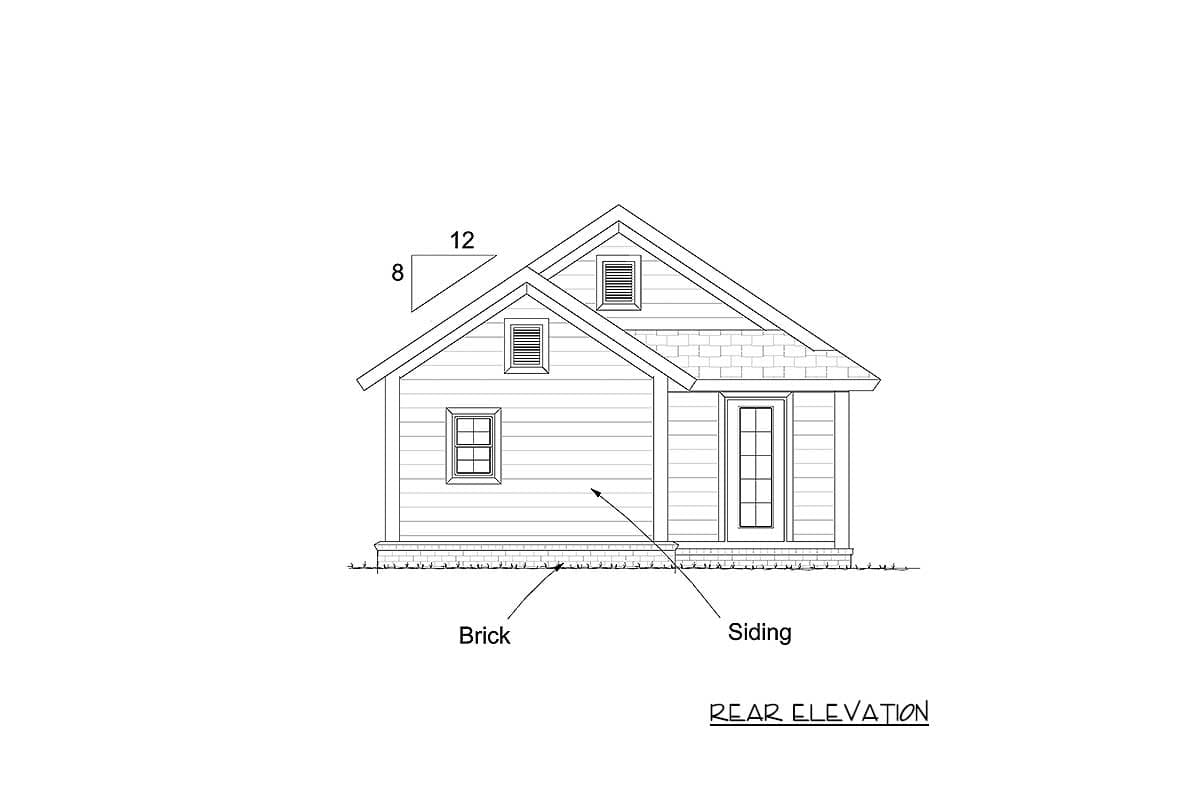

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

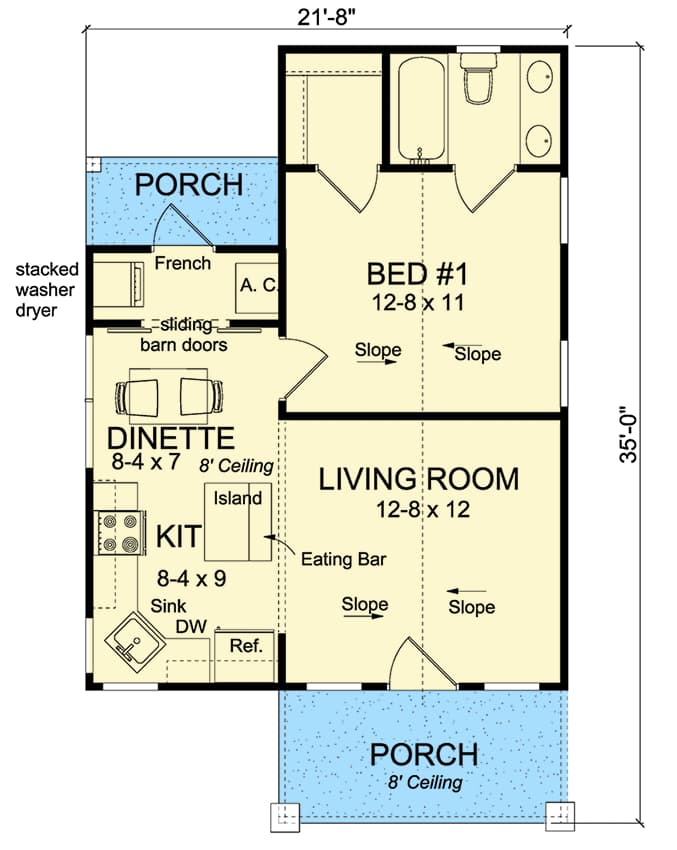

Tiny Cottage House Plan - 52282WM floor plan - Main Level
