Compact Traditional Home

Plan 90143PD

  • 1,530

    HEATED S.F.

  • 3

    BEDS

  • 2

    BATHS

  • 2

    FLOORS

  • 1

    CAR GARAGE

About this Plan

  • Only 28' wide, this compact Traditional home has a floor plan that flows nicely.

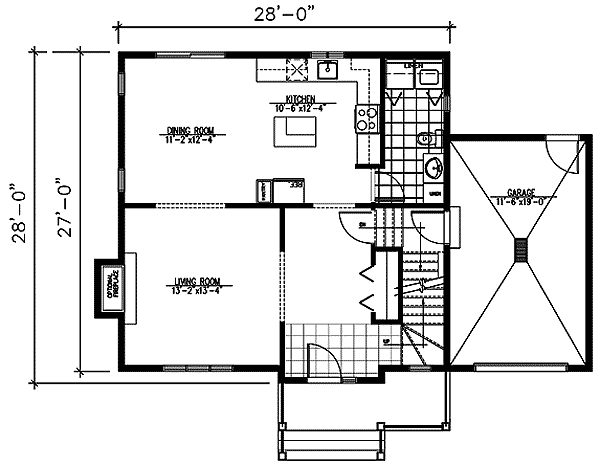

  • An open layout puts the kitchen together with the dining room for ease in serving.
  • Enjoy family gatherings around the fireplace in the living room.

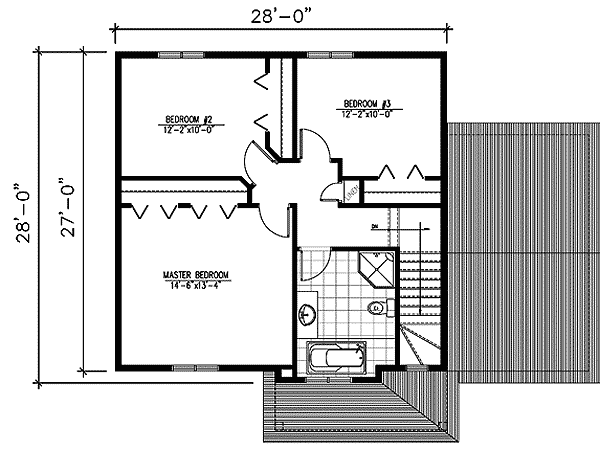

  • Three bedrooms share a bath on the second floor.

See What's Included in this Plan...

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,530 sq. ft.
  • 1st Floor: 765 sq. ft.
  • 2nd Floor: 765 sq. ft.
  • Basement Unfinished: 765 sq. ft.
  • Porch, Front: 63 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Dimensions

  • Width: 28' 0"
  • Depth: 28' 0"
  • Max ridge height: 31' 7"

Garage

  • Type: Attached
  • Area: 240 sq. ft.
  • Details: 1 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
