Plan 90144PD
Compact Traditional Home
Heated S.F.
1,724
Beds
3
Baths
1
Stories
2
Cars
1
What's Included
Plan Details
  • This compact Traditional home is only 36' wide, making it ideal for the narrow lot.
  • A covered front porch leads into the main living area that is all open.
  • Sliding glass doors access the rear deck which can be as big or little as you like.
  • Both the media room and hall bath are off the landing.
  • Continue four more stairs up to reach the bedroom level.
What's Included
Please note this plan is designed to the National Building Code of Canada.

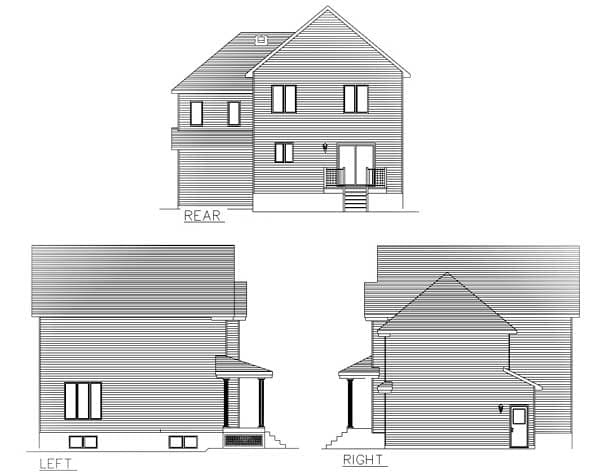

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact Traditional Home

  • 1,724

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

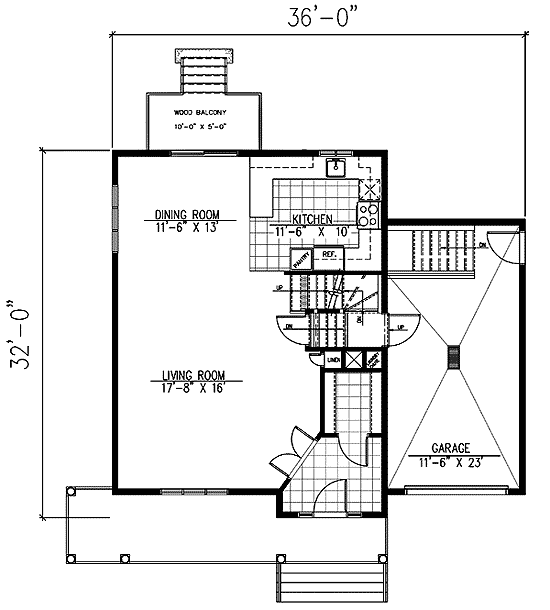

  • Main Level

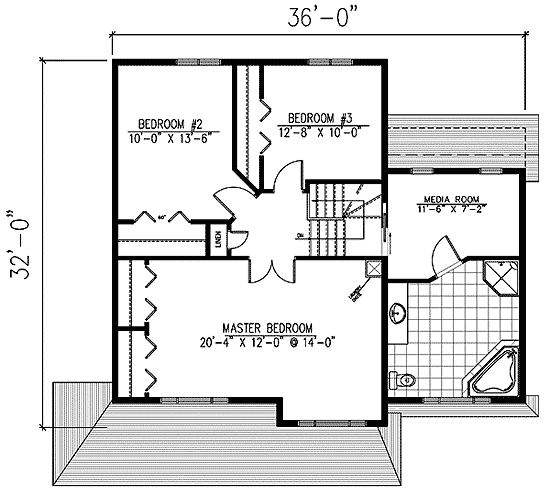

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,724 sq. ft.
  • 1st Floor: 739 sq. ft.
  • 2nd Floor: 985 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 32' 0"
  • Max ridge height: 32' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 288 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
