Plan 22433DR Compact Two-Story Traditional House Plan

Compact Two-Story Traditional House Plan

Plan 22433DR

  • 1,344

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • With its 24' width, this compact Traditional house plan will fit well on a narrow lot.
  • The big open floor plan makes the most of the space and has lots of windows to bring in light.
  • The well-planned kitchen offers a large island and a walk-in pantry that closes with pocket doors.
  • Sliders off the dining area take you out to your back yard.
  • Upstairs, three bedrooms share a large five piece hall bathroom where double sinks keep things moving in the mornings.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

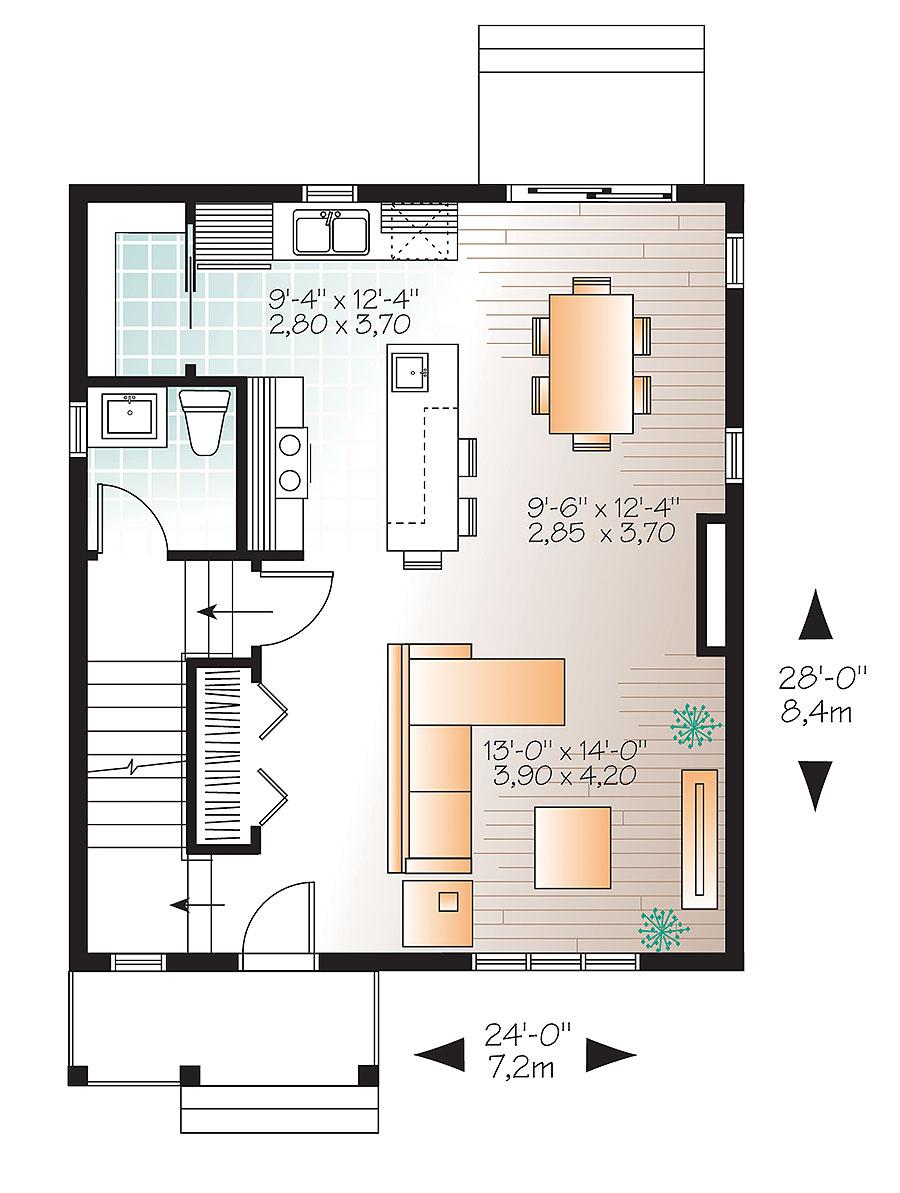

Compact Two-Story Traditional House Plan - 22433DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

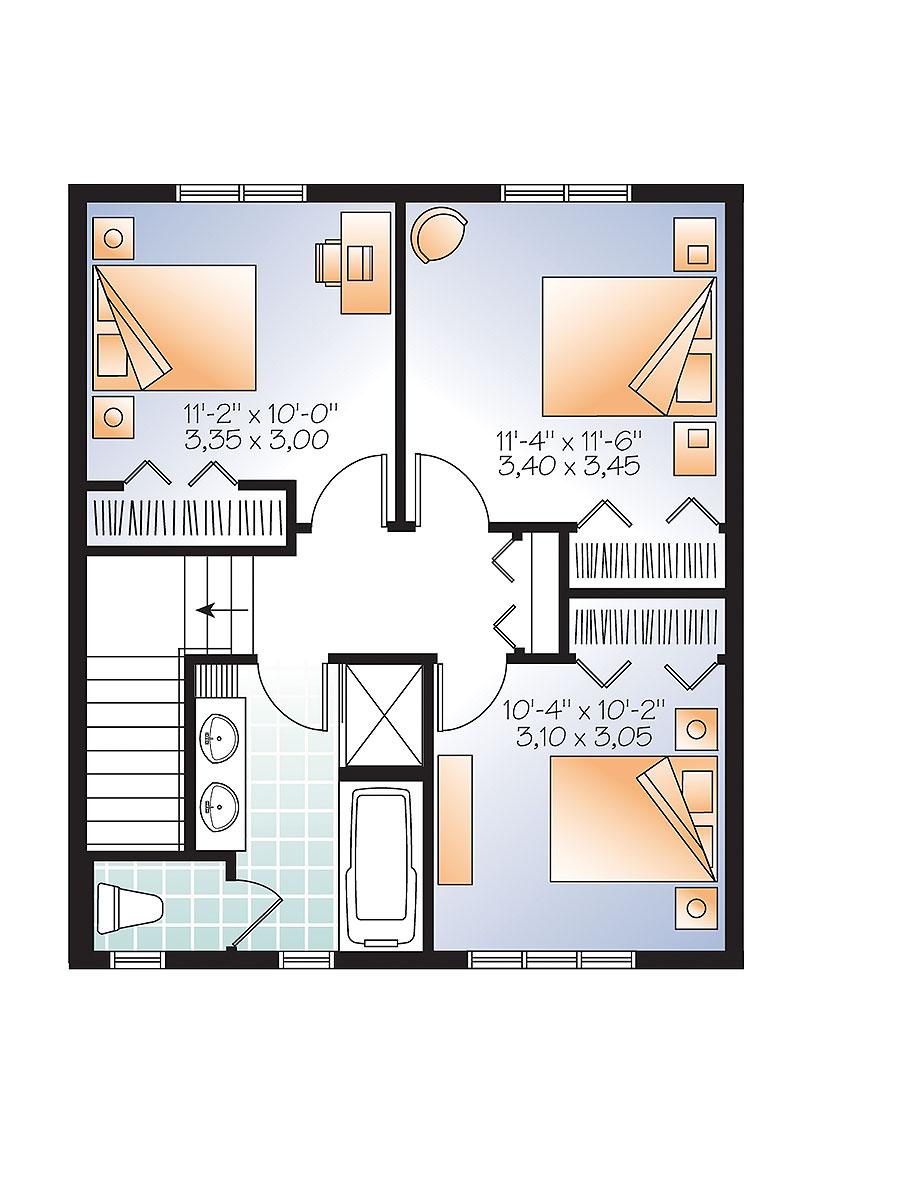

Compact Two-Story Traditional House Plan - 22433DR floor plan - 2nd Floor

Plan details

Architectural Style

Plan Collections

Compact Two-Story Traditional House Plan

  • 1,344

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,110
  • 5 Sets + PDF $1,235
  • CAD + PDF - Single-Build $1,710
  • View all purchase option online

About This Plan

  • With its 24' width, this compact Traditional house plan will fit well on a narrow lot.
  • The big open floor plan makes the most of the space and has lots of windows to bring in light.
  • The well-planned kitchen offers a large island and a walk-in pantry that closes with pocket doors.
  • Sliders off the dining area take you out to your back yard.
  • Upstairs, three bedrooms share a large five piece hall bathroom where double sinks keep things moving in the mornings.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,344 sq. ft.
  • 1st Floor: 672 sq. ft.
  • 2nd Floor: 672 sq. ft.
  • Porch, Rear: 32 sq. ft.
  • Porch, Front: 44 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 24' 0"
  • Depth: 28' 0"
  • Max ridge height: 25' 7"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
