Plan 22398DR

Compact Vacation Getaway

Heated S.F.
900
Beds
2
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 22398DR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 22398DR

M-F 9am-5pm EST |

1-203-761-8500

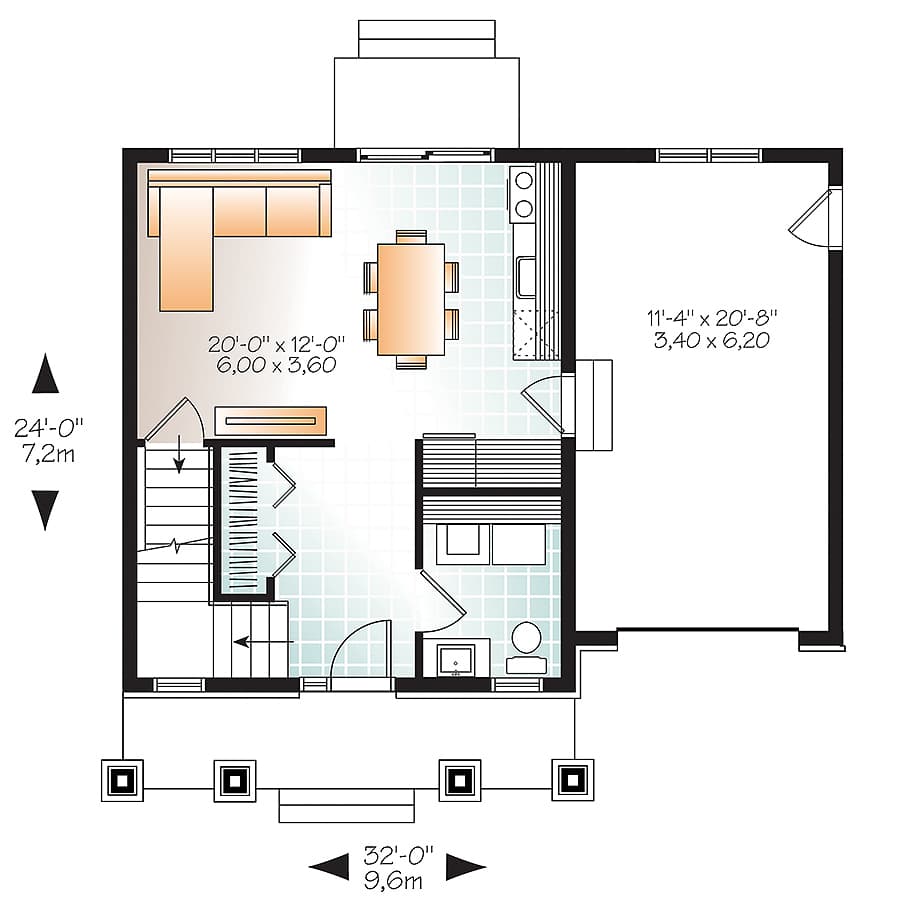

Main Level

Plan 22398DR: Compact Vacation Getaway - Floor Plan - Main Level - Craftsman, Northwest, Vacation

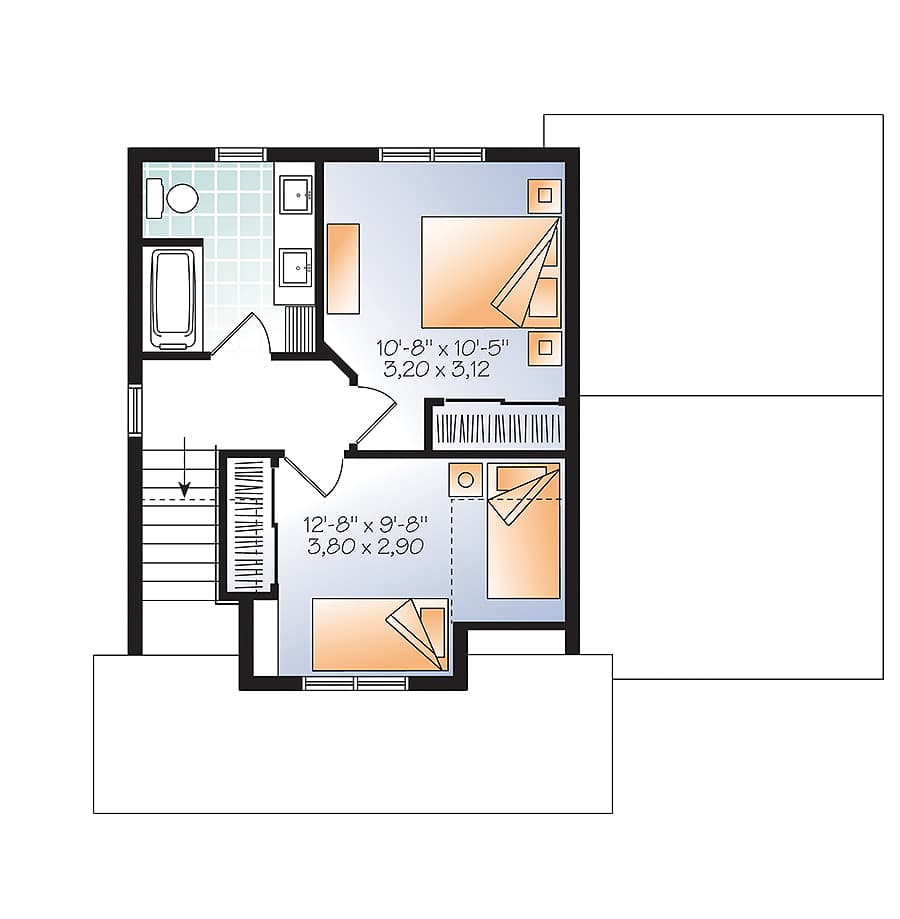

2nd Floor

Plan 22398DR: Compact Vacation Getaway - Floor Plan - 2nd Floor - Craftsman, Northwest, Vacation

Plan Details

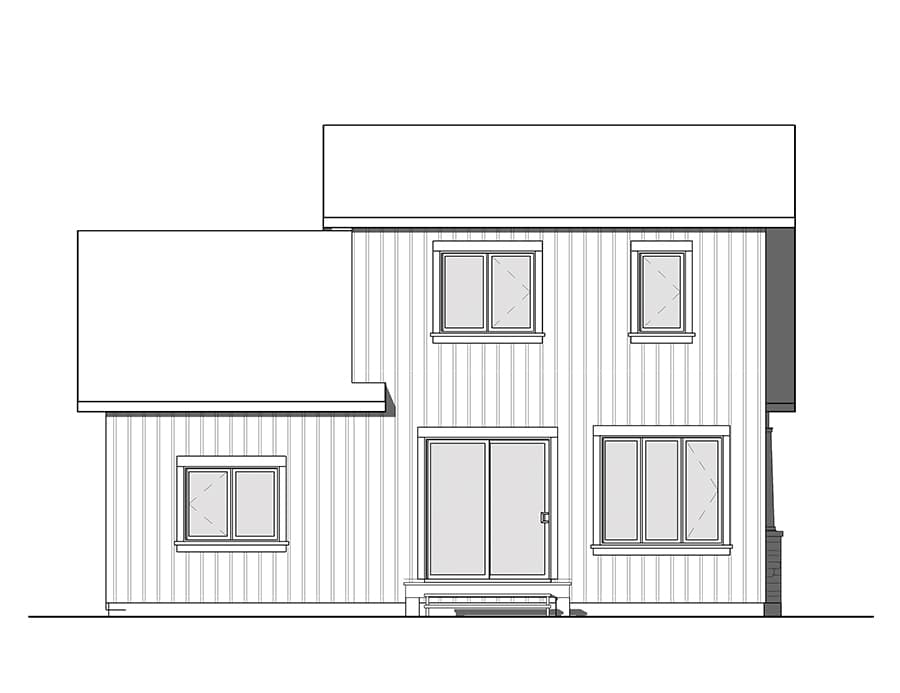

  • Board and batten siding, stonework and decorative wood trim give you a handsome Vacation getaway house plan designed for a narrow lot.
  • Everything is within easy reach of your fingertips in the main living area that has a nice open layout.
  • Maximum use of space comes from combining the laundry closet with the powder room.
  • Both bedrooms are up on the second floor and they share a hall bathroom to keep costs down.

What's Included

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

900 sq. ft.

1st Floor

480 sq. ft.

2nd Floor

420 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

24' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

288 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Vacation

Special Features

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

900 sq. ft.

1st Floor

480 sq. ft.

2nd Floor

420 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

24' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

288 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Vacation

Special Features

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric
