Plan 17676LV

Complete with Private Courtyard

2,483 3 2.5 2 2
Pageloader

Complete with Private Courtyard

Plan 17676LV

  • 2,483

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This smaller house plan comes complete with your own private courtyard accessible directly from the master suite as well as the screened porch. With a built-in fireplace and summer kitchen, this will get lots of use.
  • The left side of the home enjoys vaulted ceilings with unobstructed views from the kitchen all the way to the living room with fireplace.
  • Two suites share the upstairs bath and the loft is a great place to do homework or to relax.
  • Related Plan: Get more room with house plan 17503LV (3,359 sq. ft.).

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)

Floor Plan

Plan details



Complete with Private Courtyard

  • 2,483

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,250
  • PDF - single-use $1,250
  • CAD $2,499
  • View all purchase option online

About This Plan

  • This smaller house plan comes complete with your own private courtyard accessible directly from the master suite as well as the screened porch. With a built-in fireplace and summer kitchen, this will get lots of use.
  • The left side of the home enjoys vaulted ceilings with unobstructed views from the kitchen all the way to the living room with fireplace.
  • Two suites share the upstairs bath and the loft is a great place to do homework or to relax.
  • Related Plan: Get more room with house plan 17503LV (3,359 sq. ft.).

Floor Plans

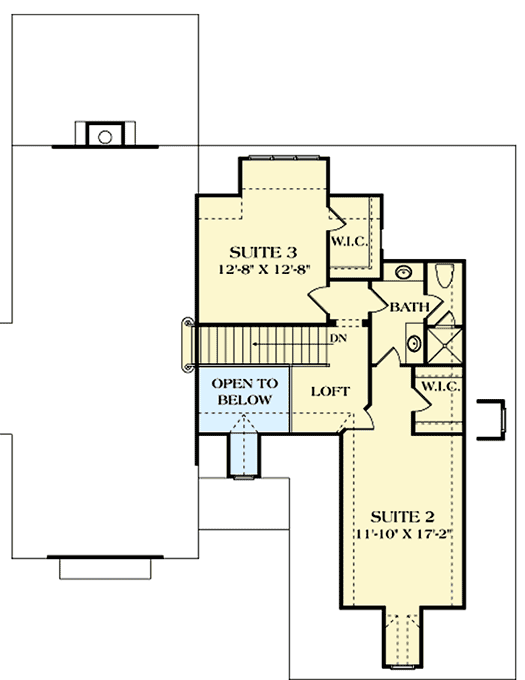

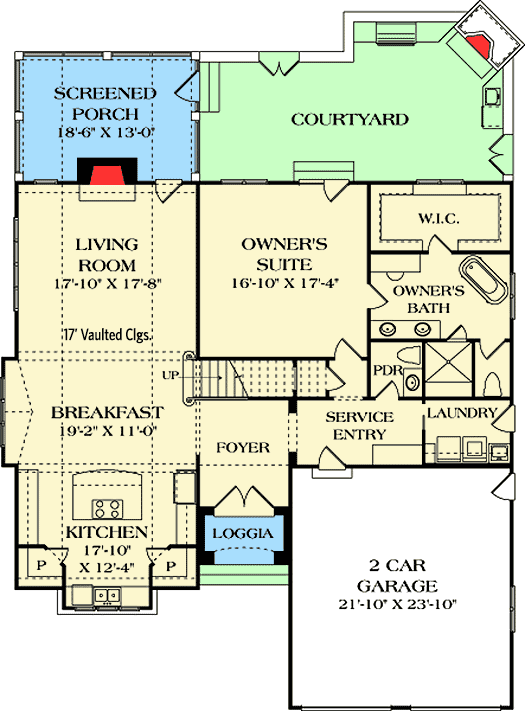

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,483 sq. ft.
  • 1st Floor: 1,737 sq. ft.
  • 2nd Floor: 746 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 51' 4"
  • Depth: 66' 0"

Garage

  • Type: Attached
  • Area: 543 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Stick
