Plan 17503LV Master Suite with Dual Access

3,359 3 4.5 2 2
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Master Suite with Dual Access

Plan 17503LV

  • 3,359

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

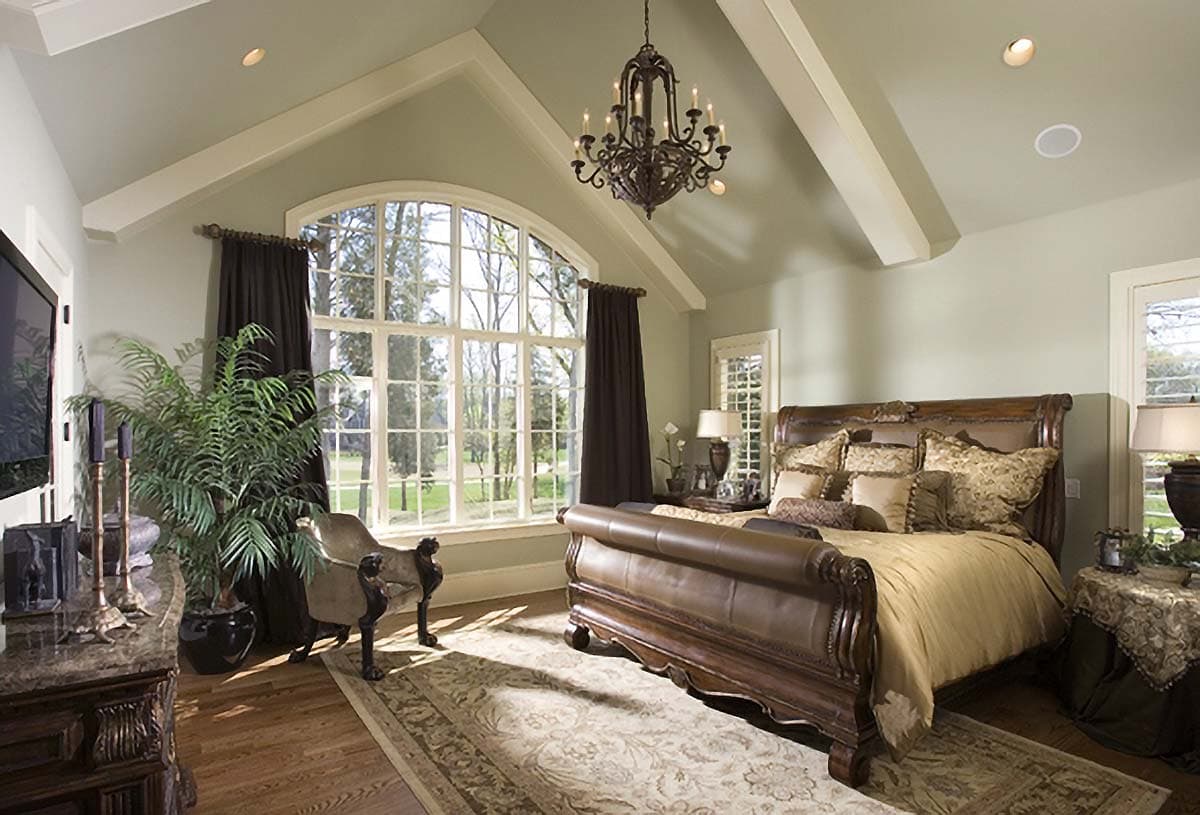

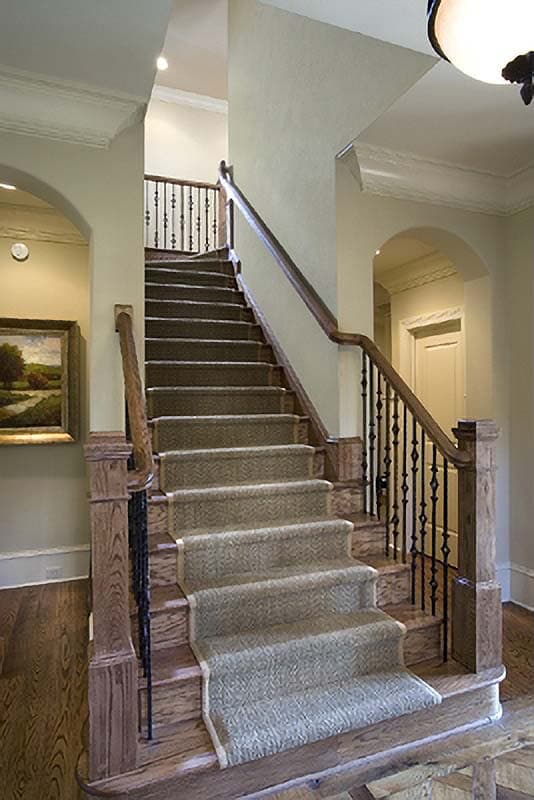

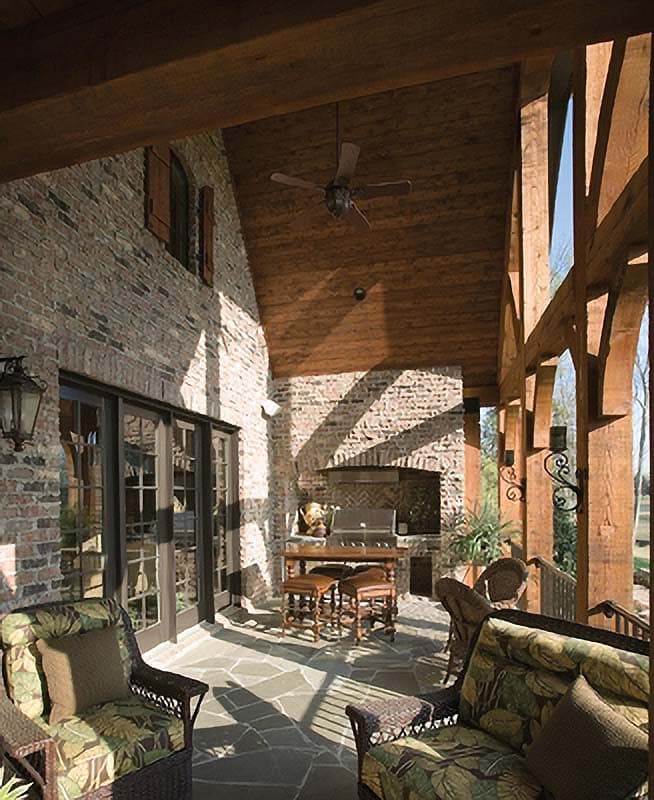

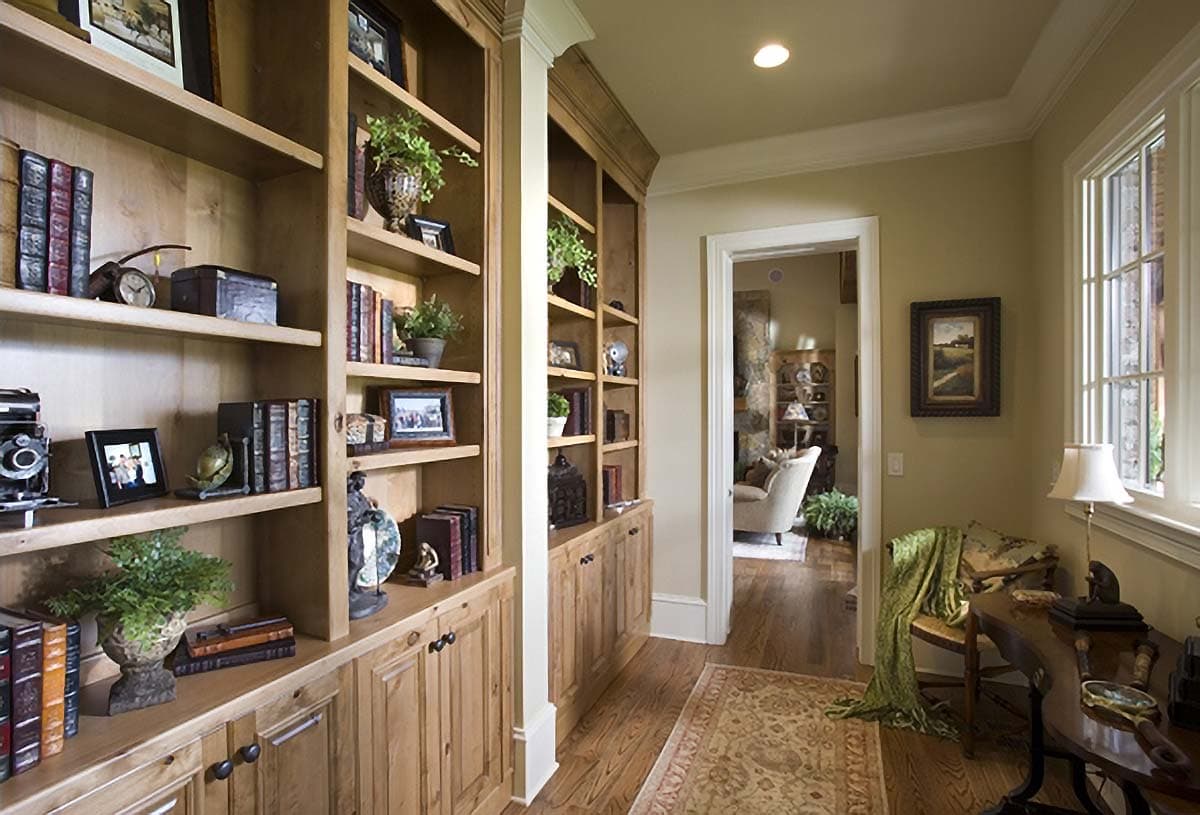

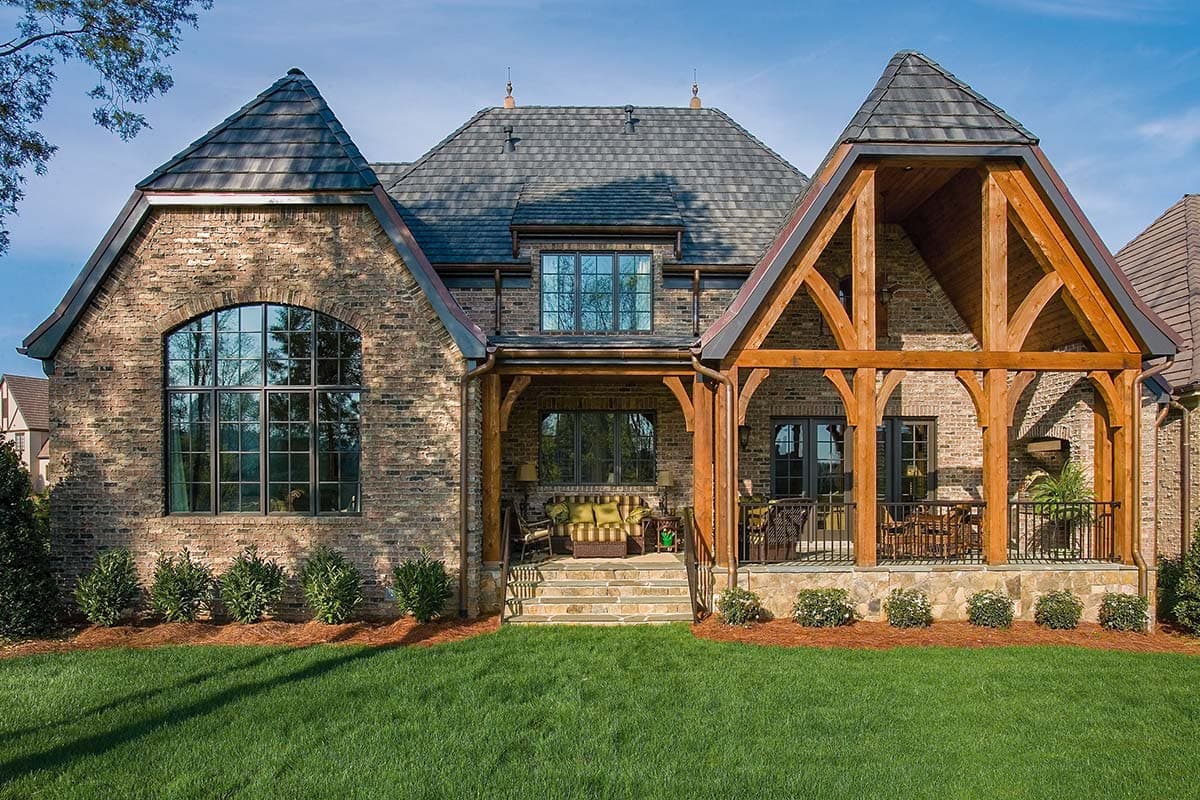

  • Access to your luxury master suite is made through your own private study with pocket doors and your own private hall off the central stair area. From your suite, you can also gain access to the covered lanai with outdoor fireplace.

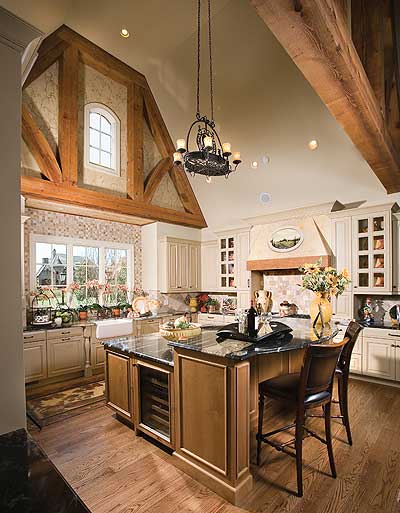

  • The open floor plan allows views across the main axis. From the lanai, you can see straight through to the kitchen three rooms away.

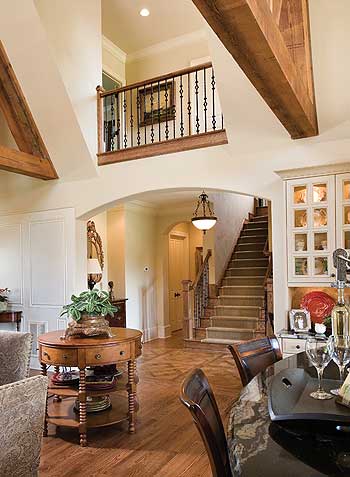

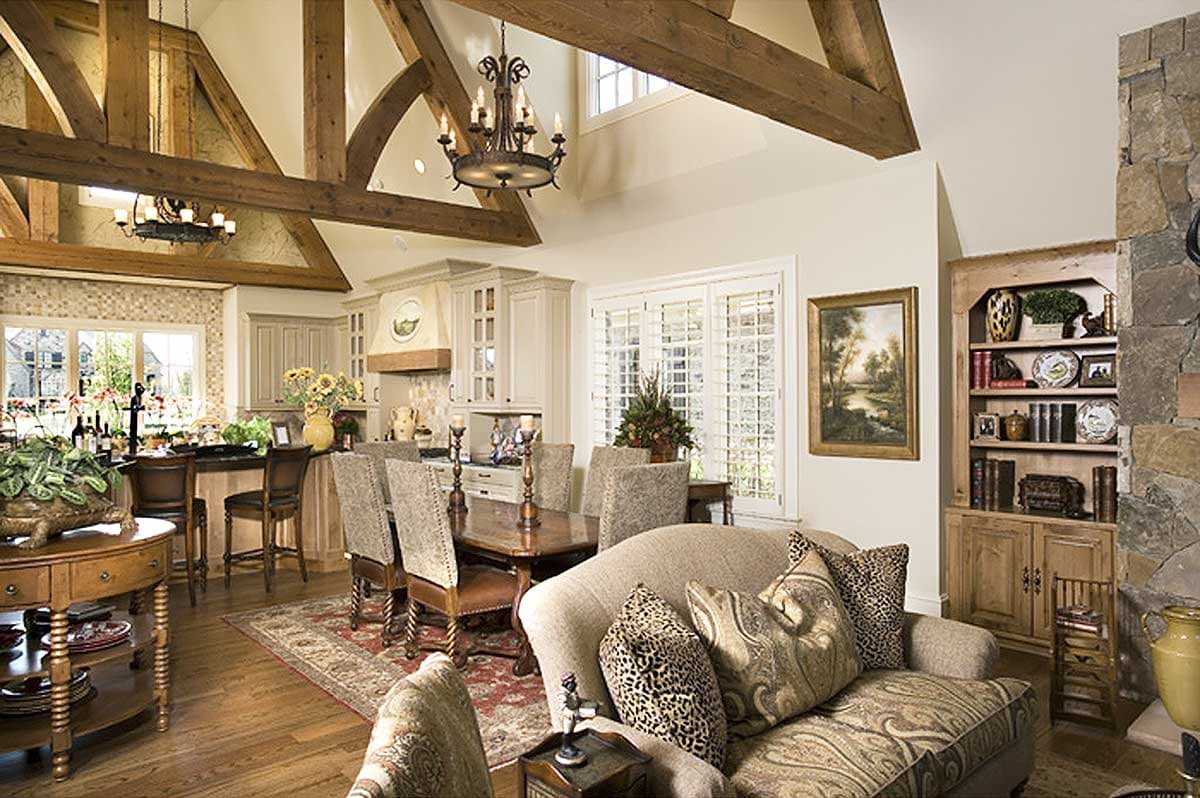

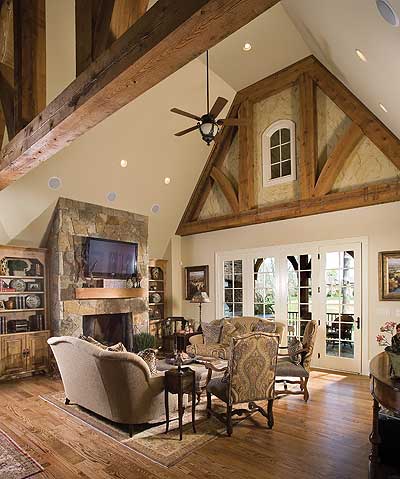

  • Raised ceilings add character and class to the family room and a two-story ceiling in the dining room makes this a dramatic space for entertaining.

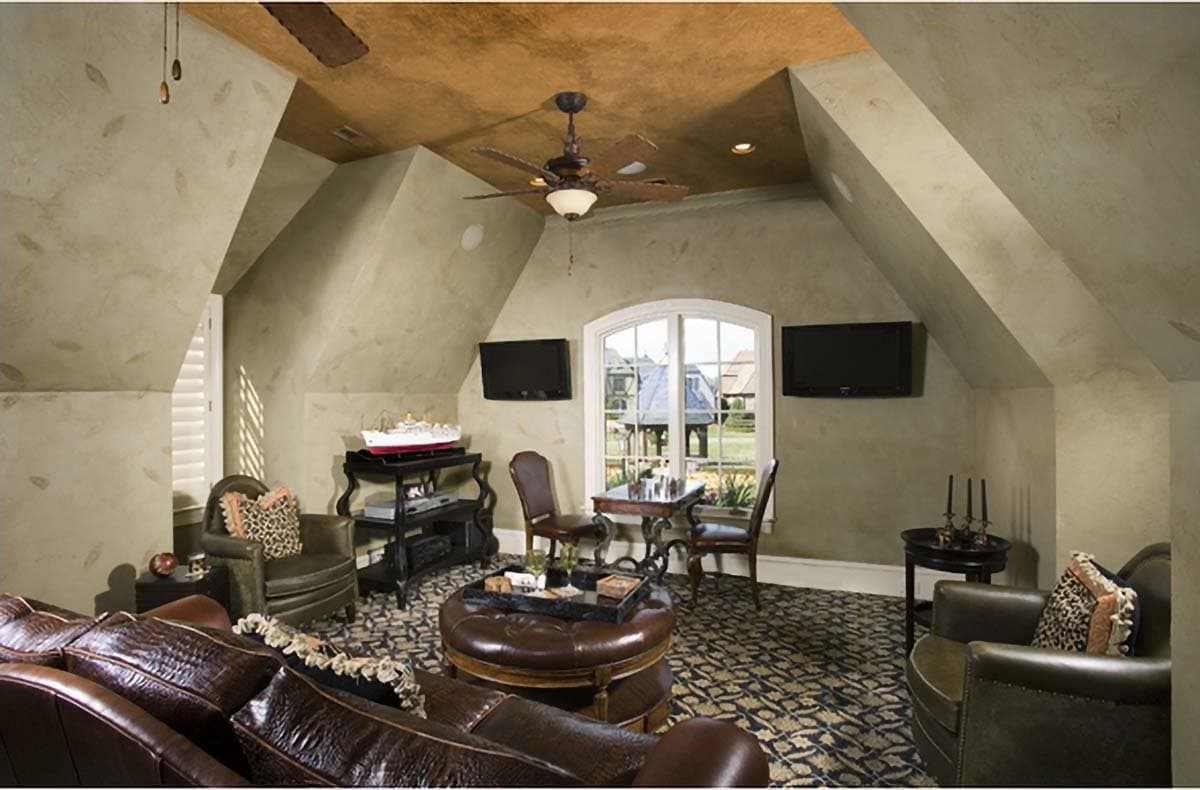

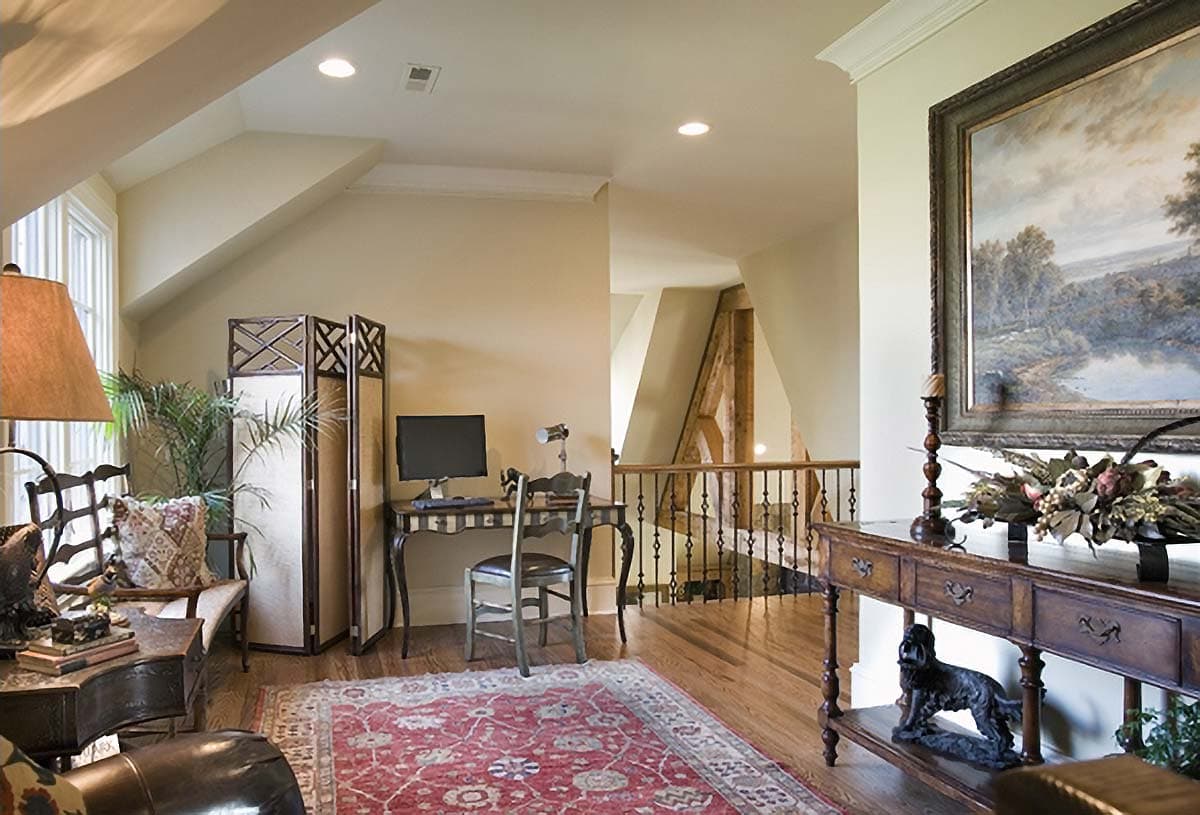

  • Upstairs, two suites, a loft and bonus room complete this luxury house plan.
  • The two gables on the front are 18/12 pitch and they cover most of the roof area. The front-to-back pitch is 14/12.
  • Related Plan: For a smaller version without use restrictions see house plan 17676LV (2,483 sq. ft.).

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans

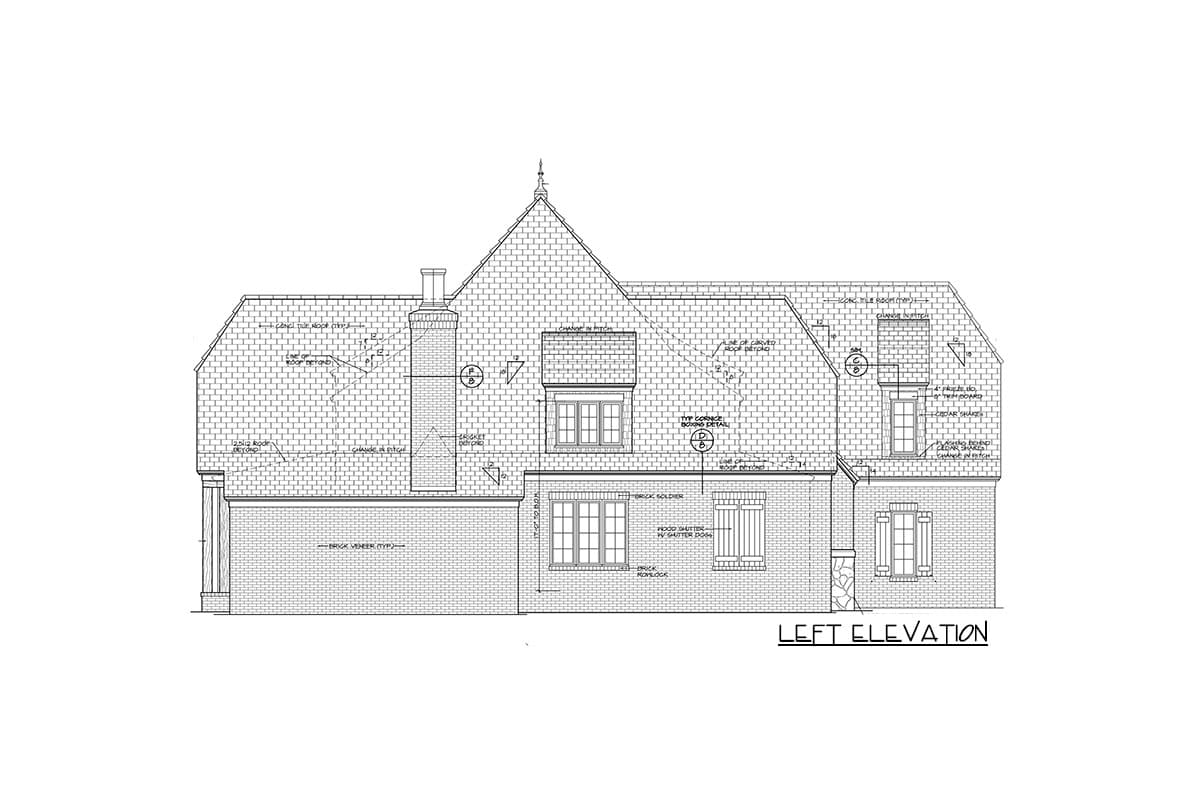

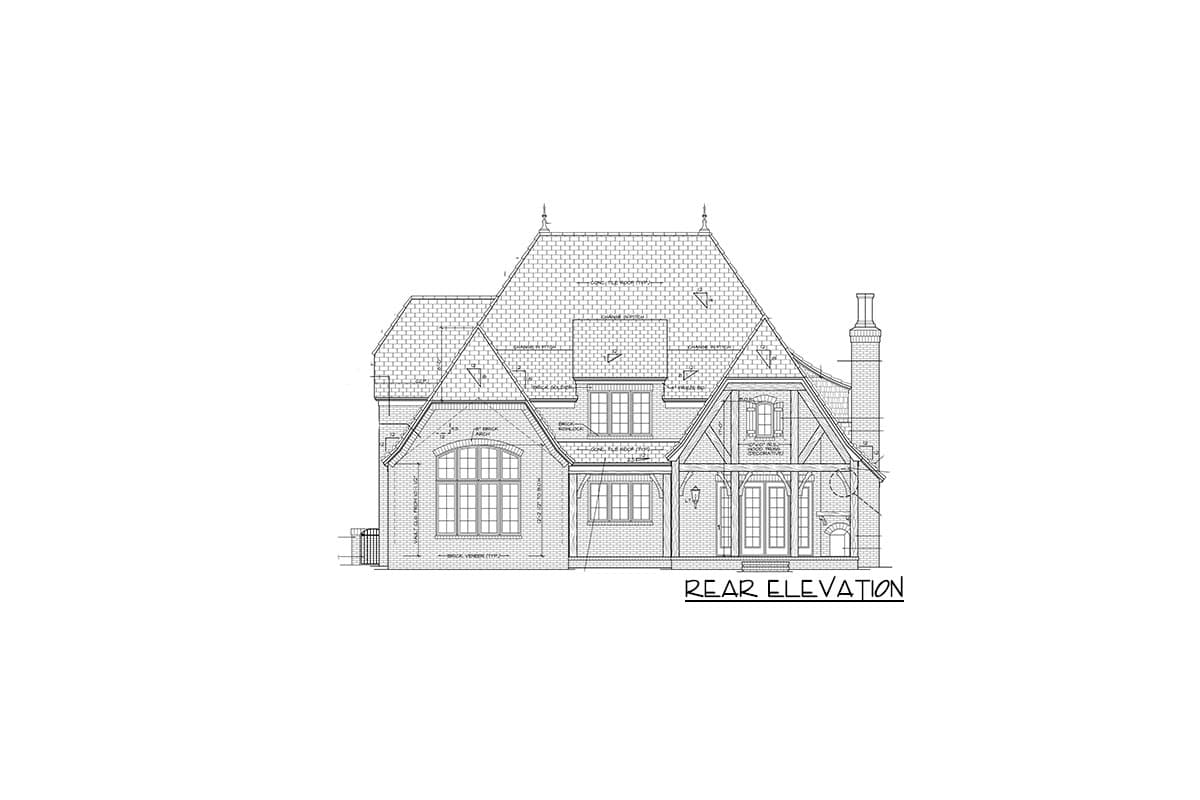

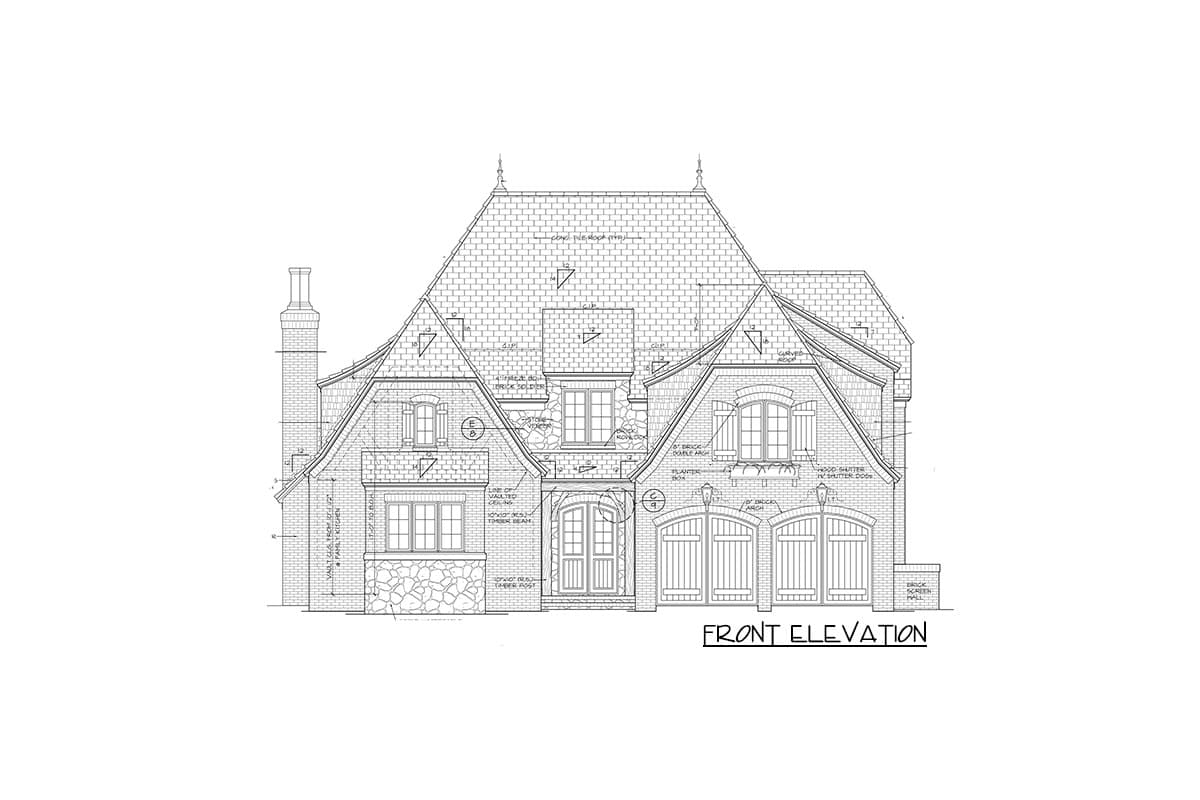

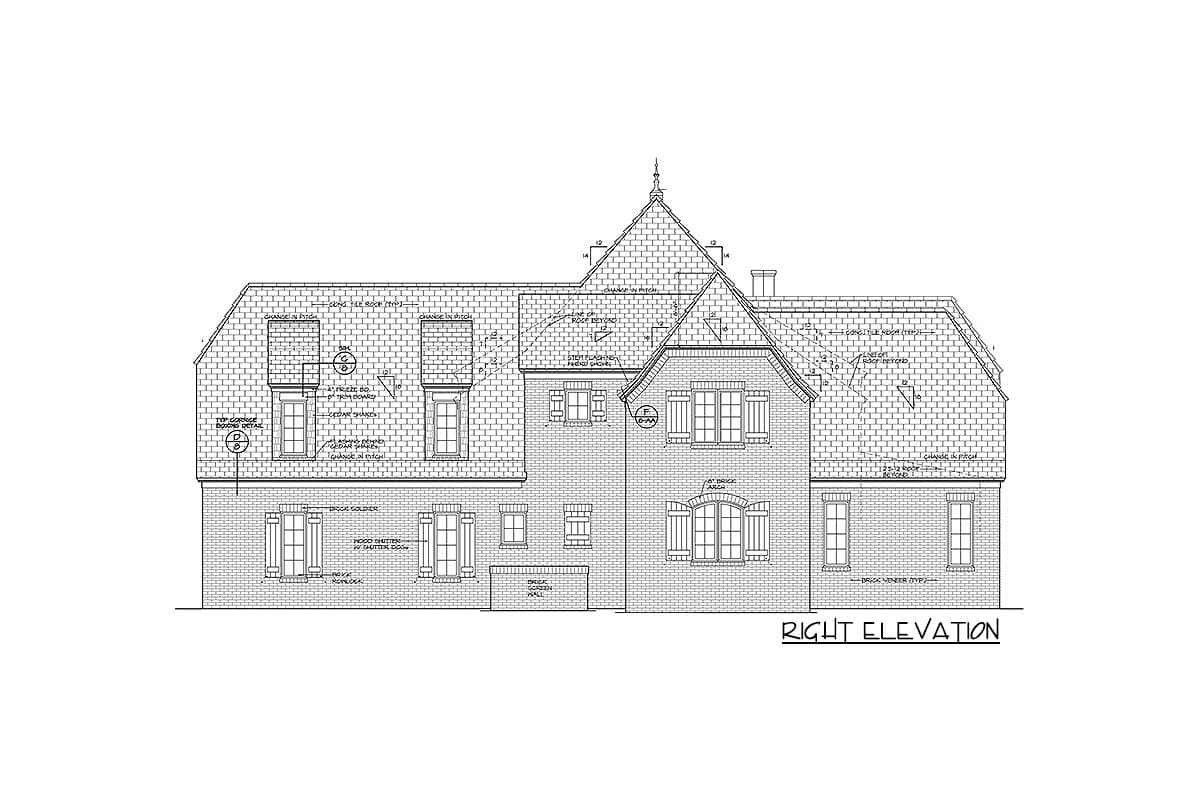

  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

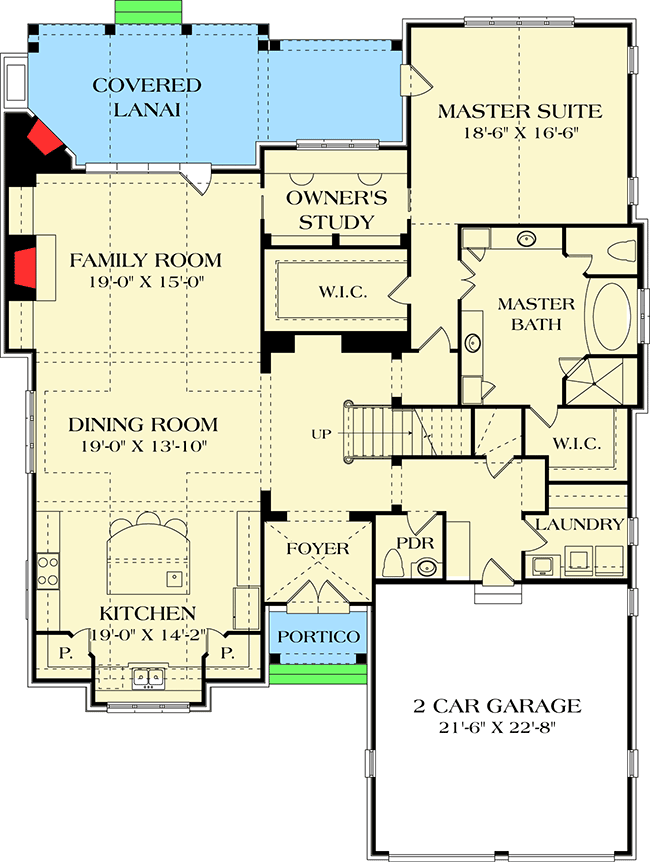

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Master Suite with Dual Access - 17503LV floor plan - Main Level

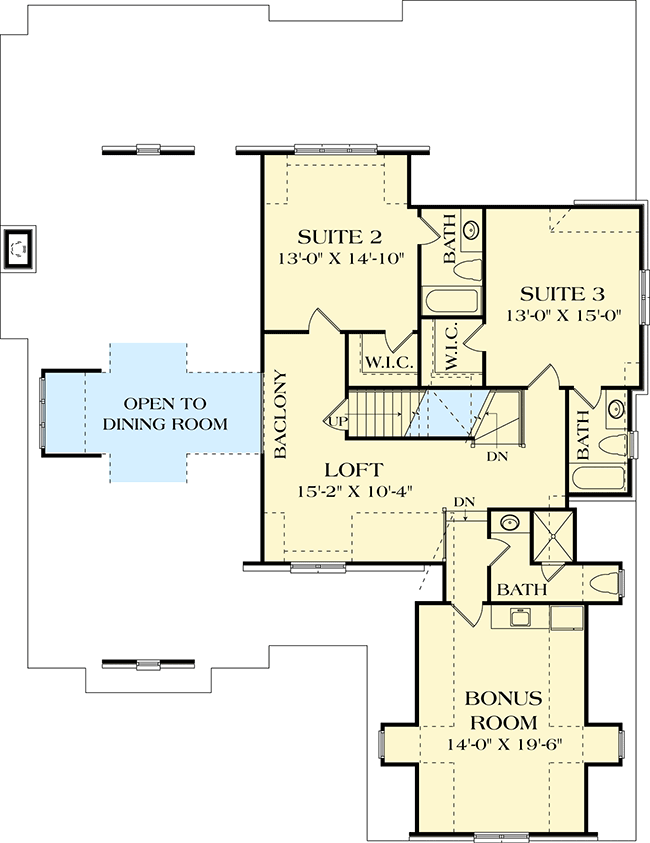

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Master Suite with Dual Access - 17503LV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,359 sq. ft.
  • 1st Floor: 2,297 sq. ft.
  • 2nd Floor: 1,062 sq. ft.
  • Bonus: 322 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 0"
  • Depth: 71' 5"
  • Max ridge height: 37' 0"

Garage

  • Type: Attached
  • Area: 502 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Secondary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Master Suite with Dual Access

  • 3,359

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,550
  • CAD - Single-Build $3,099
  • View all purchase option online

About This Plan

  • Access to your luxury master suite is made through your own private study with pocket doors and your own private hall off the central stair area. From your suite, you can also gain access to the covered lanai with outdoor fireplace.
  • The open floor plan allows views across the main axis. From the lanai, you can see straight through to the kitchen three rooms away.
  • Raised ceilings add character and class to the family room and a two-story ceiling in the dining room makes this a dramatic space for entertaining.
  • Upstairs, two suites, a loft and bonus room complete this luxury house plan.
  • The two gables on the front are 18/12 pitch and they cover most of the roof area. The front-to-back pitch is 14/12.
  • Related Plan: For a smaller version without use restrictions see house plan 17676LV (2,483 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,359 sq. ft.
  • 1st Floor: 2,297 sq. ft.
  • 2nd Floor: 1,062 sq. ft.
  • Bonus: 322 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 0"
  • Depth: 71' 5"
  • Max ridge height: 37' 0"

Garage

  • Type: Attached
  • Area: 502 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
