Contemporary 2-Bed House Plan with Dramatic Vaulted Interior

Plan 777007MTL

  • 1,185

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • This contemporary home plan offers one-level living and has a dramatic vaulted interior with views to the front.
  • The living room and kitchen are open to each other and are under a vaulted ceiling and get amazing natural light from the huge windows that comprise nearly half of the front wall.
  • A large covered porch on the left can be used as an outdoor living room.
  • Bedrooms are in back and have walk-in closets. Bed 1 has its own bathroom with two vanities and Bed 2 has access to the hall bath.
  • A pocket door opens to give you access to the pantry and laundry room.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof plan
  • Elevations with necessary sections
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

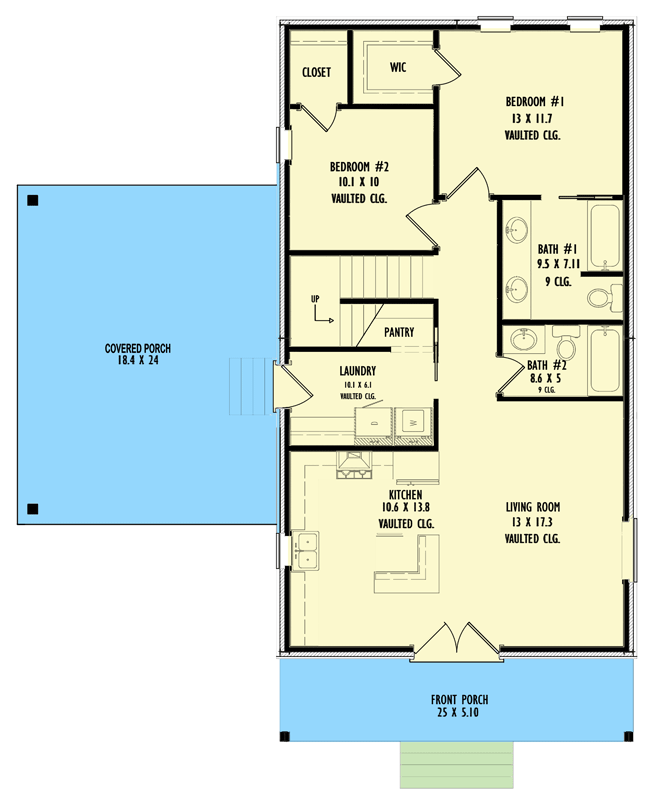

Contemporary 2-Bed House Plan with Dramatic Vaulted Interior  - 777007MTL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

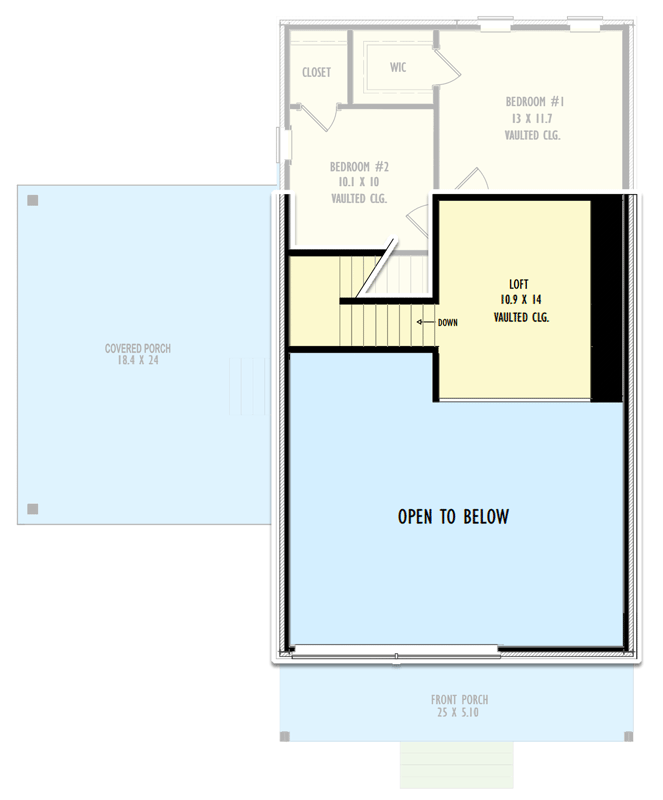

Contemporary 2-Bed House Plan with Dramatic Vaulted Interior  - 777007MTL floor plan - 2nd Floor

Contemporary 2-Bed House Plan with Dramatic Vaulted Interior

  • 1,185

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,185 sq. ft.
  • 1st Floor: 1,034 sq. ft.
  • 2nd Floor: 151 sq. ft.

Dimensions

  • Width: 43' 0"
  • Depth: 51' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Attached, Carport
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
