Plan 801075PM

Contemporary 2 Bed House Plan with Separate Basement Apartment - 2022 Sq Ft

Heated S.F.
2,022
Units
2
Width
Depth

Floor Plan

Plan 801075PM

Main Level
Main Level
Lower Level
Lower Level

Plan 801075PM

M-F 9am-5pm EST |

1-203-761-8500

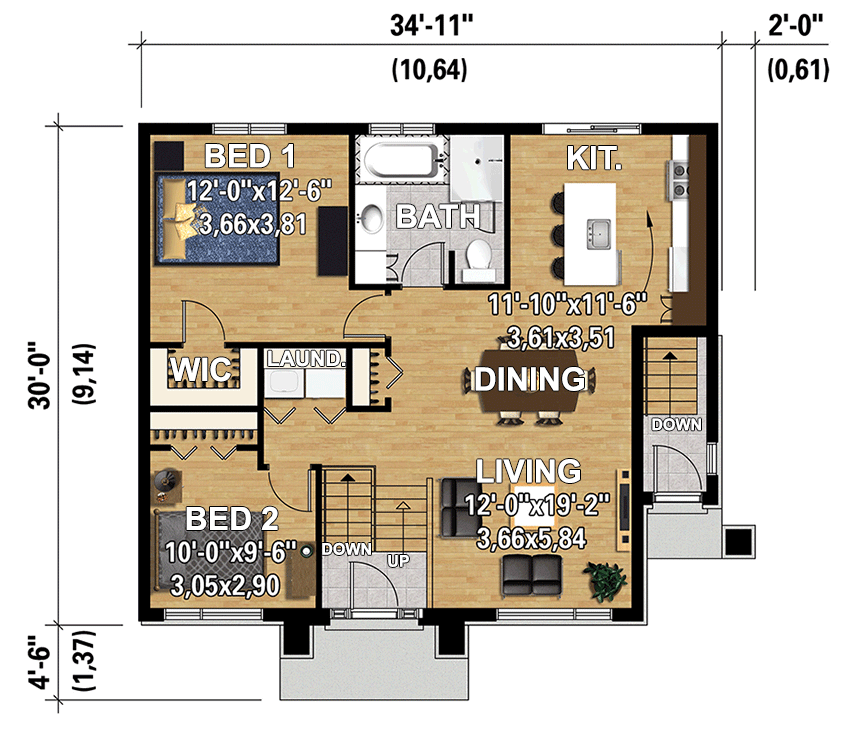

Main Level

Plan 801075PM: Contemporary 2 Bed House Plan with Separate Basement Apartment - 2022 Sq Ft - Floor Plan - Main Level - Contemporary

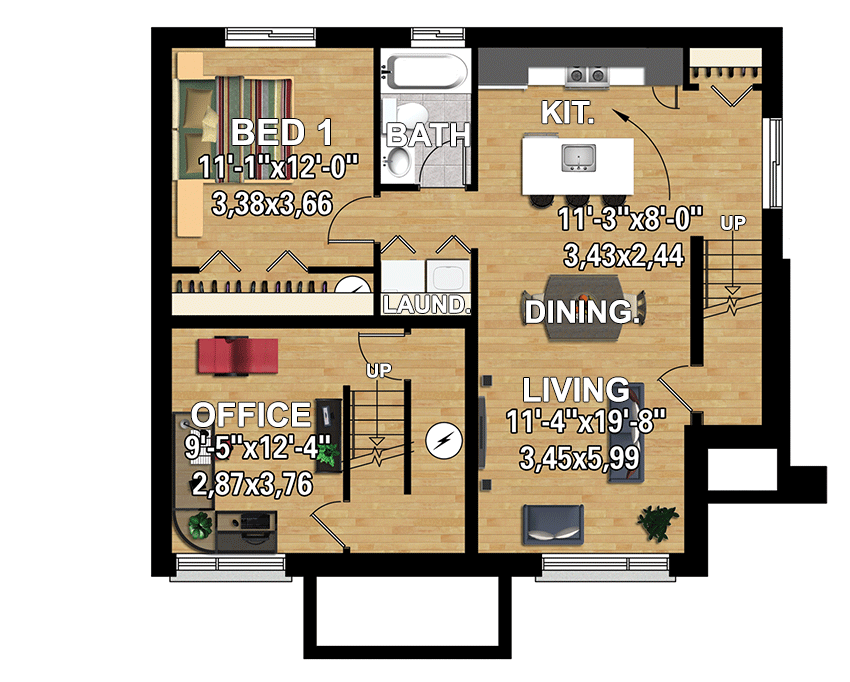

Lower Level

Plan 801075PM: Contemporary 2 Bed House Plan with Separate Basement Apartment - 2022 Sq Ft - Floor Plan - Lower Level - Contemporary

Plan Details

  • This contemporary house plan has two units. The first has two bedrooms with kitchen and living room on the main floor and a lower level home office while the second - a basement apartment with its own access from outside - gives you one bed, a kitchen and living room.
  • The home is 34 feet 11 inches wide by 30 feet deep and provides a total of 2,022 square feet of living space.
  • The main floor gives you 1,011 square feet. The ground floor features an open area with a living room, a dining room and a kitchen with an island, a laundry closet, a bathroom with a ceramic-tiled shower and a podium bathtub, as well as two bedrooms, including a master bedroom with a walk-in closet and a lower level office space that adds 180 square feet to the space.
  • The basement apartment has a private entrance and includes a living room, a dining room and an open kitchen with an island, a laundry closet, a bathroom and one bedroom.
  • NOTE: Please allow 15 to 20 business days for plan delivery.
Unit Main Floor
Heated Area
1,191Sq. Ft.
180 Sq. Ft. LL
1011 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
34' 11"width
30'depth
22' 3"height
Unit Lower Level
Heated Area
921Sq. Ft.
921 Sq. Ft. LL
1011 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
34' 11"width
30'depth
22' 3"height

What's Included

Please note this plan is designed to the National Building Code of Canada.

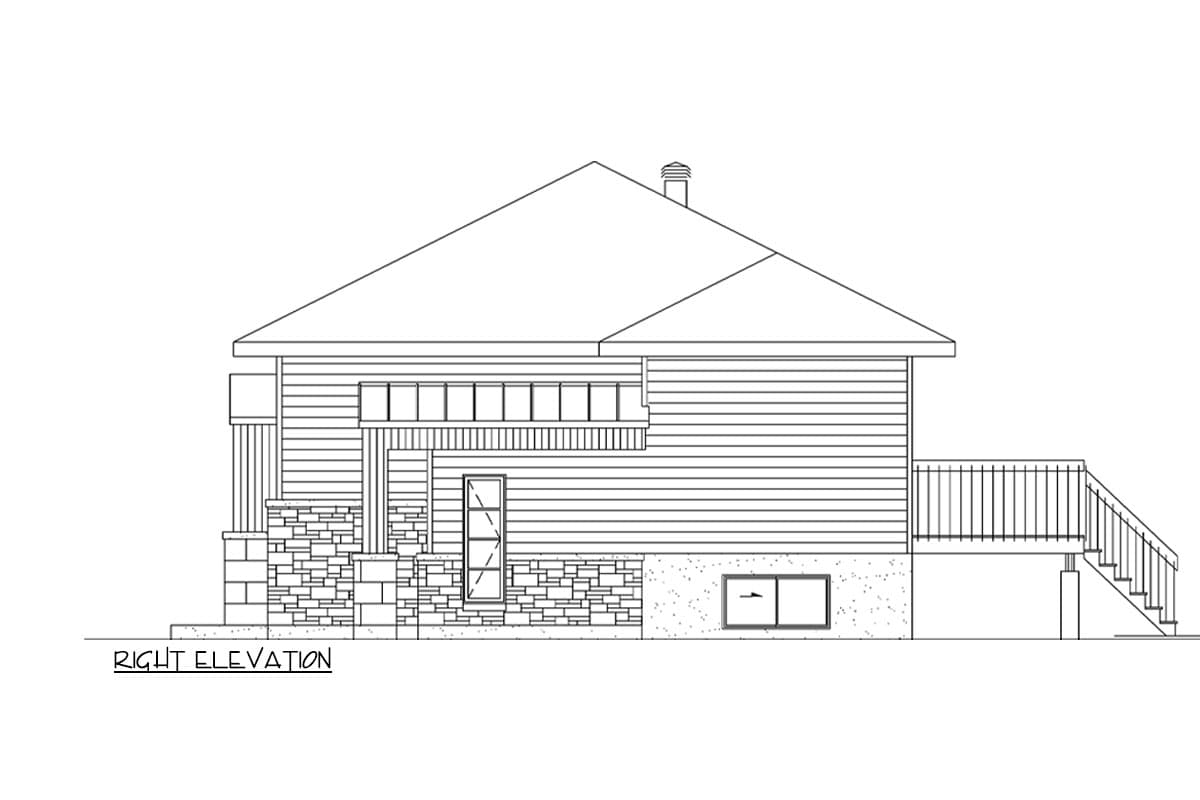

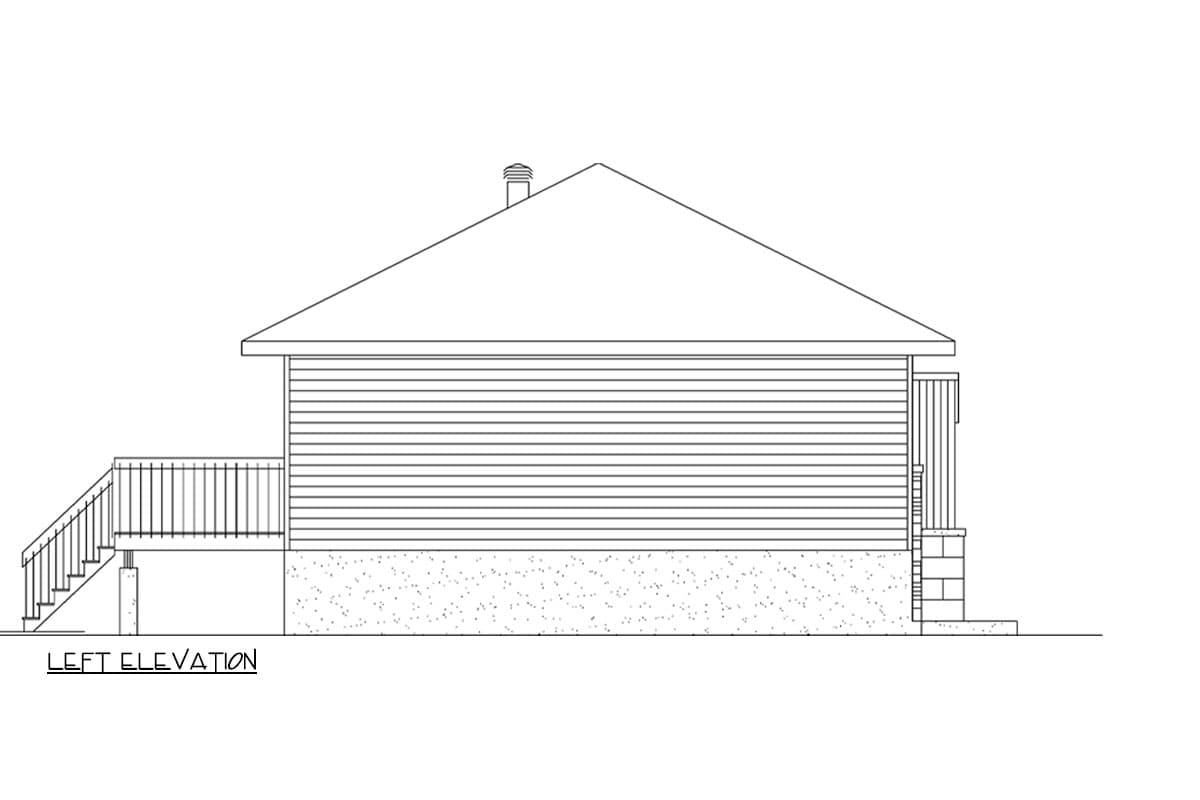

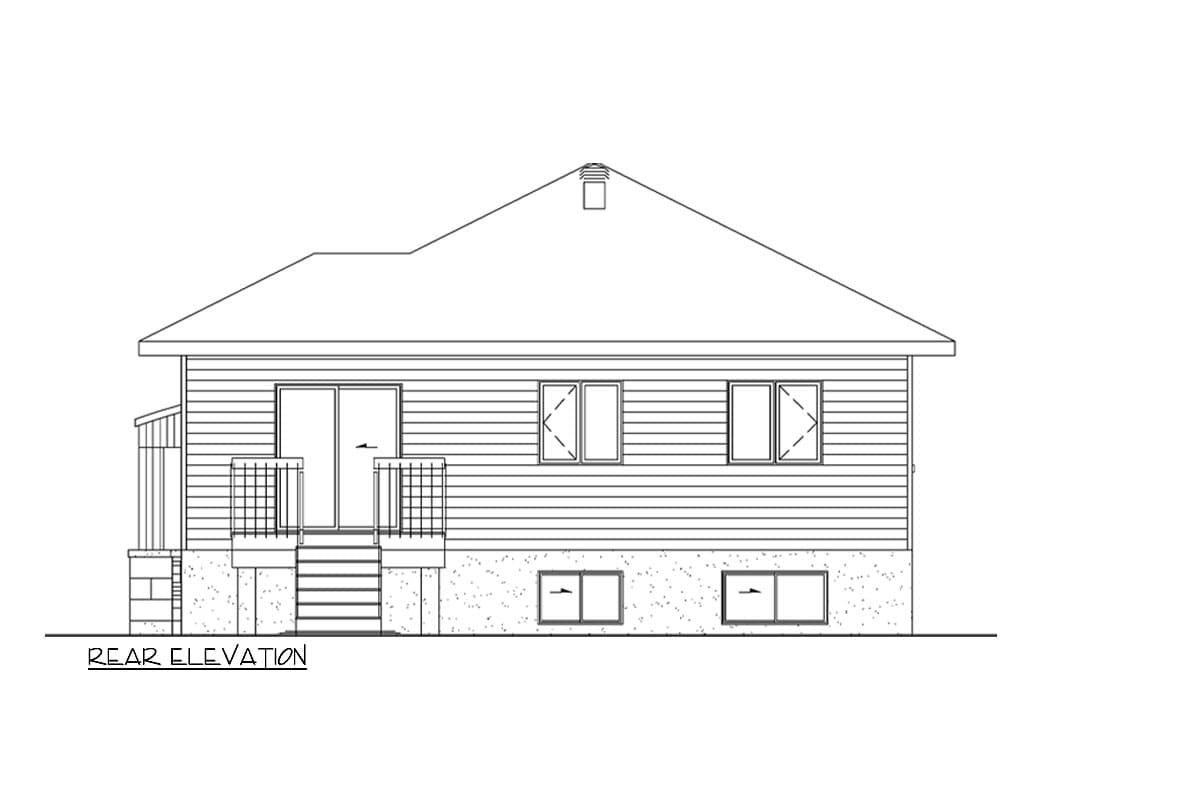

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,022 sq. ft.

Lower Level

1,011 sq. ft.

1st Floor

1,011 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 11"

Depth

30' 0"

Max Ridge Height

22' 3"

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Contemporary

Special Features

Home Office

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Lower Level

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,022 sq. ft.

Lower Level

1,011 sq. ft.

1st Floor

1,011 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 11"

Depth

30' 0"

Max Ridge Height

22' 3"

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Contemporary

Special Features

Home Office

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Lower Level

Plan Collections

Canadian House Plans
