Contemporary 2-Bedroom House Plan with 1063 Sq Ft Living Space

Heated S.F.
1,063
Beds
2
Baths
1.5
Stories
2

Floor Plan

Plan 230009JD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 230009JD

M-F 9am-5pm EST |

1-203-761-8500

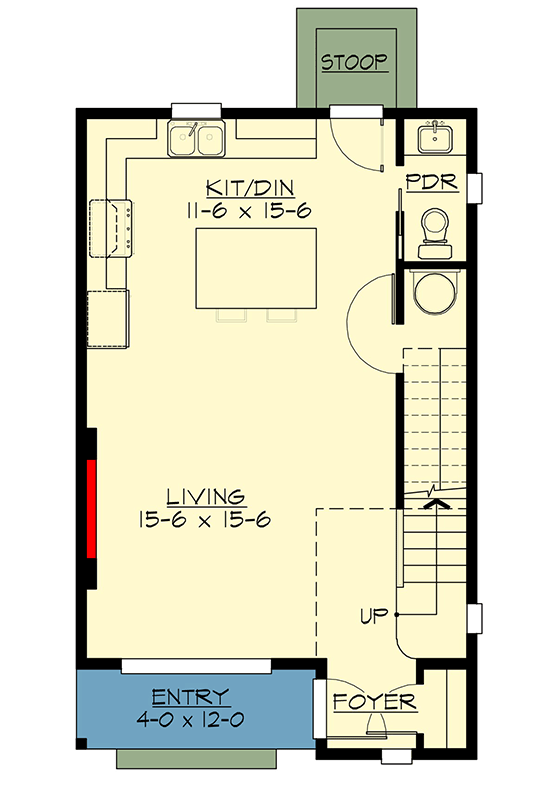

Main Level

Plan 230009JD: Contemporary 2-Bedroom House Plan with 1063 Sq Ft Living Space - Floor Plan - Main Level - Contemporary, Modern, Northwest

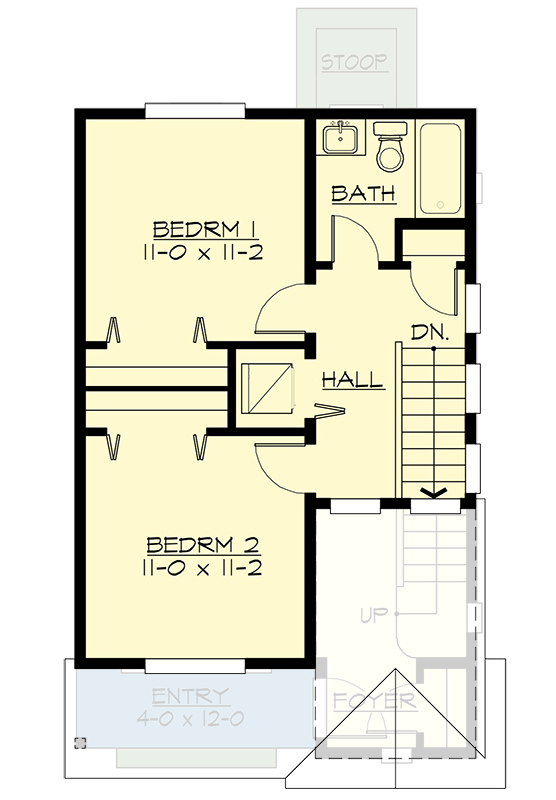

2nd Floor

Plan 230009JD: Contemporary 2-Bedroom House Plan with 1063 Sq Ft Living Space - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • This contemporary house plan offers 1,063 sq. ft. of heated living space with 2 bedrooms and 1.5 bathrooms.
  • The entry foyer leads into an open-concept living area, perfect for modern lifestyles.
  • The main floor features a combined kitchen and dining area, ideal for casual meals and entertaining.
  • Upstairs, two bedrooms are clustered together for convenience, sharing a full bathroom.
  • A dedicated upstairs laundry room adds to the home's practicality.
  • A charming stoop at the front entrance provides a welcoming touch.
  • Related Plan: Get a similar version with house plan 230008JD (1,069 sq. ft.).

What's Included

  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

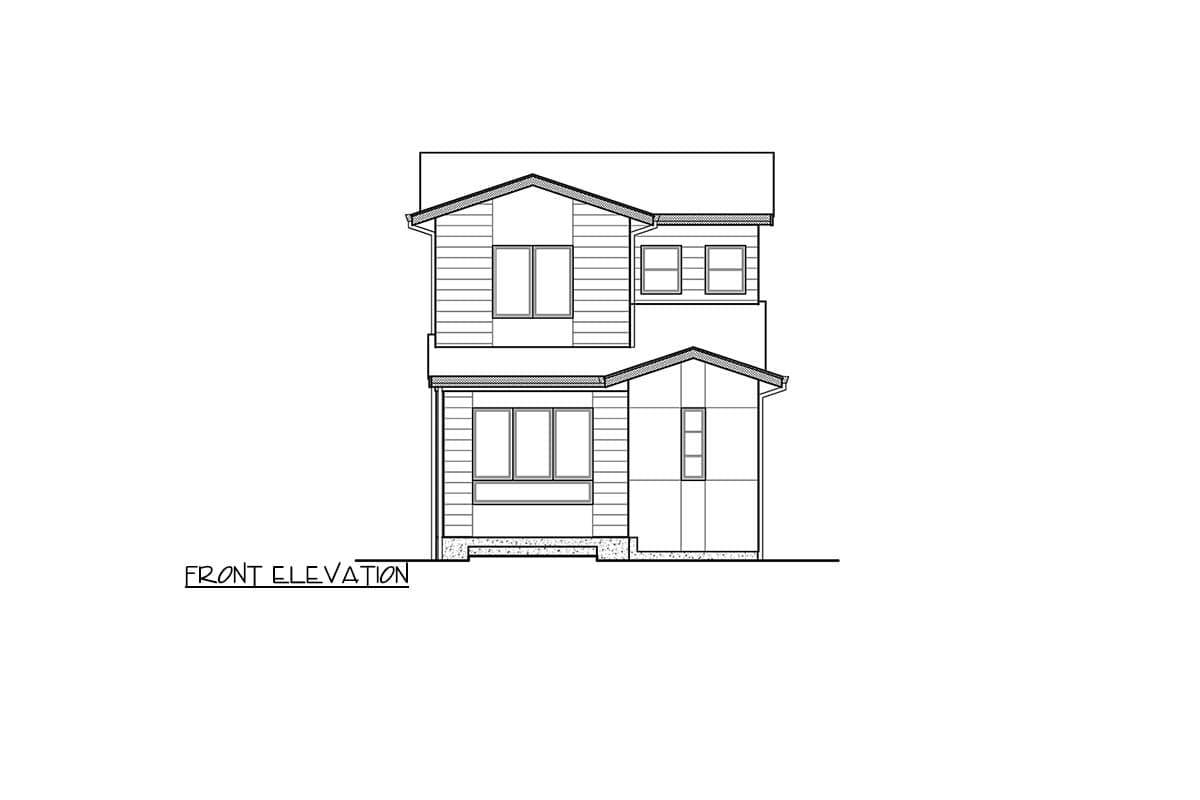

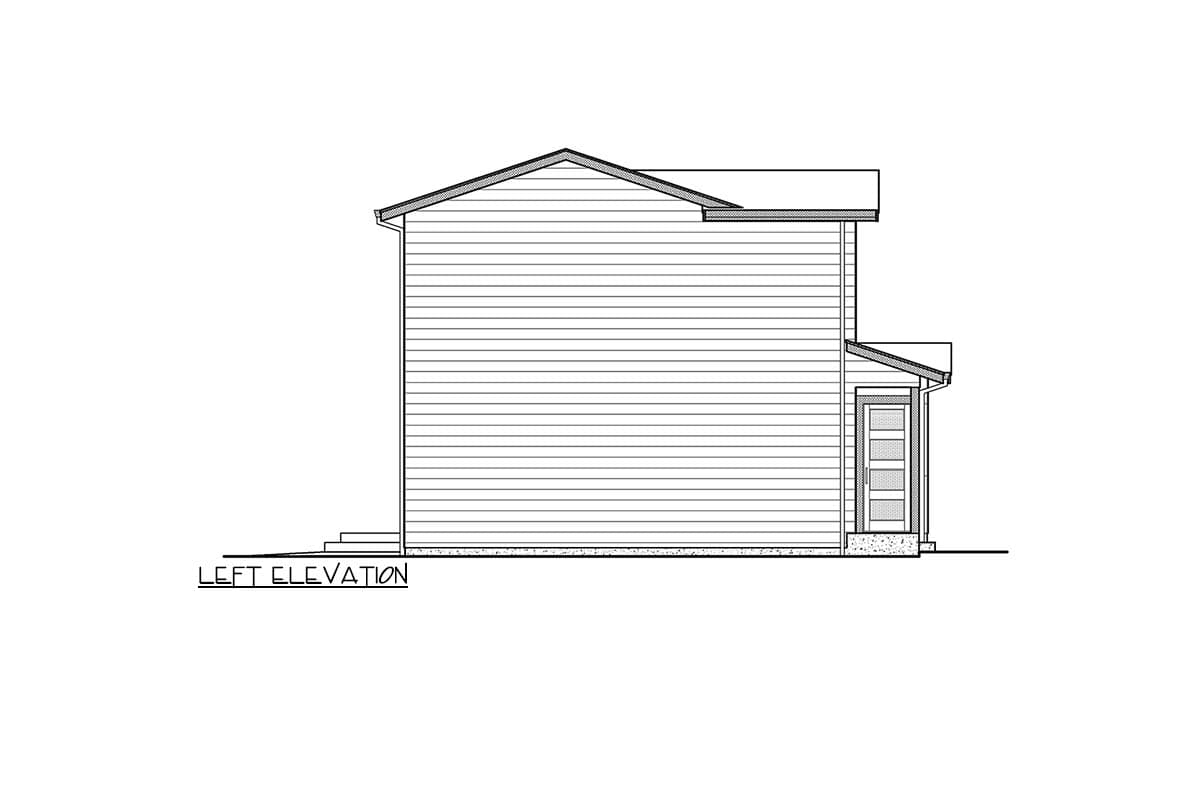

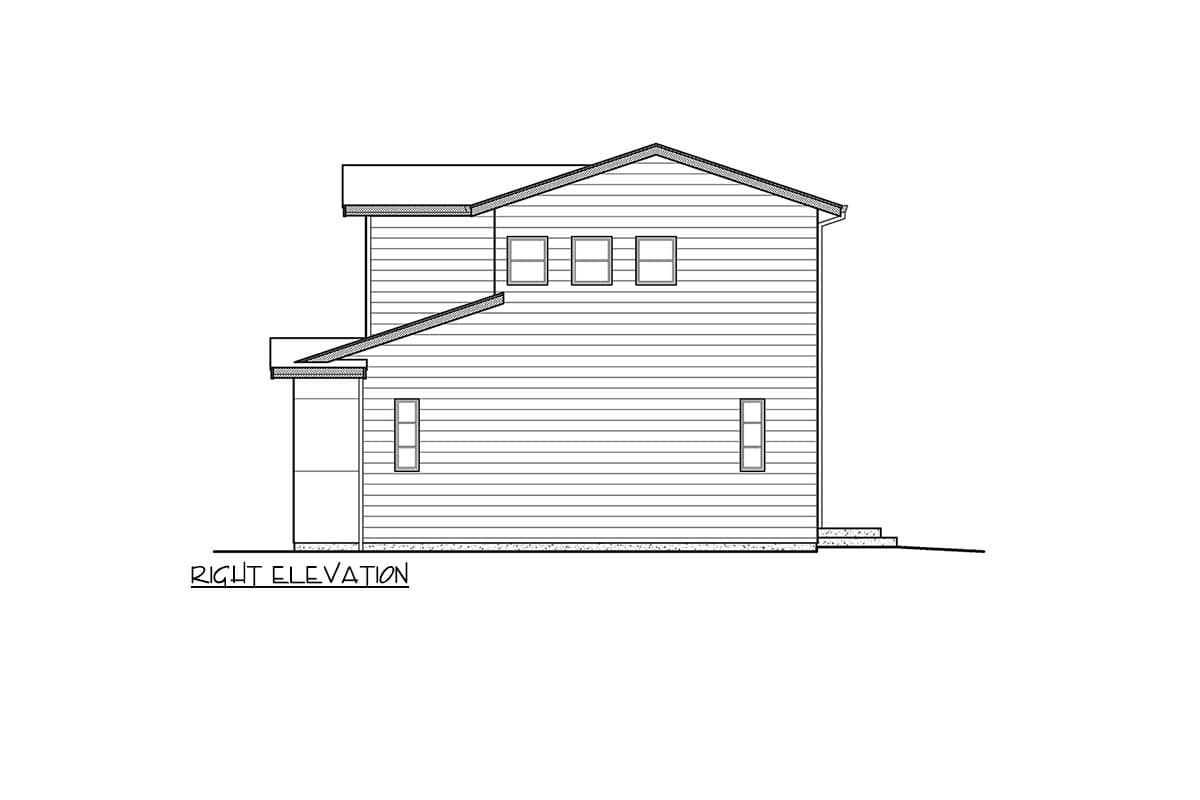

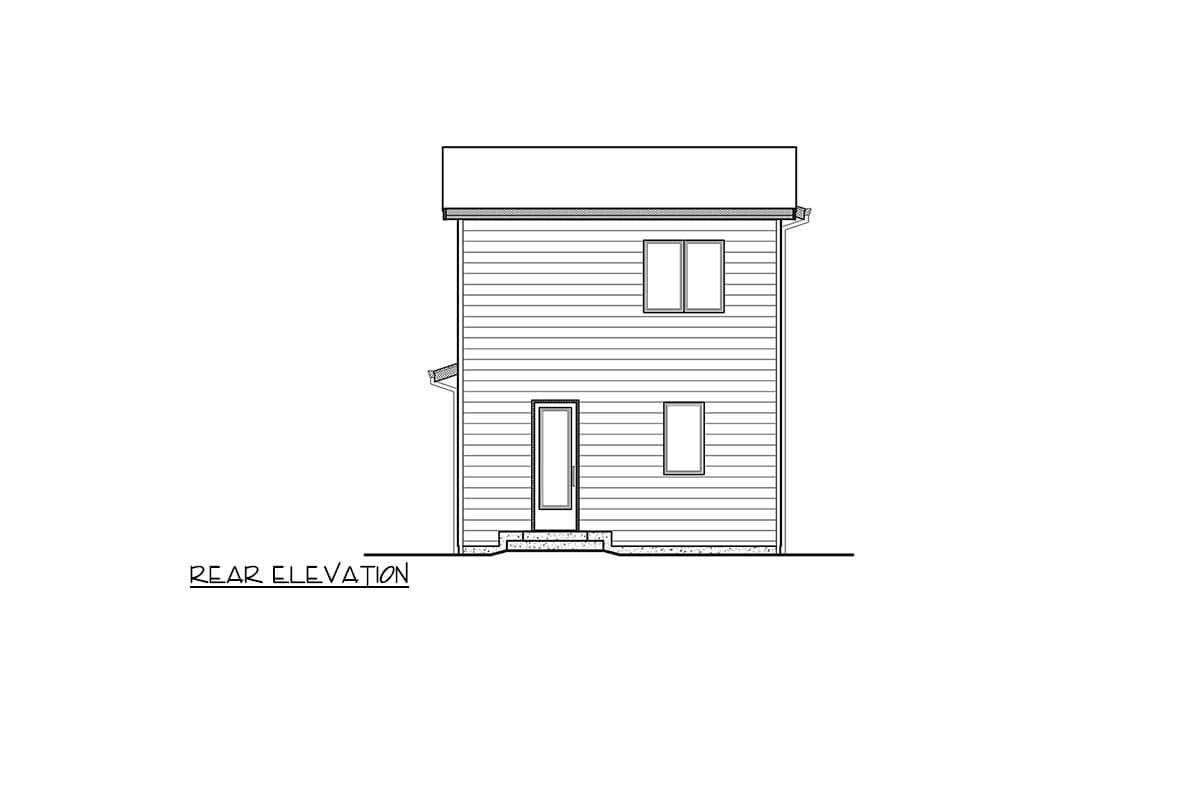

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
View Sample Plan

What's Not Included

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,063 sq. ft.

1st Floor

596 sq. ft.

2nd Floor

467 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

32' 6"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,063 sq. ft.

1st Floor

596 sq. ft.

2nd Floor

467 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

32' 6"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs
