Contemporary 2000 Square Foot 2-Story House Plan with Rear Garage

Plan 580051DFT

  • 2,084

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The shed-style roof adds to the Contemporary appeal of this two-story house plan that delivers 3 bedrooms and 3.5 baths; totaling over 2,000 square feet of living space.
  • To the right of the entry, the great room hosts a fireplace and 11' ceiling height, while the kitchen and dining area can be found to the left.
  • A prep island offers additional workspace in the kitchen and the walk-in pantry's convenient location near the double garage helps when unloading groceries.
  • Enjoy the simplicity of a primary bedroom on the main level, complete with a 4-fixture bath and walk-in closet.
  • A loft greets you at the top of the stairs with bedrooms 2 and 3 on either side.

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

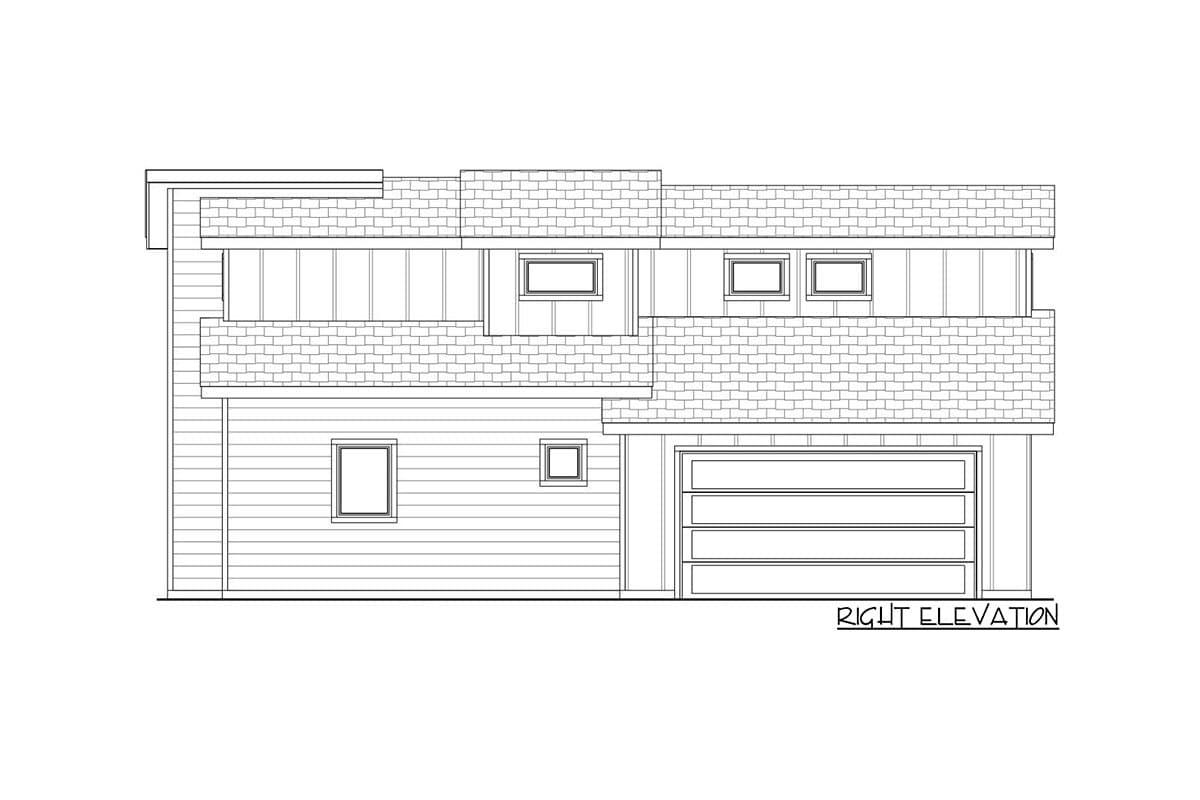

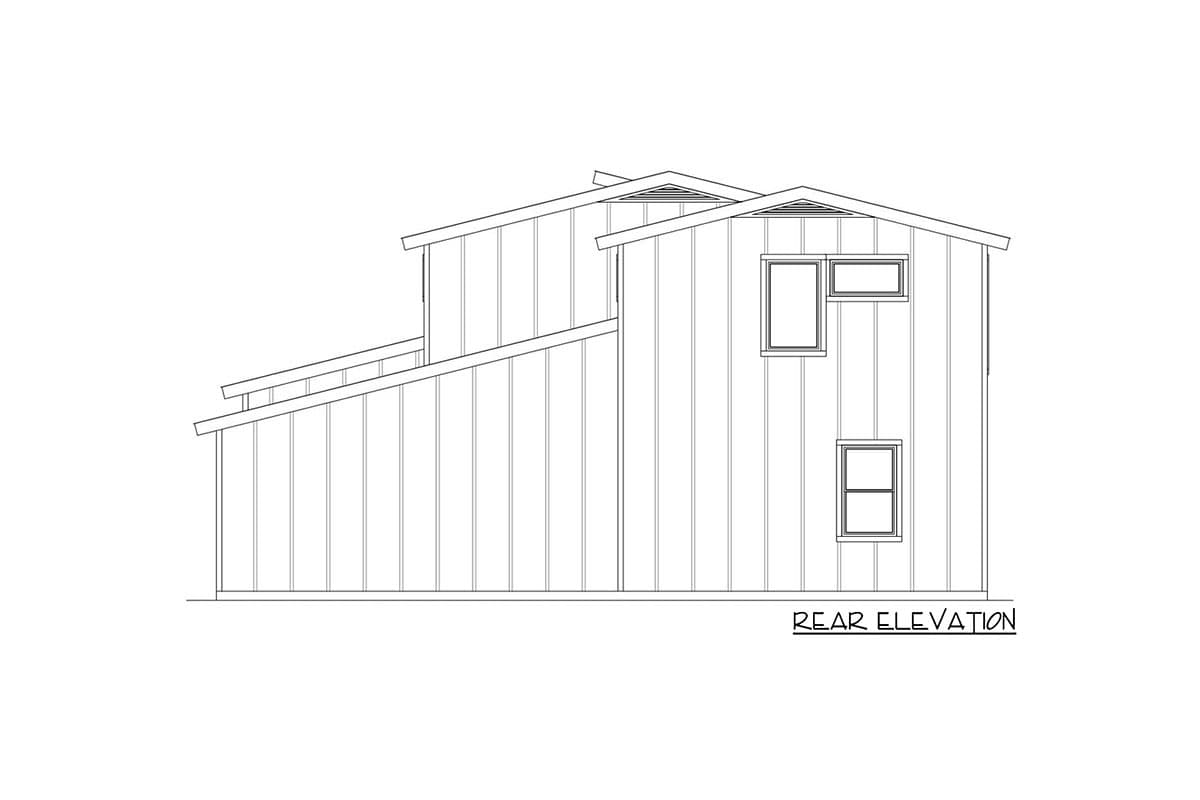

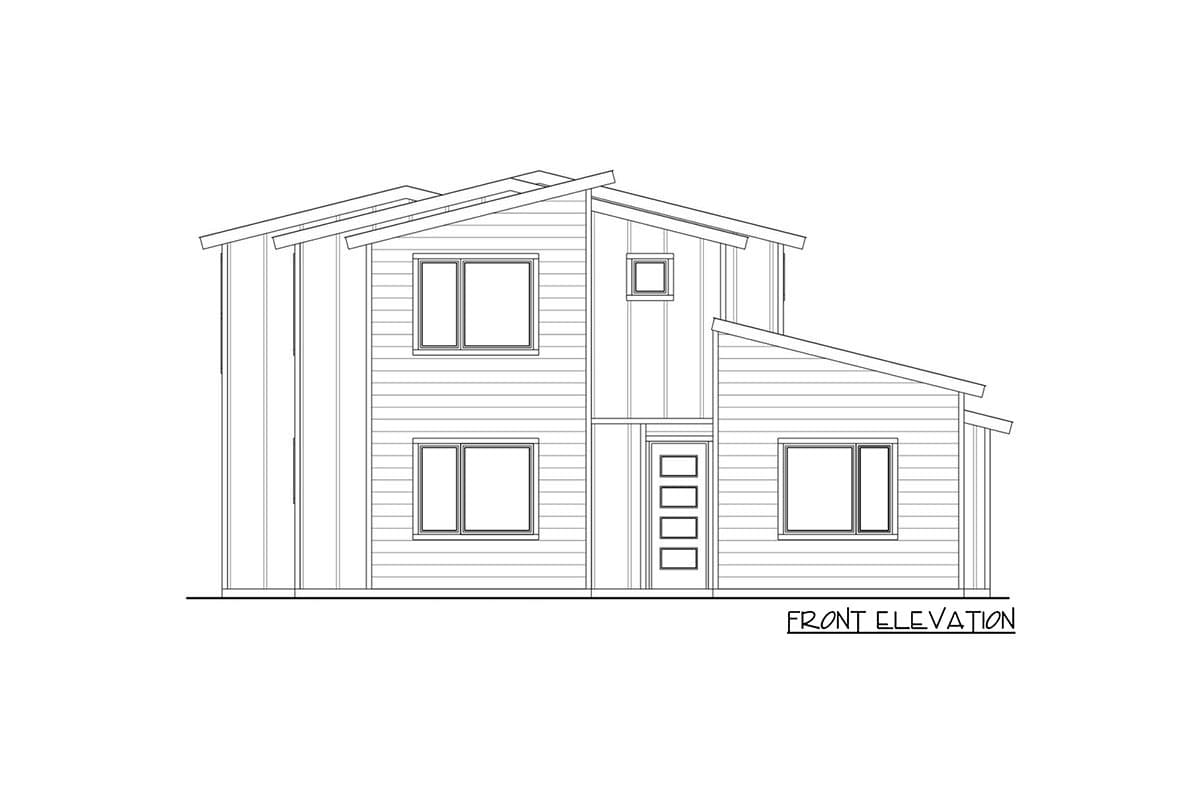

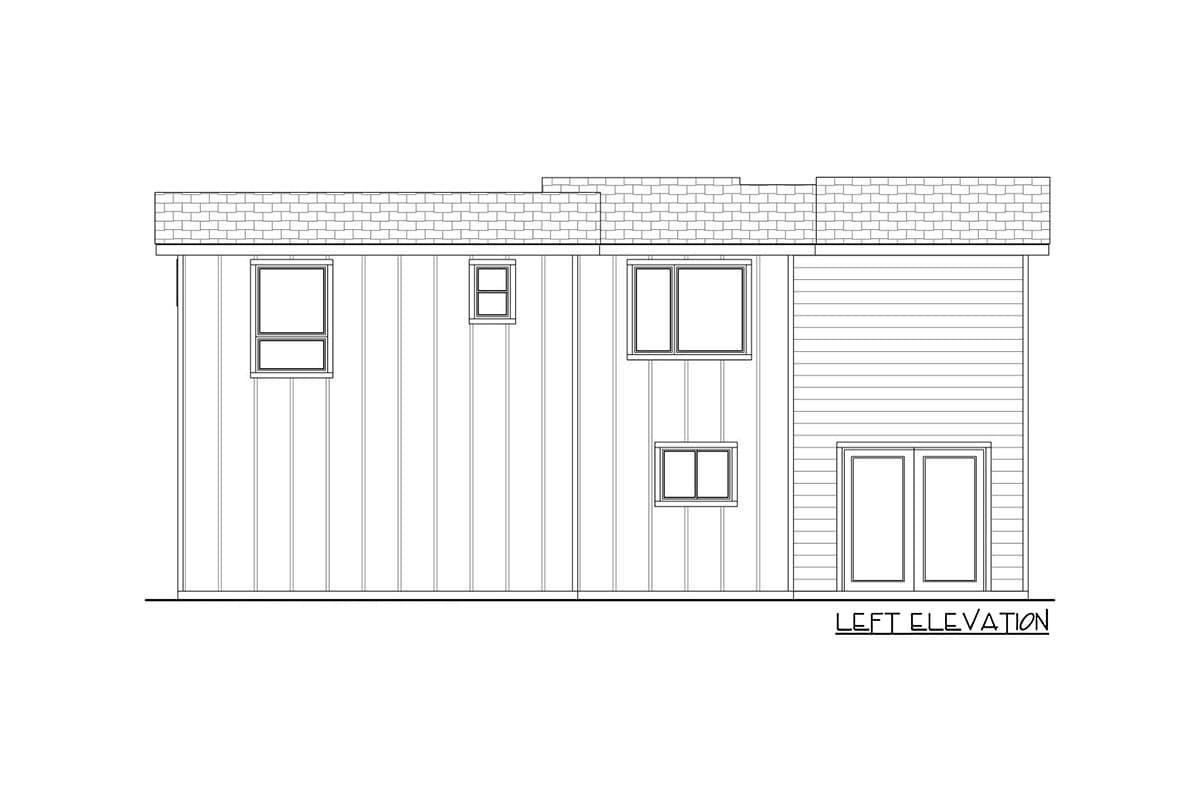

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

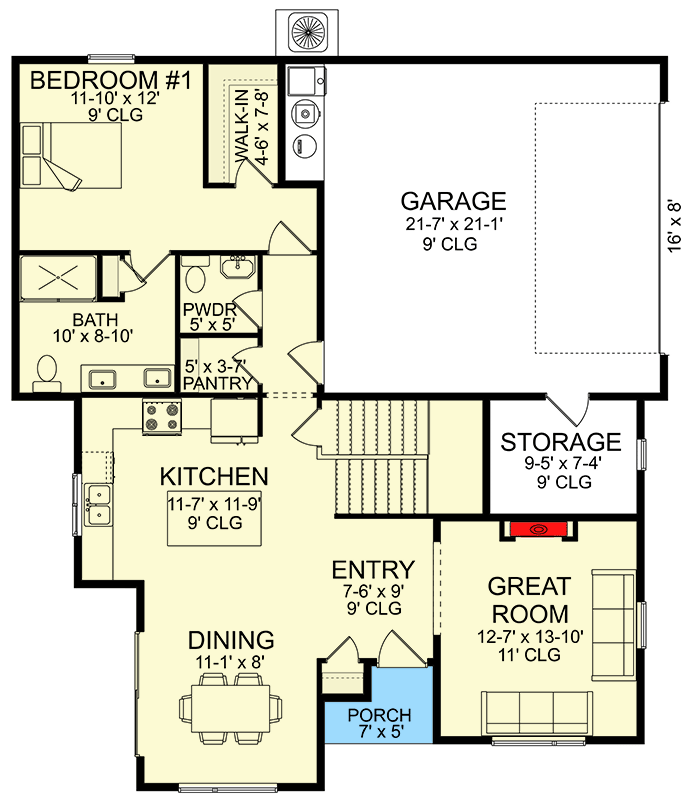

Contemporary 2000 Square Foot 2-Story House Plan with Rear Garage - 580051DFT floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

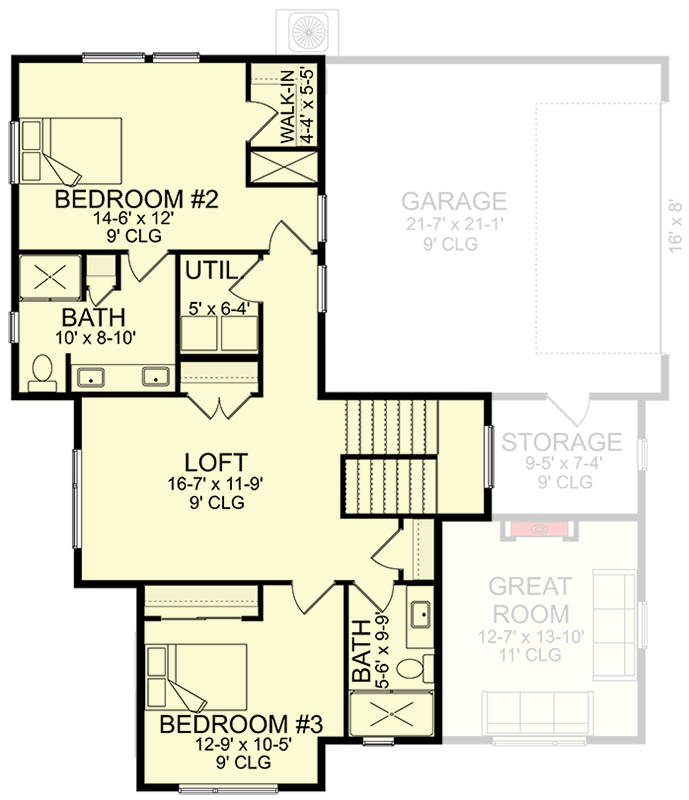

Contemporary 2000 Square Foot 2-Story House Plan with Rear Garage - 580051DFT floor plan - 2nd Floor

Contemporary 2000 Square Foot 2-Story House Plan with Rear Garage

  • 2,084

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,084 sq. ft.
  • 1st Floor: 1,180 sq. ft.
  • 2nd Floor: 904 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 47' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 515 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick And Truss
