Plan 86069BW Contemporary 3-Bed Coastal Getaway

3,719 3-4 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary 3-Bed Coastal Getaway

Plan 86069BW

  • 3,719

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The perfect getaway, this stunning contemporary home plan features abundant outdoor living area, a dramatic covered front entry, and a 3-car garage.
  • Through the foyer, discover an open-concept great room with a fireplace and tray ceiling, airy dining room, and well-appointed kitchen with an oversized island and walk-in pantry. A quiet study in the front of the home lends versatility and convenience. An expansive covered lanai boasts a fireplace and outdoor kitchen. A cabana with an exterior entry and adjacent full bath is ideal for guests.
  • The secluded main-floor master suite becomes your private retreat, where you'll enjoy an elegant tray ceiling, twin walk-in closets, and a roomy 5-piece bath with an oversized walk-in double shower.
  • Upstairs, you'll find a second living area with a tray ceiling, two additional bedrooms, and two full baths.
  • NOTE: Contact us if building in Lee & Collier Counties, Florida, as certain restrictions may apply.

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)


These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

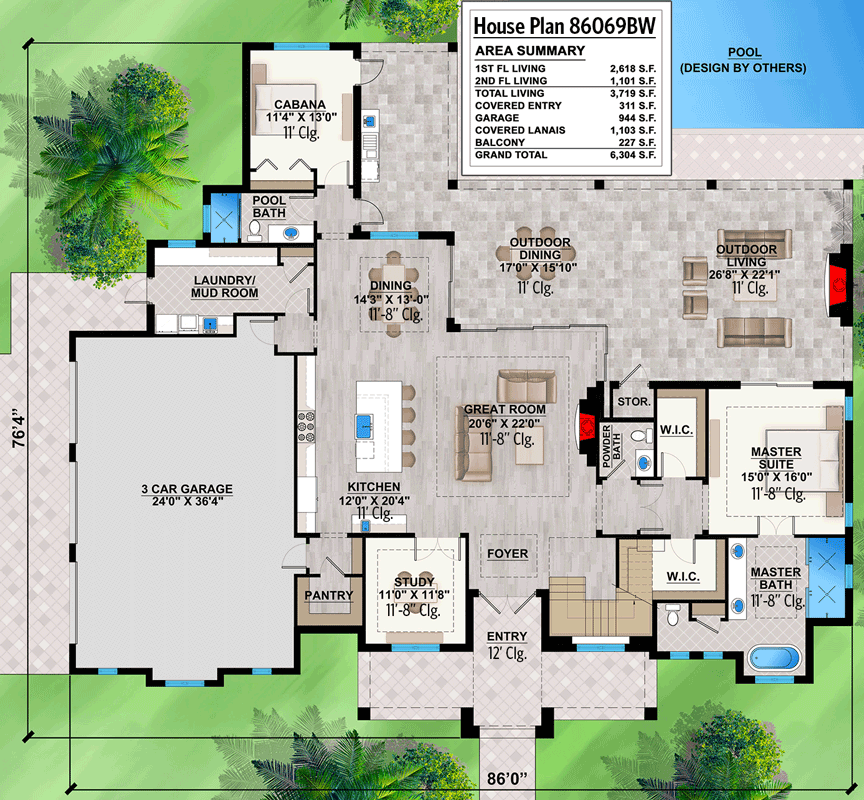

Contemporary 3-Bed Coastal Getaway - 86069BW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

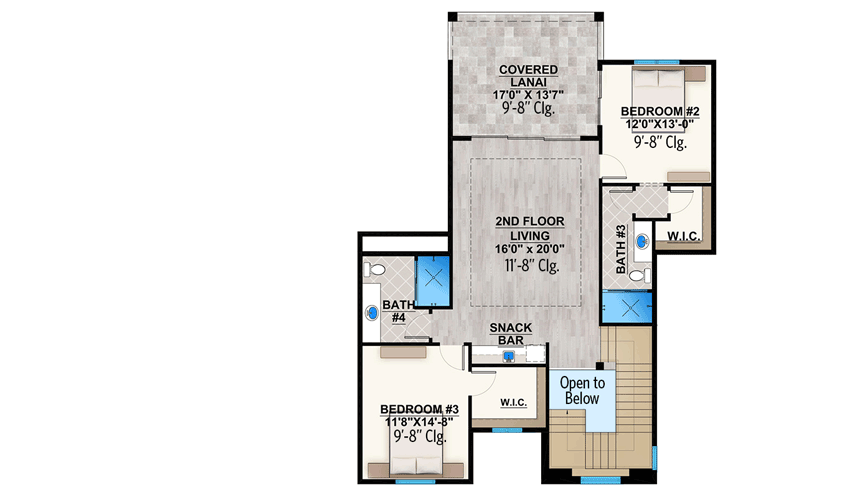

Contemporary 3-Bed Coastal Getaway - 86069BW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,719 sq. ft.
  • 1st Floor: 2,618 sq. ft.
  • 2nd Floor: 1,101 sq. ft.
  • Lanai: 1,103 sq. ft.
  • Balcony / Veranda: 227 sq. ft.
  • Entry: 311 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 86' 0"
  • Depth: 76' 4"

Garage

  • Type: Attached
  • Area: 944 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 8"
Room Details Ceiling Type Width Depth Height
Master Bedroom Coffered 11' 0" to 11' 8"
Great Room Coffered 11' 0" to 11' 8"
Foyer Coffered 11' 0" to 11' 8"
Dining Room Coffered 11' 0" to 11' 8"
Study Coffered 11' 0" to 11' 8"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary 3-Bed Coastal Getaway

  • 3,719

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $3,345
  • PDF - Single-Build $3,345
  • View all purchase option online

About This Plan

  • The perfect getaway, this stunning contemporary home plan features abundant outdoor living area, a dramatic covered front entry, and a 3-car garage.
  • Through the foyer, discover an open-concept great room with a fireplace and tray ceiling, airy dining room, and well-appointed kitchen with an oversized island and walk-in pantry. A quiet study in the front of the home lends versatility and convenience. An expansive covered lanai boasts a fireplace and outdoor kitchen. A cabana with an exterior entry and adjacent full bath is ideal for guests.
  • The secluded main-floor master suite becomes your private retreat, where you'll enjoy an elegant tray ceiling, twin walk-in closets, and a roomy 5-piece bath with an oversized walk-in double shower.
  • Upstairs, you'll find a second living area with a tray ceiling, two additional bedrooms, and two full baths.
  • NOTE: Contact us if building in Lee & Collier Counties, Florida, as certain restrictions may apply.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,719 sq. ft.
  • 1st Floor: 2,618 sq. ft.
  • 2nd Floor: 1,101 sq. ft.
  • Lanai: 1,103 sq. ft.
  • Balcony / Veranda: 227 sq. ft.
  • Entry: 311 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 86' 0"
  • Depth: 76' 4"

Garage

  • Type: Attached
  • Area: 944 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 8"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 86069BW
