Plan 52465WM

Contemporary 3 Bed Plan with Upstairs Laundry and Master Suite

Heated S.F.
1,280
Beds
3
Baths
2.5
Stories
2

Floor Plan

Plan 52465WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52465WM

M-F 9am-5pm EST |

1-203-761-8500

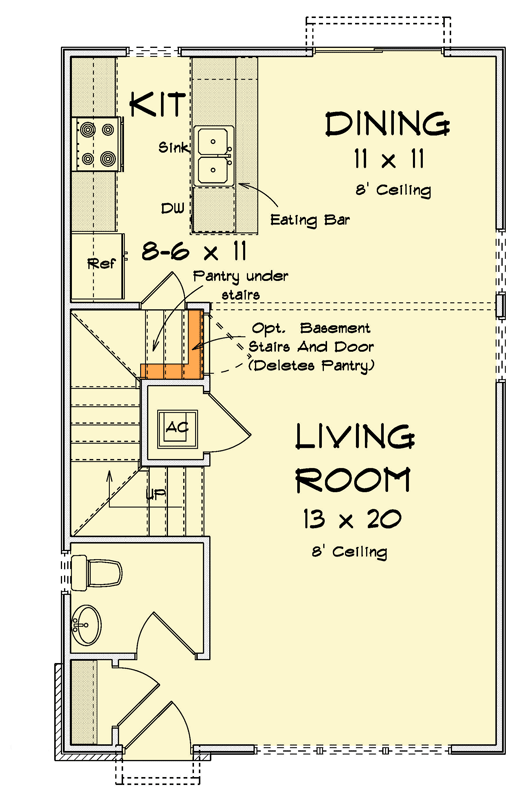

Main Level

Plan 52465WM: Contemporary 3 Bed Plan with Upstairs Laundry and Master Suite - Floor Plan - Main Level - Contemporary, Traditional

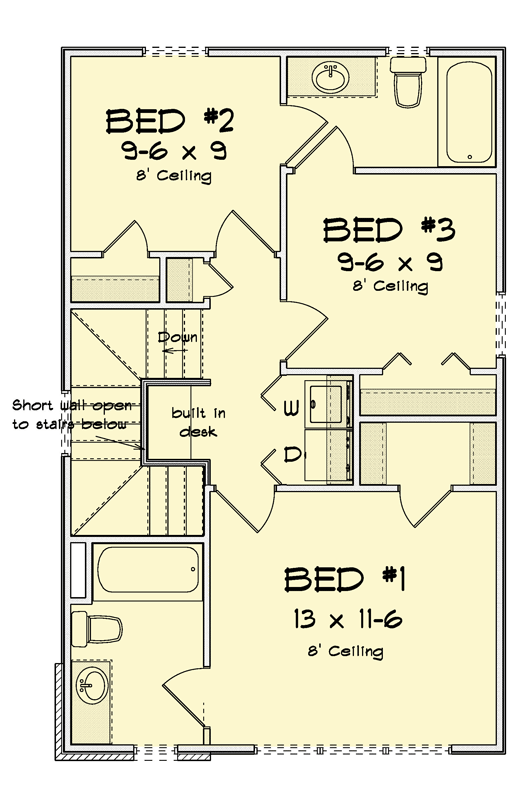

2nd Floor

Plan 52465WM: Contemporary 3 Bed Plan with Upstairs Laundry and Master Suite - Floor Plan - 2nd Floor - Contemporary, Traditional

Plan Details

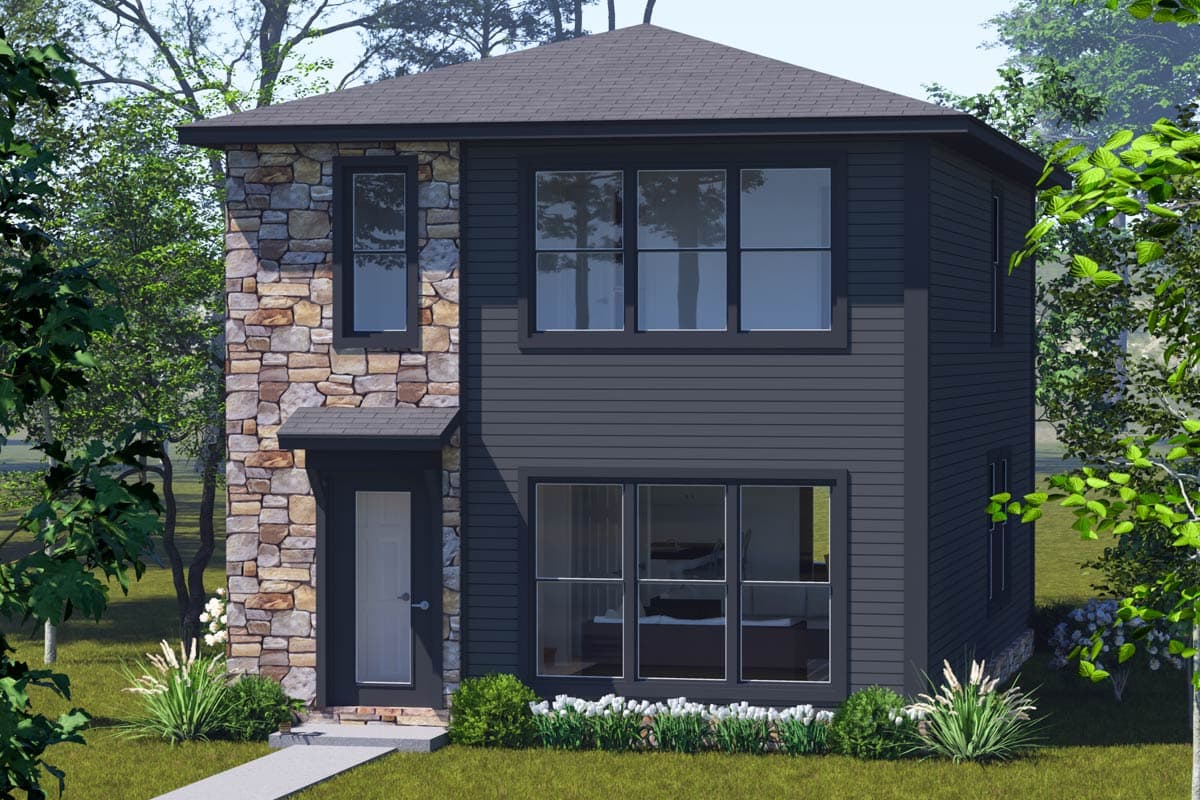

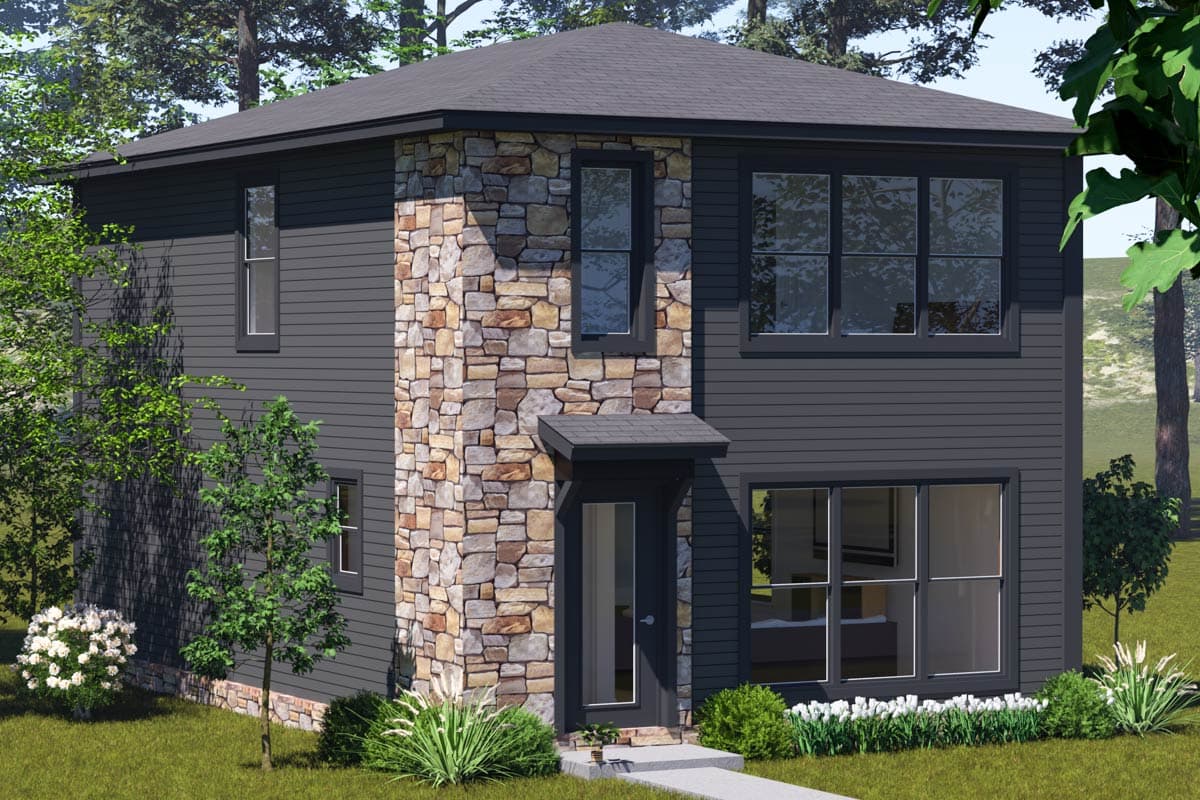

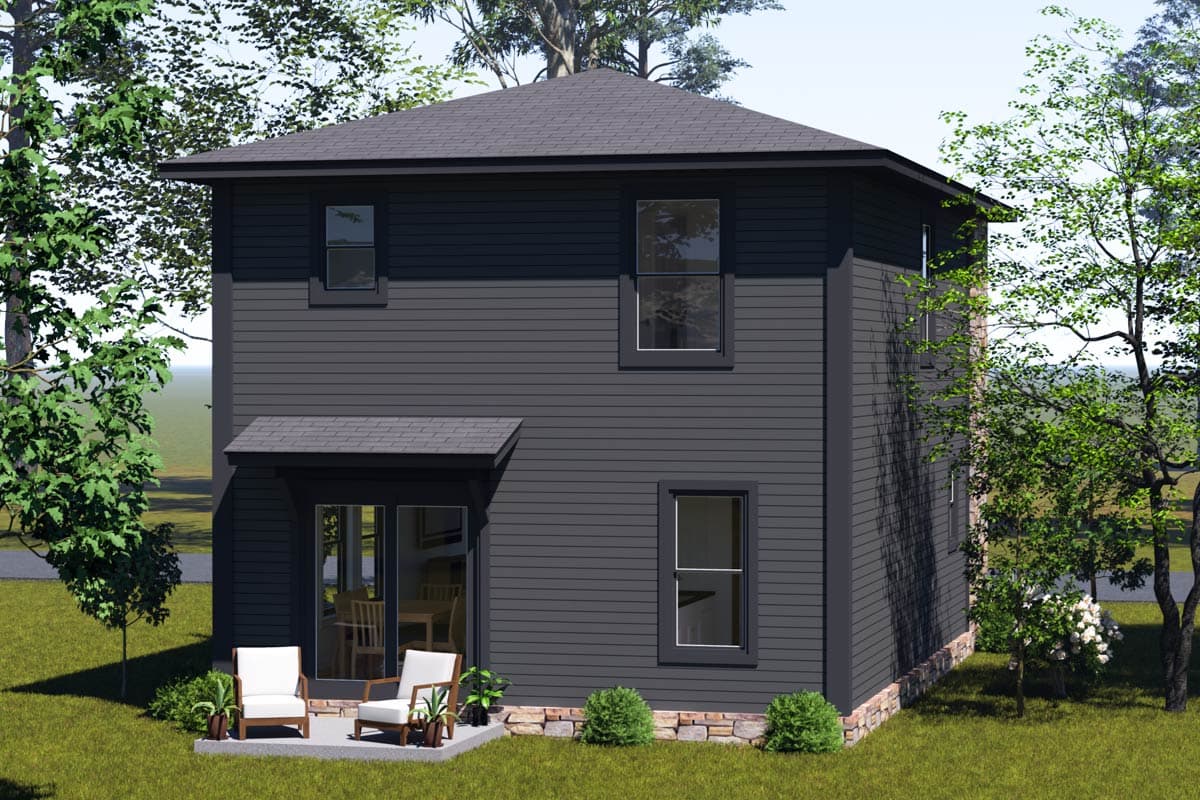

  • This sleek 1,280 sq. ft. contemporary house plan offers 3 bedrooms, 2 full baths, and 1 half bath, featuring a striking dark facade with an elegant stone accent wall.

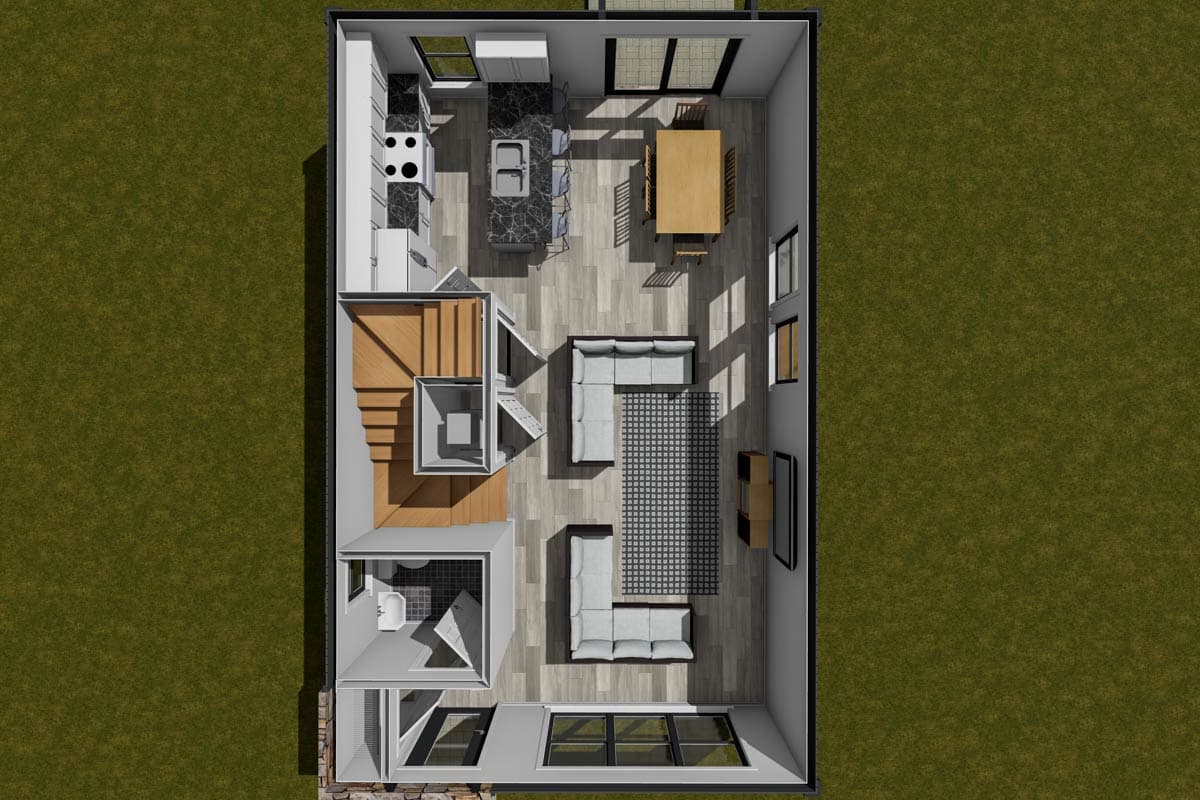

  • Upon entering, a convenient powder room is immediately accessible, while the space unfolds into an expansive open-concept living room, designed for effortless daily living.
  • The main living space transitions smoothly into the combined kitchen and dining area at the rear, where an eating bar offers casual seating and a dedicated butler walk-in pantry provides ample storage, cleverly tucked away.

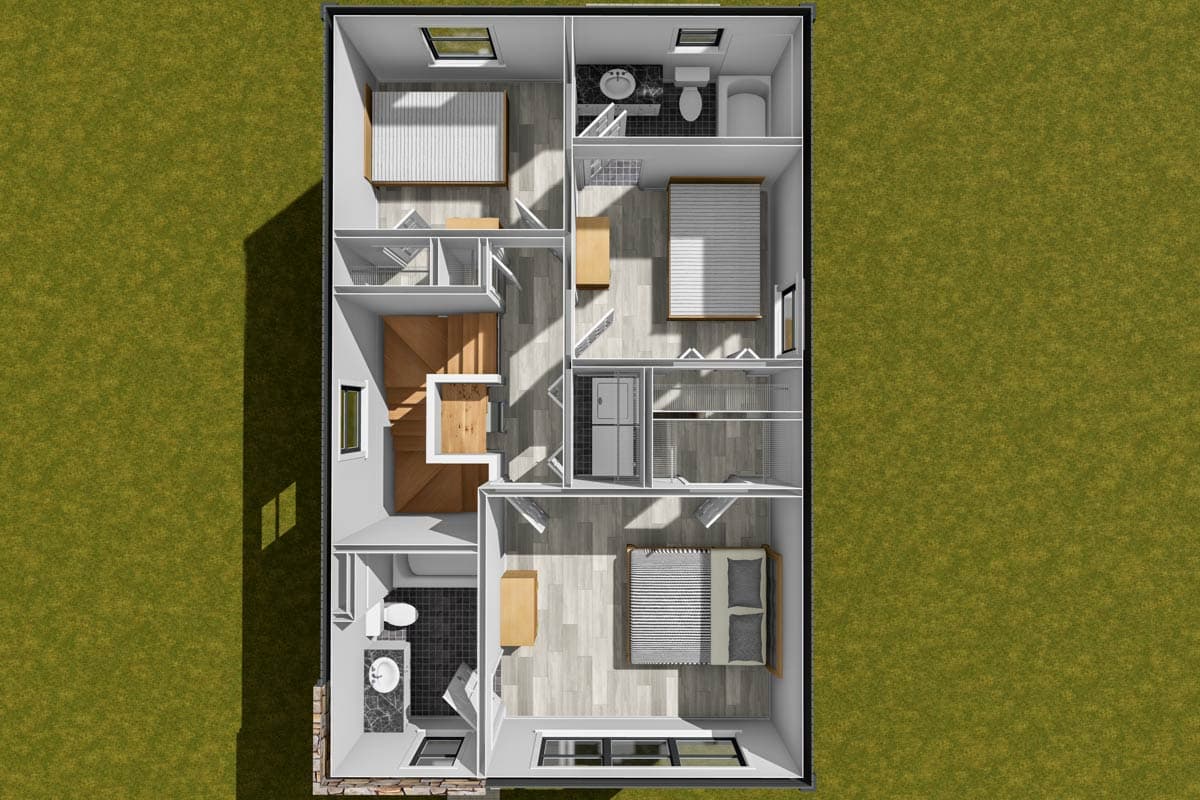

  • Ascend to the second floor where the master suite, featuring a private full bathroom and walk-in closet, is strategically separated from the two secondary bedrooms by a central hallway and a convenient upstairs laundry.
  • A dedicated built-in desk area on the second-floor landing offers a quiet spot for work or study, complemented by an easily accessible upstairs laundry area for ultimate convenience.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,280 sq. ft.

1st Floor

640 sq. ft.

2nd Floor

640 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

20' 0"

Depth

32' 0"

Max Ridge Height

20' 10"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Stick Or Truss

Architectural Style

Contemporary

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Jack & Jill Bath

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,280 sq. ft.

1st Floor

640 sq. ft.

2nd Floor

640 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

20' 0"

Depth

32' 0"

Max Ridge Height

20' 10"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Stick Or Truss

Architectural Style

Contemporary

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Jack & Jill Bath

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry
