Contemporary 3-Bedroom House Plan with First-Floor Master and Outdoor Kitchen

Name: Plan 660031JMD: Contemporary 3-Bedroom House Plan with First-Floor Master and Outdoor Kitchen
Brand: Architectural Designs
SKU: 660031JMD
Price: 3700.0 USD
Availability: InStock

Heated S.F.

2,270

Beds

Baths

Stories

Cars

Floor Plan

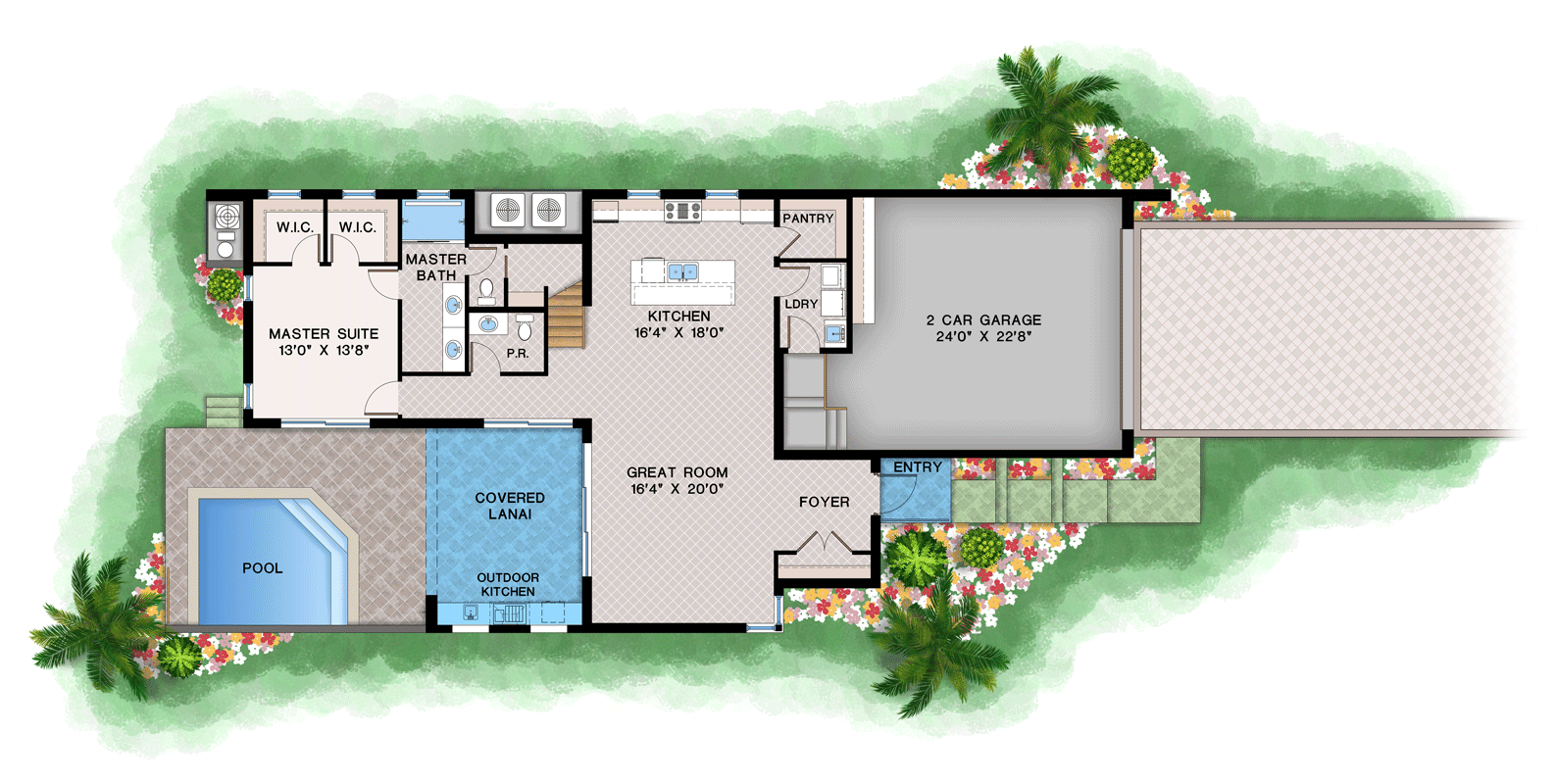

Main Level

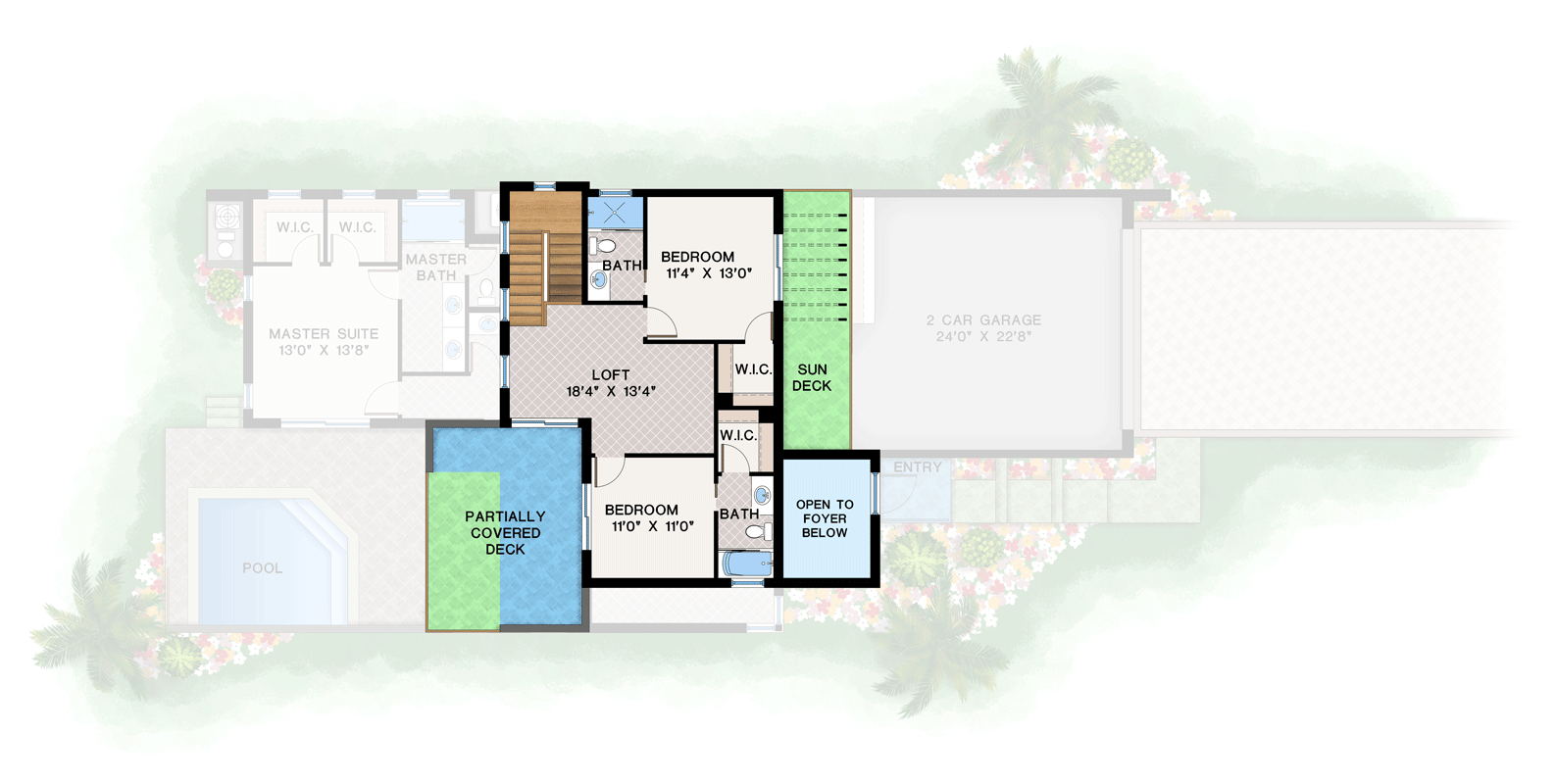

2nd Floor

Plan Details

This striking Contemporary House Plan offers 2,270 finished sq ft, 3 bedrooms, 3 baths, and a 656 sq ft, 2-car garage, showcasing a sleek modern exterior.
A grand entry sequence leads to the foyer, setting the stage for an open-concept layout with a convenient main-level laundry and a master suite on the first floor for ultimate privacy.
The main living areas flow seamlessly, featuring a breakfast nook and an impressive butler walk-in pantry, ideal for modern culinary and entertaining needs.
The private first-floor master suite provides a serene retreat, while the secondary bedrooms are thoughtfully split, ensuring comfort and separation for all residents.
An adaptable loft on the second floor provides versatile space for a home office, media room, or creative studio.
Multiple outdoor living areas, totaling 322 sq ft of deck and porch space, include a covered entry porch, a stylish second-floor balcony, and a pergola-covered deck perfect for an outdoor kitchen.

What's Included

Elevations Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

Roof Design Plan Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
