Contemporary 3288 Square Foot 2-Story House Plan with RV Bay and 2-Story Foyer
Heated S.F.
3,288
Beds
4-5
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • With 4 upstairs bedrooms - plus laundry - and a main floor flex room - this 3,288 square foot contemporary house plan can accommodate all kinds of needs.
  • Walk past the 2-story window-filled foyer with stairs to the left and fid yourself in an open concept space with the dining area, kitchen with pantry and island and great room with fireplace arranged in a way to maximize your entertainment enjoyment. Take your friends outside on the covered patio (20'2" by 10') accessible through sliding doors from the great room.
  • If you don't need a fifth bedroom, the main floor flex room would make a great home office.
  • The 3-car garage has a 2-car overhead door and a 1-car RV bay.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary 3288 Square Foot 2-Story House Plan with RV Bay and 2-Story Foyer

  • 3,288

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

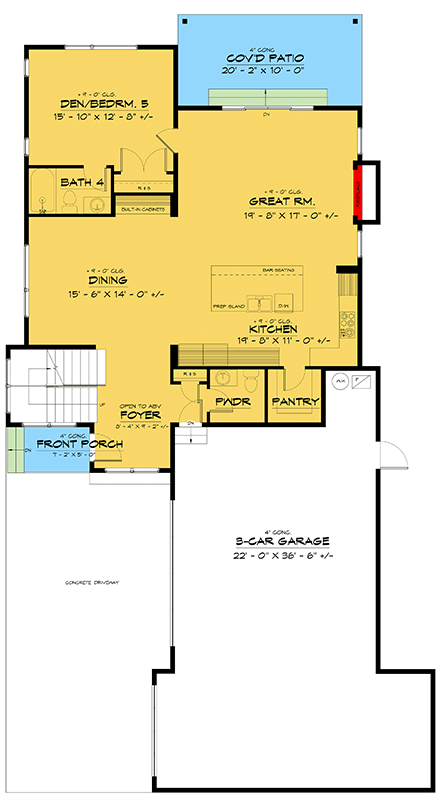

  • Main Level

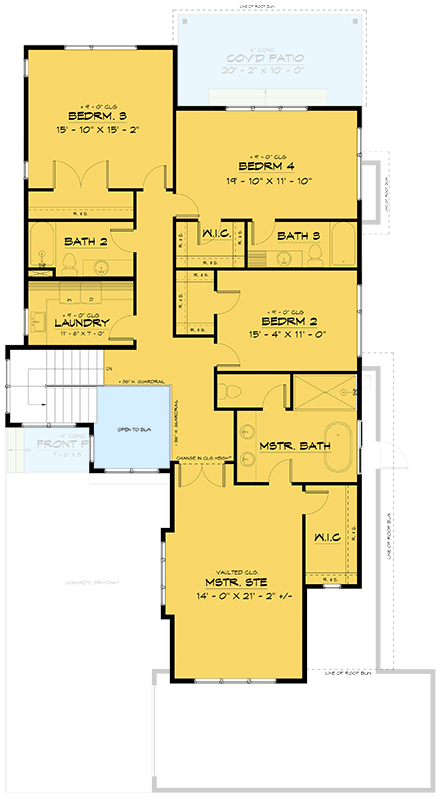

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,288 sq. ft.
  • 1st Floor: 1,453 sq. ft.
  • 2nd Floor: 1,835 sq. ft.

Dimensions

  • Width: 47' 0"
  • Depth: 81' 10"
  • Max ridge height: 33' 8"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: RV Garage, Attached
  • Area: 1064 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss
