Plan 430048LY Contemporary 4-Bed Hill Country Home Plan with Bathrooms For Everyone

Contemporary 4-Bed Hill Country Home Plan with Bathrooms For Everyone

Plan 430048LY

  • 3,865

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • Once past the threshold, clean sight lines provide views into the shared living spaces: the living room, kitchen, breakfast nook, and back porch. A retractable, sliding door wall creates an open flow between the living room and covered porch.
  • The chef's kitchen boasts a large prep island, with bar-height seating for casual meals, and a roomy walk-in pantry resides nearby.
  • The master suite is privately situated behind the 4-car garage, featuring a separate door to the backyard and a spacious bathroom with an oversized shower.
  • Three additional bedrooms on the opposite side of the home each include their own full bath.
  • Upstairs, a lofted game room overlooks the living room below, and a media room provides a quiet space to watch the latest feature film.

This house plan has 9 pages and consists of the following details:
  • Cover sheet with general notes
  • Roof plan
  • First floor plan with window and door schedules
  • Second floor plan
  • Exterior elevations (all four sides) and typical wall section
  • Reflective ceiling plans
  • Electrical plan
  • Interior elevations
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

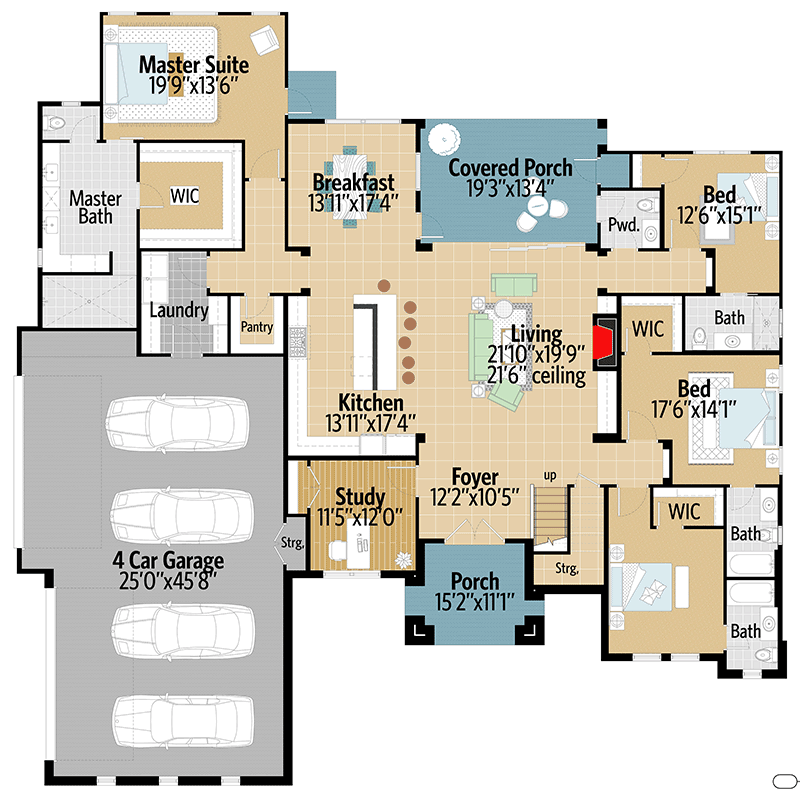

Contemporary 4-Bed Hill Country Home Plan with Bathrooms For Everyone - 430048LY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

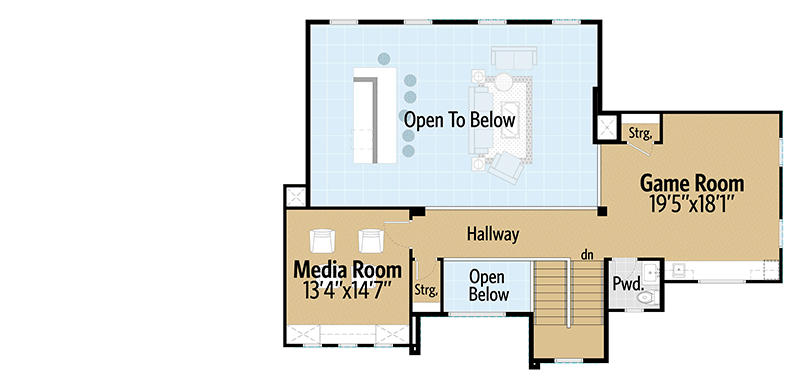

Contemporary 4-Bed Hill Country Home Plan with Bathrooms For Everyone - 430048LY floor plan - 2nd Floor

Plan details

Contemporary 4-Bed Hill Country Home Plan with Bathrooms For Everyone

  • 3,865

    Heated s.f.

  • 4

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,950
  • CAD+PDF+Site Plan+Study $3,950
  • View all purchase option online

About This Plan

  • Once past the threshold, clean sight lines provide views into the shared living spaces: the living room, kitchen, breakfast nook, and back porch. A retractable, sliding door wall creates an open flow between the living room and covered porch.
  • The chef's kitchen boasts a large prep island, with bar-height seating for casual meals, and a roomy walk-in pantry resides nearby.
  • The master suite is privately situated behind the 4-car garage, featuring a separate door to the backyard and a spacious bathroom with an oversized shower.
  • Three additional bedrooms on the opposite side of the home each include their own full bath.
  • Upstairs, a lofted game room overlooks the living room below, and a media room provides a quiet space to watch the latest feature film.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,865 sq. ft.
  • 1st Floor: 3,179 sq. ft.
  • 2nd Floor: 686 sq. ft.
  • Deck: 257 sq. ft.
  • Porch, Front: 136 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 80' 4"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1238 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
