Contemporary 4-Bed Home Plan with Split-bed Layout

Plan 90328PD

  • 3,903

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A two-story, glass foyer sets the scene for this Contemporary, 4-bedroom home plan, complete with stone accents on the front elevation.
  • To the right of the foyer, the combined kitchen and dining room is filled with natural lighting and boasts an oversized island with seating for five and a rear sliding door that leads to a covered balcony.
  • The living room is to the left of the entryway and is spacious with four large windows lining the back wall. The laundry room, powder bath, and mudroom are conveniently clustered near the 3-car garage.
  • The master bedroom upstairs serves as the homeowner's oasis, and includes a private balcony, 5-fixture bathroom, and walk-in closet.
  • A bridge-style hallway connects to the secondary bedrooms; two share a Jack-and-Jill bath, and one includes a full bath.

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary 4-Bed Home Plan with Split-bed Layout - 90328PD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

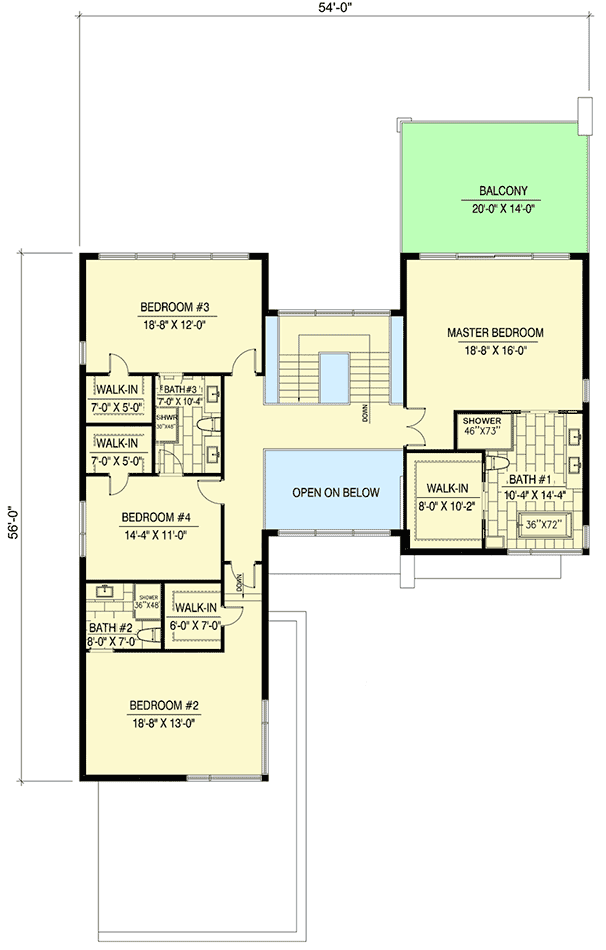

Contemporary 4-Bed Home Plan with Split-bed Layout - 90328PD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,903 sq. ft.
  • 1st Floor: 1,807 sq. ft.
  • 2nd Floor: 2,096 sq. ft.
  • Basement Unfinished: 1,807 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 73' 0"
  • Max ridge height: 32' 11"

Garage

  • Type: Attached
  • Count: 3 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Contemporary 4-Bed Home Plan with Split-bed Layout

  • 3,903

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,597
  • 8 Sets $1,795
  • PDF - Single-Build $2,097
  • 4 Sets + PDF $2,247
  • CAD + PDF - Single Build $3,337
  • View all purchase option online

About This Plan

  • A two-story, glass foyer sets the scene for this Contemporary, 4-bedroom home plan, complete with stone accents on the front elevation.
  • To the right of the foyer, the combined kitchen and dining room is filled with natural lighting and boasts an oversized island with seating for five and a rear sliding door that leads to a covered balcony.
  • The living room is to the left of the entryway and is spacious with four large windows lining the back wall. The laundry room, powder bath, and mudroom are conveniently clustered near the 3-car garage.
  • The master bedroom upstairs serves as the homeowner's oasis, and includes a private balcony, 5-fixture bathroom, and walk-in closet.
  • A bridge-style hallway connects to the secondary bedrooms; two share a Jack-and-Jill bath, and one includes a full bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,903 sq. ft.
  • 1st Floor: 1,807 sq. ft.
  • 2nd Floor: 2,096 sq. ft.
  • Basement Unfinished: 1,807 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 73' 0"
  • Max ridge height: 32' 11"

Garage

  • Type: Attached
  • Count: 3 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
