Plan 54242HU Contemporary 4-Bed Home Plan with Two Main-level Master Suites

Contemporary 4-Bed Home Plan with Two Main-level Master Suites

Plan 54242HU

  • 4,169

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Take in panoramic views from this Contemporary 4-bed home plan, complete with a modern glass and stone exterior.
  • Wall to wall windows in the great room / kitchen combo allows your internal clock to rise and set with the sun. Family and friends can sit at the eating bar at the kitchen island, formal dining room, or retreat to the spacious terrace to dine outdoors.
  • To the left of the foyer, discover the primary master suite next to a quiet den. A second master on the opposite side of the home neighbors a media / game room.
  • Bedrooms 3 and 4 can be found upstairs, along with a flex space for residents to claim as their own.
  • The 3-car garage protrudes from the front of the home and opens into a mudroom where a barn door reveals the laundry room with ample storage and a utility sink.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

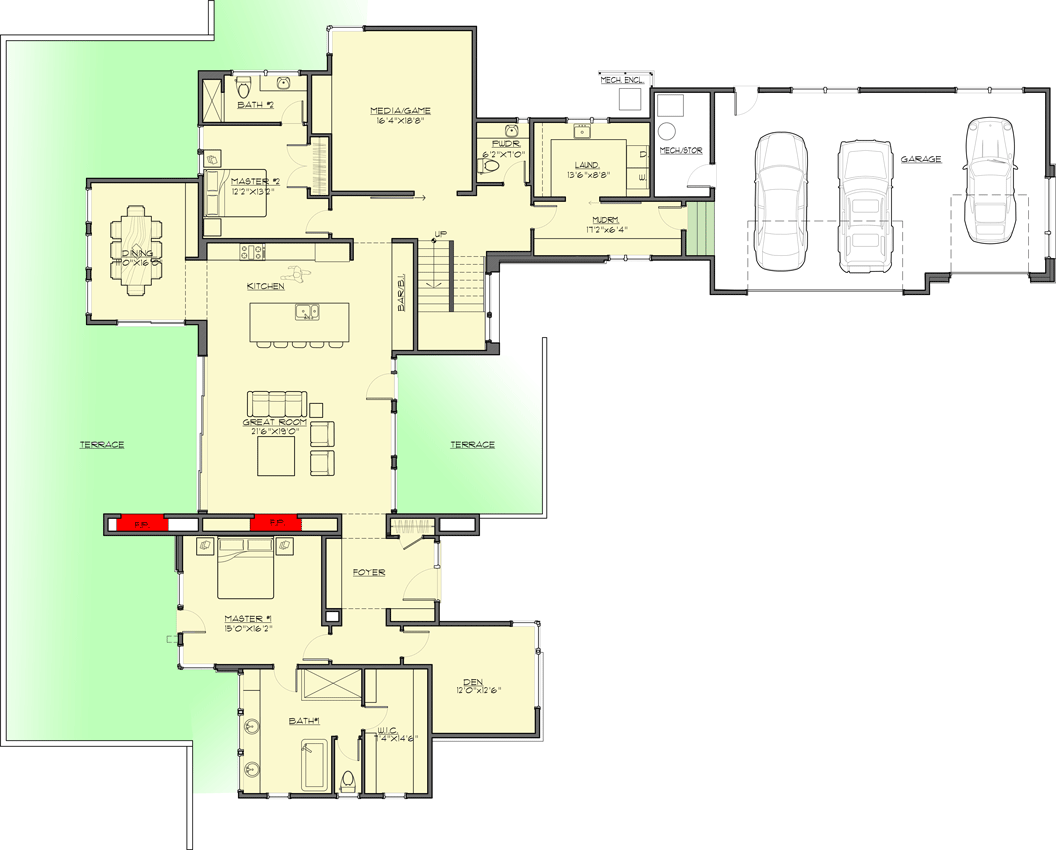

Contemporary 4-Bed Home Plan with Two Main-level Master Suites - 54242HU floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

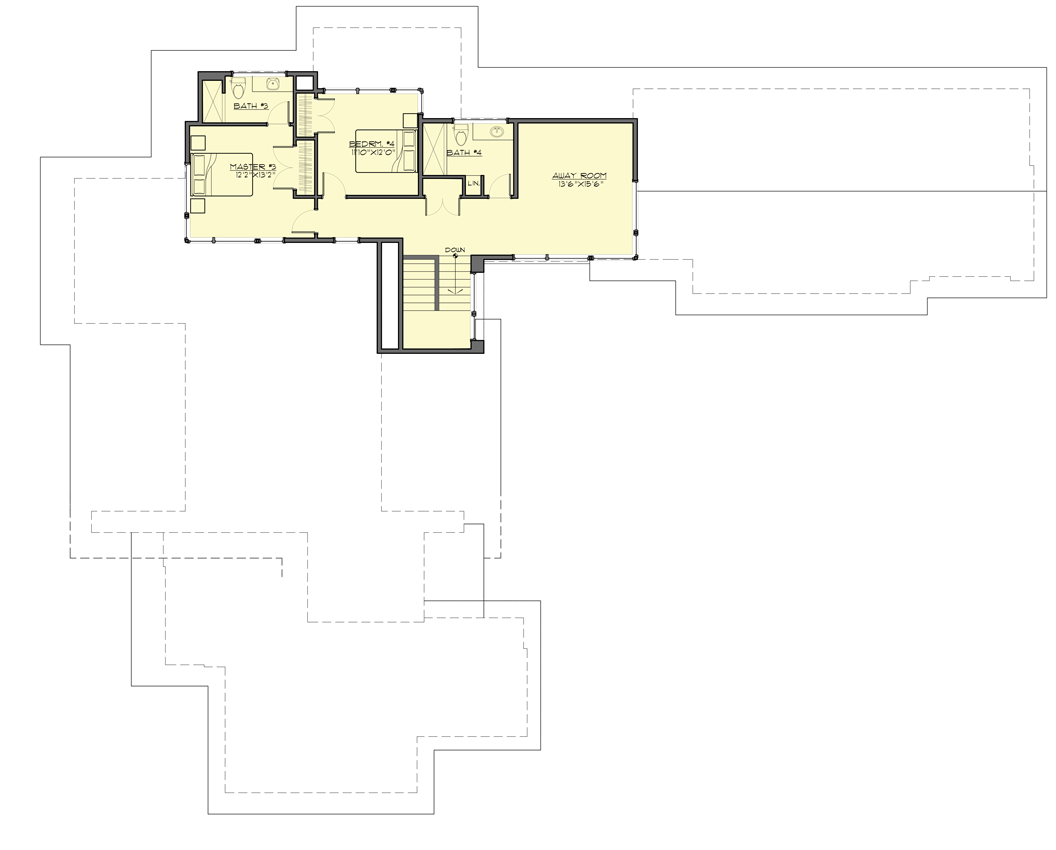

Contemporary 4-Bed Home Plan with Two Main-level Master Suites - 54242HU floor plan - 2nd Floor

Plan details

Contemporary 4-Bed Home Plan with Two Main-level Master Suites

  • 4,169

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $995
  • PDF - Single-Build $2,195
  • Reproducible Set $2,295
  • 5 Sets $2,395
  • 8 Sets $2,495
  • CAD - Single-Build $2,895
  • View all purchase option online

About This Plan

  • Take in panoramic views from this Contemporary 4-bed home plan, complete with a modern glass and stone exterior.
  • Wall to wall windows in the great room / kitchen combo allows your internal clock to rise and set with the sun. Family and friends can sit at the eating bar at the kitchen island, formal dining room, or retreat to the spacious terrace to dine outdoors.
  • To the left of the foyer, discover the primary master suite next to a quiet den. A second master on the opposite side of the home neighbors a media / game room.
  • Bedrooms 3 and 4 can be found upstairs, along with a flex space for residents to claim as their own.
  • The 3-car garage protrudes from the front of the home and opens into a mudroom where a barn door reveals the laundry room with ample storage and a utility sink.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,169 sq. ft.
  • 1st Floor: 3,232 sq. ft.
  • 2nd Floor: 937 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 89' 8"
  • Depth: 112' 6"
  • Max ridge height: 24' 3"

Garage

  • Type: Attached
  • Area: 1025 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 1.5 on 12
  • Framing Type: Truss
