Contemporary 4-Bed House Plan with Study and Covered Lanai

Pageloader

Contemporary 4-Bed House Plan with Study and Covered Lanai

Plan 86073BW

  • 3,289

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 4-bedroom, contemporary house plan provides a fresh and modern exterior, oversimplifying the grandeur provided within.
  • An oversized front entry leads to a spacious foyer with a tray ceiling. A quiet study rests near the front of the home.
  • An open-concept floor plan provides clean sight lines between the great room, kitchen, and dining room. Retractable walls extend the living space to a covered lanai, including an outdoor kitchen, allowing natural light to permeate within.
  • The kitchen boasts a large island providing a natural gathering spot when entertaining.
  • Your master suite, privately situated on one side of the home, boasts a tray ceiling, sliding doors to the back lanai, two walk-in closets, and a master bathroom with dual toilets and sinks, a tub, and an oversized shower.
  • Two additional bedrooms provide a walk-in closet and full bathroom, and a fourth bedroom is within steps of a full bathroom. A laundry room is located near the 2-car garage entryway.

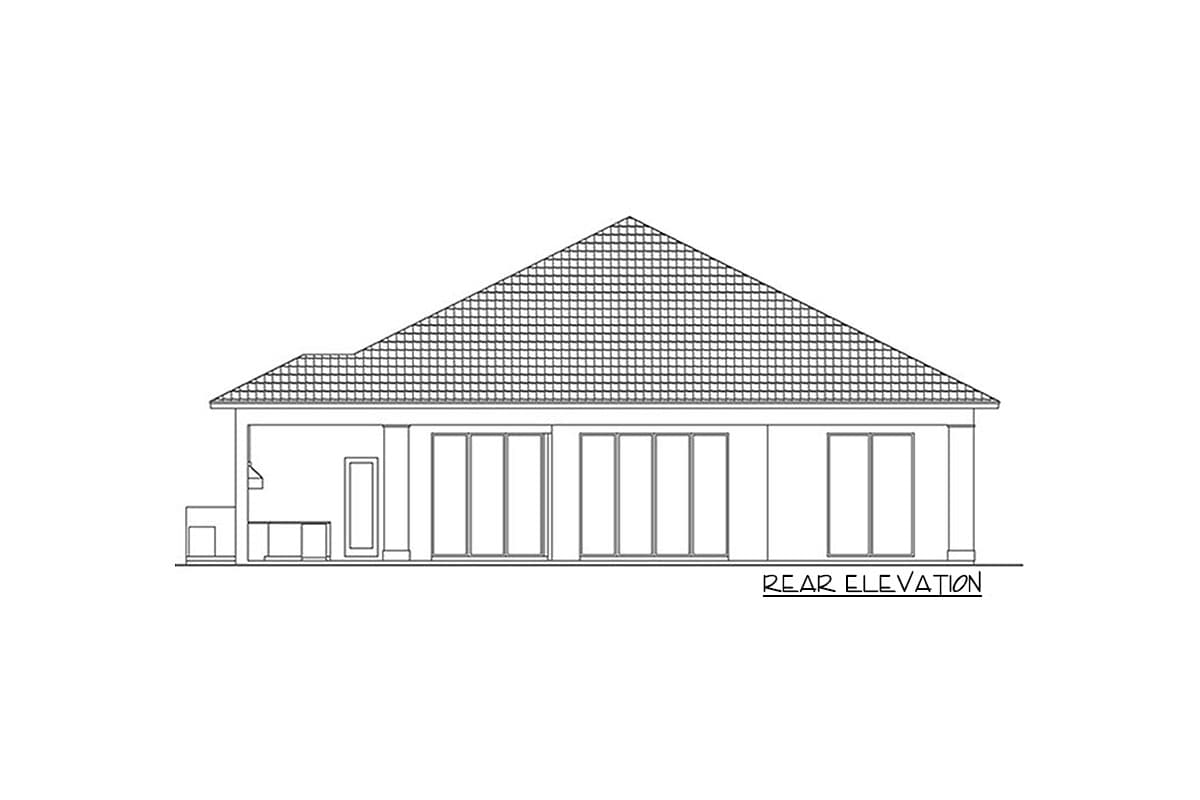

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)

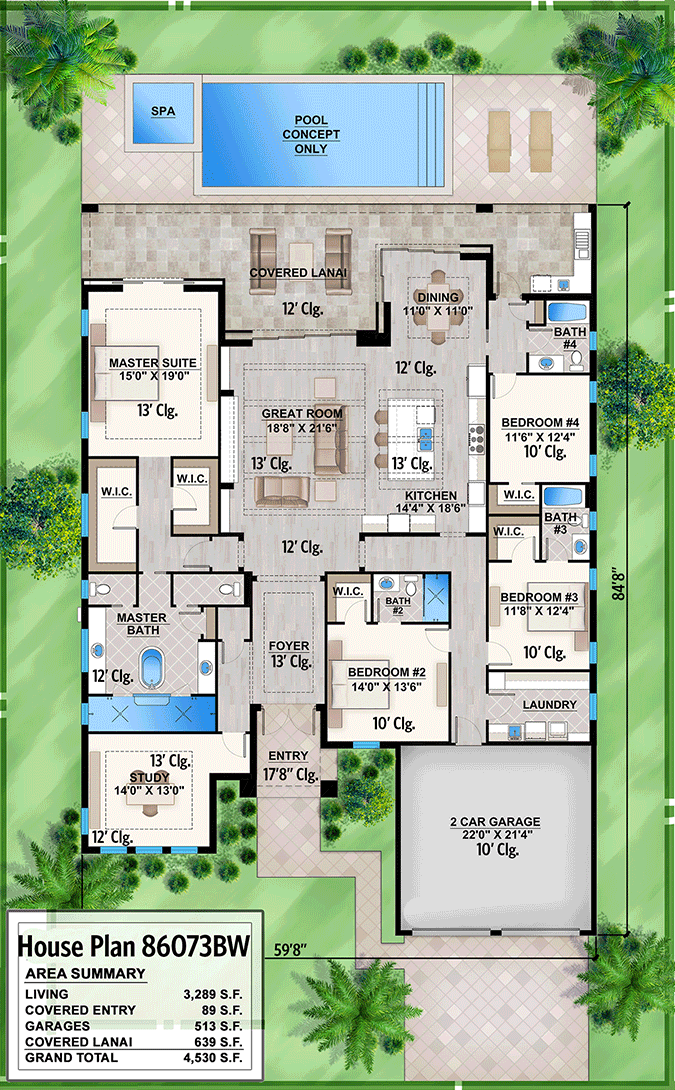

Floor Plan

Plan details



Contemporary 4-Bed House Plan with Study and Covered Lanai

  • 3,289

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • CAD $2,960
  • PDF - single-use $2,960
  • View all purchase option online

About This Plan

  • This 4-bedroom, contemporary house plan provides a fresh and modern exterior, oversimplifying the grandeur provided within.
  • An oversized front entry leads to a spacious foyer with a tray ceiling. A quiet study rests near the front of the home.
  • An open-concept floor plan provides clean sight lines between the great room, kitchen, and dining room. Retractable walls extend the living space to a covered lanai, including an outdoor kitchen, allowing natural light to permeate within.
  • The kitchen boasts a large island providing a natural gathering spot when entertaining.
  • Your master suite, privately situated on one side of the home, boasts a tray ceiling, sliding doors to the back lanai, two walk-in closets, and a master bathroom with dual toilets and sinks, a tub, and an oversized shower.
  • Two additional bedrooms provide a walk-in closet and full bathroom, and a fourth bedroom is within steps of a full bathroom. A laundry room is located near the 2-car garage entryway.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,289 sq. ft.
  • 1st Floor: 3,289 sq. ft.
  • Covered Patio: 639 sq. ft.
  • Entry: 89 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 8"
  • Depth: 84' 8"
  • Max ridge height: 27' 7"

Garage

  • Area: 513 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
