Plan 666135RAF Contemporary 4-Bed Mid-Century Modern House Plan with Rooftop Deck

5,161 4 4.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary 4-Bed Mid-Century Modern House Plan with Rooftop Deck

Plan 666135RAF

  • 5,161

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • A motor court welcomes visitors in front of this 4-bed Contemporary Mid-Century Modern house plan that boasts over 5,100 square feet of living space.
  • The central great room features a grand fireplace, tall ceilings, and oversized glass sliders that lead to a 21' by 16' covered patio. The adjoining kitchen includes a T-shaped island for casual dining, and the enormous pantry doubles storage space.
  • Tucked near the mudroom that leads to the 4-car garage, discover a guest suite and home office to round out the main level.
  • Upstairs, a catwalk leads to the master suite which includes a two-person shower in the 5-fixture bathroom and a roomy closet.
  • Two family bedrooms reside down the hall, along with study, laundry, and bonus rooms (note, the bonus room is factored into the Total Living Area).
  • A rooftop deck is accessible from the bonus room for additional outdoor living.

Plans include:

  • Cover Sheet
  • General notes
  • Foundation Plan
  • Fully dimensioned floor plans
  • Elevations
  • Building cross sections
  • Roof Plan

What is NOT included in the plans:
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

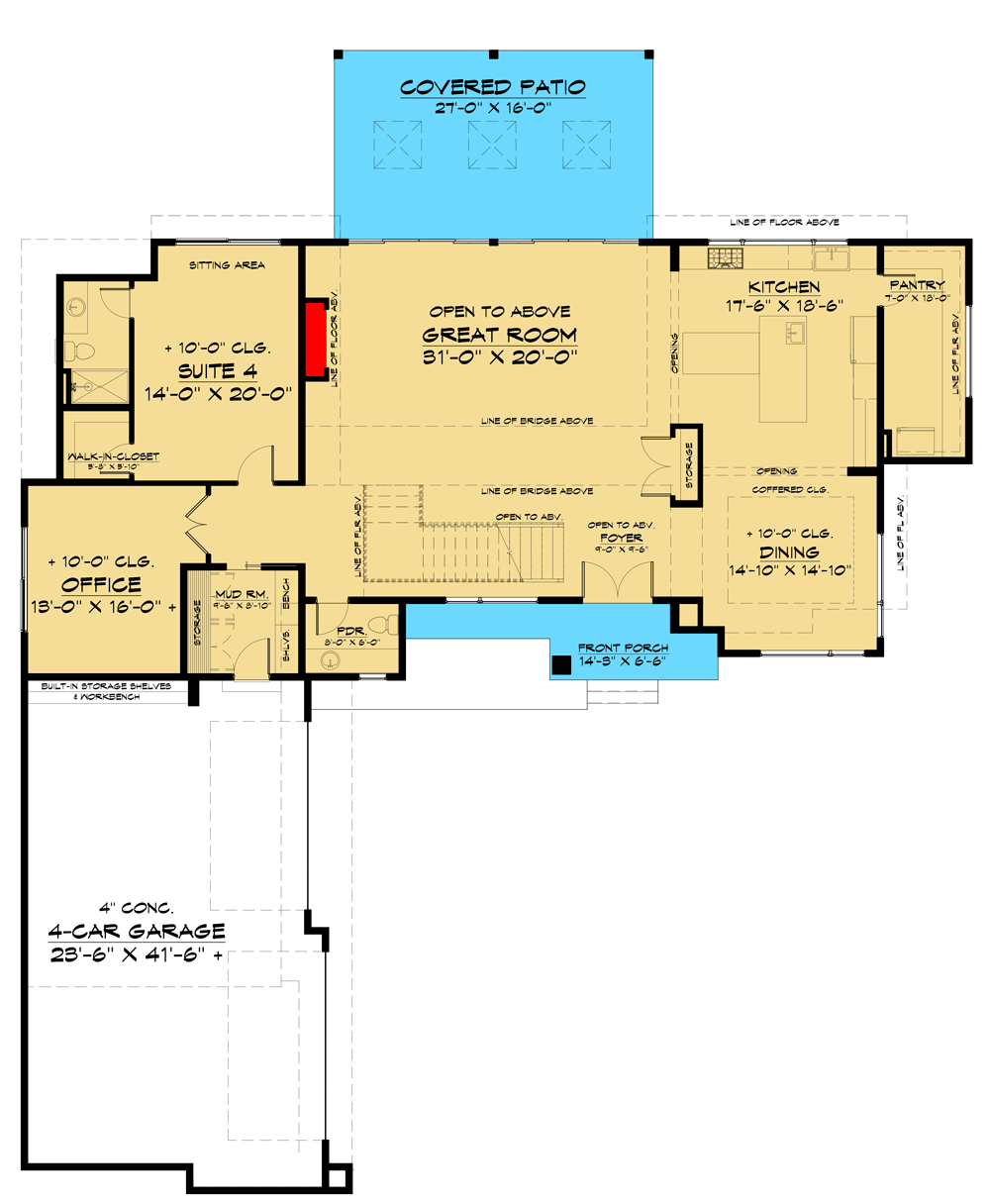

Contemporary 4-Bed Mid-Century Modern House Plan with Rooftop Deck - 666135RAF floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

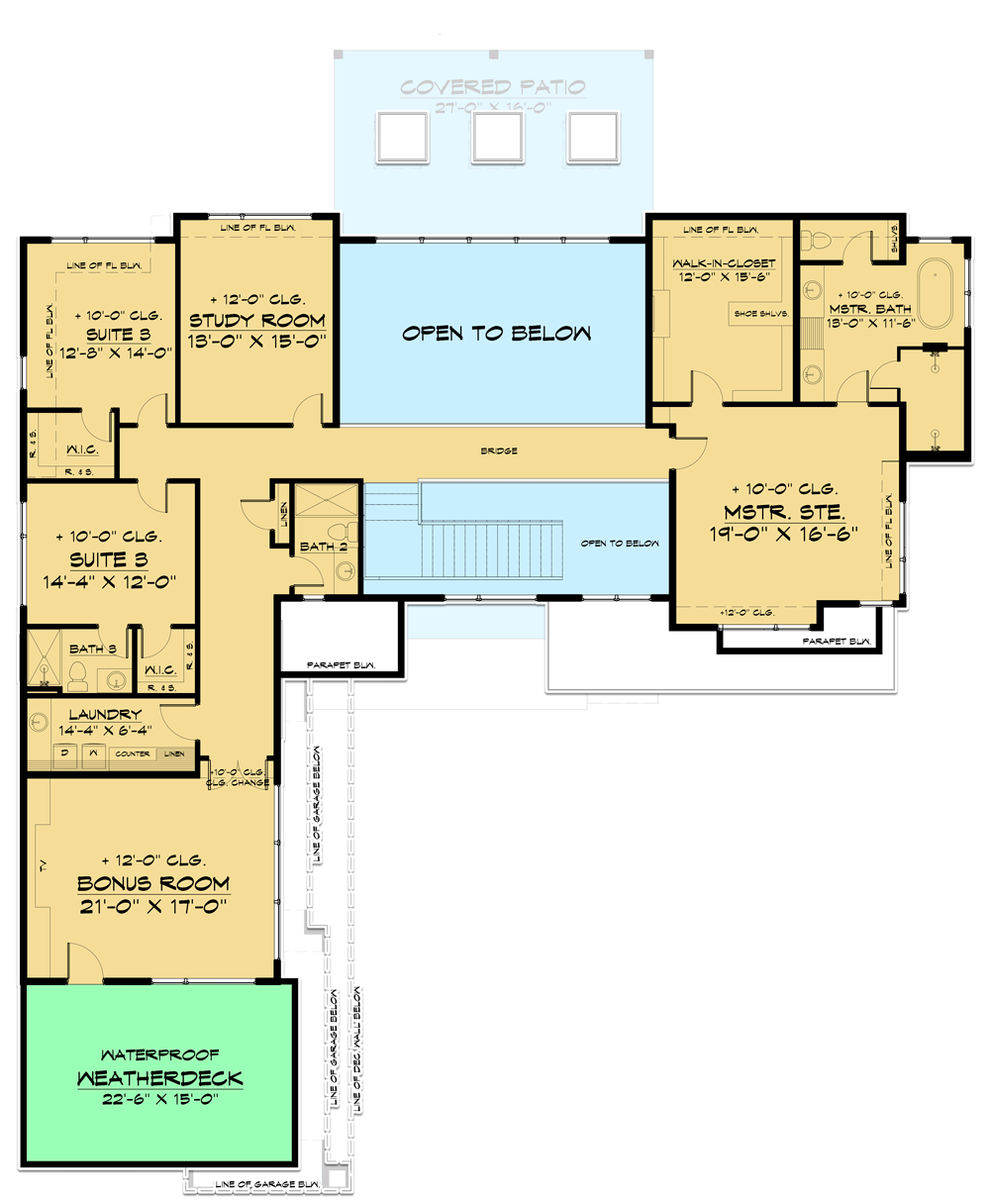

Contemporary 4-Bed Mid-Century Modern House Plan with Rooftop Deck - 666135RAF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,161 sq. ft.
  • 1st Floor: 2,593 sq. ft.
  • 2nd Floor: 2,568 sq. ft.
  • Covered Patio: 432 sq. ft.
  • Porch, Front: 120 sq. ft.
  • Weatherdeck: 365 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Combo Slab-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 6"
  • Depth: 96' 10"
  • Max ridge height: 28' 9"

Garage

  • Type: Attached
  • Area: 1072 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0" Garage 11' 6"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary 4-Bed Mid-Century Modern House Plan with Rooftop Deck

  • 5,161

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,581
  • 5 Sets + PDF $2,831
  • 5 Sets $2,881
  • 8 Sets $3,031
  • CAD - Single-Build $4,903
  • View all purchase option online

About This Plan

  • A motor court welcomes visitors in front of this 4-bed Contemporary Mid-Century Modern house plan that boasts over 5,100 square feet of living space.
  • The central great room features a grand fireplace, tall ceilings, and oversized glass sliders that lead to a 21' by 16' covered patio. The adjoining kitchen includes a T-shaped island for casual dining, and the enormous pantry doubles storage space.
  • Tucked near the mudroom that leads to the 4-car garage, discover a guest suite and home office to round out the main level.
  • Upstairs, a catwalk leads to the master suite which includes a two-person shower in the 5-fixture bathroom and a roomy closet.
  • Two family bedrooms reside down the hall, along with study, laundry, and bonus rooms (note, the bonus room is factored into the Total Living Area).
  • A rooftop deck is accessible from the bonus room for additional outdoor living.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,161 sq. ft.
  • 1st Floor: 2,593 sq. ft.
  • 2nd Floor: 2,568 sq. ft.
  • Covered Patio: 432 sq. ft.
  • Porch, Front: 120 sq. ft.
  • Weatherdeck: 365 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Combo Slab-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 6"
  • Depth: 96' 10"
  • Max ridge height: 28' 9"

Garage

  • Type: Attached
  • Area: 1072 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0" Garage 11' 6"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
Plan 666135RAF
View this and more for this plan by visiting www.architechtecturaldesigns.com/666135RAF
|
