Contemporary Carriage House Plan with 1-bedroom

Heated S.F.
704
Beds
1
Baths
1
Stories
2
Cars
2
Tour

Floor Plan

Plan 623516DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623516DJ

M-F 9am-5pm EST |

1-203-761-8500

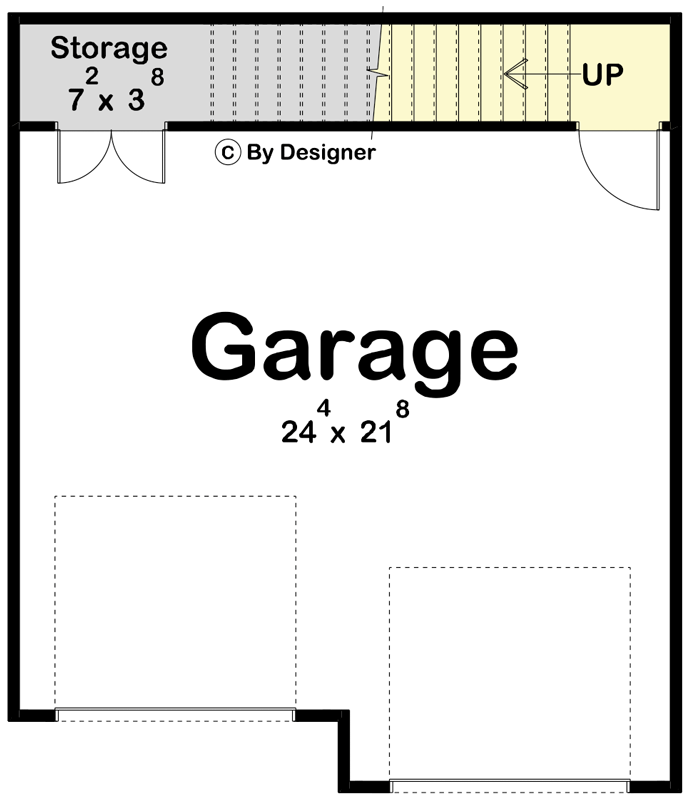

Main Level

Plan 623516DJ: Contemporary Carriage House Plan with 1-bedroom - Floor Plan - Main Level - Carriage, Contemporary, French Country

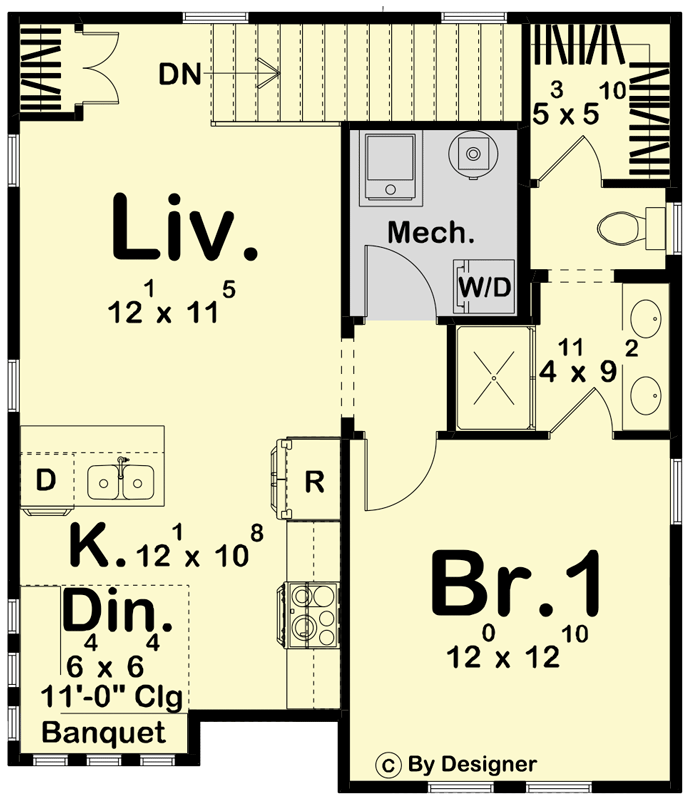

2nd Floor

Plan 623516DJ: Contemporary Carriage House Plan with 1-bedroom - Floor Plan - 2nd Floor - Carriage, Contemporary, French Country

Plan Details

  •  This two-story contemporary cottage-style carriage house plan offers 704 sq ft of heated living area on the second level with 1-bed and 1-bath apartment, and provides a 2-car garage with 584 sq. ft. of parking space on the ground level.
  • With a 2-car garage on the main level, upstairs reveals a thoughtfully designed 1-bedroom retreat.
  • An open-concept living area flows effortlessly into the kitchen, complete with a cozy peninsula and built-in banquette—perfect for morning coffee or intimate dinners.
  • Whether you're dreaming of a guest house, rental, or stylish studio, this contemporary carriage house brings warmth, character, and versatility in one efficient footprint.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

704 sq. ft.

2nd Floor

704 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

25' 0"

Depth

29' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached, Drive Under

Area

584 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Carriage

Contemporary

French Country

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

704 sq. ft.

2nd Floor

704 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

25' 0"

Depth

29' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached, Drive Under

Area

584 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Carriage

Contemporary

French Country

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs
