Contemporary Carriage House Plan with Laundry Room

Plan 68915VR

  • 881

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • The sloped roofline adds a contemporary touch to this Carriage house plan, while allowing transom windows to flood the interior with natural lighting.
  • The double garage on the lower level offers additional storage space, along with an entryway with a built-in bench and hooks above.
  • Upstairs, discover an open living, dining, and kitchen area, anchored by an island and embracing an abundance of natural light.
  • The sloped roof goes from 7' in back to 13' in front, allowing for large windows to soak up the surrounding views.
  • The bedroom includes a walk-in closet and full bathroom with a linen closet.
  • Related Plan: Get a duplex version with house plan 68916VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

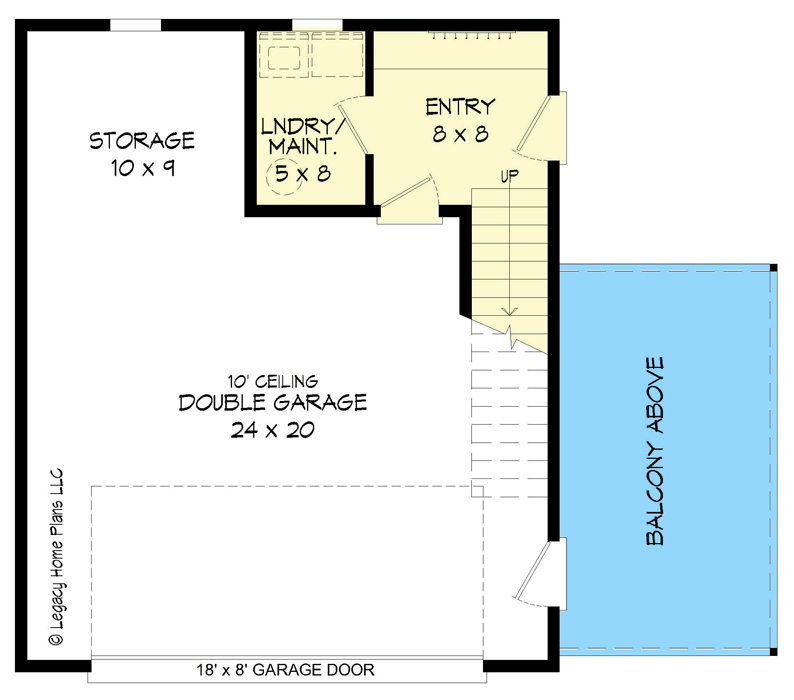

Contemporary Carriage House Plan with Laundry Room - 68915VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

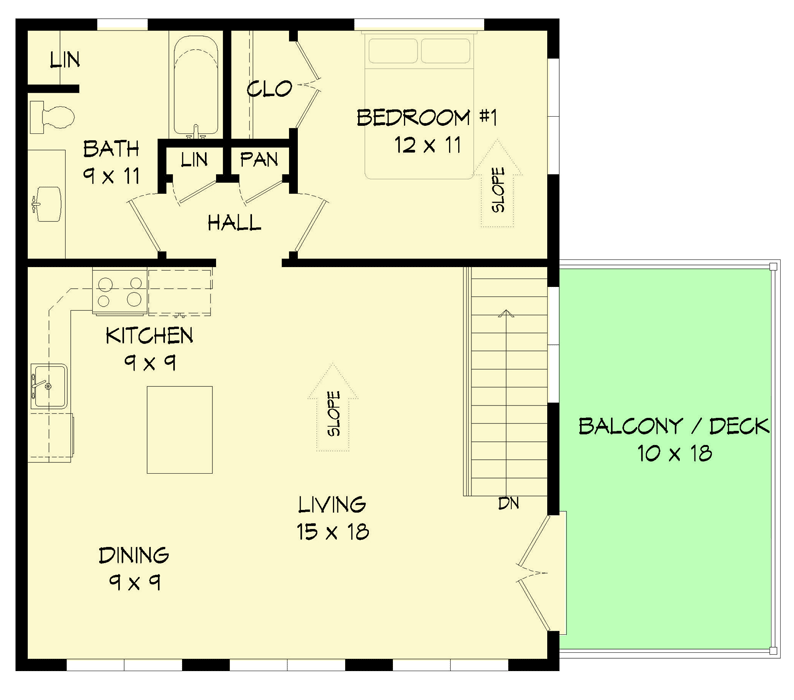

Contemporary Carriage House Plan with Laundry Room - 68915VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 881 sq. ft.
  • 1st Floor: 131 sq. ft.
  • 2nd Floor: 750 sq. ft.
  • Balcony / Veranda: 180 sq. ft.
  • Side Porch: 180 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 30' 0"
  • Max ridge height: 26' 4"

Garage

  • Type: Drive Under, Attached
  • Area: 619 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 13' 0"

Roof Details

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick

Architectural Style

Special features
