Contemporary Carriage House Plan with Loft

Plan 61316UT

  • 376

    Heated s.f.

  • 0

    Beds

  • 2

    Stories

  • 4

    Cars

  • This contemporary, carriage house plan offers a dramatically sloped roof, space for 4 cars, and a dove-cote which houses a spiral staircase.
  • The main level provides a 2-car garage, along with a stairway to the second level loft, and a spiral staircase leading to the lower level.
  • Large windows allow for plenty of natural light in the second-level loft.
  • Another 2-car garage can be found on the lower level.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

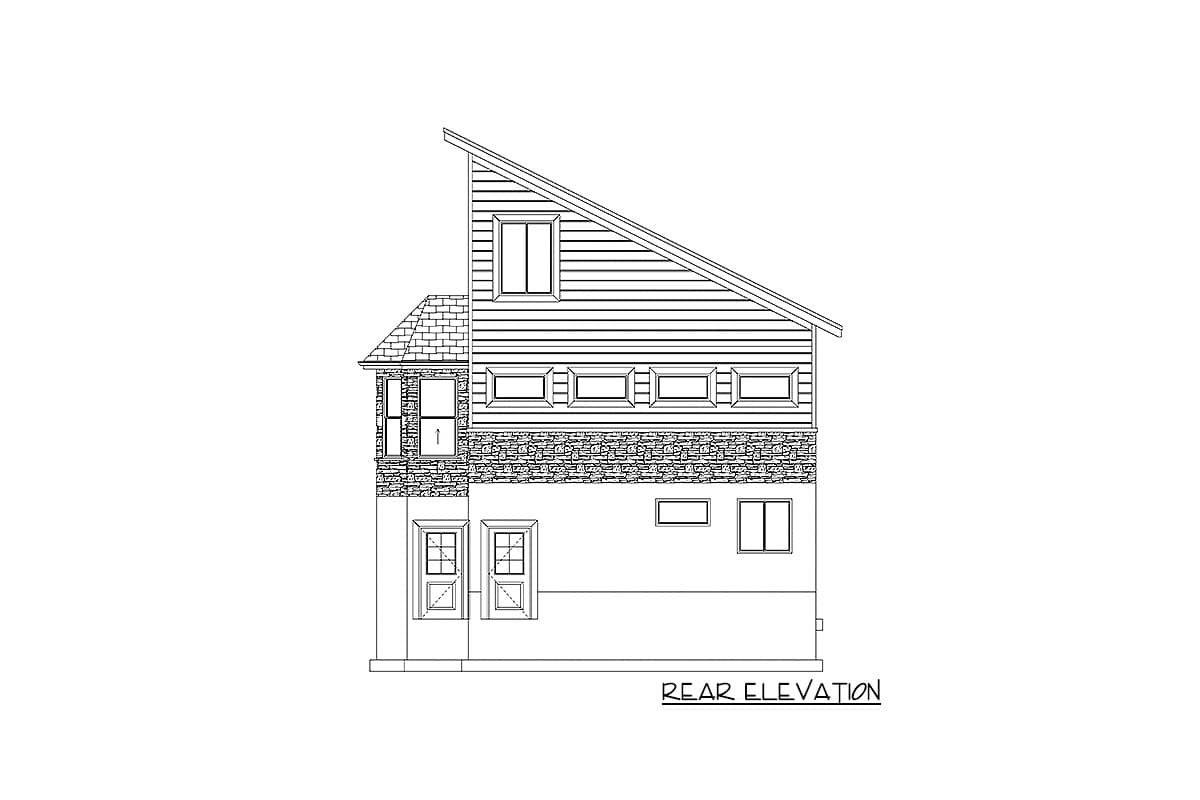

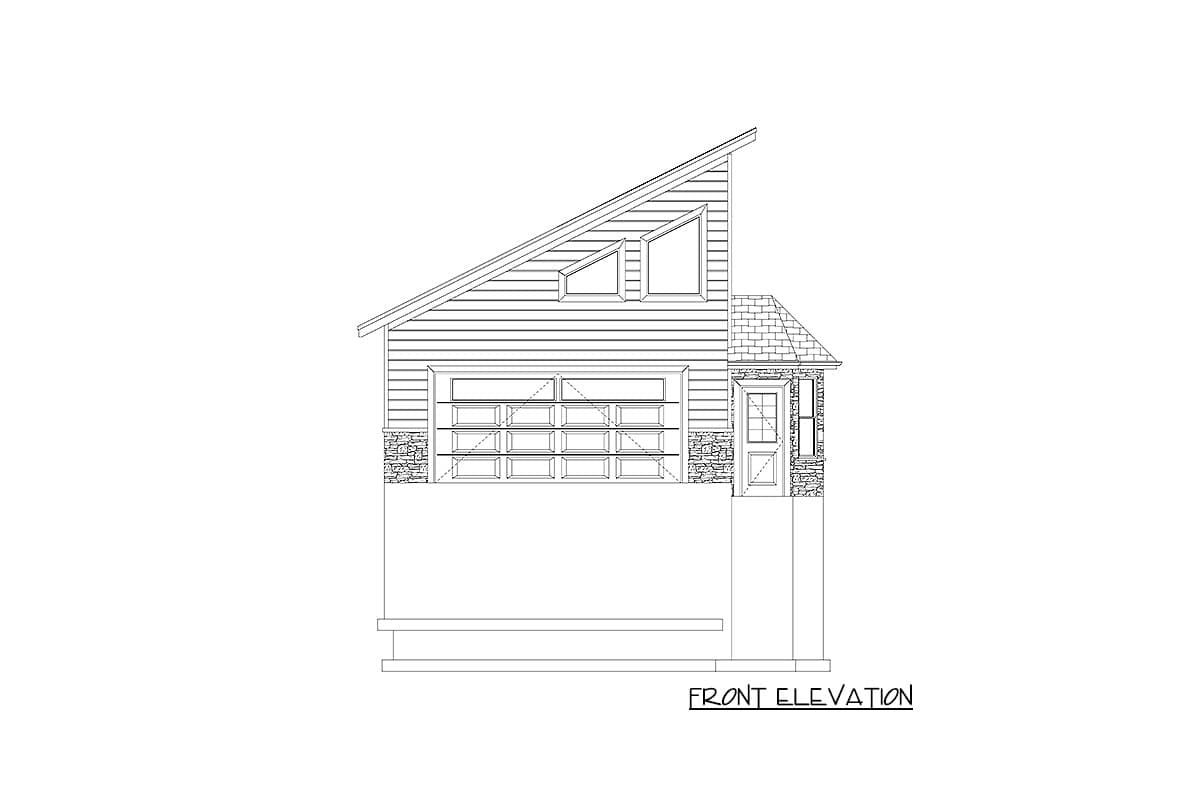

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

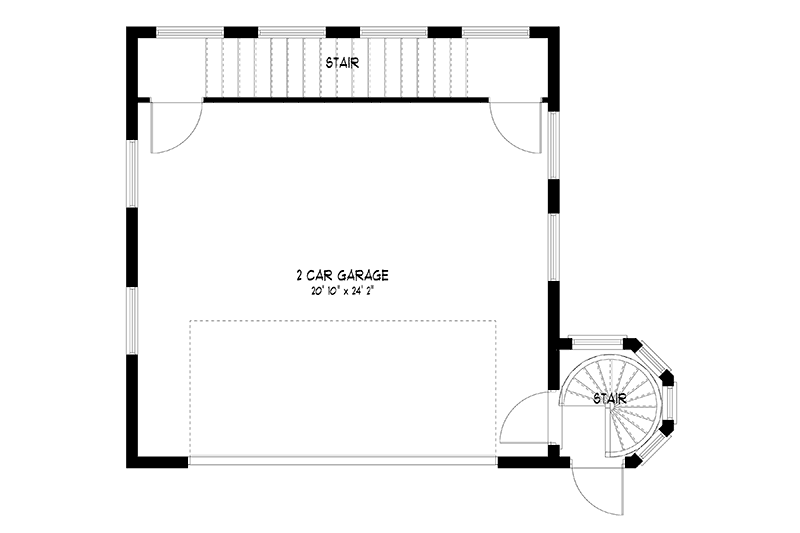

Contemporary Carriage House Plan with Loft - 61316UT floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Carriage House Plan with Loft - 61316UT floor plan - Second Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

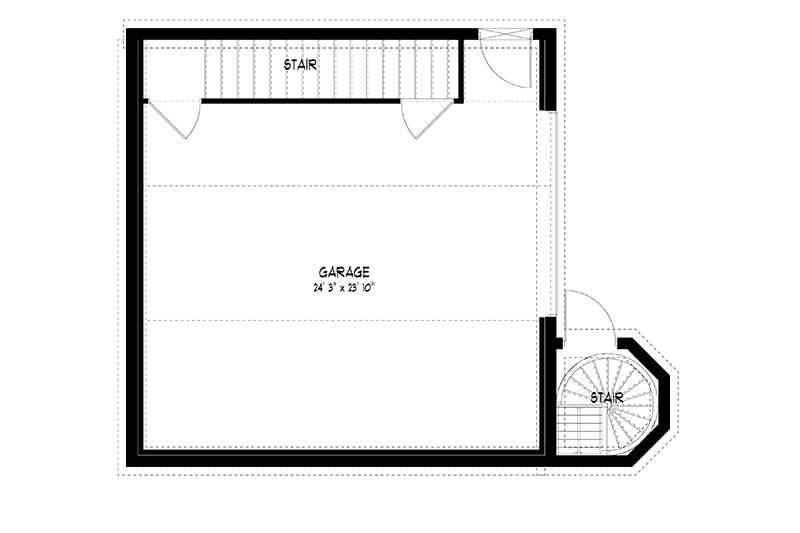

Contemporary Carriage House Plan with Loft - 61316UT floor plan - Lower Level

Architectural Style

Special features

Contemporary Carriage House Plan with Loft

  • 376

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 376 sq. ft.
  • 2nd Floor: 376 sq. ft.

Dimensions

  • Width: 32' 3"
  • Depth: 26' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 0

Garage

  • Type: Detached
  • Area: 1420 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
