Plan 65807BS

Contemporary Coastal House Plan with Four Bedrooms and Three-Car Garage

Name: Plan 65807BS: Contemporary Coastal House Plan with Four Bedrooms and Three-Car Garage
Brand: Architectural Designs
SKU: 65807BS
Price: 2179.06 USD
Availability: InStock

Heated S.F.

3,016

Beds

Baths

4.5

Stories

Cars

Floor Plan

Plan Details

Boasting 3,016 finished square feet, this Florida-style residence offers four bedrooms, four full baths, one half bath, and a spacious three-car garage.
The striking exterior features clean lines and block construction that welcomes you into a sophisticated foyer.
Inside, the open floor plan flows seamlessly from the formal dining area to the expansive living spaces designed for effortless coastal living.
The gourmet kitchen serves as the heart of the home, complete with a walk-in pantry and direct access to the elegant library or study.
A private master suite occupies its own wing, providing a luxurious retreat away from the three secondary bedrooms.
Large glass doors open to an impressive 589-square-foot lanai, which comes fully equipped with an outdoor kitchen and fireplace for year-round relaxation.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

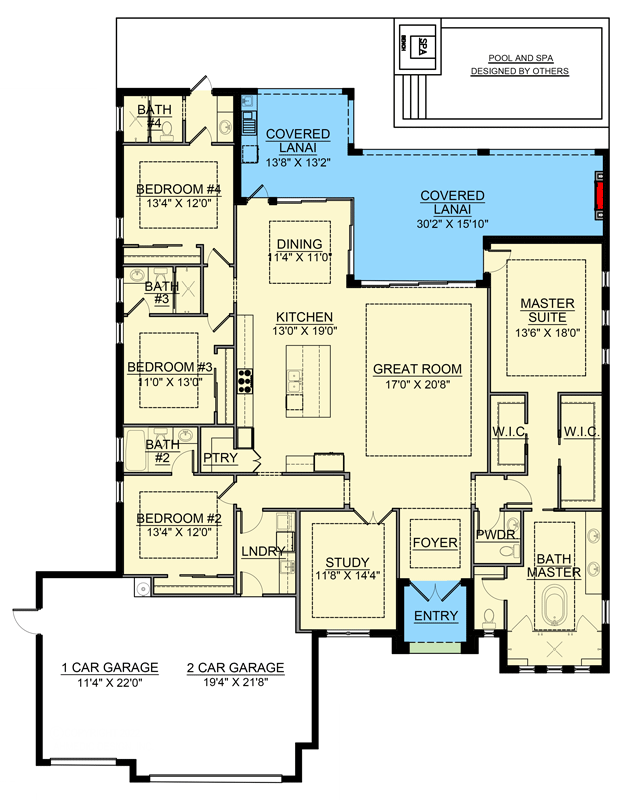

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
