Plan 42021MJ
Contemporary Coastal Ranch with Flex Room and Covered Lanai
Heated S.F.
2,601
Beds
3-4
Baths
3.5
Stories
1
Cars
2
What's Included
Plan Details
  • A 2-car courtyard garage protrudes from the front of this Contemporary Coastal Ranch plan.
  • Double doors welcome you inside where the great room, dining area, and kitchen act as one space. A multi-panel sliding door allows natural light to flood the interior while providing access to the covered lanai.
  • The master suite enjoys a private location along the left side of the home and is joined by a 5-fixture bathroom with a freestanding tub in front of the oversized shower.
  • Bedroom 2 includes a full bath while the third bedroom shares a bathroom with the flex room.
  • Enter from the double garage to find a walk-in pantry and laundry room on either side of the mud hall.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)

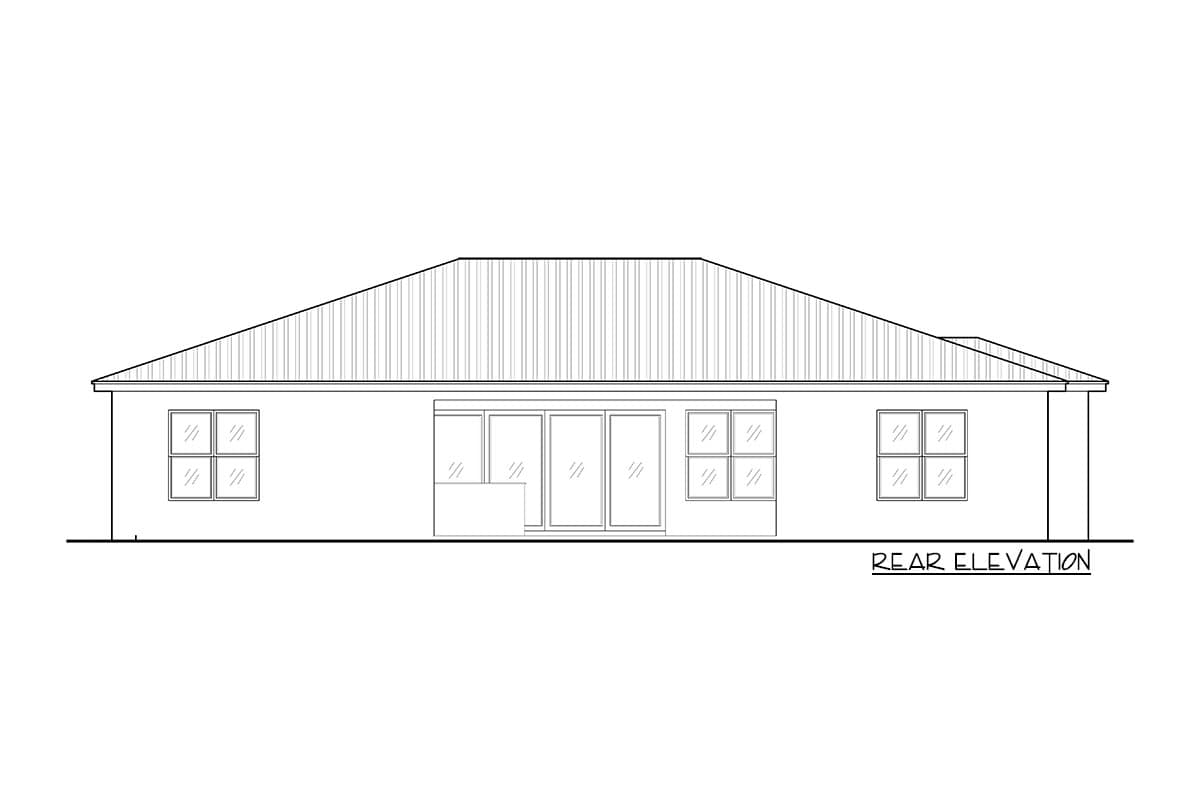

  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Coastal Ranch with Flex Room and Covered Lanai

  • 2,601

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

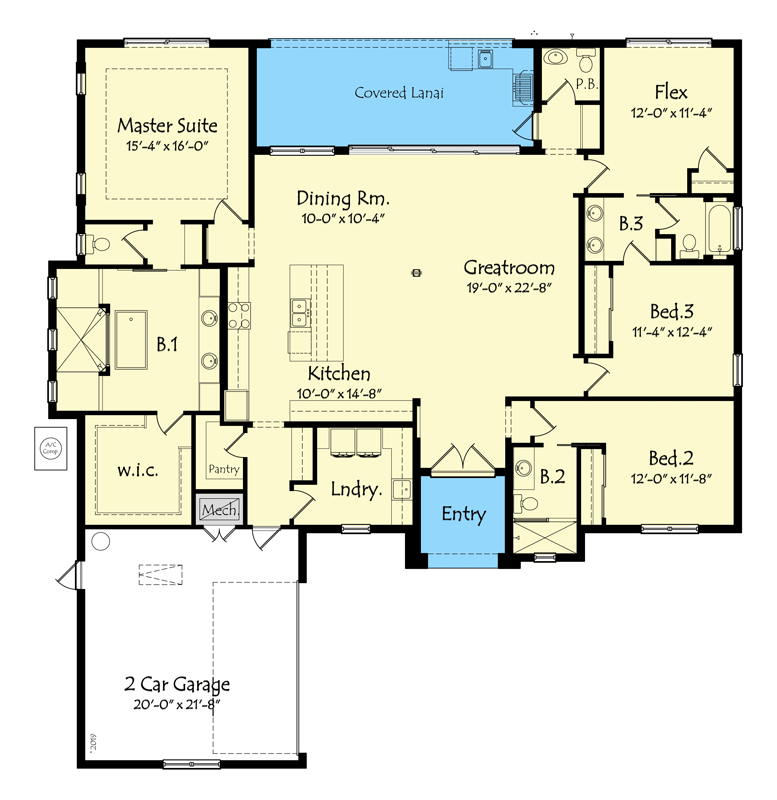

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,601 sq. ft.
  • 1st Floor: 2,601 sq. ft.

Dimensions

  • Width: 64' 8"
  • Depth: 68' 0"
  • Max ridge height: 18' 9"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 476 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
