Contemporary Country House Plan with 3-Car Garage and Home Office

Plan 36661TX

  • 4,770

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This Contemporary Country house plan, encased in stucco, stone, and horizontal siding, is topped by a ribbed metal roof and delivers 4 bedrooms, 4.5 bathrooms, tall ceilings above the family room, and a 3-car garage.
  • Inside the grand foyer, views into the family room and through the outdoor lounge are provided straight ahead. To the right, a pocket door reveals an office with access to a forward facing lanai.
  • Two islands help to define the square-shaped kitchen in the open layout and a pass-through pantry connects to a study nook with built-in desks.
  • A guest suite is privately situated behind the dining area, while the peaceful master suite presents a sitting area and deluxe ensuite with two wardrobes. One of the closets offers a shortcut to the laundry room, making last minute wardrobe changes even easier.
  • Upstairs, discover bedroom suites 3 and 4, connected by a bridge-style hallway. A game room can be enjoyed by the whole family and offers an overlook from the second story.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

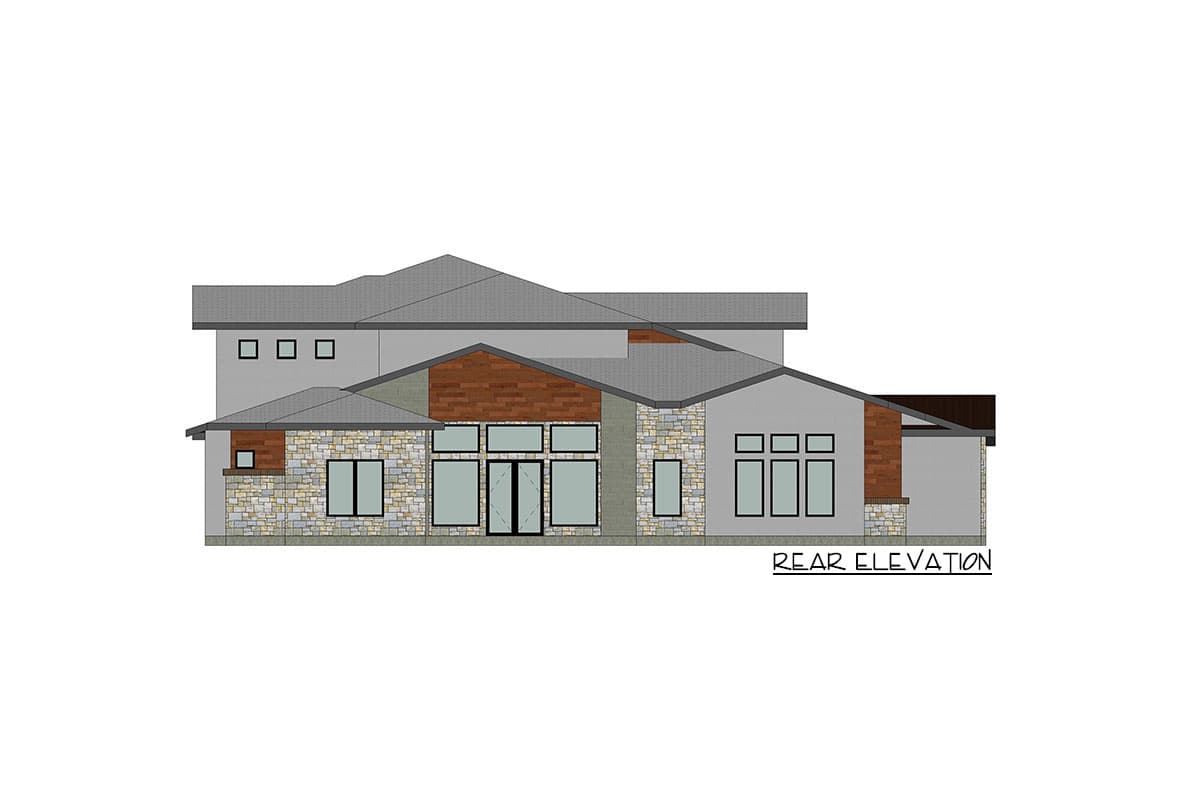

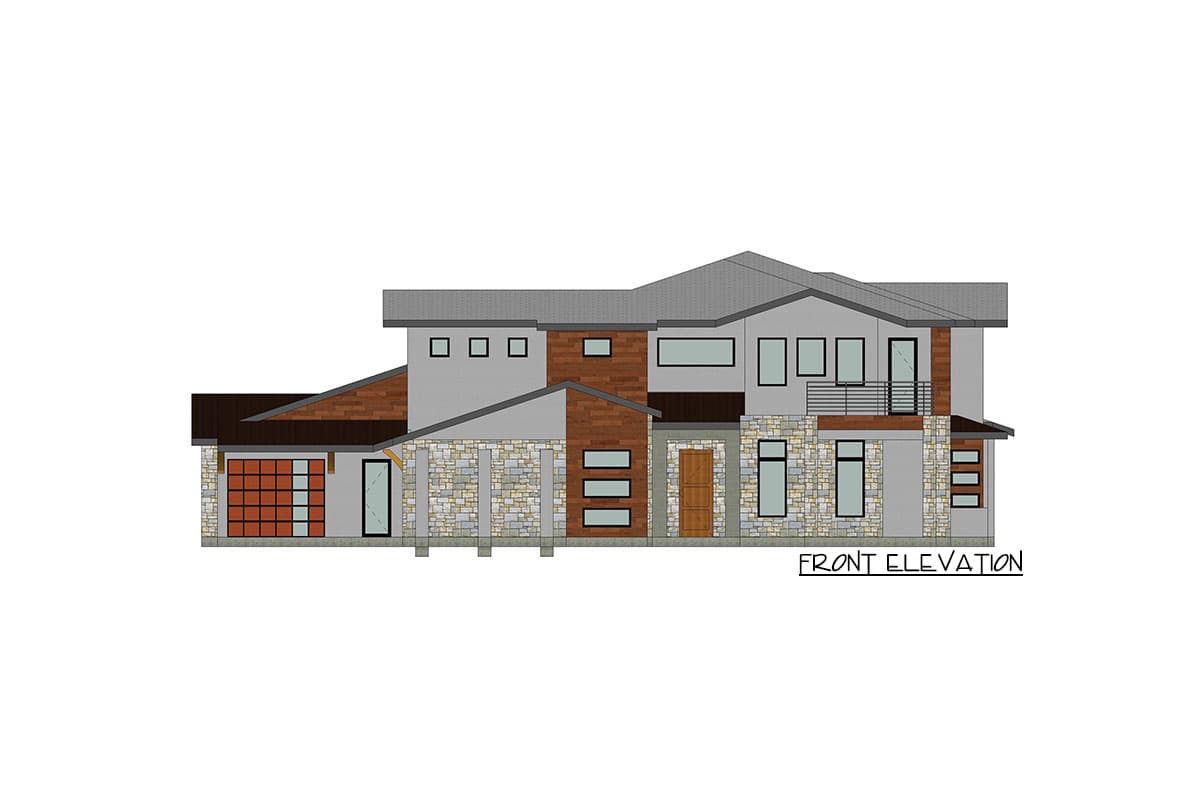

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

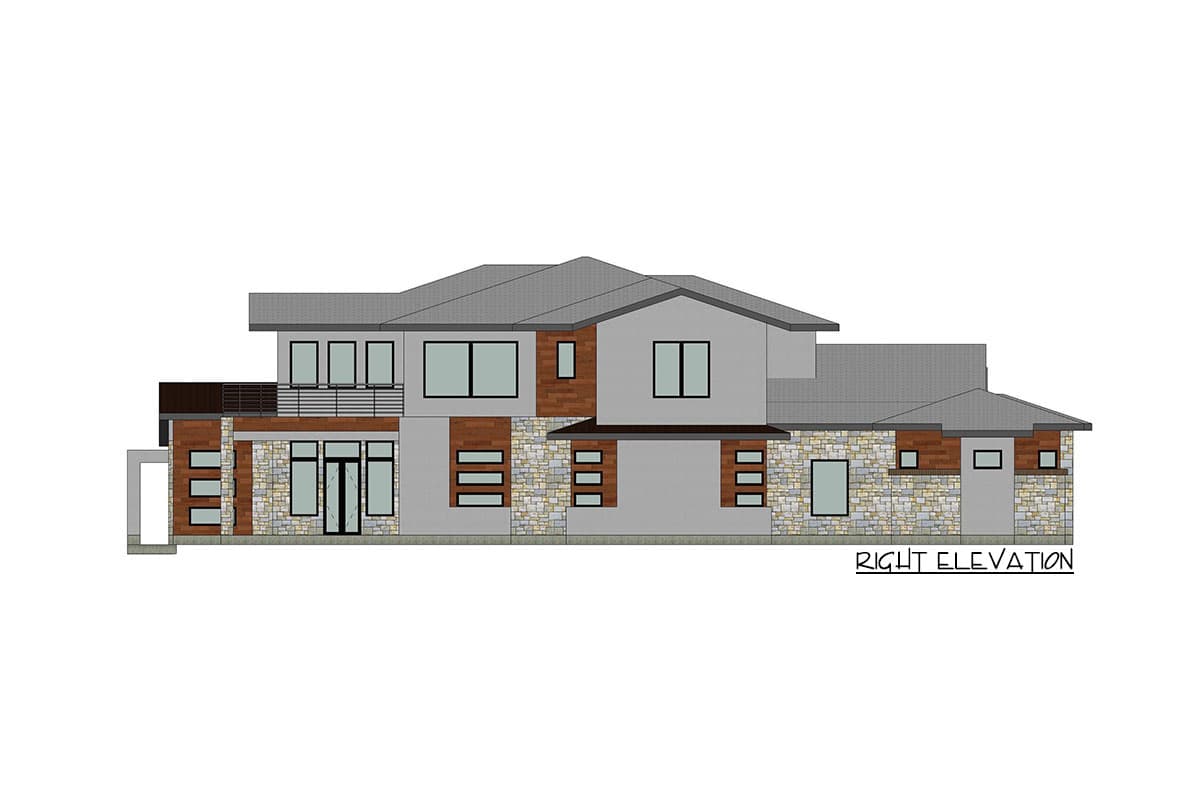

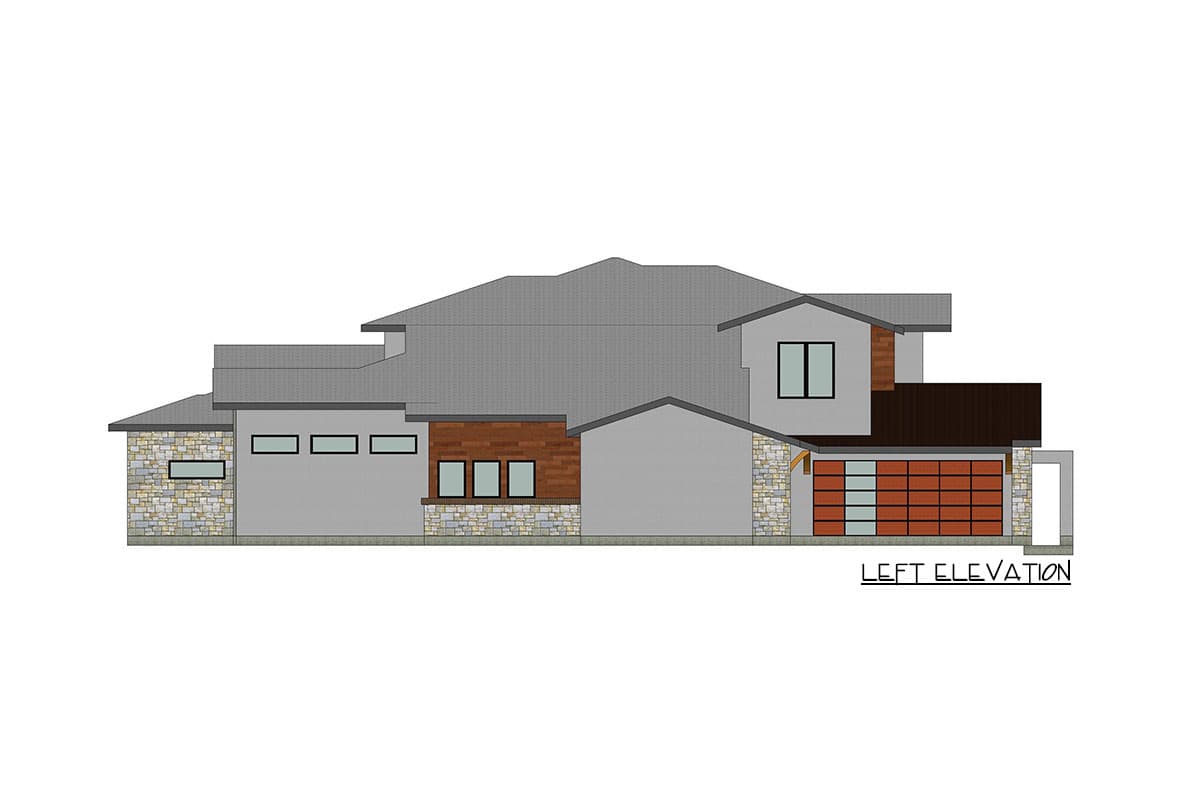

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

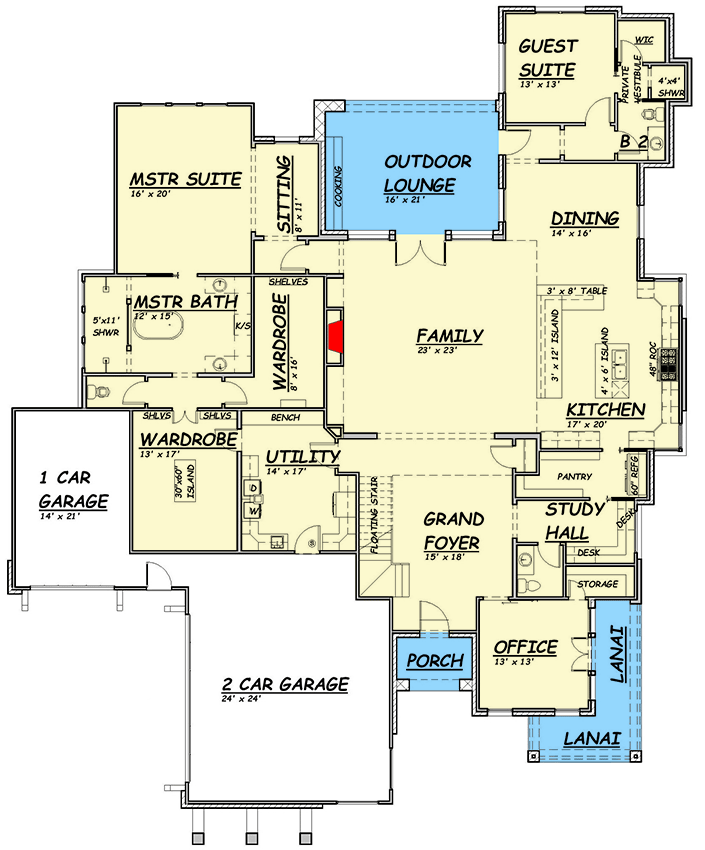

Contemporary Country House Plan with 3-Car Garage and Home Office - 36661TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

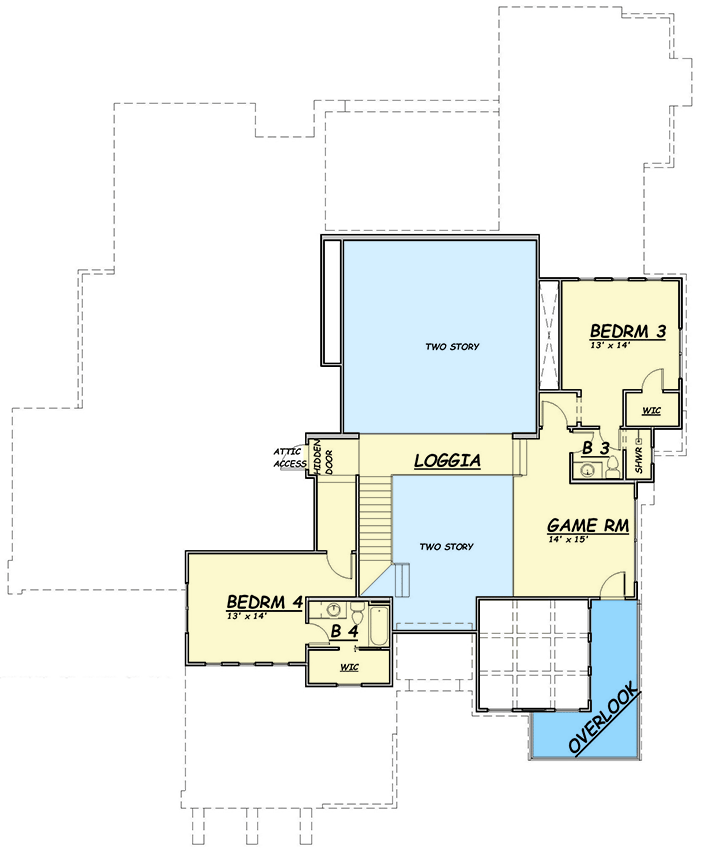

Contemporary Country House Plan with 3-Car Garage and Home Office - 36661TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,770 sq. ft.
  • 1st Floor: 3,787 sq. ft.
  • 2nd Floor: 983 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 0"
  • Depth: 100' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1041 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style

Special features

Contemporary Country House Plan with 3-Car Garage and Home Office

  • 4,770

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,650
  • 5 Sets $1,850
  • CAD - Single-Build $2,475
  • View all purchase option online

About This Plan

  • This Contemporary Country house plan, encased in stucco, stone, and horizontal siding, is topped by a ribbed metal roof and delivers 4 bedrooms, 4.5 bathrooms, tall ceilings above the family room, and a 3-car garage.
  • Inside the grand foyer, views into the family room and through the outdoor lounge are provided straight ahead. To the right, a pocket door reveals an office with access to a forward facing lanai.
  • Two islands help to define the square-shaped kitchen in the open layout and a pass-through pantry connects to a study nook with built-in desks.
  • A guest suite is privately situated behind the dining area, while the peaceful master suite presents a sitting area and deluxe ensuite with two wardrobes. One of the closets offers a shortcut to the laundry room, making last minute wardrobe changes even easier.
  • Upstairs, discover bedroom suites 3 and 4, connected by a bridge-style hallway. A game room can be enjoyed by the whole family and offers an overlook from the second story.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,770 sq. ft.
  • 1st Floor: 3,787 sq. ft.
  • 2nd Floor: 983 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 0"
  • Depth: 100' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1041 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
Plan 36661TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36661TX
|
