Contemporary Craftsman Carriage House Plan with Ground Level Bar Lounge

Heated S.F.
1,180
Beds
1
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 81806AB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 81806AB

M-F 9am-5pm EST |

1-203-761-8500

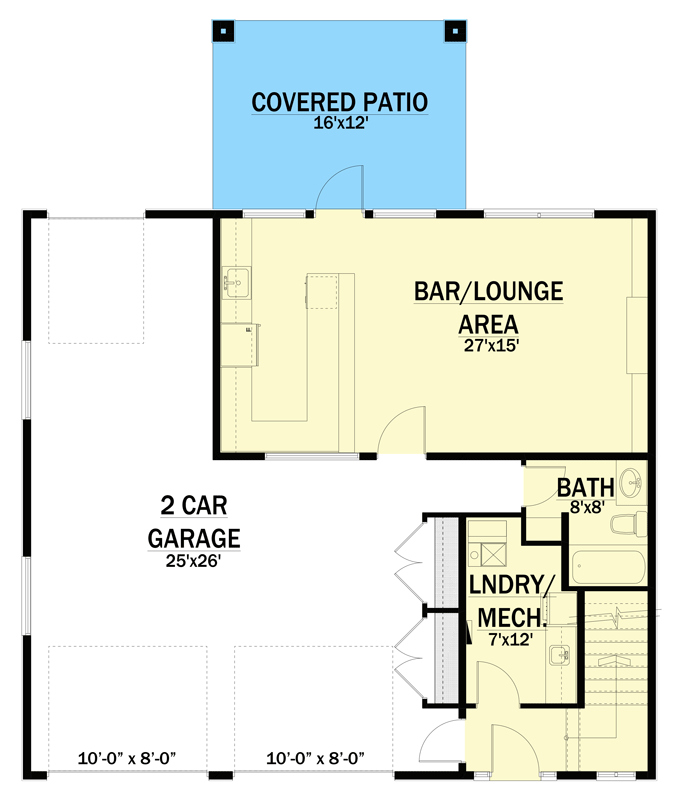

Main Level

Plan 81806AB: Contemporary Craftsman Carriage House Plan with Ground Level Bar Lounge - Floor Plan - Main Level - Country, Craftsman, New American, Rustic

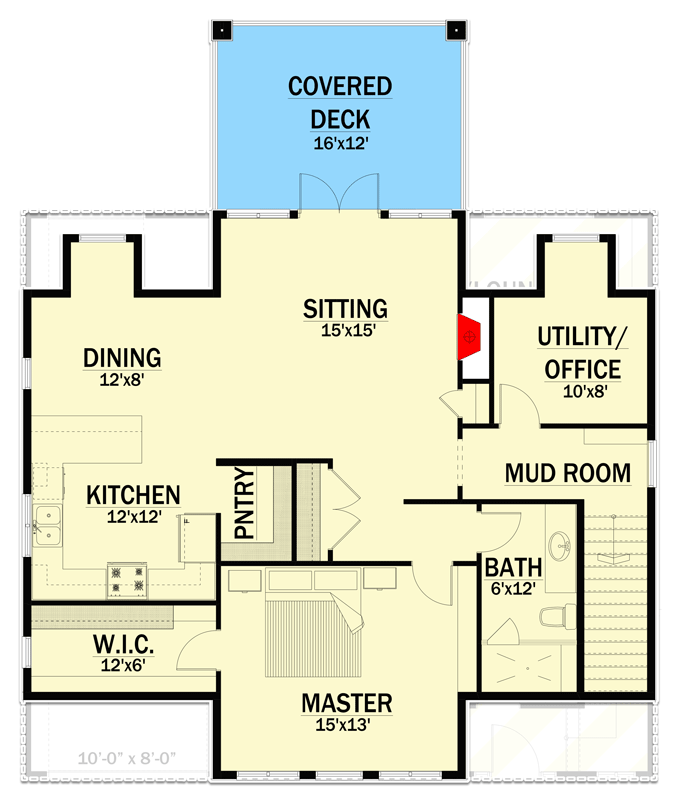

2nd Floor

Plan 81806AB: Contemporary Craftsman Carriage House Plan with Ground Level Bar Lounge - Floor Plan - 2nd Floor - Country, Craftsman, New American, Rustic

Plan Details

  • A large gable sits above a pair of 10' by 8' overhead garage doors on this contemporary Craftsman carriage house plan.
  • The left bay has a 6' by 8' door giving you the ability to wheel in and out larger equipment.
  • The back of the ground floor gives you a bar/lounge area that opens to a 16' by 12' covered patio.
  • Stairs just inside the front covered entry take you to the living level above which gives you a bedroom suite in front with a walk-in closet and an open space in back giving you relaxing space, a C-shaped kitchen, a dining area and access to a 16' by 12' deck.
  • A utility space can be used as an office, making this carriage house plan suitable for use as a work-from-home retreat or as a rental or AirBnB.

What's Included

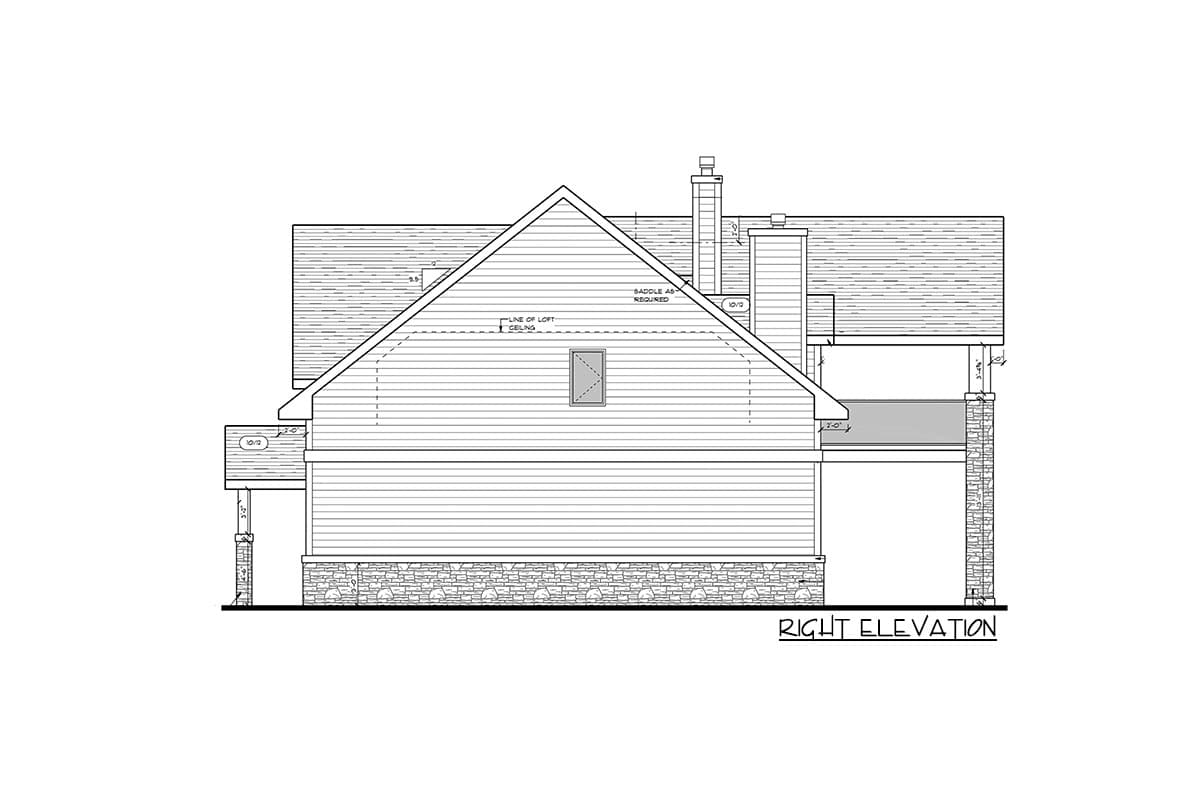

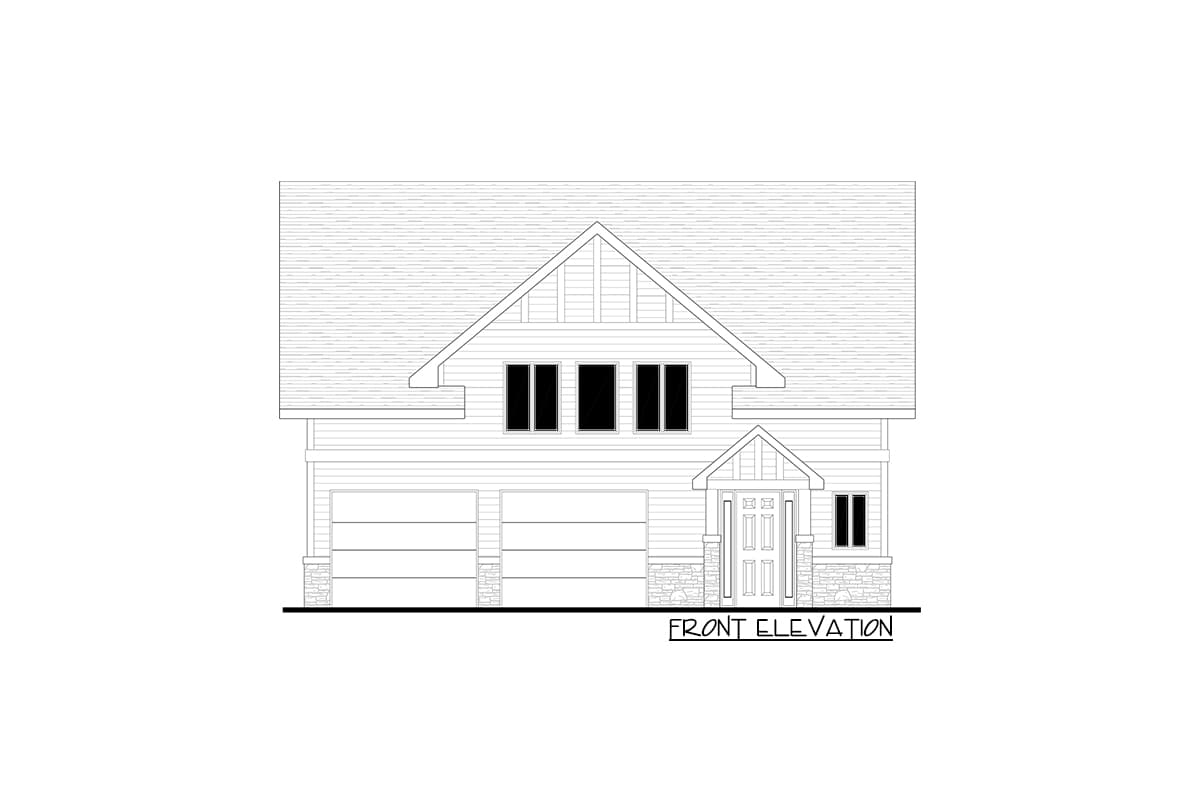

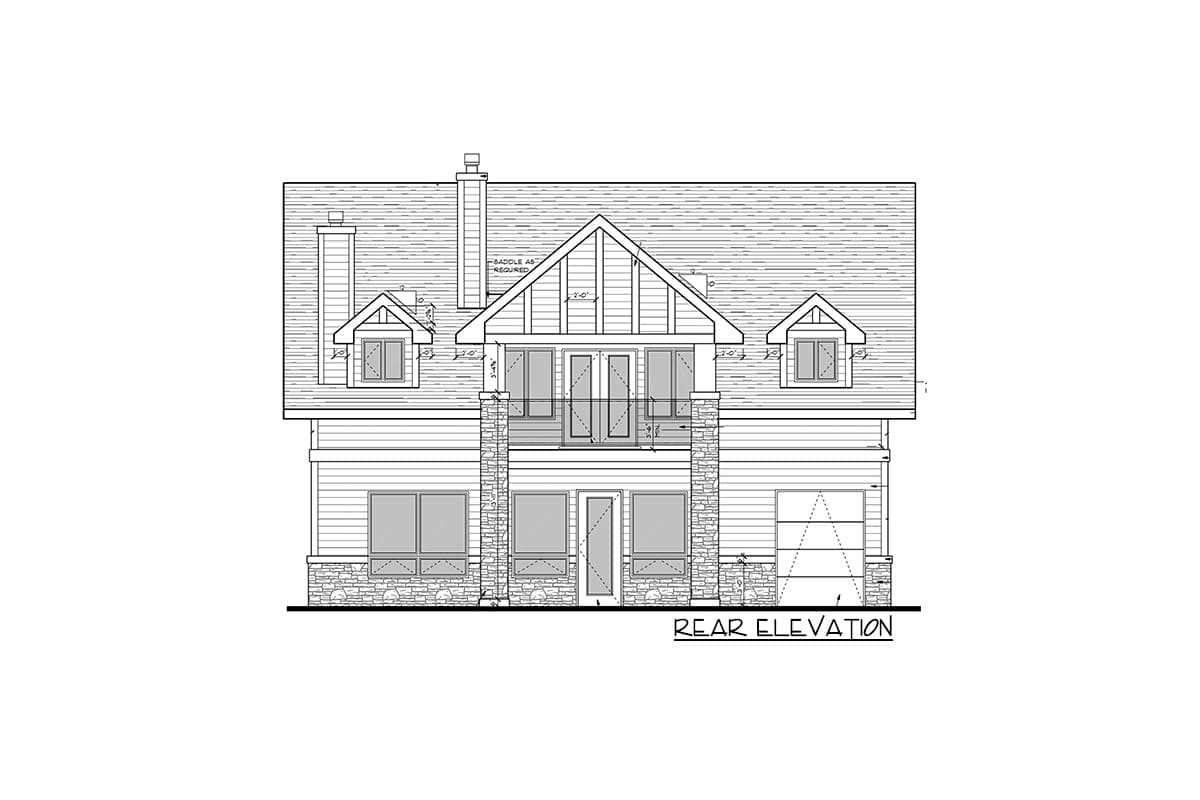

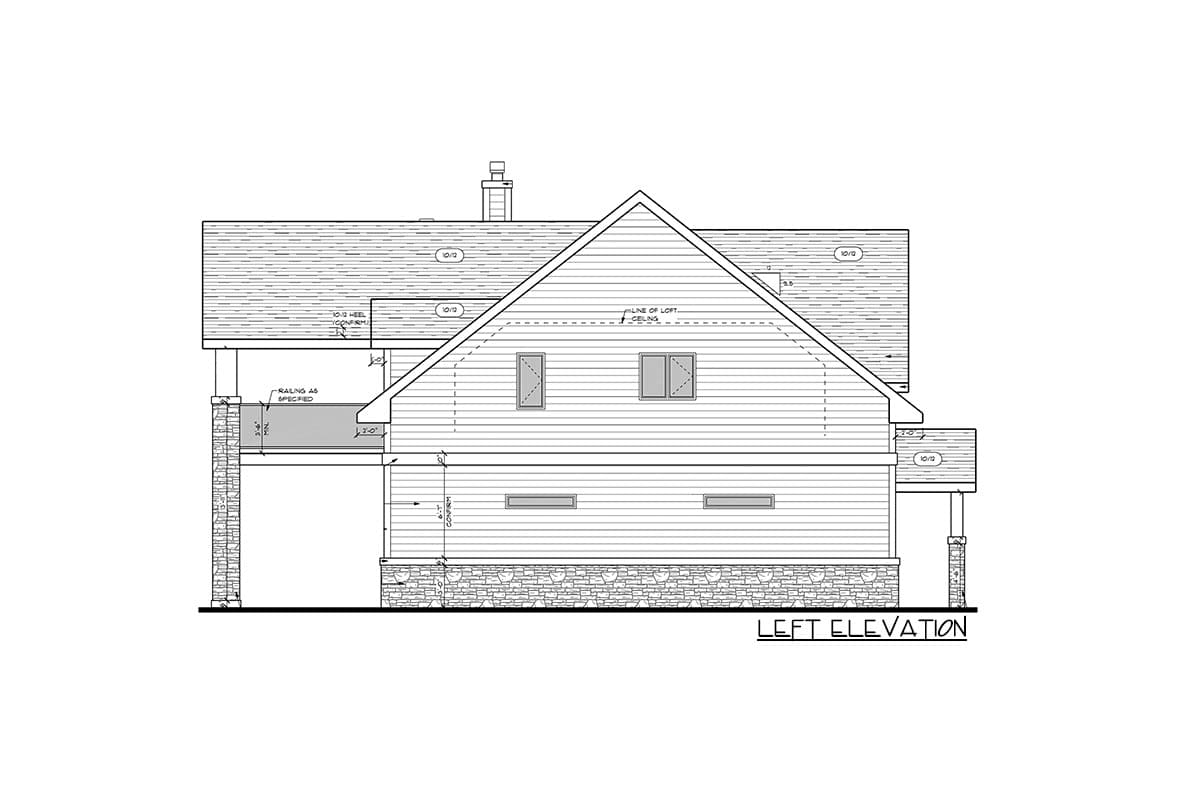

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,180 sq. ft.

2nd Floor

1,180 sq. ft.

Main Floor

681 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

46' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

759 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Second Floor

8' 1"

Room

Ceiling Type

Height

Bedroom 1

8' 1''

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

New American

Rustic

Special Features

Breakfast Nook

Home Office

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Wet Bar

Plan Collections

ADU

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,180 sq. ft.

2nd Floor

1,180 sq. ft.

Main Floor

681 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

46' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

759 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Second Floor

8' 1"

Room

Ceiling Type

Height

Bedroom 1

8' 1''

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

New American

Rustic

Special Features

Breakfast Nook

Home Office

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Wet Bar

Plan Collections

ADU

Canadian House Plans
