Plan 135302GRA

Contemporary Detached Garage Plan with Three 9' by 8' Bays - 1092 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
3

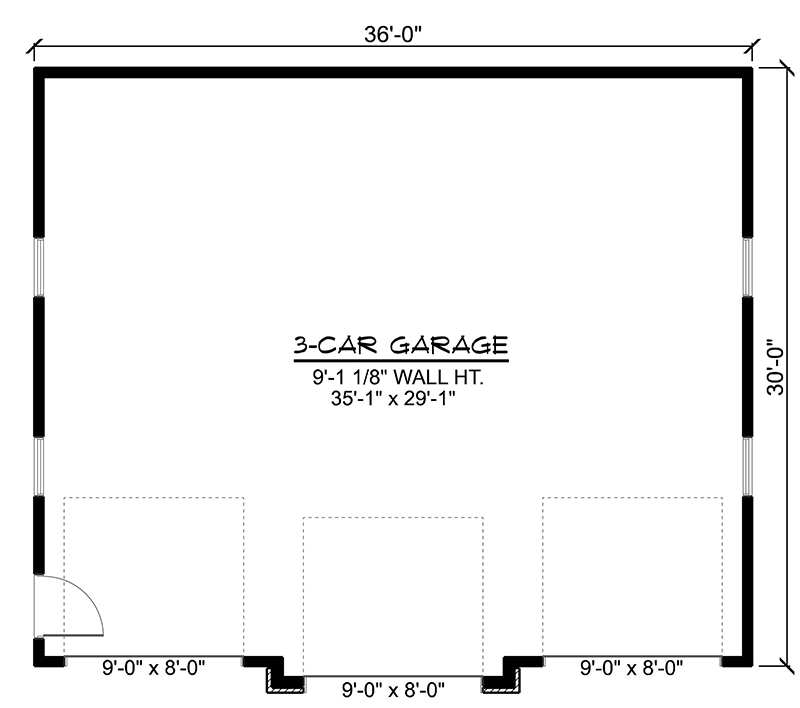

Floor Plan

Plan 135302GRA

Main Level
Main Level

Plan 135302GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 135302GRA: Contemporary Detached Garage Plan with Three 9' by 8' Bays - 1092 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

Plan Details

  • This 1092 sq. ft. detached 3-car garage plan showcases a striking contemporary design, perfect for modern homes seeking additional vehicle storage and utility.
  • Upon arrival, the sleek design with its low-pitch roof and modern materials immediately impresses, offering three dedicated garage bays accessible via stylish front-facing doors, alongside a convenient side pedestrian entry.
  • The expansive interior spans 35'-1" by 29'-1", providing ample room for three vehicles, with generous space remaining for a workshop, additional storage, or recreational equipment, all under a comfortable 9-foot ceiling height.
  • Beyond vehicle storage, this versatile structure offers an ideal environment for a dedicated home workshop or hobby space, allowing for creative pursuits or practical projects within a well-lit and accessible area.

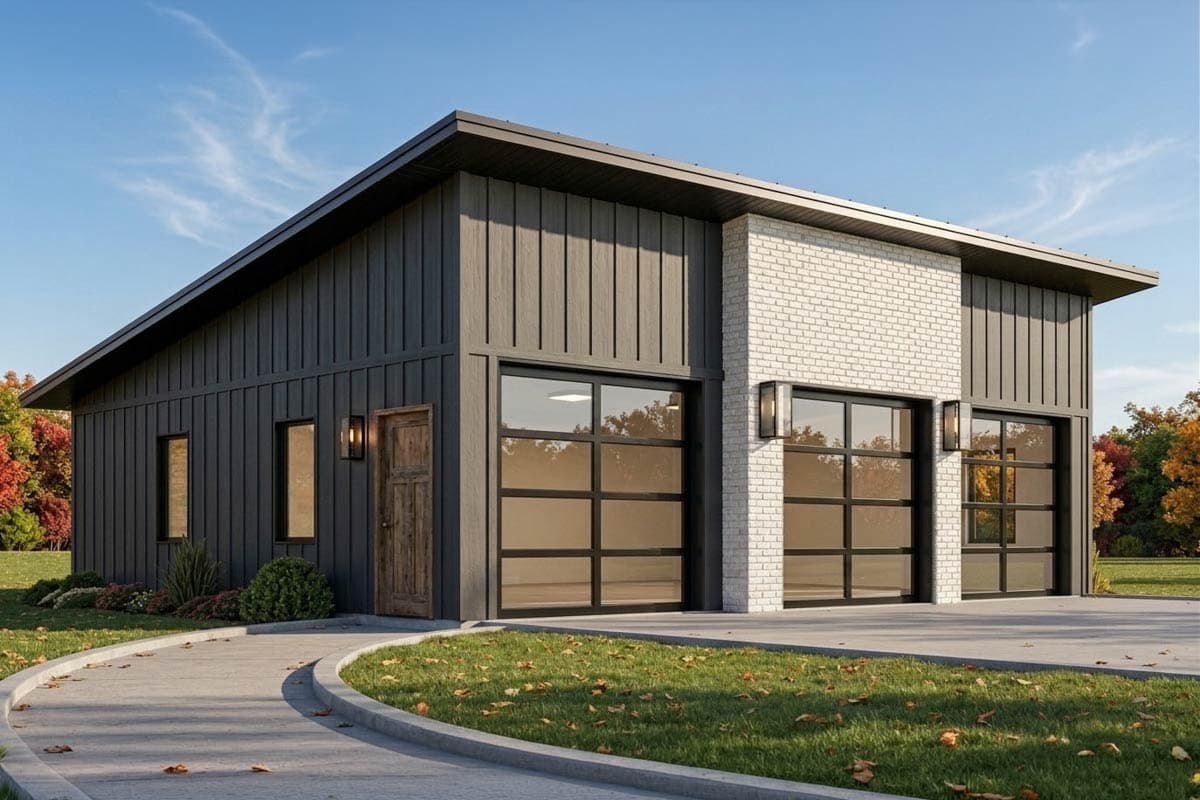

  • The exterior features a sophisticated blend of vertical siding and a distinctive brick accent wall, complemented by modern lighting fixtures, creating an attractive facade that enhances curb appeal while providing a clear, expansive driveway approach.
  • Related House Plans: Get a matching house plan with plan 135300GRA (1,720 sq. ft.), plan 135290GRA (1,679 sq. ft.), plan 135259GRA (2,034 sq. ft.) or plan 135304GRA (1,160 sq. ft.).

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

30' 0"

Max Ridge Height

14' 11"

Garage

Type

Detached

Area

1092 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Modern

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

30' 0"

Max Ridge Height

14' 11"

Garage

Type

Detached

Area

1092 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Modern
