Plan 22482DR Contemporary Duplex

3,600 2 50' 0" 36' 0"
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Duplex

Plan 22482DR

  • 3,600

    Heated s.f.

  • 2

    Units

  • 50' 0"

    Width

  • 36' 0"

    Depth

  • Modern styling adorns this Contemporary duplex.
  • A sunken foyer leads up four steps or downstairs.
  • On the main floor of each unit, you have the master suite and the living area that is all open concept.
  • The lower level holds two more bedrooms and a large family room plus the laundry room.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

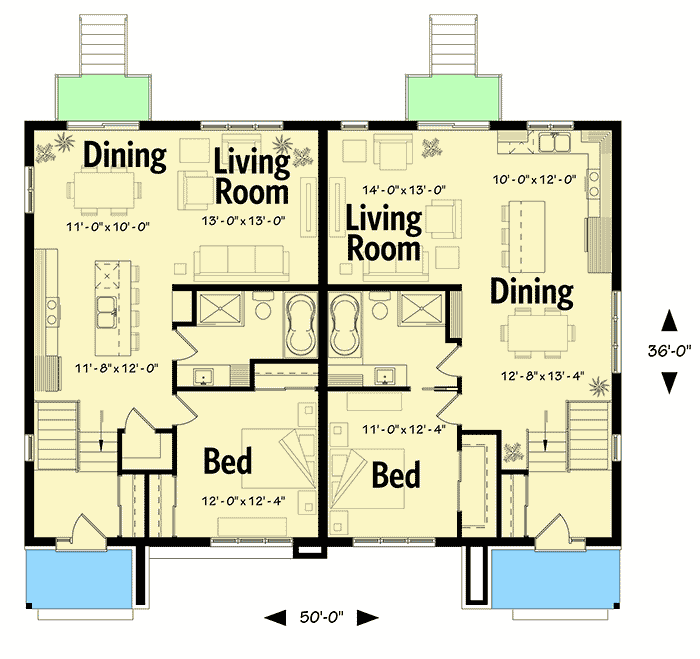

First Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Duplex - 22482DR floor plan - First Floor

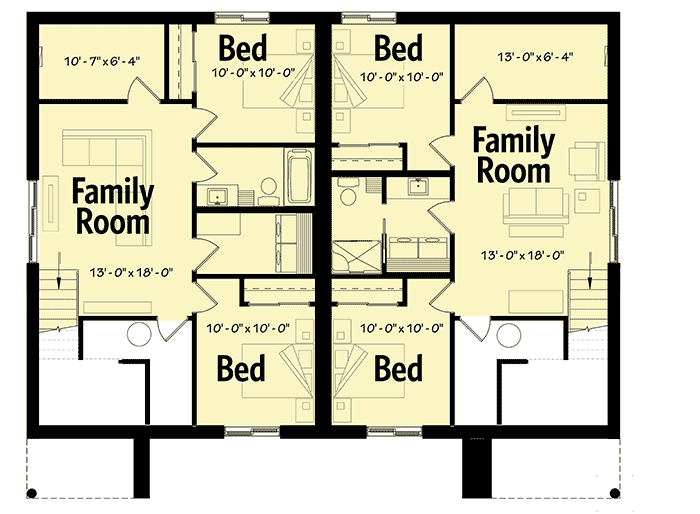

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Duplex - 22482DR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,600 sq. ft.
  • Lower Level: 1,600 sq. ft.
  • 1st Floor: 1,800 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 36' 0"
  • Max ridge height: 23' 4"

Roof Details

  • Primary Pitch: 2 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Duplex

  • 3,600

    Heated s.f.

  • 2

    Units

  • 50' 0"

    Width

  • 36' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,960
  • 5 Sets + PDF $2,085
  • CAD + PDF - Single-Build $2,560
  • View all purchase option online

About This Plan

  • Modern styling adorns this Contemporary duplex.
  • A sunken foyer leads up four steps or downstairs.
  • On the main floor of each unit, you have the master suite and the living area that is all open concept.
  • The lower level holds two more bedrooms and a large family room plus the laundry room.

Floor Plans

  • First Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,600 sq. ft.
  • Lower Level: 1,600 sq. ft.
  • 1st Floor: 1,800 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 36' 0"
  • Max ridge height: 23' 4"

Roof

  • Primary Pitch: 2 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
