Plan 22369DR Contemporary Duplex House Plan

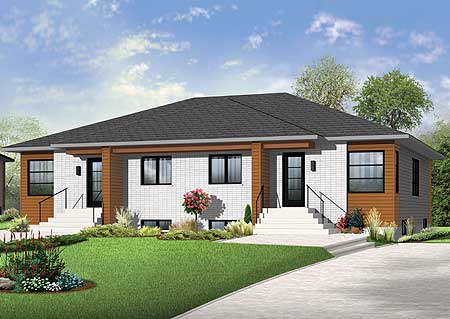

Contemporary Duplex House Plan

Plan 22369DR

  • 2,066

    Heated s.f.

  • 2

    Units

  • 54' 0"

    Width

  • 38' 4"

    Depth

  • We took a popular two family home plan, changed the exterior to a modern contemporary style, and result is this great-looking design sleek lines and a low-slung roofline. This gives you two units of 1,033 square feet each.
  • Inside, an open, flowing interior creates a spacious feeling in the activities areas. Rather than mirroring each unit there are slight differences between them, such as the master bedroom with or without semi-private access to the bathroom, and alternate bathroom and kitchen configurations.
  • Well-separated patio placement allows a more intimate outdoor space for each unit. Additional recreation or living space can be added by developing the basement.
  • Related Plans: Downsize with house plan 22342DR (two 918 square foot units).
  • Get a more traditional exterior with duplex home plans 22341DR and 21248DR.

Each plan includes the following:

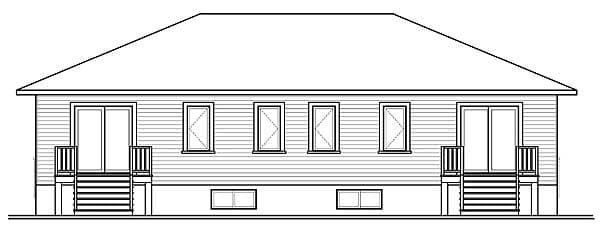

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

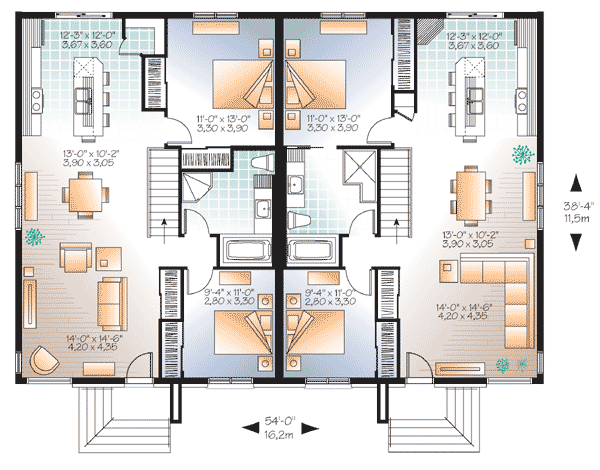

Contemporary Duplex House Plan - 22369DR floor plan - Main Level

Plan details

Contemporary Duplex House Plan

  • 2,066

    Heated s.f.

  • 2

    Units

  • 54' 0"

    Width

  • 38' 4"

    Depth

Buy This Plan
  • Reproducible Set $1,515
  • PDF - Single-Build $1,515
  • 5 Sets + PDF $1,640
  • CAD - Single-Build $2,115
  • View all purchase option online

About This Plan

  • We took a popular two family home plan, changed the exterior to a modern contemporary style, and result is this great-looking design sleek lines and a low-slung roofline. This gives you two units of 1,033 square feet each.
  • Inside, an open, flowing interior creates a spacious feeling in the activities areas. Rather than mirroring each unit there are slight differences between them, such as the master bedroom with or without semi-private access to the bathroom, and alternate bathroom and kitchen configurations.
  • Well-separated patio placement allows a more intimate outdoor space for each unit. Additional recreation or living space can be added by developing the basement.
  • Related Plans: Downsize with house plan 22342DR (two 918 square foot units).
  • Get a more traditional exterior with duplex home plans 22341DR and 21248DR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,066 sq. ft.
  • 1st Floor: 2,066 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 38' 4"
  • Max ridge height: 18' 7"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Truss
