Plan 680377VR

Contemporary Duplex House Plan with 1 Bedroom Units on Each Floor - 426 Sq Ft and 650 Sq Ft

Heated S.F.
1,076
Units
2
Width
Depth

Floor Plan

Plan 680377VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 680377VR

M-F 9am-5pm EST |

1-203-761-8500

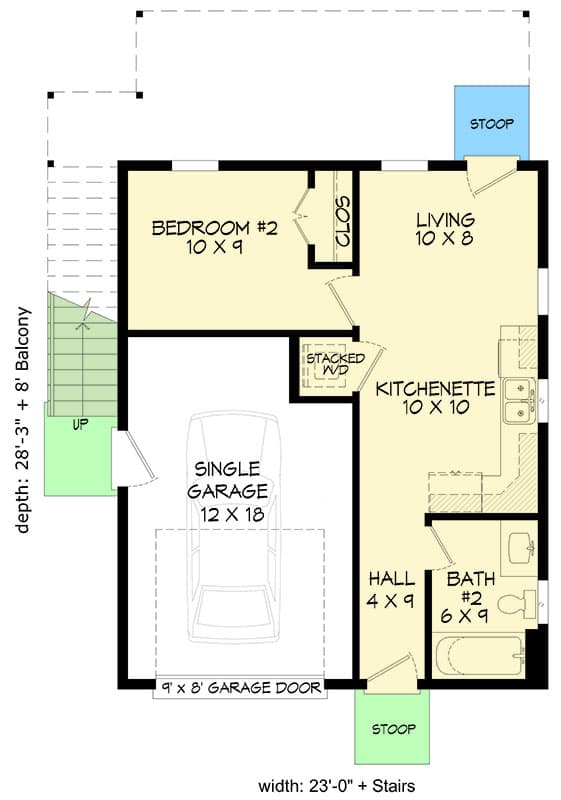

Main Level

Plan 680377VR: Contemporary Duplex House Plan with 1 Bedroom Units on Each Floor - 426 Sq Ft and 650 Sq Ft - Floor Plan - Main Level - Contemporary, Mountain

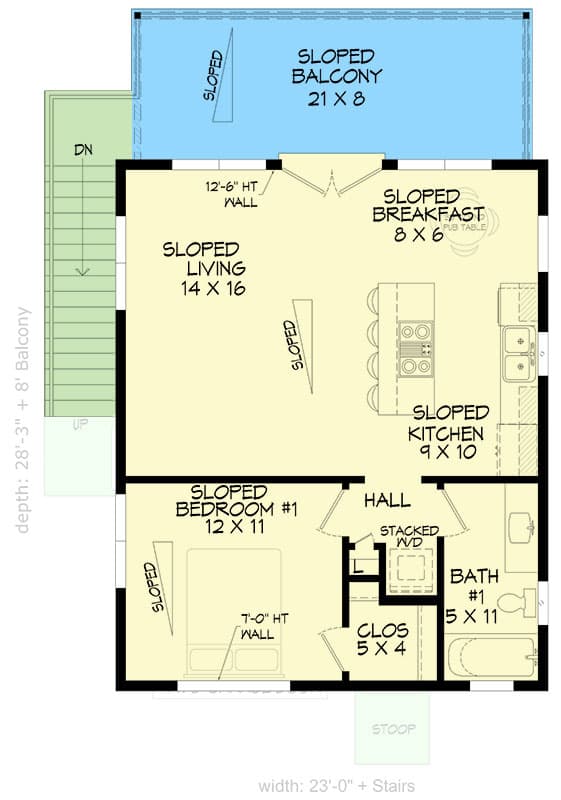

2nd Floor

Plan 680377VR: Contemporary Duplex House Plan with 1 Bedroom Units on Each Floor - 426 Sq Ft and 650 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Mountain

Plan Details

  • This contemporary duplex house plan gives you two 1 bedroom units. The main floor unit has 426 square feet of heated living space and 9' ceilings and the second floor unit - accessible by stairs running along the left side - gives you 650 square feet of heated living space with ceilings running from 7' to 12'6".
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
426Sq. Ft.
426 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
23'width
36' 3"depth
24' 6"height
Unit B
Heated Area
650Sq. Ft.
650 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Cars
Drive Under
224 Sq. Ft.
Dimensions
23'width
36' 3"depth
24' 6"height
Unfinished Areas
224 Sq. Ft. Garage
190 Sq. Ft. Balcony / Veranda

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?
