Plan 849030PGE

Contemporary Duplex House Plan with 3-Bed Units and Rear-Entry Garages - 1501 Sq Ft Ea

Heated S.F.
3,002
Units
2
Width
Depth

Floor Plan

Plan 849030PGE

Main Level
Main Level
2nd Floor
2nd Floor
Unfinished Basement
Unfinished Basement

Plan 849030PGE

M-F 9am-5pm EST |

1-203-761-8500

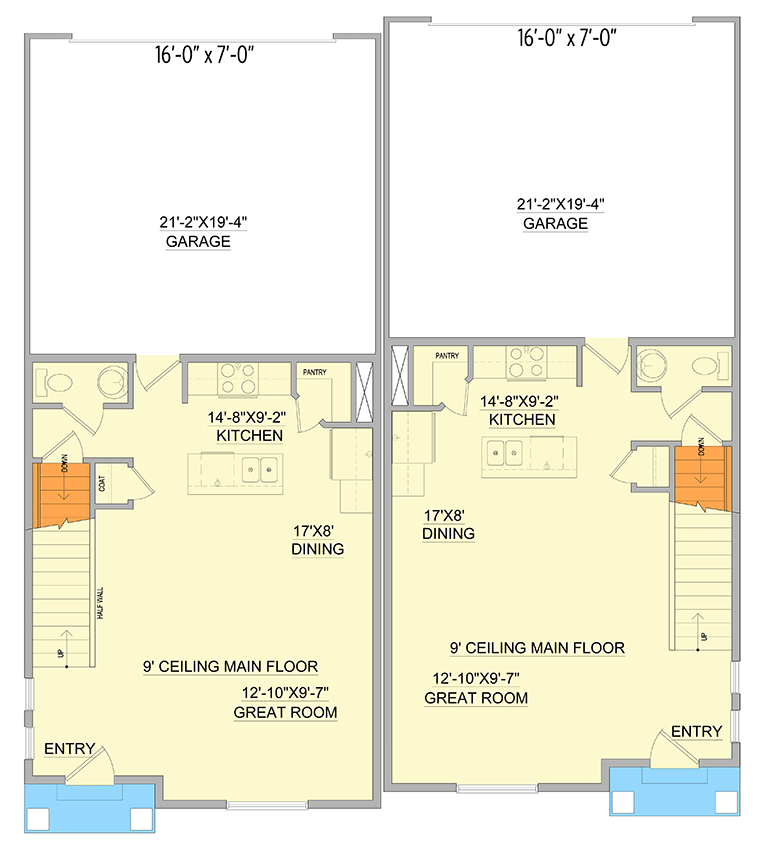

Main Level

Plan 849030PGE: Contemporary Duplex House Plan with 3-Bed Units and Rear-Entry Garages - 1501 Sq Ft Ea - Floor Plan - Main Level - Contemporary, New American, Transitional

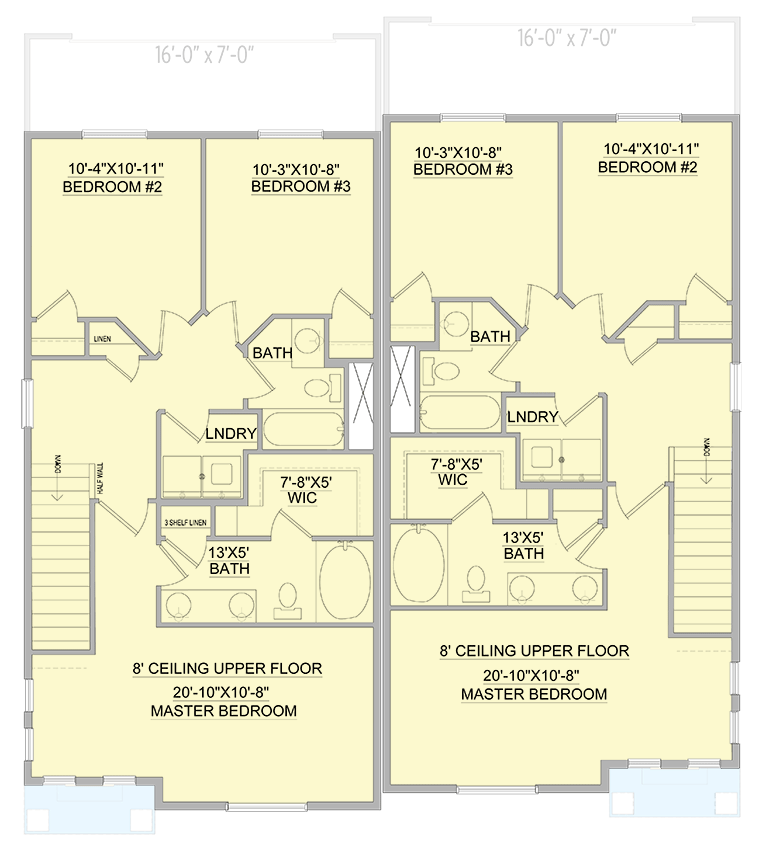

2nd Floor

Plan 849030PGE: Contemporary Duplex House Plan with 3-Bed Units and Rear-Entry Garages - 1501 Sq Ft Ea - Floor Plan - 2nd Floor - Contemporary, New American, Transitional

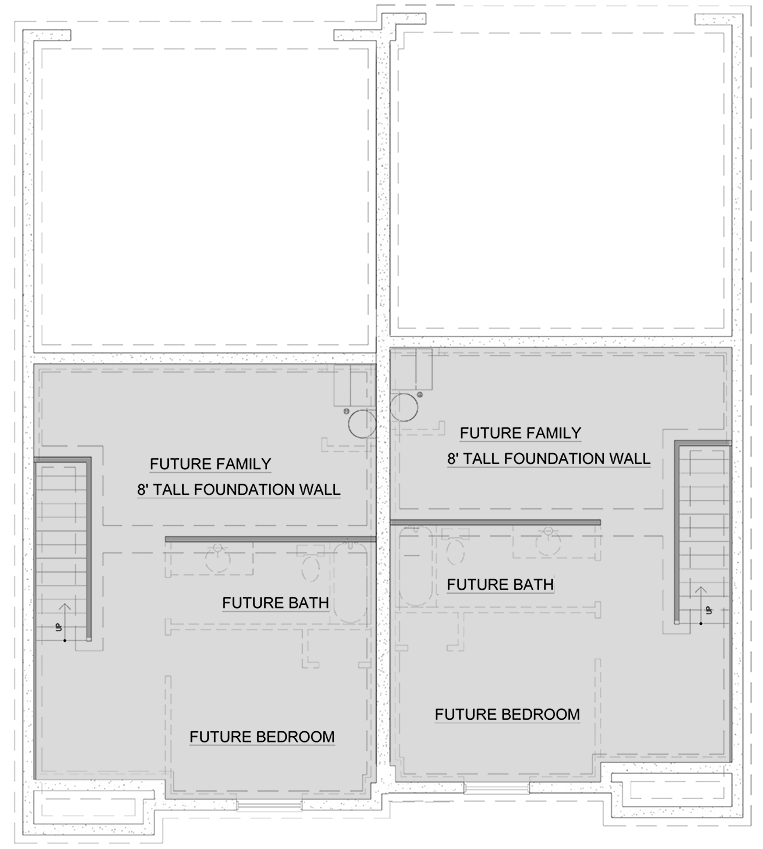

Unfinished Basement

Plan 849030PGE: Contemporary Duplex House Plan with 3-Bed Units and Rear-Entry Garages - 1501 Sq Ft Ea - Floor Plan - Unfinished Basement - Contemporary, New American, Transitional

Plan Details

  • This duplex house plan gives you matching 3 bed, 2.5 bath 1,501 square foot units with 2-car rear-entry garages (409 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,501Sq. Ft.
600 Sq. Ft. 1st
901 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
409 Sq. Ft.
Dimensions
21' 11"width
50'depth
28'height
Unfinished Areas
409 Sq. Ft. Garage
Unit B
Heated Area
1,501Sq. Ft.
600 Sq. Ft. 1st
901 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
409 Sq. Ft.
Dimensions
21' 11"width
50'depth
28'height
Unfinished Areas
409 Sq. Ft. Garage
