Plan 69803AM

Contemporary Duplex with Matching 1612 Square Foot 3 Bed Units

Heated S.F.
3,224
Units
2
Width
Depth

Floor Plan

Plan 69803AM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 69803AM

M-F 9am-5pm EST |

1-203-761-8500

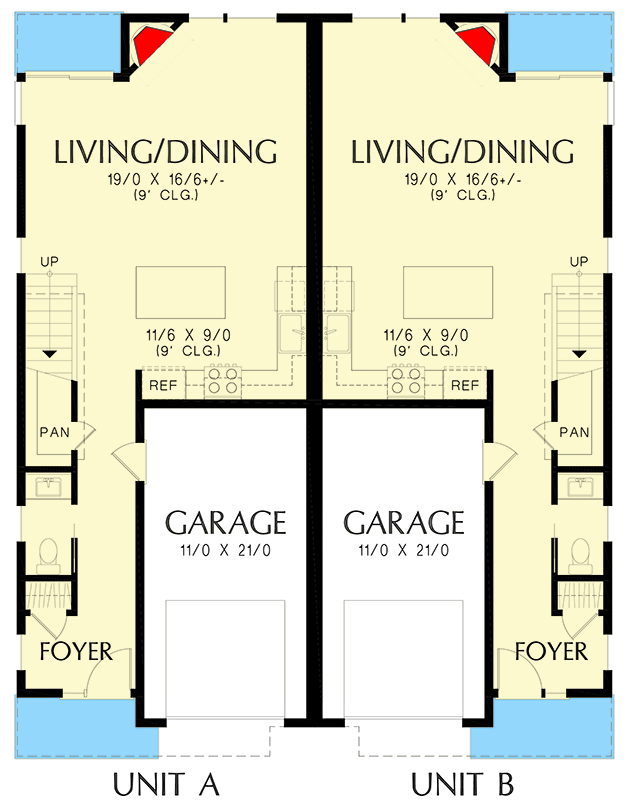

Main Level

Plan 69803AM: Contemporary Duplex with Matching 1612 Square Foot 3 Bed Units - Floor Plan - Main Level - Contemporary, Modern, Northwest

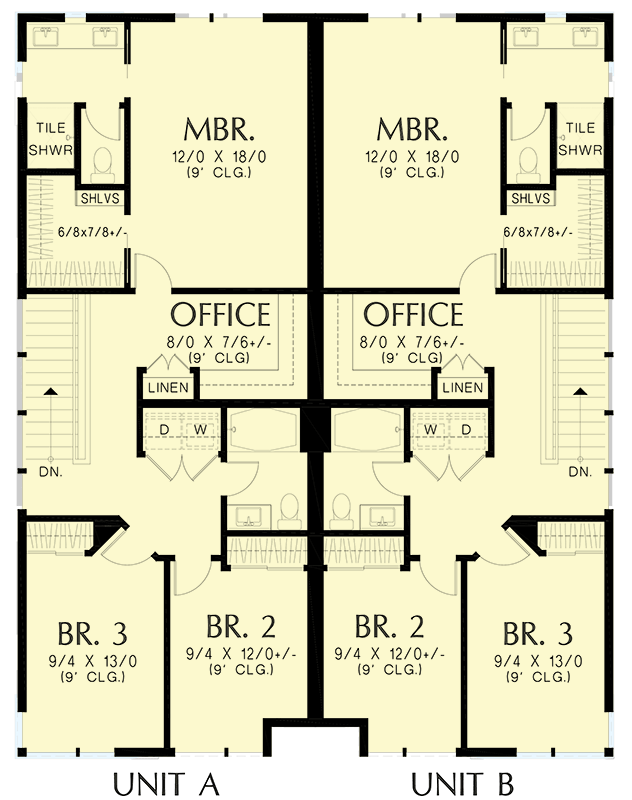

2nd Floor

Plan 69803AM: Contemporary Duplex with Matching 1612 Square Foot 3 Bed Units - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • This contemporary duplex home is a wonderful design that combines modern aesthetics with practical living. Spanning a total area of 3,224 square feet spread across the two units, this stunning two-story house plan offers ample space for a multifamily living scenario.
  • Each side of the duplex is a mirror image, providing each household with 1,612 square feet of heated living (668 sq. ft. on the main floor and 944 sq. ft. on the second floor) and delivers three bedrooms and two full baths, with an additional half bath for guests' convenience and a 248 square foot 1-car garage.
  • The first floor of each unit features an open layout, with a combined living and dining area for easy socializing.
  • The second floor houses all of the bedrooms, ensuring privacy and quiet for the residents. A central office nook with a built in wrap around desk is located outside of the master bedroom, and enhances the practicality of the design.
  • Other noteworthy features include a convenient utility closet for the washer and dryer are on the same level as the master bedroom, a bonus for those who want to minimize stairs in their daily routines.
  • The exterior façade features a mix of Hardi-Panel and clapboard siding, showcasing a contemporary style that's sure to stand out in any neighborhood while reducing expensive materials for the cost-conscious builder. The duplex also includes a garage for each unit, providing secure and convenient parking. With its modern amenities and thoughtful design, this duplex is the perfect choice for those looking for a stylish, comfortable, and practical living space.
Unit A
Heated Area
1,612Sq. Ft.
668 Sq. Ft. 1st
944 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
248 Sq. Ft.
Dimensions
20'width
50'depth
25'height
Unfinished Areas
248 Sq. Ft. Garage
Unit B
Heated Area
1,612Sq. Ft.
688 Sq. Ft. 1st
944 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
248 Sq. Ft.
Dimensions
20'width
50'depth
25'height
Unfinished Areas
248 Sq. Ft. Garage

What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,224 sq. ft.

1st Floor

1,336 sq. ft.

2nd Floor

1,888 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

50' 0"

Max Ridge Height

25' 10"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Split

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,224 sq. ft.

1st Floor

1,336 sq. ft.

2nd Floor

1,888 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

50' 0"

Max Ridge Height

25' 10"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Split

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry
