Contemporary European Home Plan with Over 2,700 Square Feet of Living Space

Plan 421509CHD

  • 2,751

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • Exclusive to Architectural Designs, this Contemporary European home plan delivers over 2,700 square feet of living space with a large covered patio for lounging, grilling, and dining outdoors.
  • The spacious and open living room hosts a grand fireplace and oversized sliding door to encourage outdoor living. Easily move into the dining area and island kitchen, where a walk-in pantry, 6-burner range, and island will appease cooks of any level.
  • The main-level master bedroom offers a luxurious suite with a 5-fixture bathroom and walk-in closet that conveniently connects to the laundry room. A second bedroom, or study, resides on the opposite side of the home.
  • Upstairs, a bonus room includes a pocket office with a barn door for privacy, and two bedrooms are separated by a compartmentalized bathroom.
  • The 3-car garage provides access to the mudroom, as well as the back patio.

Each plan set includes the following:

  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes and Window & Door Schedules
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

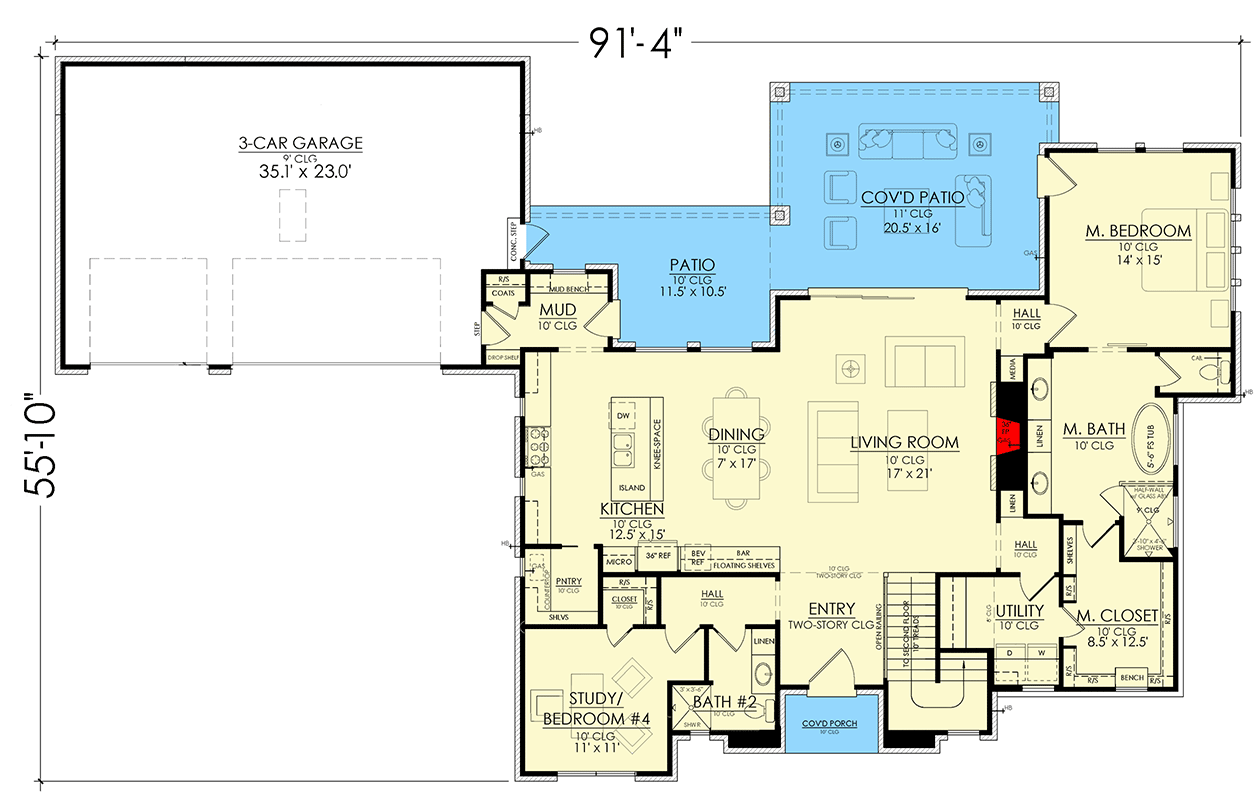

Contemporary European Home Plan with Over 2,700 Square Feet of Living Space - 421509CHD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

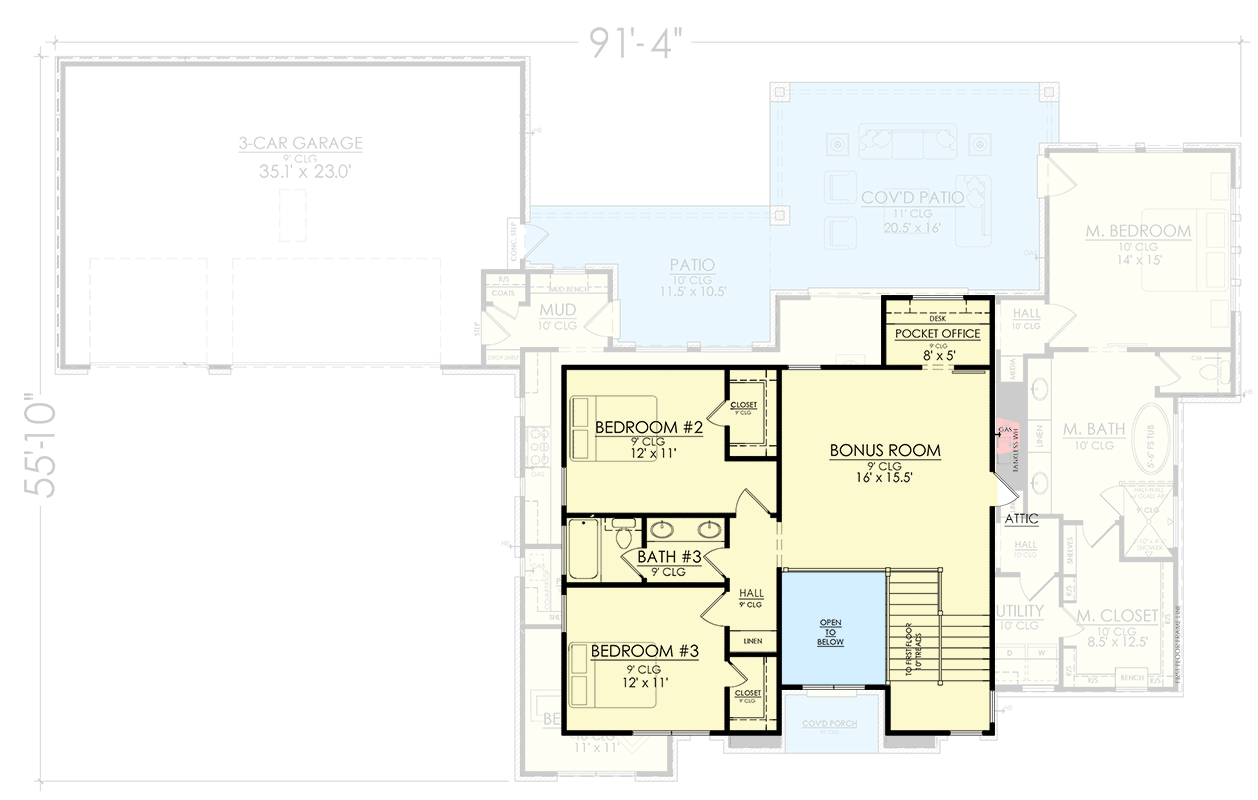

Contemporary European Home Plan with Over 2,700 Square Feet of Living Space - 421509CHD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,751 sq. ft.
  • 1st Floor: 1,955 sq. ft.
  • 2nd Floor: 796 sq. ft.
  • Porch, Rear: 493 sq. ft.
  • Porch, Front: 36 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 91' 4"
  • Depth: 55' 10"
  • Max ridge height: 33' 2"

Garage

  • Type: Attached
  • Area: 866 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 10
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Contemporary European Home Plan with Over 2,700 Square Feet of Living Space

  • 2,751

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,495
  • 5 Sets + PDF $1,745
  • PDF - Unlimited Build $2,095
  • CAD Unlimited + PDF $2,495
  • View all purchase option online

About This Plan

  • Exclusive to Architectural Designs, this Contemporary European home plan delivers over 2,700 square feet of living space with a large covered patio for lounging, grilling, and dining outdoors.
  • The spacious and open living room hosts a grand fireplace and oversized sliding door to encourage outdoor living. Easily move into the dining area and island kitchen, where a walk-in pantry, 6-burner range, and island will appease cooks of any level.
  • The main-level master bedroom offers a luxurious suite with a 5-fixture bathroom and walk-in closet that conveniently connects to the laundry room. A second bedroom, or study, resides on the opposite side of the home.
  • Upstairs, a bonus room includes a pocket office with a barn door for privacy, and two bedrooms are separated by a compartmentalized bathroom.
  • The 3-car garage provides access to the mudroom, as well as the back patio.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,751 sq. ft.
  • 1st Floor: 1,955 sq. ft.
  • 2nd Floor: 796 sq. ft.
  • Porch, Rear: 493 sq. ft.
  • Porch, Front: 36 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 91' 4"
  • Depth: 55' 10"
  • Max ridge height: 33' 2"

Garage

  • Type: Attached
  • Area: 866 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 10
  • Framing Type: Stick
Plan 421509CHD
View this and more for this plan by visiting www.architechtecturaldesigns.com/421509CHD
|
Need Help? 800-854-7852
|
