Contemporary Florida House Plan with Split-bed Layout

Plan 65756BS

  • 4,310

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • The split-bedroom design of this Contemporary Florida house plan gives each of the residents, or guests, private sleeping accommodations.
  • The great room lives up to its name with a beautiful coffered ceiling, wet bar, fireplace, and seamless connection to the kitchen and dining areas.
  • This home was designed with outdoor living in mind, which is accessible from the great room, club room, and master suite, while two secondary bedrooms offer their own covered lanai.
  • A sitting nook is included in the luxury master suite, along with two closets and a spacious 5-fixture bath.
  • A study, sizable service areas, and extra space in the garage round out this design to make it a favorite amongst today's homeowners.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:


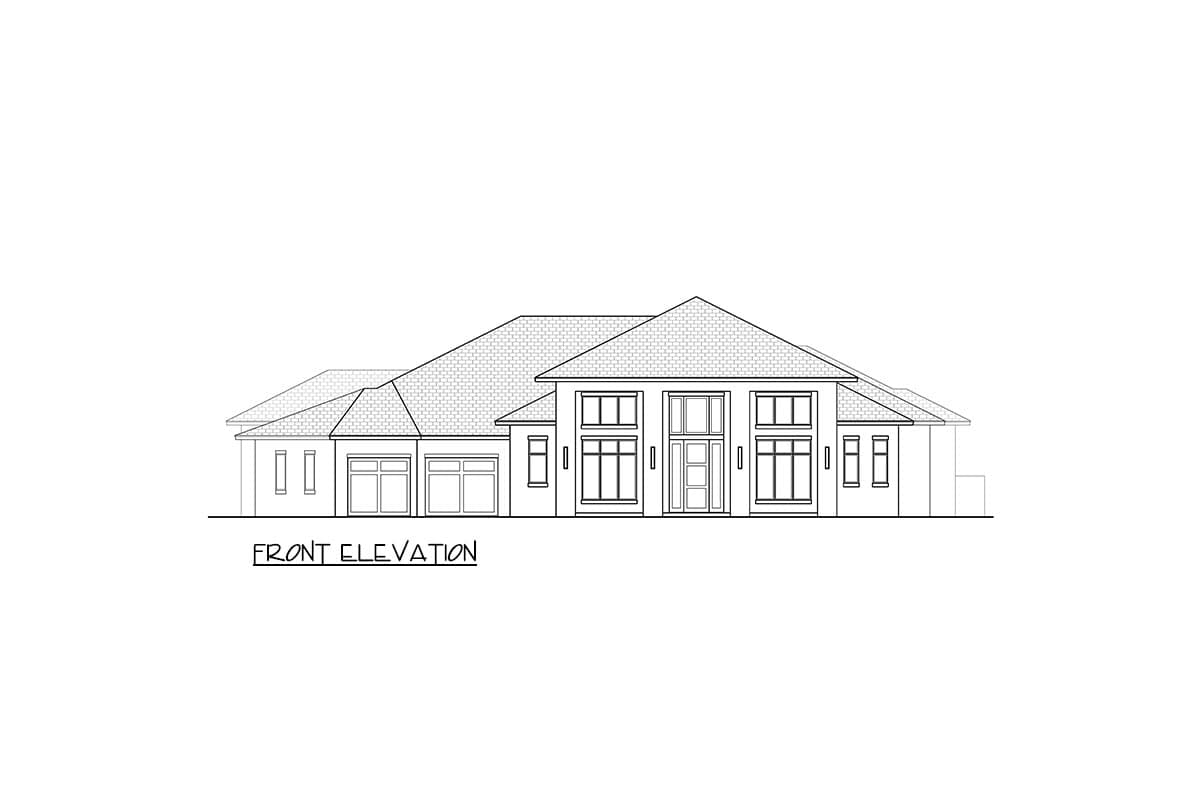

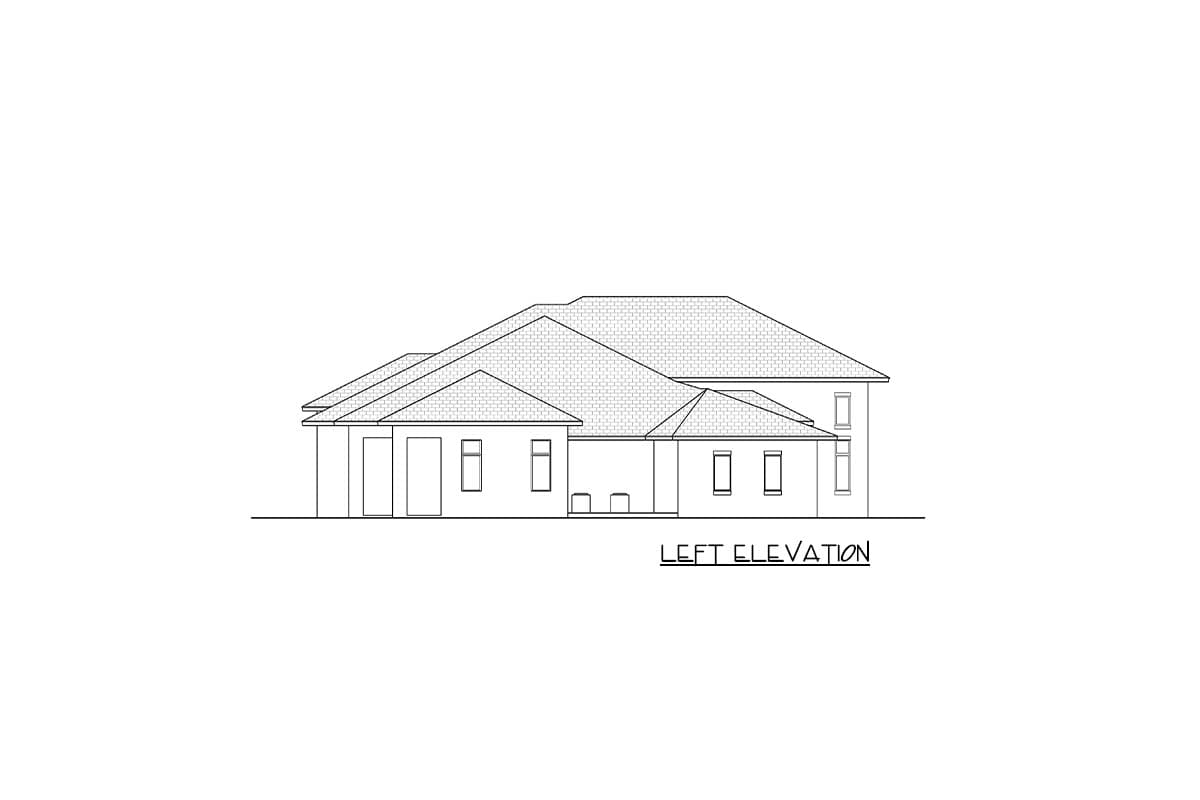

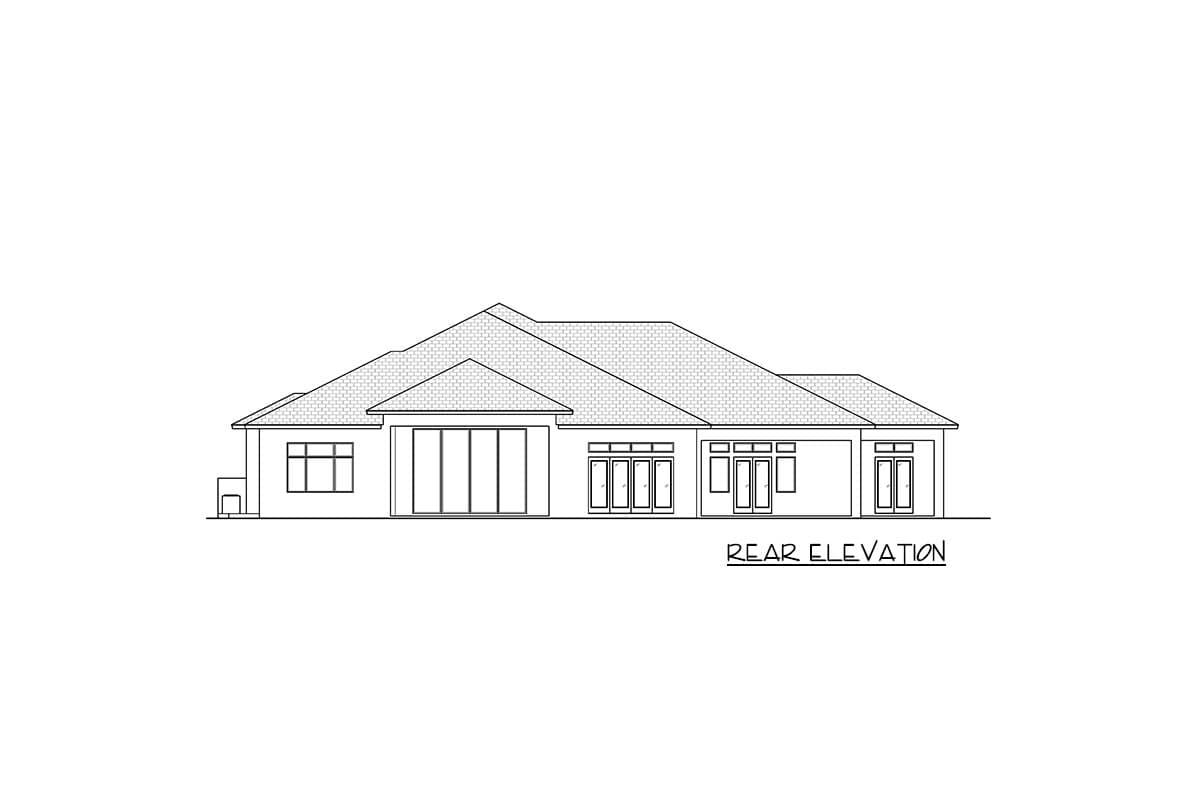

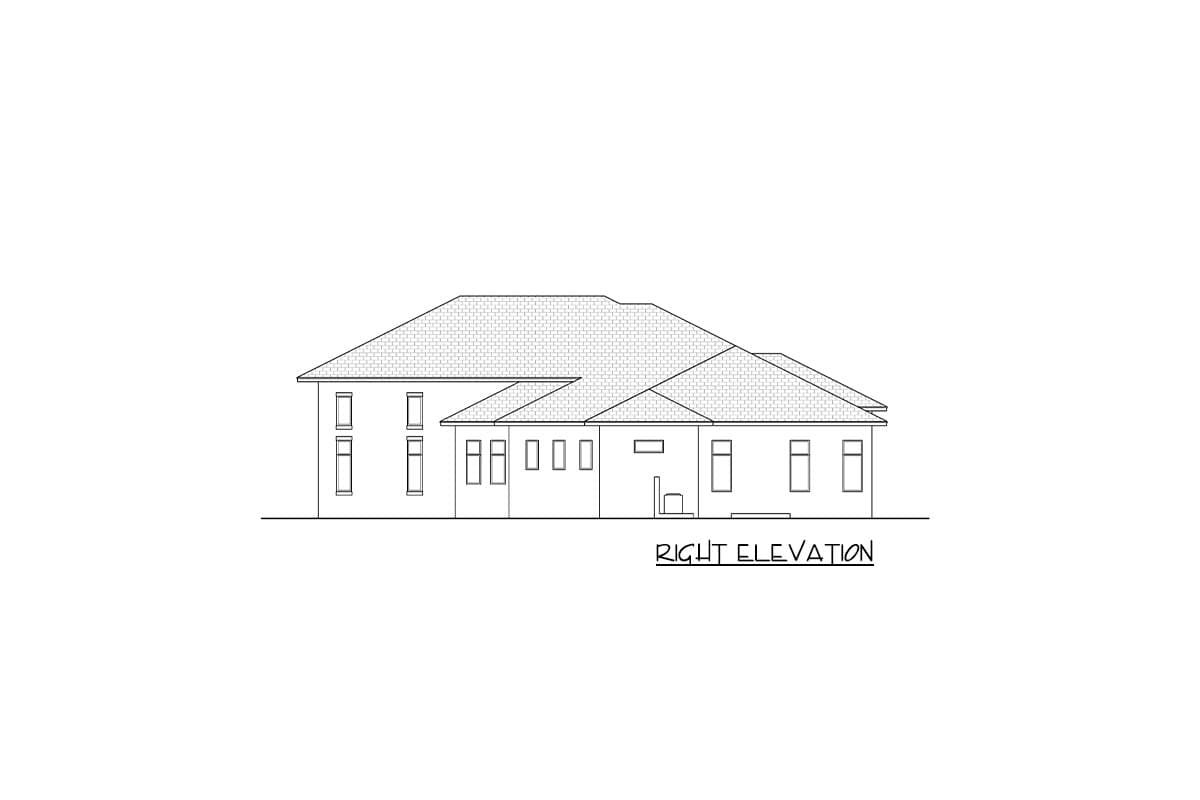

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

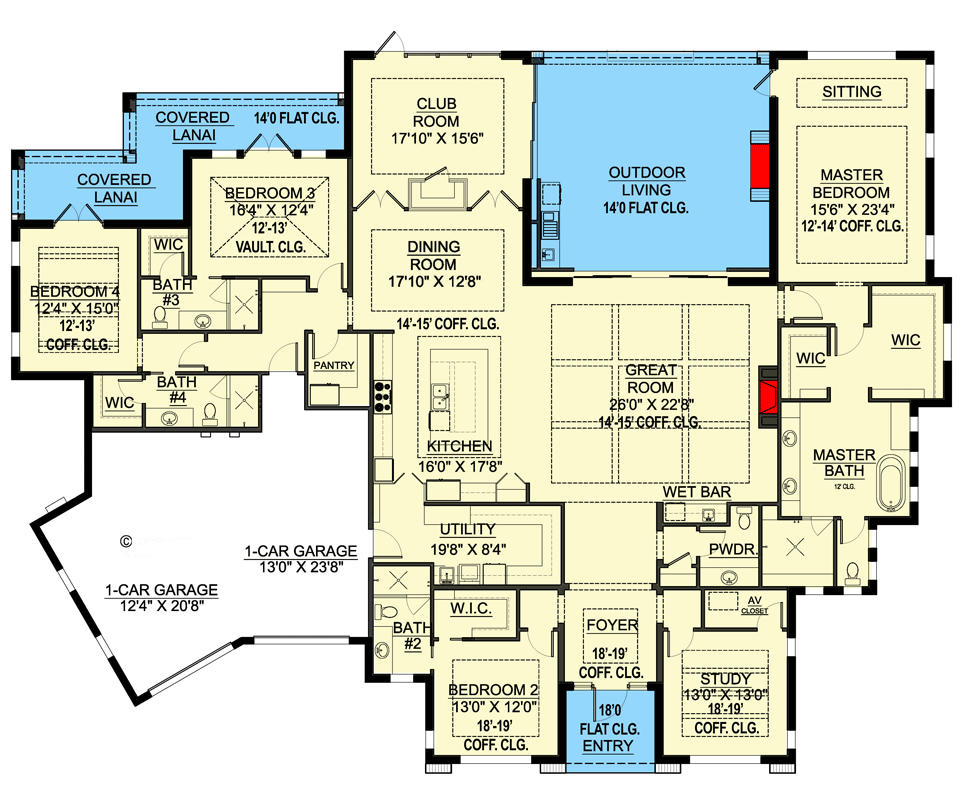

Contemporary Florida House Plan with Split-bed Layout - 65756BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,310 sq. ft.
  • 1st Floor: 4,310 sq. ft.
  • Lanai: 863 sq. ft.
  • Porch, Front: 86 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 98' 4"
  • Depth: 75' 6"
  • Max ridge height: 29' 9"

Garage

  • Type: Attached
  • Area: 785 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Contemporary Florida House Plan with Split-bed Layout

  • 4,310

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,310
  • PDF - Single-Build $4,310
  • View all purchase option online

About This Plan

  • The split-bedroom design of this Contemporary Florida house plan gives each of the residents, or guests, private sleeping accommodations.
  • The great room lives up to its name with a beautiful coffered ceiling, wet bar, fireplace, and seamless connection to the kitchen and dining areas.
  • This home was designed with outdoor living in mind, which is accessible from the great room, club room, and master suite, while two secondary bedrooms offer their own covered lanai.
  • A sitting nook is included in the luxury master suite, along with two closets and a spacious 5-fixture bath.
  • A study, sizable service areas, and extra space in the garage round out this design to make it a favorite amongst today's homeowners.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,310 sq. ft.
  • 1st Floor: 4,310 sq. ft.
  • Lanai: 863 sq. ft.
  • Porch, Front: 86 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 98' 4"
  • Depth: 75' 6"
  • Max ridge height: 29' 9"

Garage

  • Type: Attached
  • Area: 785 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
