Plan 65823BS

Contemporary Florida-Style House Plan with 4 Bedrooms and Expansive Lanai

Name: Plan 65823BS: Contemporary Florida-Style House Plan with 4 Bedrooms and Expansive Lanai
Brand: Architectural Designs
SKU: 65823BS
Price: 4231.0 USD
Availability: InStock

Heated S.F.

4,231

Beds

Baths

5.5

Stories

Cars

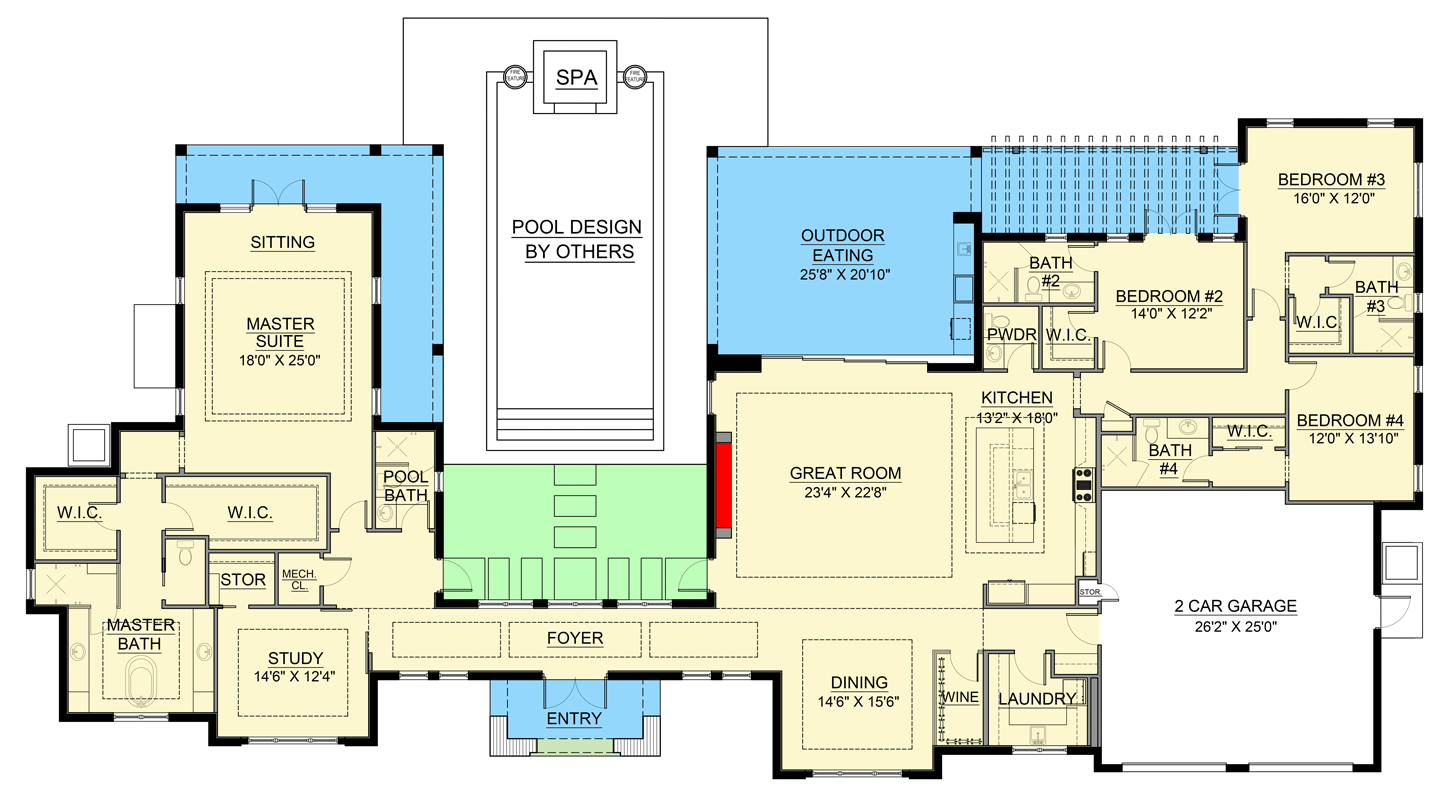

Floor Plan

Plan Details

Boasting 4,231 finished square feet, this contemporary Florida-style home features four bedrooms, five full baths, one half bath, and a two-car garage.

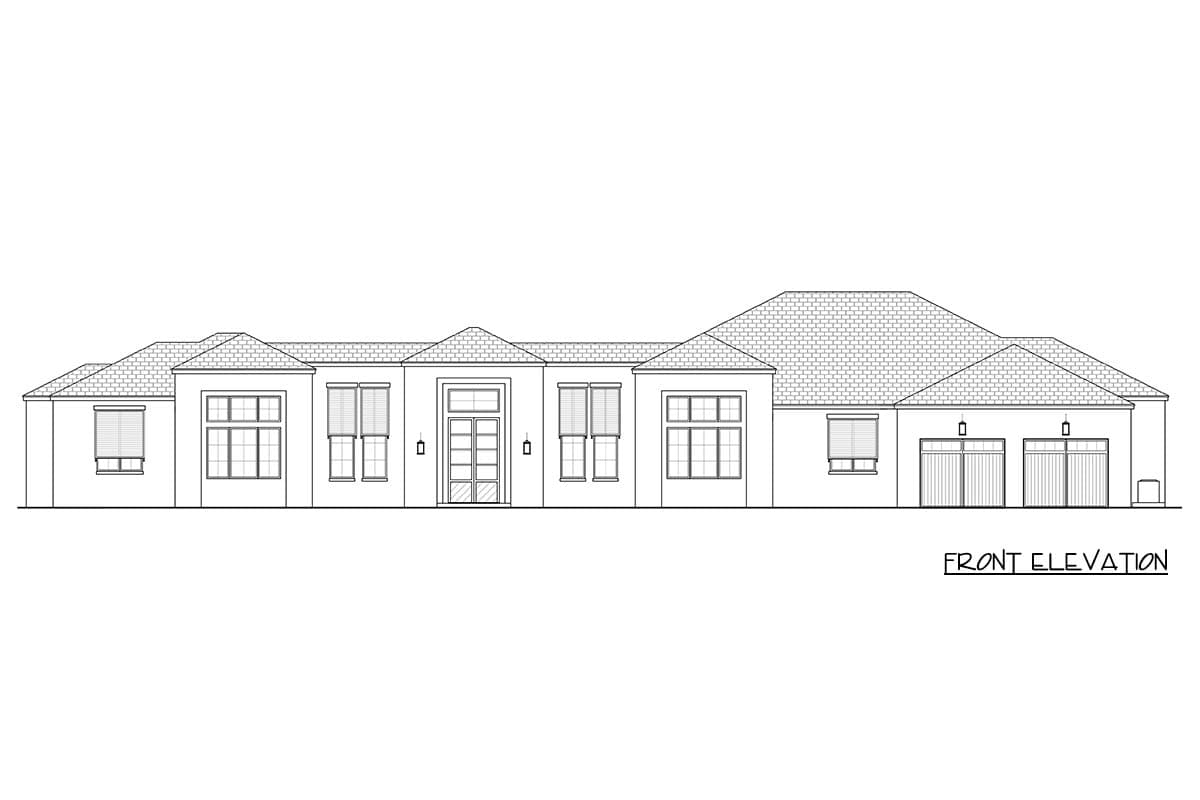

The striking exterior showcases a modern aesthetic with clean lines and large windows, leading into a grand entry that sets a sophisticated tone for the entire residence.
Inside, the floor plan emphasizes a seamless flow between the formal dining area, a dedicated library or study, and a specialized wine room designed for the refined host.
The primary suite serves as a private first-floor sanctuary, offering ample space and luxury amenities, while three additional bedrooms provide comfort and privacy for family or guests.
A massive 811-square-foot lanai serves as the ultimate outdoor living room, complete with an integrated outdoor kitchen that invites year-round alfresco dining and relaxation.
Thoughtful design elements throughout the home include a convenient main-level laundry room and an open-concept layout that maximizes natural light and indoor-outdoor connectivity.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
