Plan 65790BS

Contemporary Florida Style House Plan with Five Bedrooms and Expansive Lanai

Name: Plan 65790BS: Contemporary Florida Style House Plan with Five Bedrooms and Expansive Lanai
Brand: Architectural Designs
SKU: 65790BS
Price: 5045.0 USD
Availability: InStock

Heated S.F.

5,045

Beds

Baths

5.5

Stories

Cars

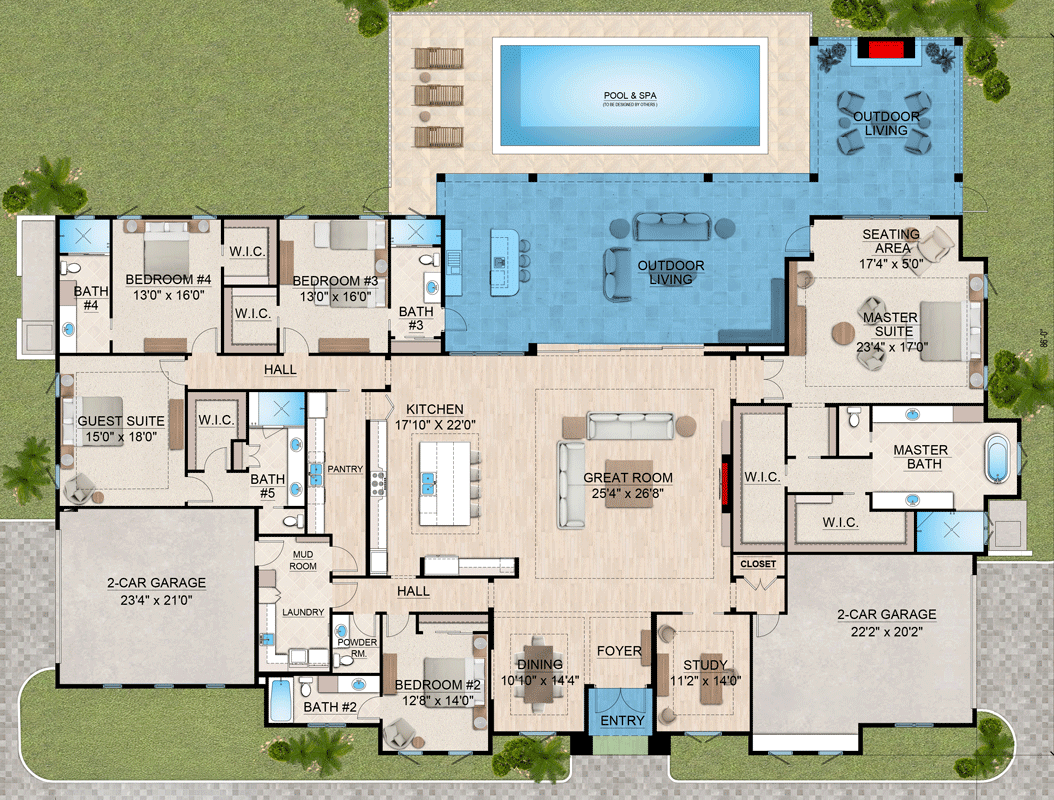

Floor Plan

Plan Details

This stunning 5,045 square foot Florida-style residence features five bedrooms, five full baths, one half bath, and a generous four-car side-entry garage.
The grand entry opens into a sophisticated layout that emphasizes clean lines and seamless transitions between indoor and outdoor living spaces.
The heart of the home centers around a sprawling open-concept living area with a large walk-in pantry and a dedicated library or study for quiet focus.
A private primary suite serves as a luxurious retreat, offering a spacious sitting area and thoughtful separation from the four secondary bedrooms.
The expansive 1,294 square foot lanai acts as a natural extension of the home, complete with an outdoor kitchen and fireplace for elevated alfresco dining.
Practical amenities include a spacious mudroom and a conveniently located main-level laundry room designed to support a busy household.

What's Included

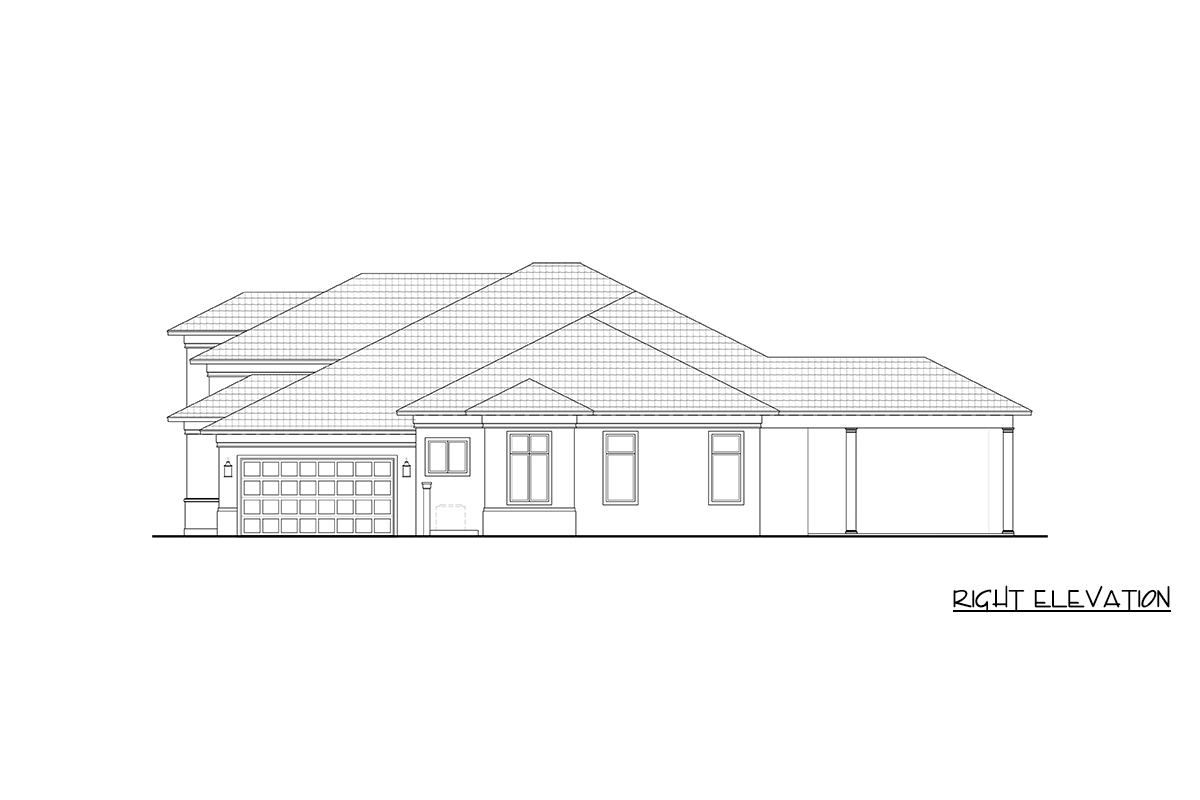

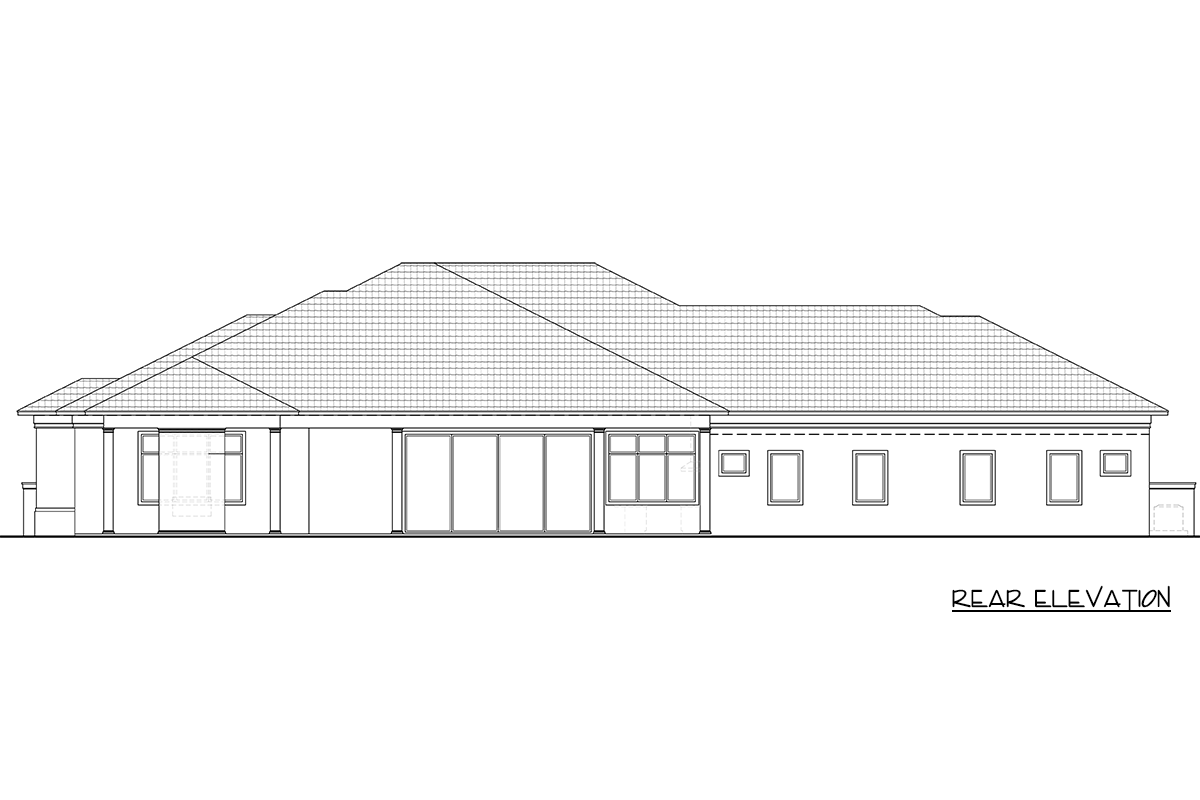

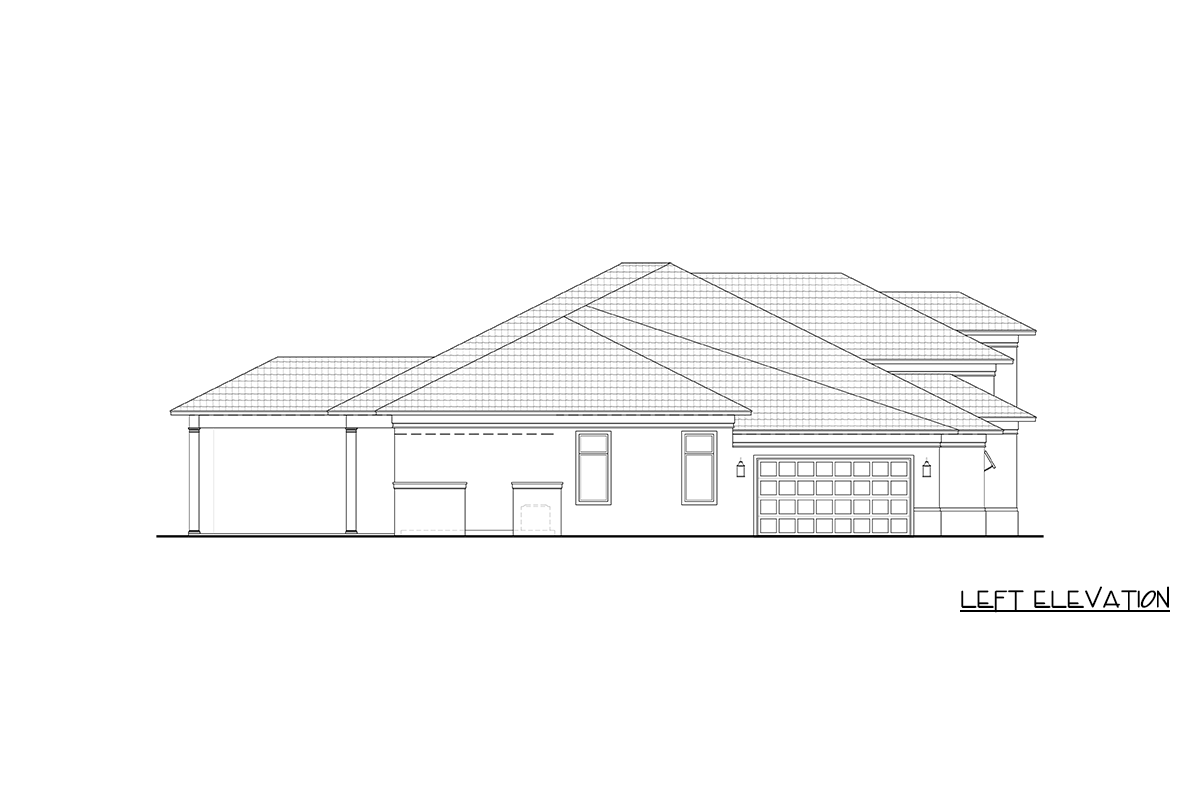

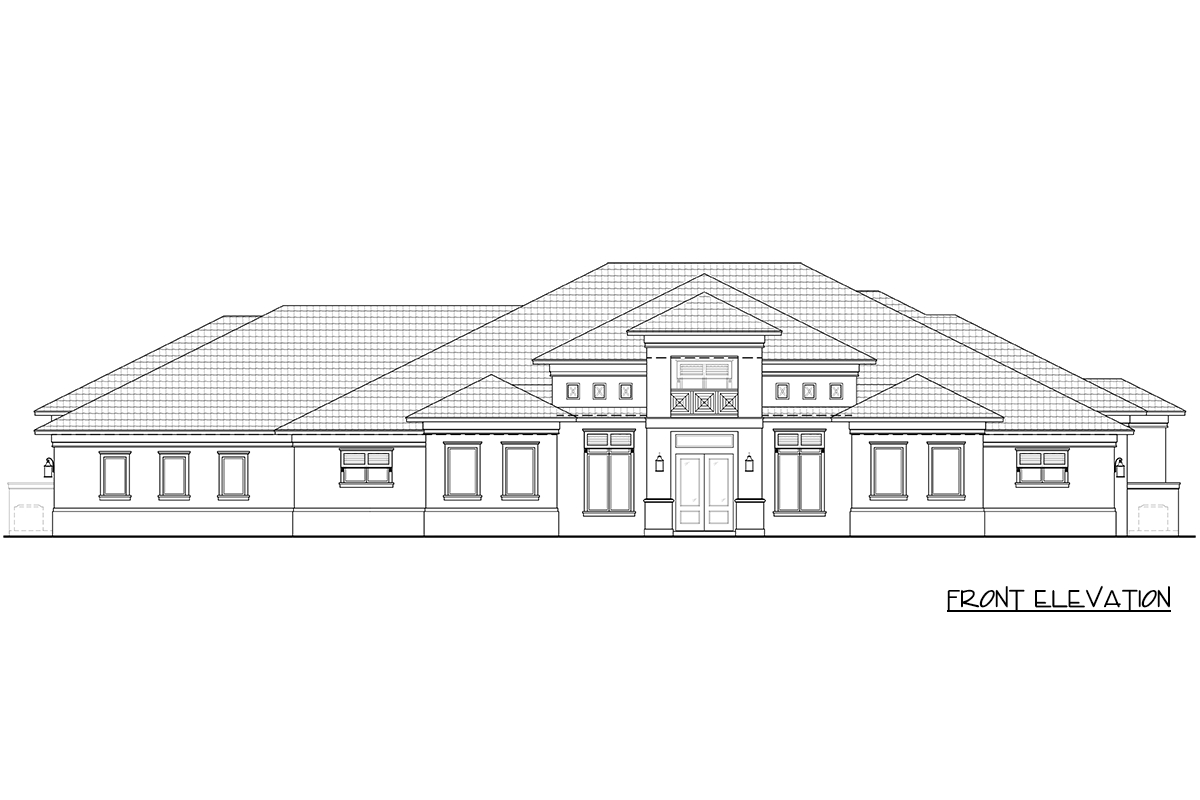

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
