Contemporary Hill Country with Outdoor Living Room

Plan 430021LY

  • 2,702

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • The entire back of the main living area overlooks the spacious outdoor living room of this Hill Country house plan.
  • Here you can relax and entertain in the cool shade of the covered porch.

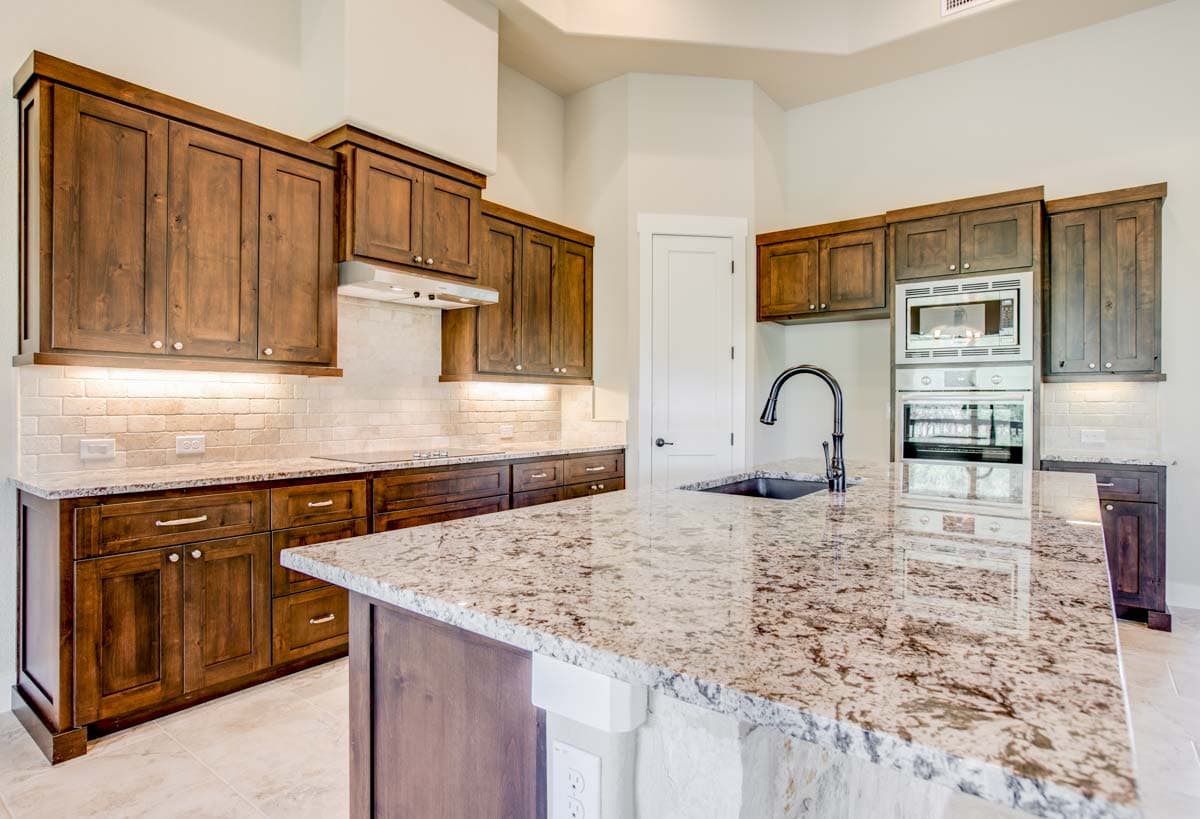

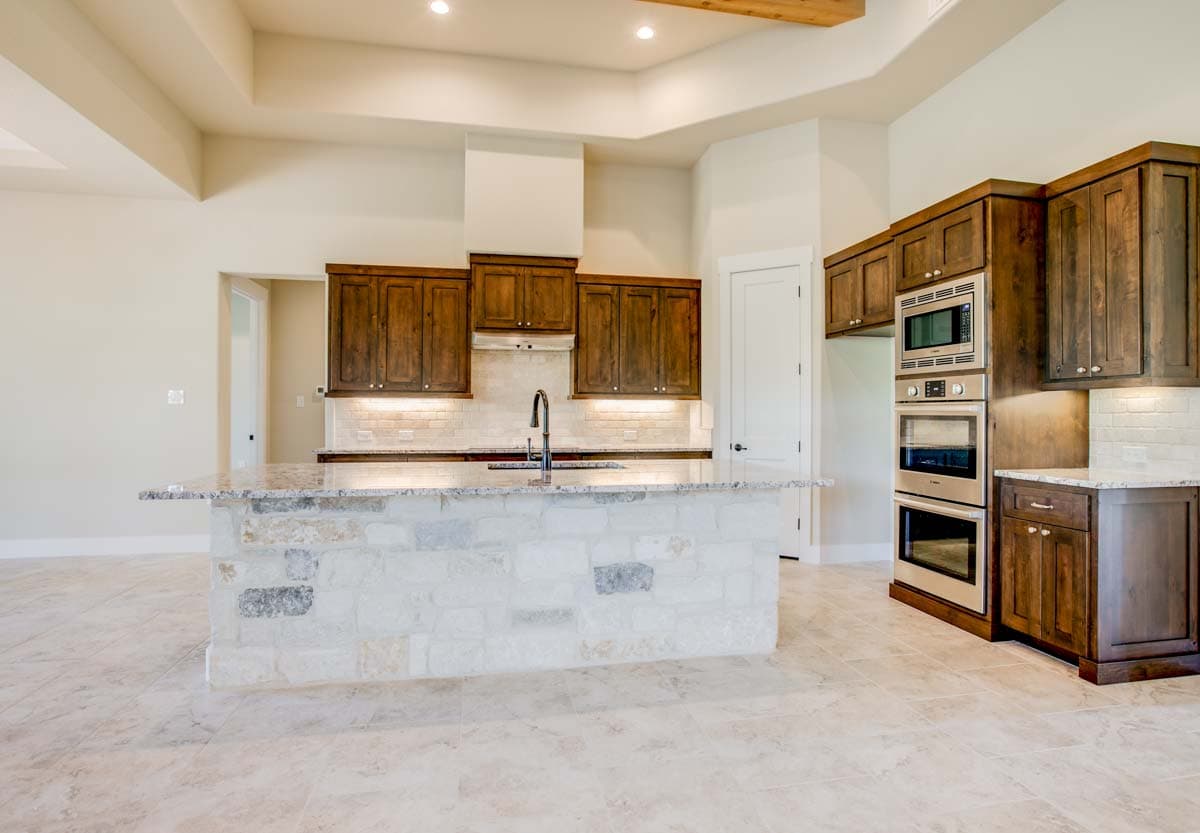

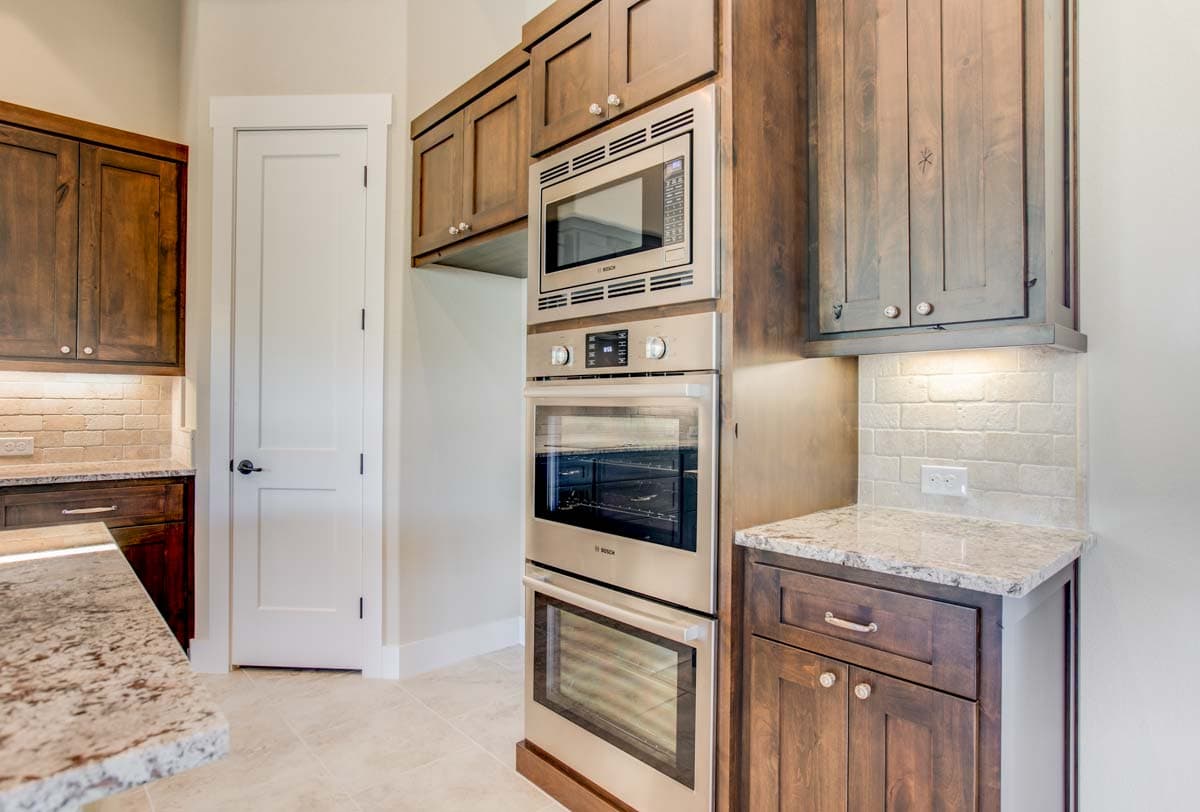

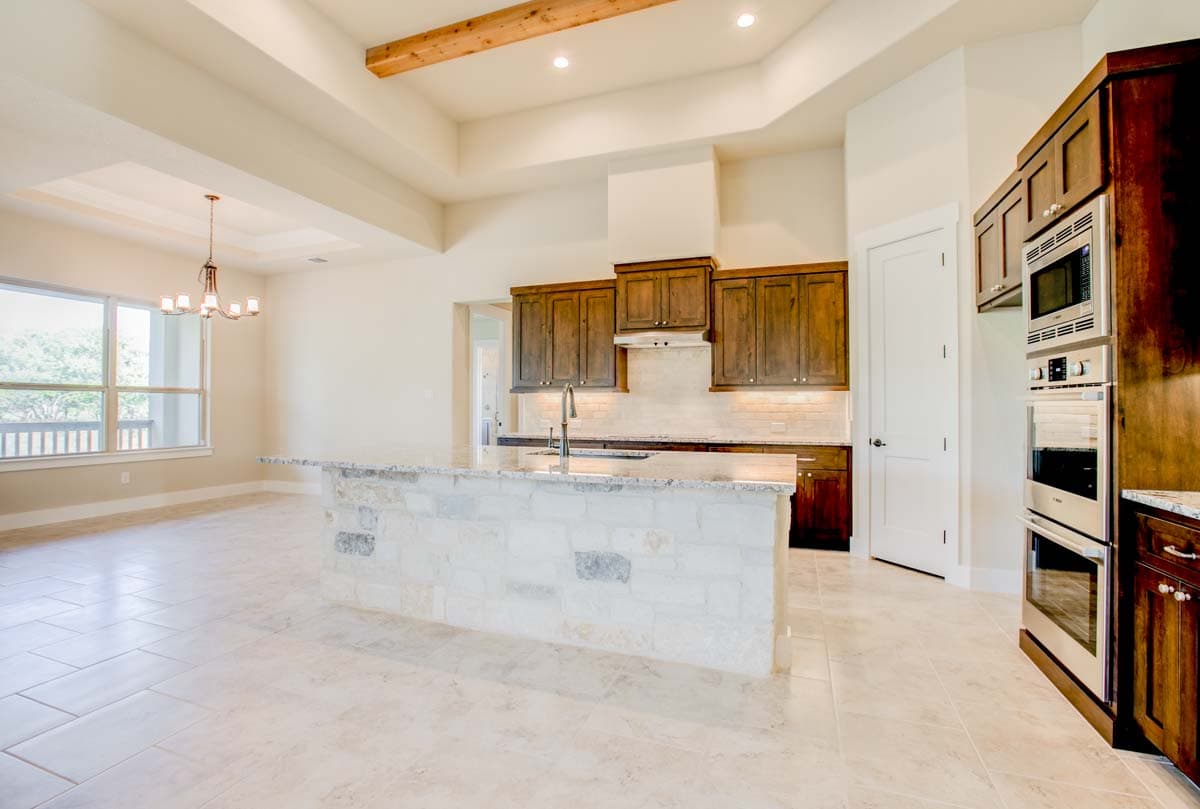

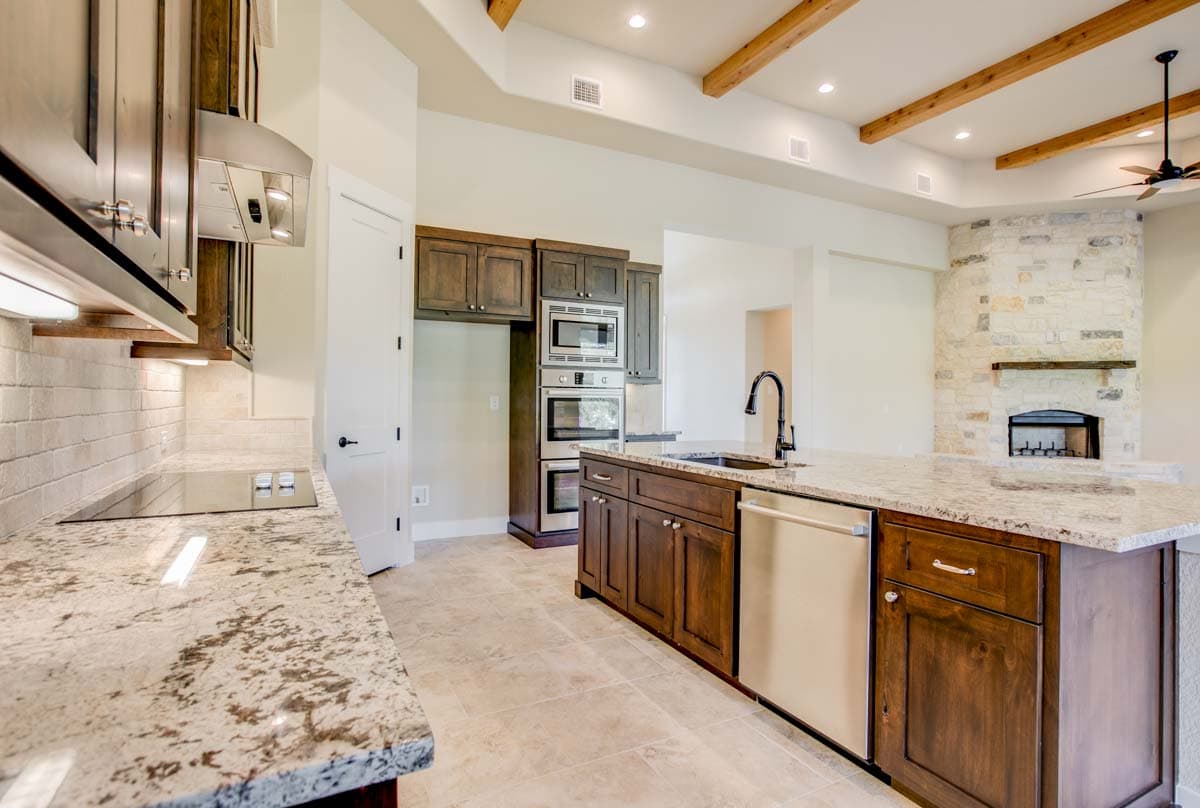

  • The kitchen sink sits on the big island, allowing views of the living room, dining area and porch.

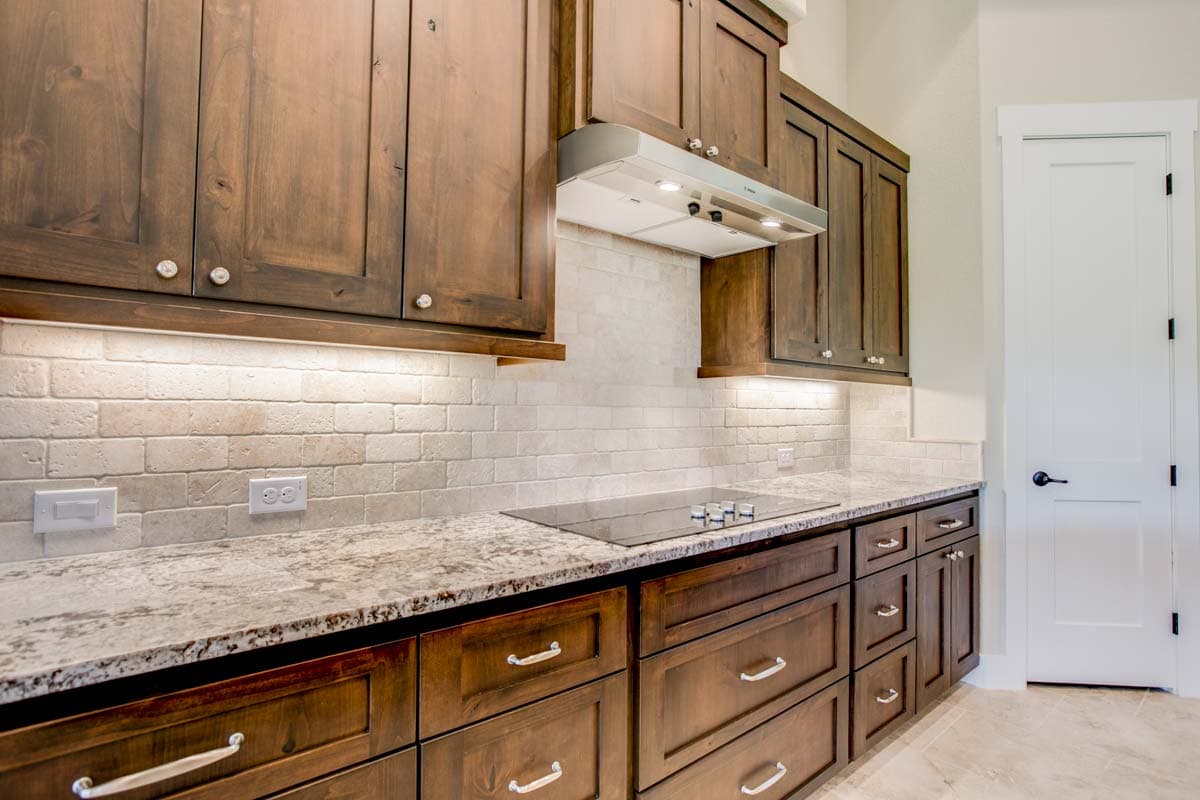

  • Cook up a storm on the six burner stove or grill outside.

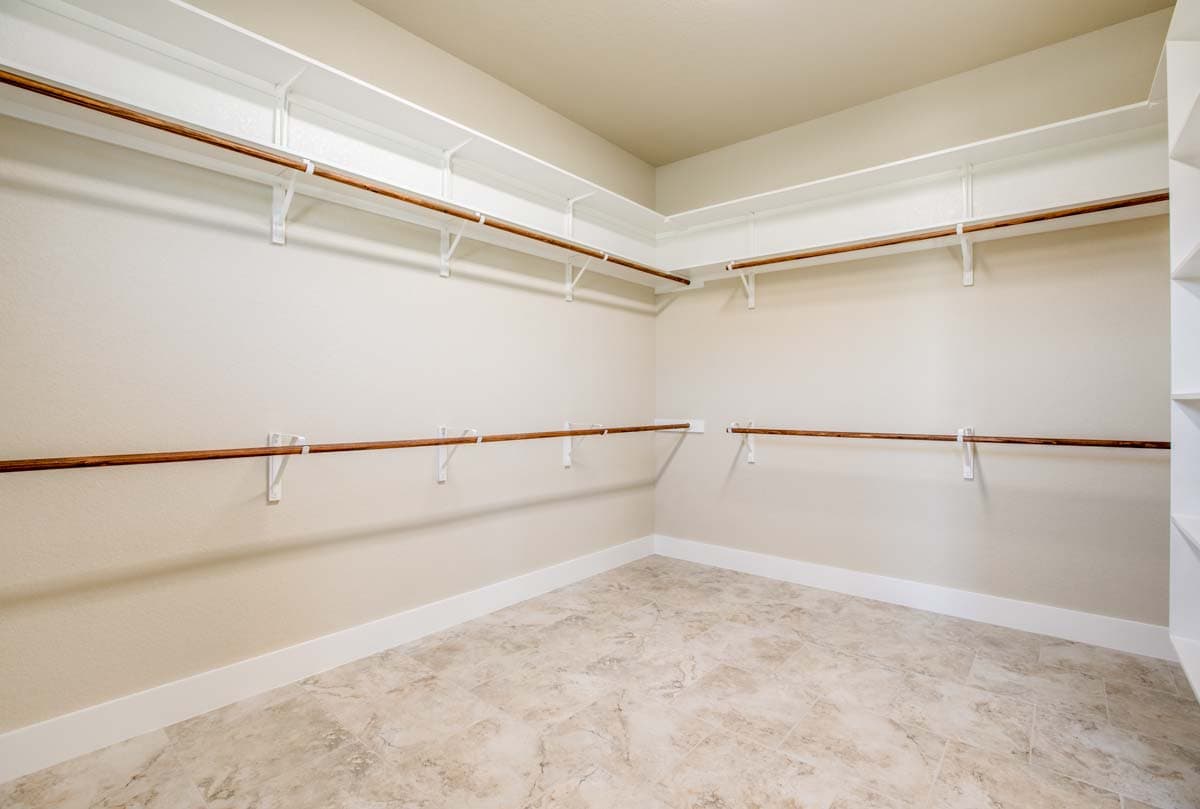

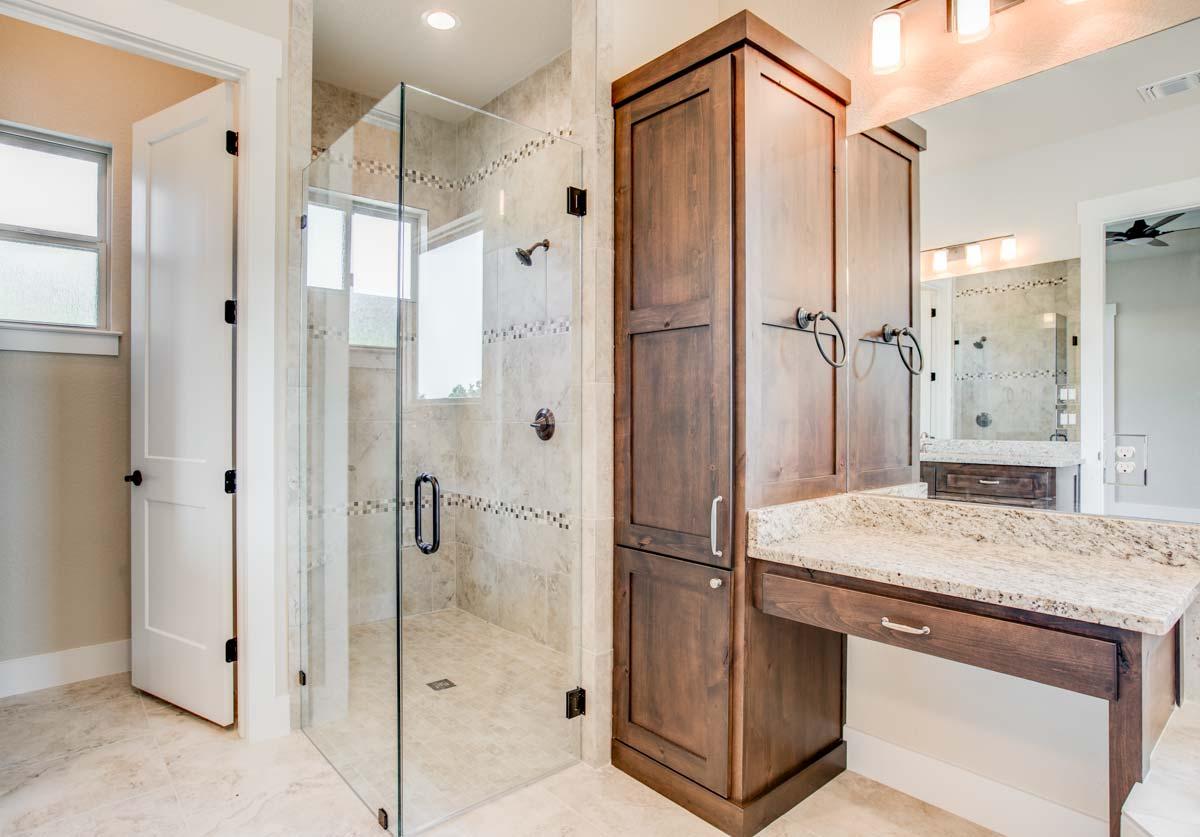

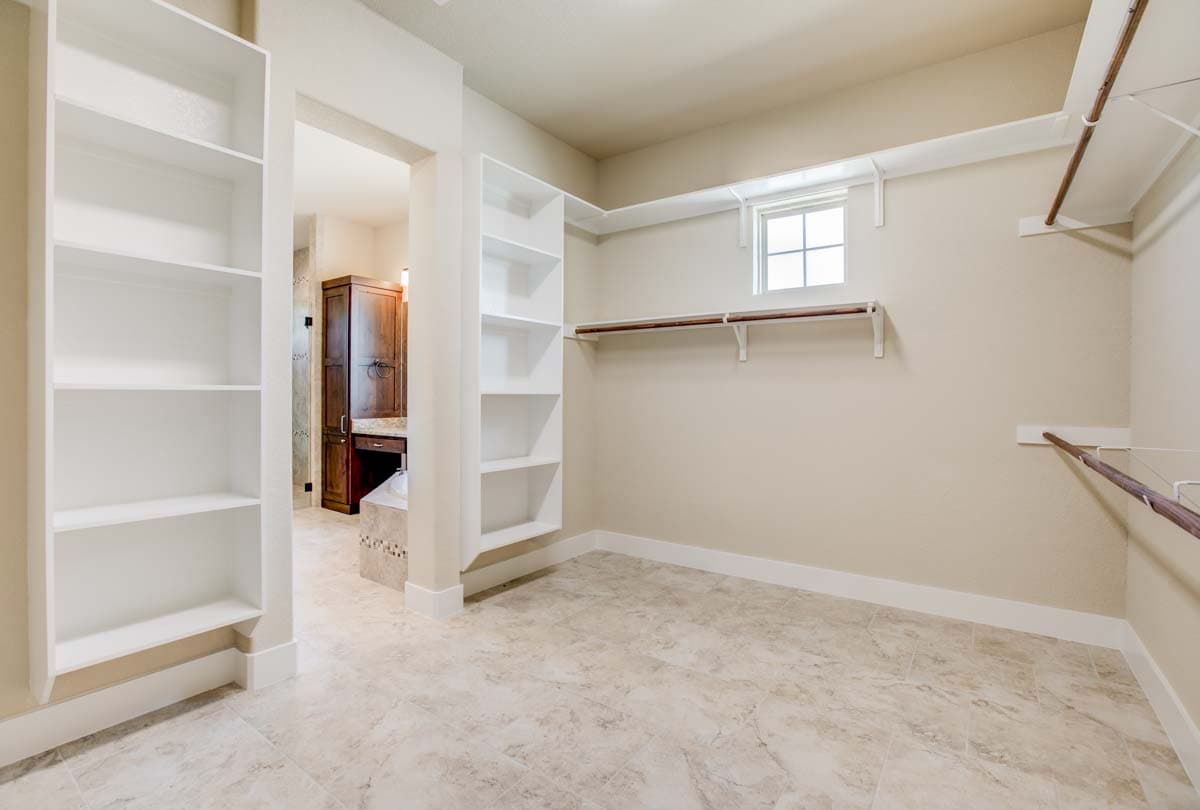

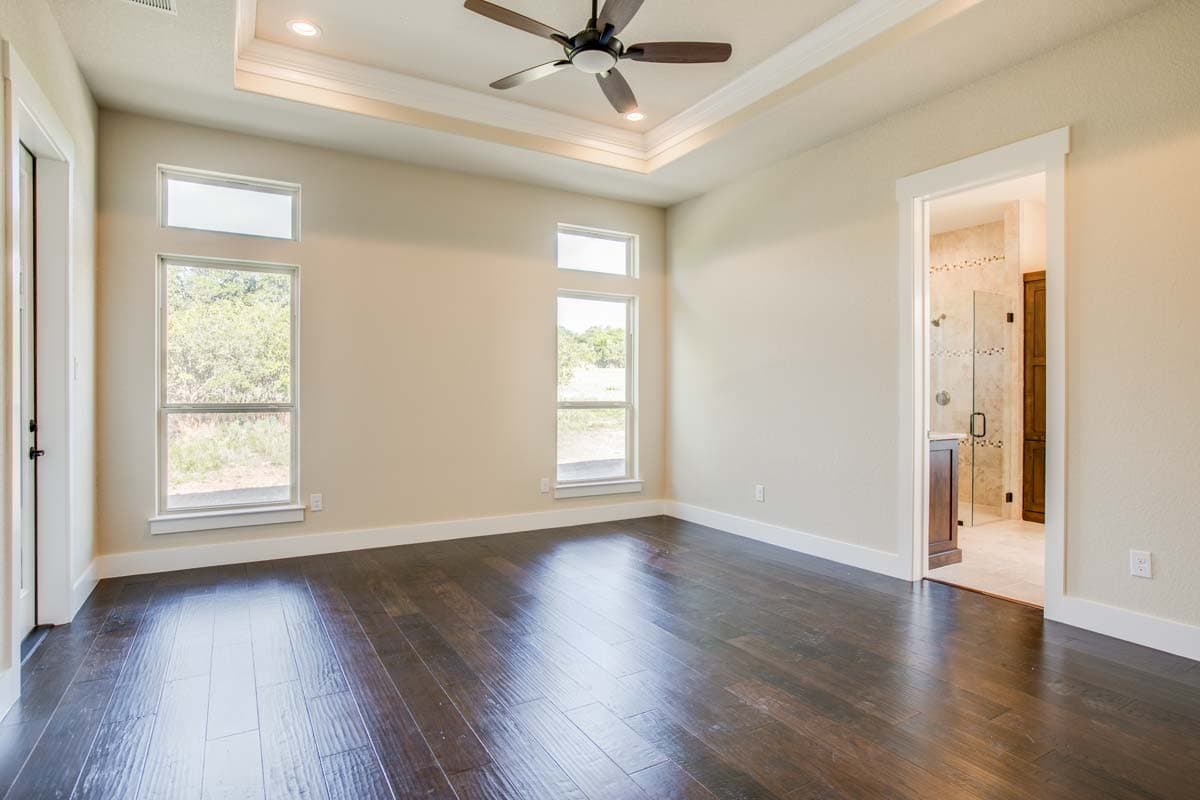

  • Set aside from the other bedrooms, the comfortable master suite enjoys a large walk-in closet, a giant master bathroom and a location close to the laundry room.
  • Sliding barn doors close off the study giving you a quiet spot to work in.
  • Three more family/guest bedrooms complete this home.

This designer's plans consist of the following:
  • Cover sheet
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Hill Country with Outdoor Living Room - 430021LY floor plan - Main Level

Contemporary Hill Country with Outdoor Living Room

  • 2,702

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,702 sq. ft.
  • 1st Floor: 2,702 sq. ft.

Dimensions

  • Width: 75' 2"
  • Depth: 65' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 839 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick And Truss
