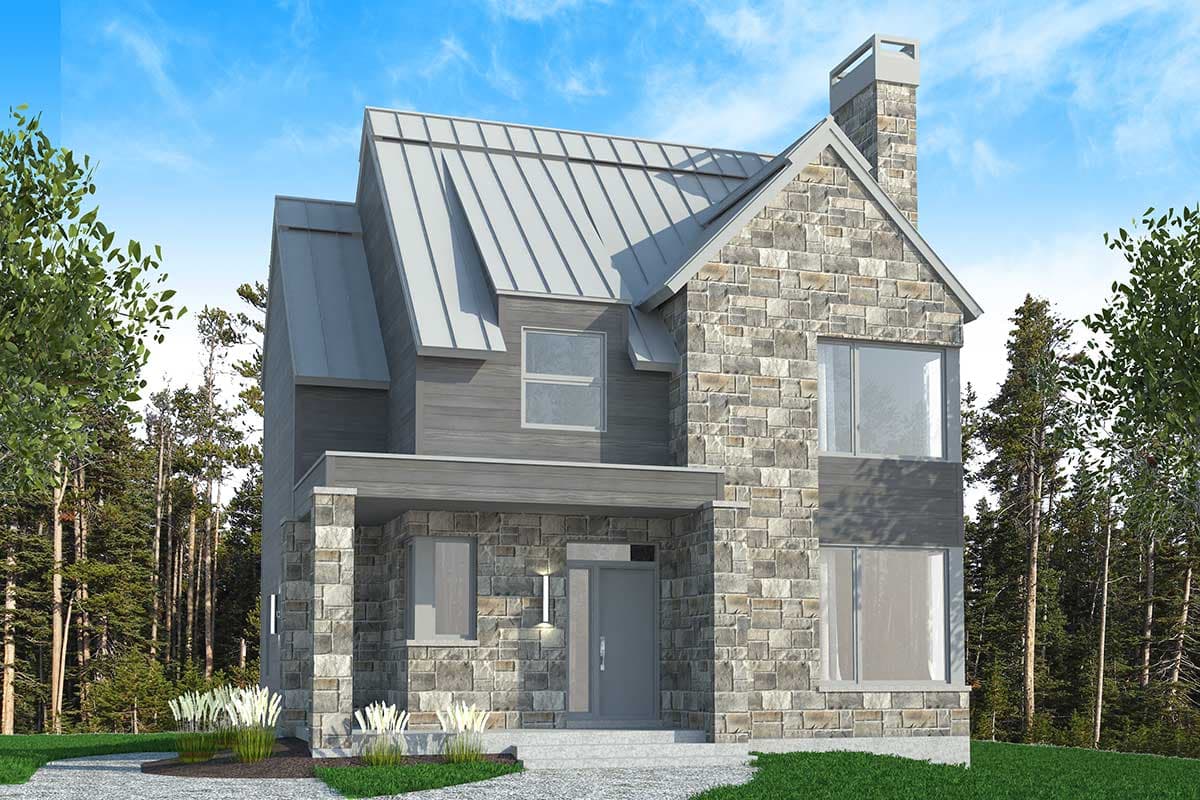

Contemporary Home Plan with Open Main Level

Plan 90323PD

This plan plants 3 trees

1,544
Heated s.f.
3
Beds
1.5
Baths
2
Stories

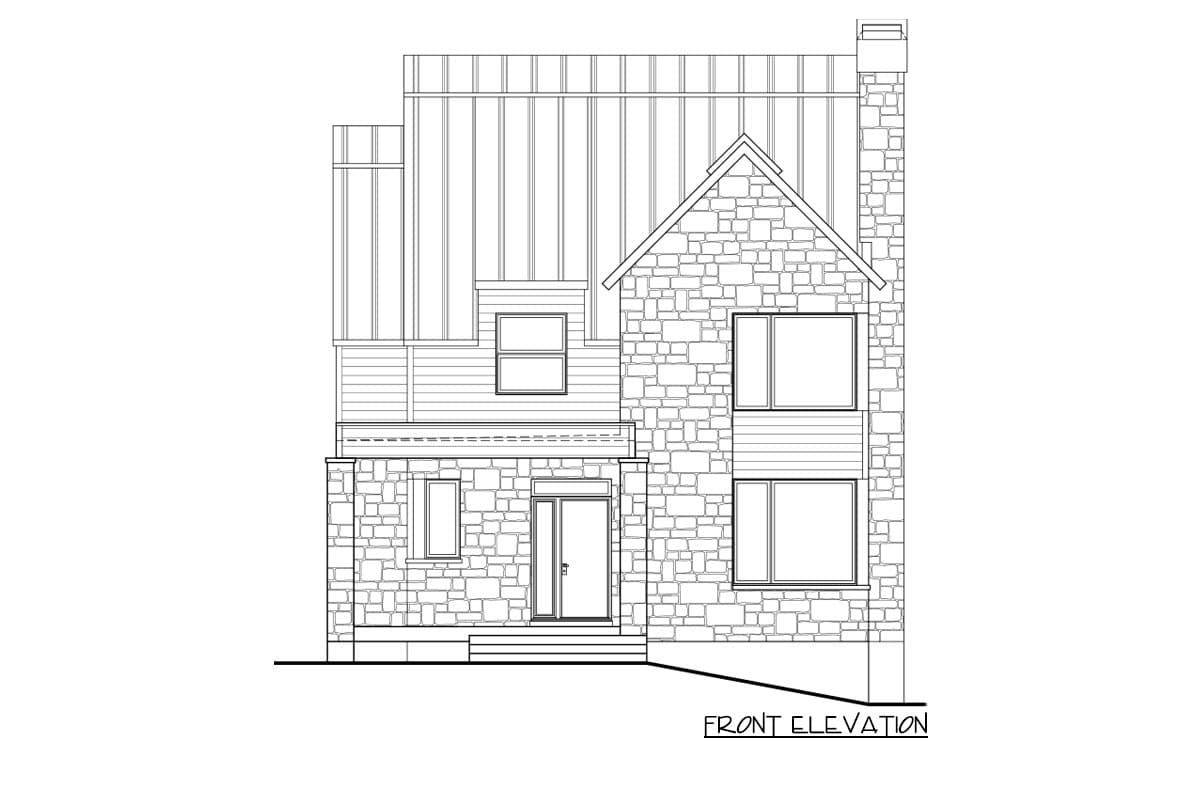

Stone accents on the front elevation add earthly tones and texture to the exterior of this Contemporary home plan; a total of 1,544 square feet of living space.
The front entry guides you directly into a spacious and open living space with no partitions between the living, dining, and kitchen areas.
Three seats reside at the kitchen island to aid in conversation, and sliding doors off the dining area lend easy access to a back deck; perfect for grilling season.

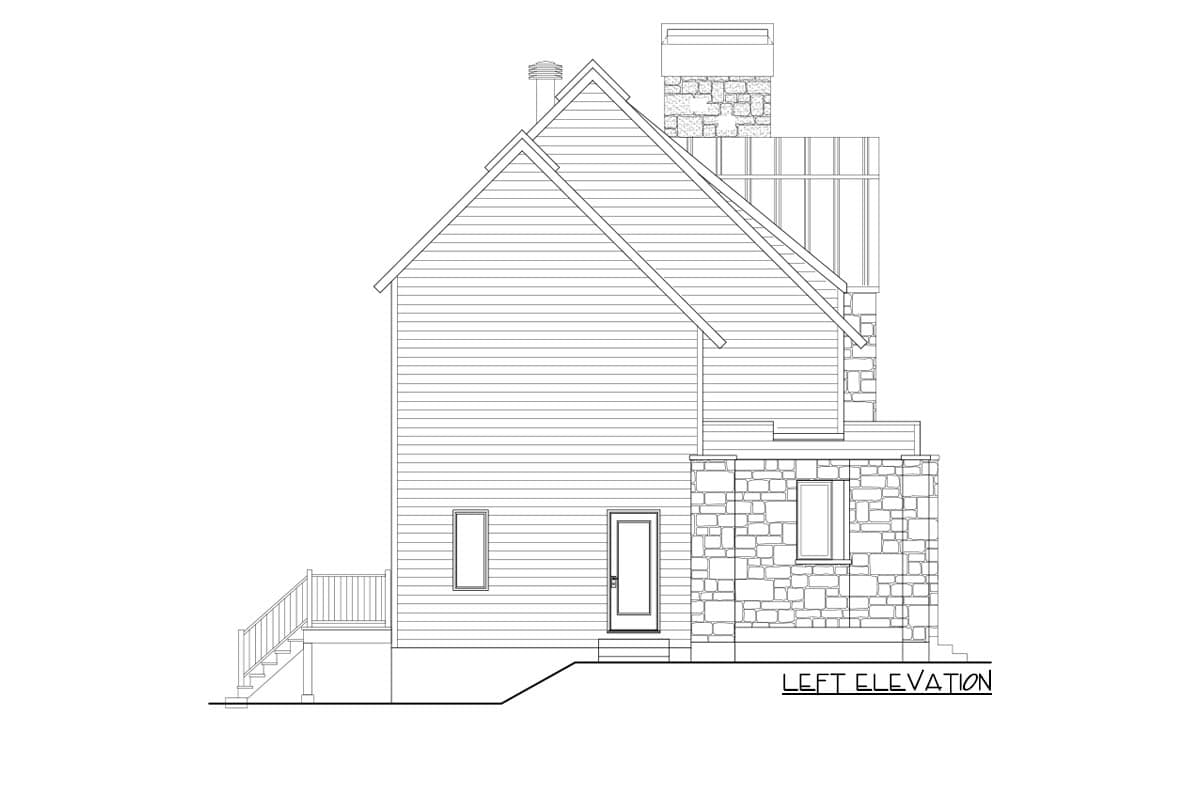

A powder bath and neighboring laundry room complete the main level and reside next to an exterior door on the left elevation.
Three bedrooms share the second level with a 5-fixture bathroom and a walk-in linen closet with plenty of storage space.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

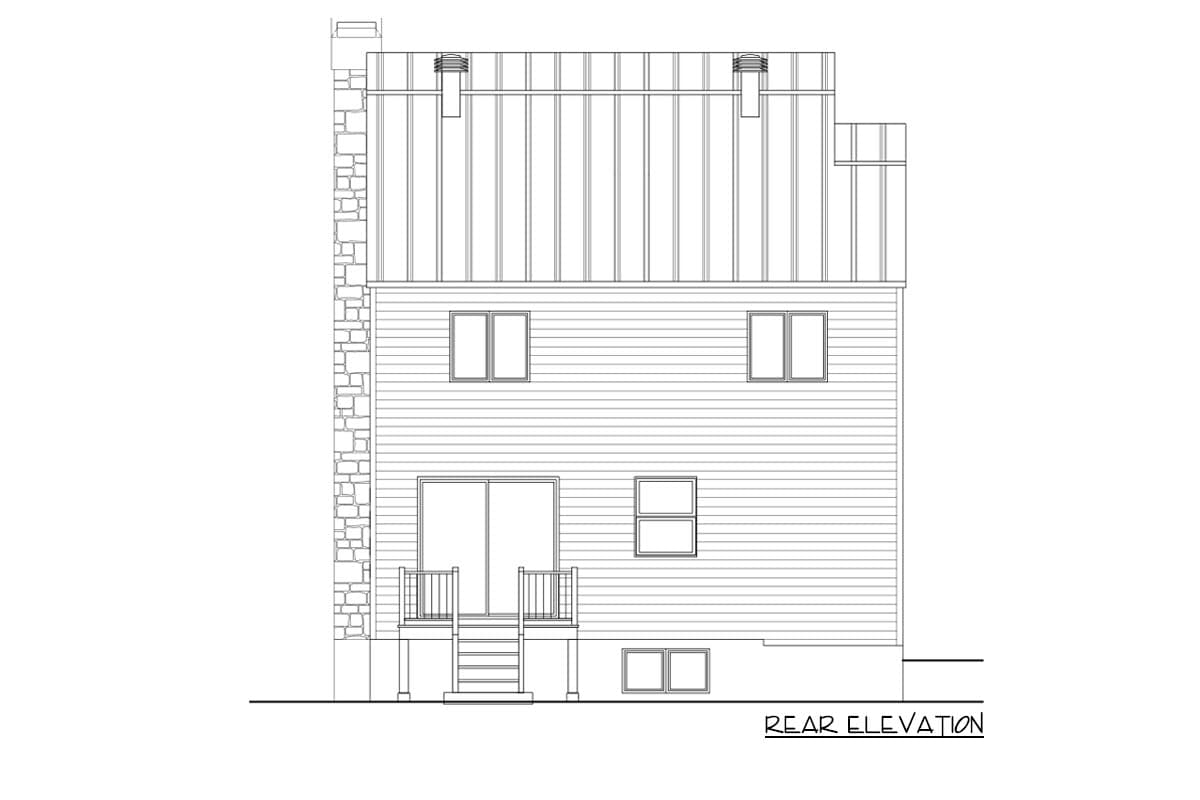

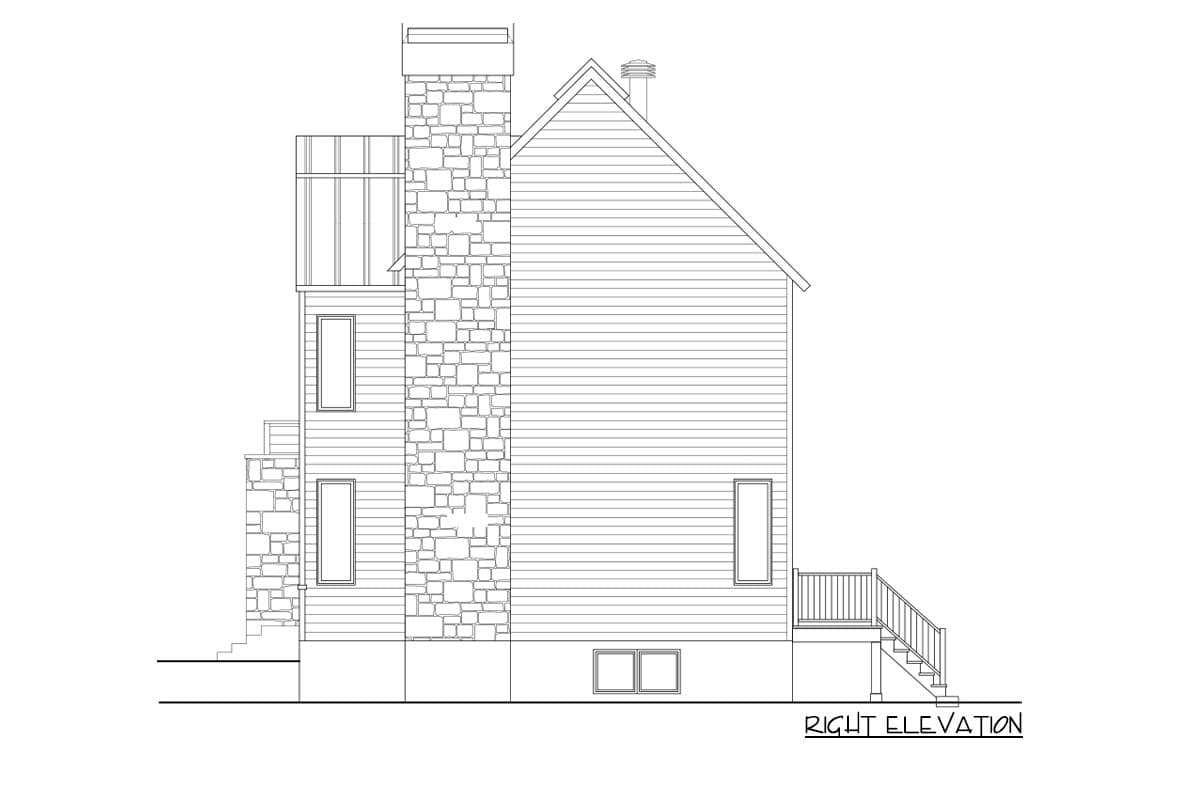

Elevations
Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
Main floor plan w/ structure for the roof above, electrical layout
Building section
Construction details

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

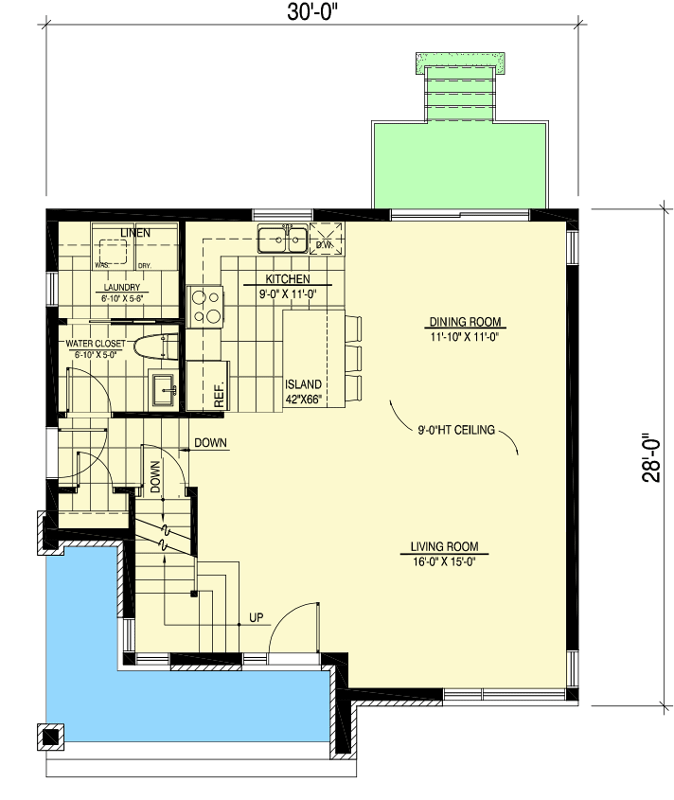

Contemporary Home Plan with Open Main Level - 90323PD floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

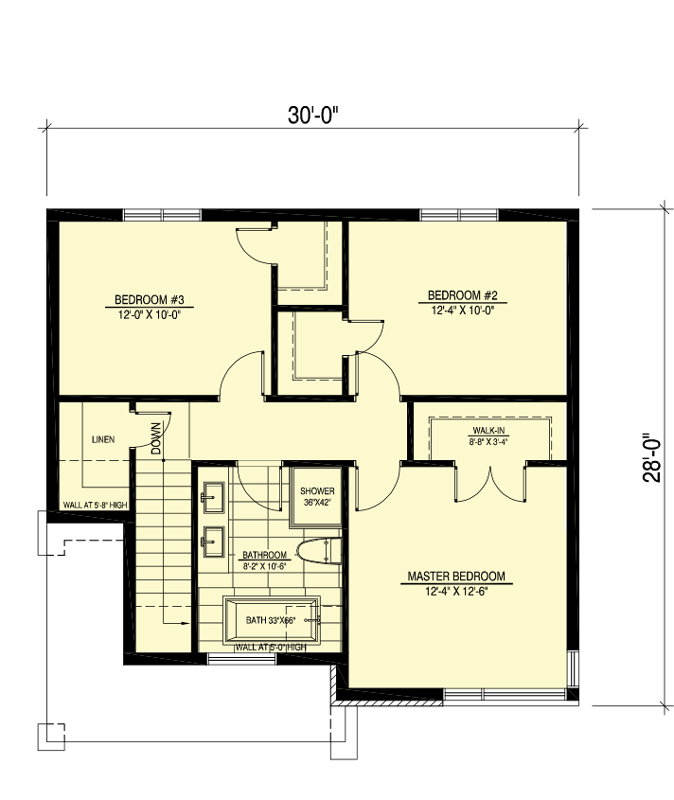

Contemporary Home Plan with Open Main Level - 90323PD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,544 sq. ft.
1st Floor: 776 sq. ft.
2nd Floor: 768 sq. ft.

Porch, Rear: 50 sq. ft.
Porch, Front: 91 sq. ft.
Basement Unfinished: 776 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 1
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 30' 0"
Depth: 28' 0"
Max ridge height: 35' 9"

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 12 on 12
Secondary Pitch: 12 on 12

Framing Type: Truss

Architectural Style

Special features
