Plan 28040J

Contemporary House Plan with Den and Bonus Room Under 1900 Square Feet

Heated S.F.
1,868
Beds
3 - 4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 28040J

Main Level
Main Level
2nd Floor
2nd Floor

Plan 28040J

M-F 9am-5pm EST |

1-203-761-8500

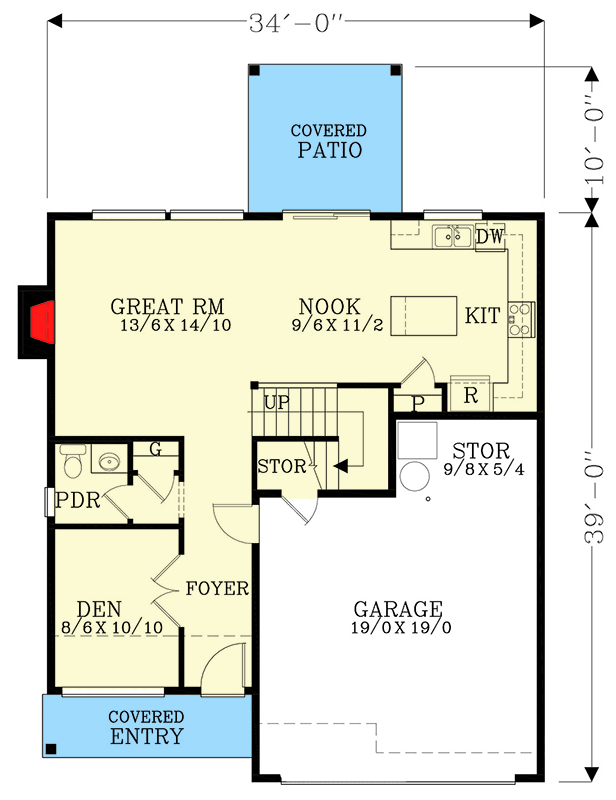

Main Level

Plan 28040J: Contemporary House Plan with Den and Bonus Room Under 1900 Square Feet - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Northwest

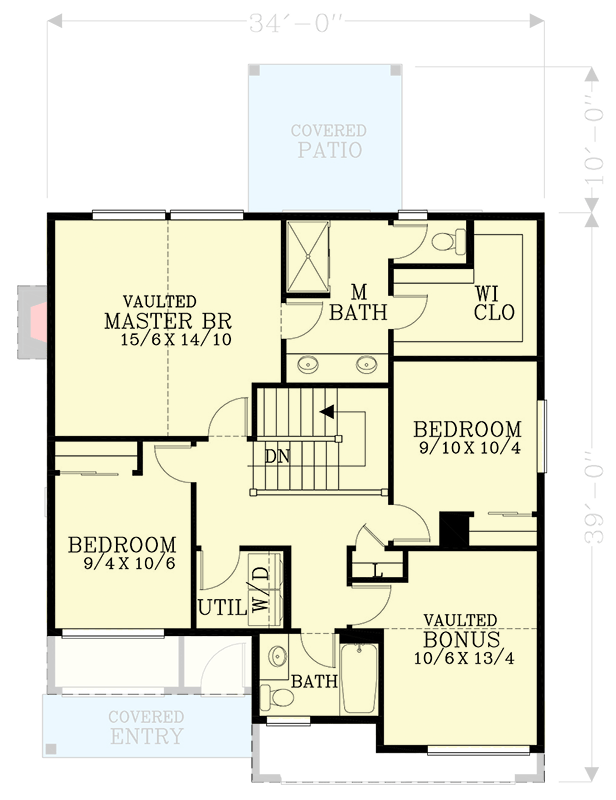

2nd Floor

Plan 28040J: Contemporary House Plan with Den and Bonus Room Under 1900 Square Feet - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern, Northwest

Plan Details

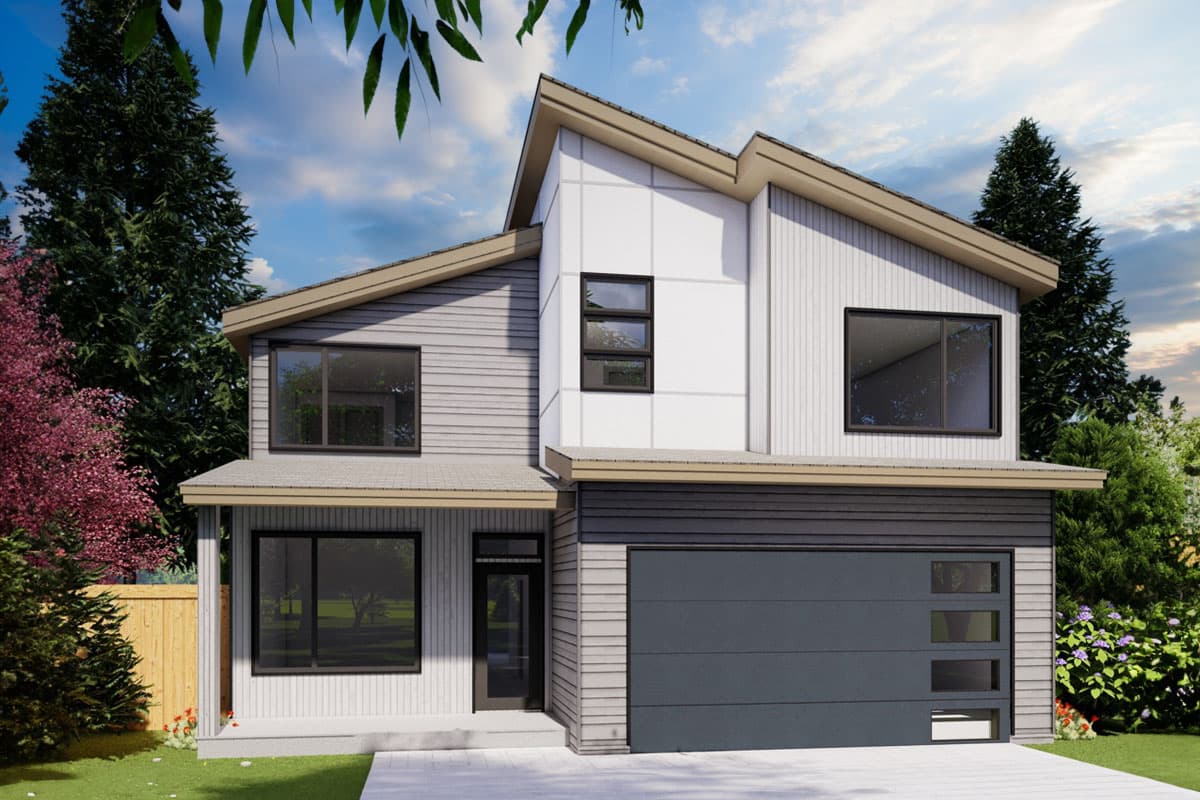

  • A blend of vertical and horizontal siding pairs with oversized panels to bring a Contemporary appeal to this 1,868 square foot house plan.

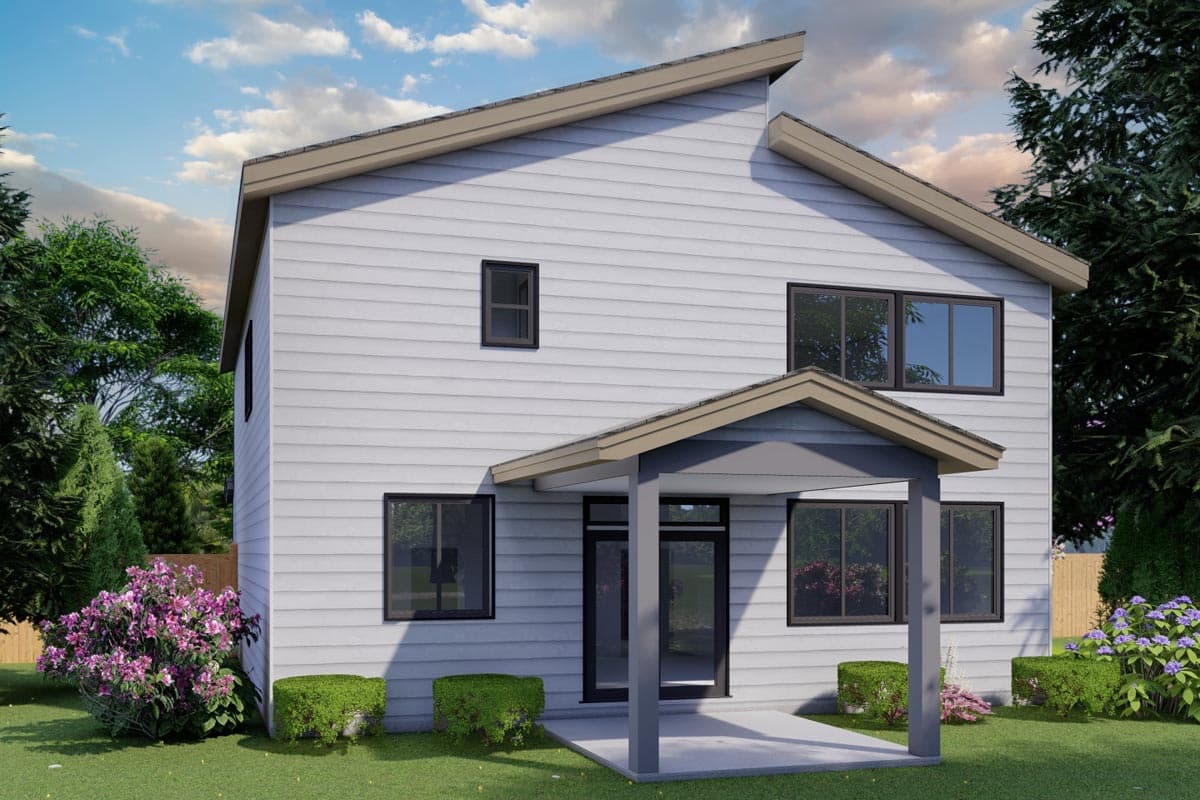

  • From the foyer, double doors unveil a quiet den, while the primary living spaces can be found along the rear elevation. Escape to the covered patio through sliding doors when grilling and/or entertaining and enjoy the outdoors.
  • U-shaped cabinetry surround a prep island to form the kitchen and a nearby closet pantry boosts storage space.
  • A vaulted master suite consumes a large portion of the second-level real estate with two large windows inviting natural light to fill the space.
  • Two secondary bedrooms and a bonus room - factored into the living area figure - share a full bath, and the laundry room is centrally located for convenience.
  • Related Plans: Get an alternate version with house plans 28047J, 28039J, 28046J and 28038J.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,868 sq. ft.

1st Floor

807 sq. ft.

2nd Floor

1,061 sq. ft.

Bonus

140 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

39' 0"

Max Ridge Height

27' 3"

Garage

Type

Attached

Area

361 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Breakfast Nook

Den

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room
