Contemporary House Plan with Finished Lower Level

Plan 90270PD

  • 3,216

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • Tall windows and transoms rise up high to bring lots of extra light into the main living area of this Contemporary house plan.
  • The kitchen has the best view in the house with its views of the living room, dining room, sun room and rear covered porch.
  • Located on the first floor, the master suite is large and comfortable with a private bathroom and big walk-in closet.
  • The other bedrooms are on the lower level along with a family room and tons of storage.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

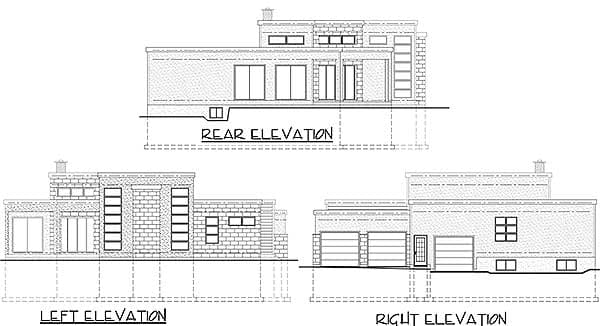

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary House Plan with Finished Lower Level - 90270PD floor plan - Basement
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

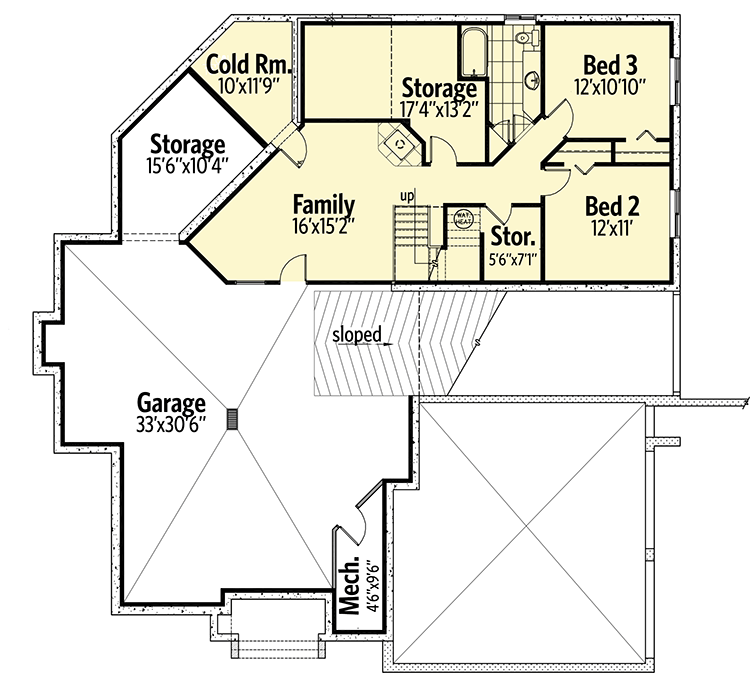

Contemporary House Plan with Finished Lower Level - 90270PD floor plan - Lower Level

Contemporary House Plan with Finished Lower Level

  • 3,216

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Basement

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,216 sq. ft.
  • Lower Level: 1,076 sq. ft.
  • 1st Floor: 2,140 sq. ft.

Dimensions

  • Width: 62' 0"
  • Depth: 63' 0"
  • Max ridge height: 19' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Drive Under, Attached
  • Area: 898 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
